Removing the LCD Panel

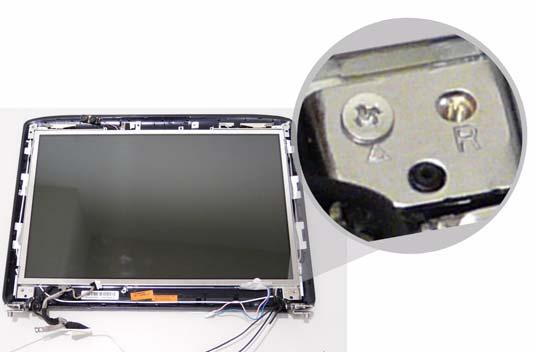

1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 88. 2. Remove the two securing screws from the LCD Module.

IMPORTANT:The correct screw sockets are indicated by a mark on the hinge.

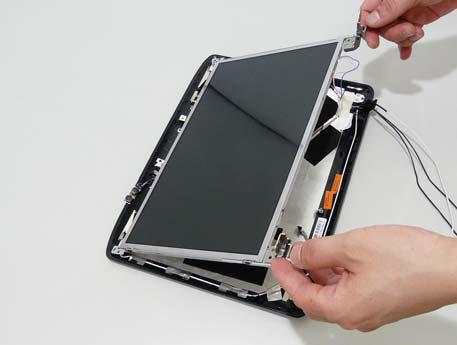

3. Grasp the LCD Panel by the hinges and tilt upwards and away to remove the LCD Module.

Step

Size

LCD Panel M2.5*4 2

Quantity Screw Type
