Bottom View

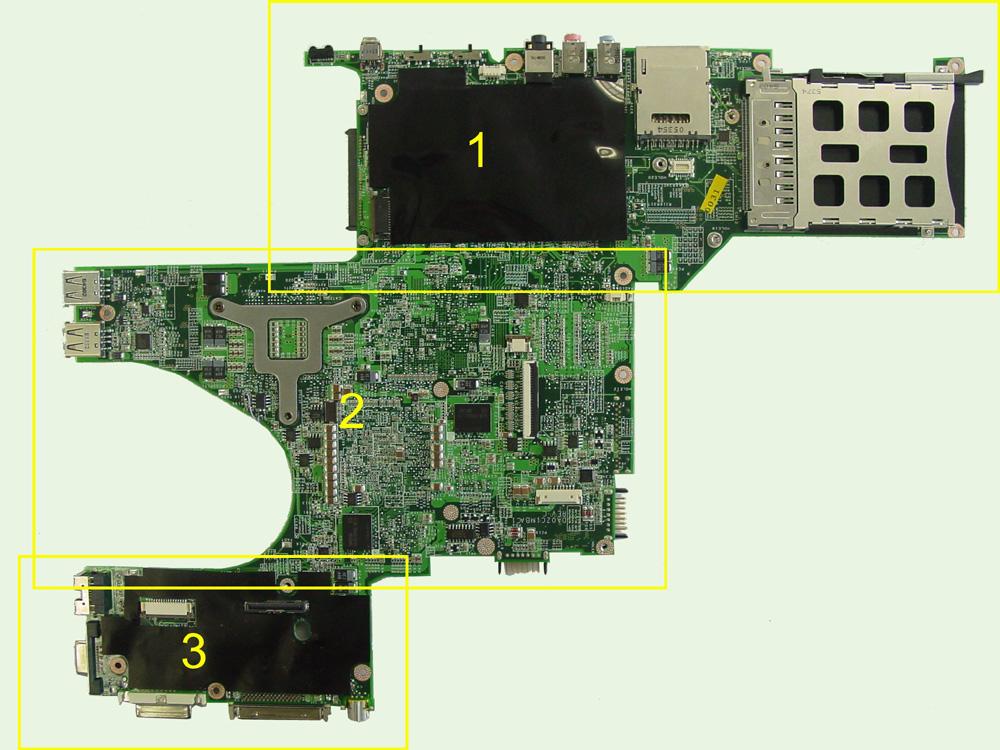

Part One of Bottom View

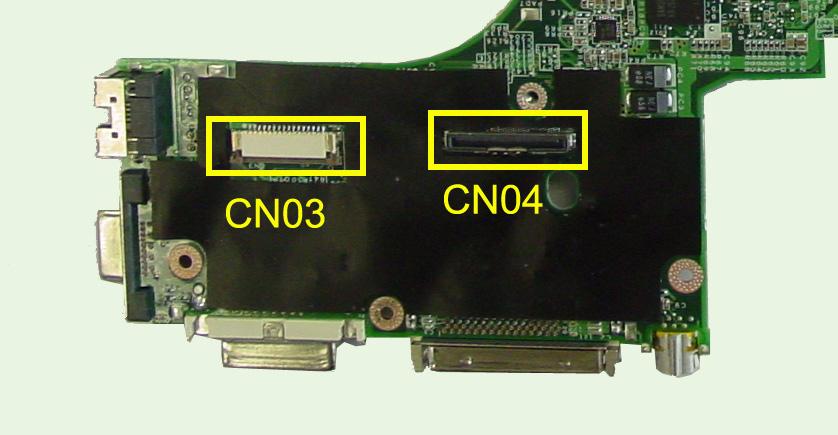

Part Three of Bottom View

Item Description Item

Description

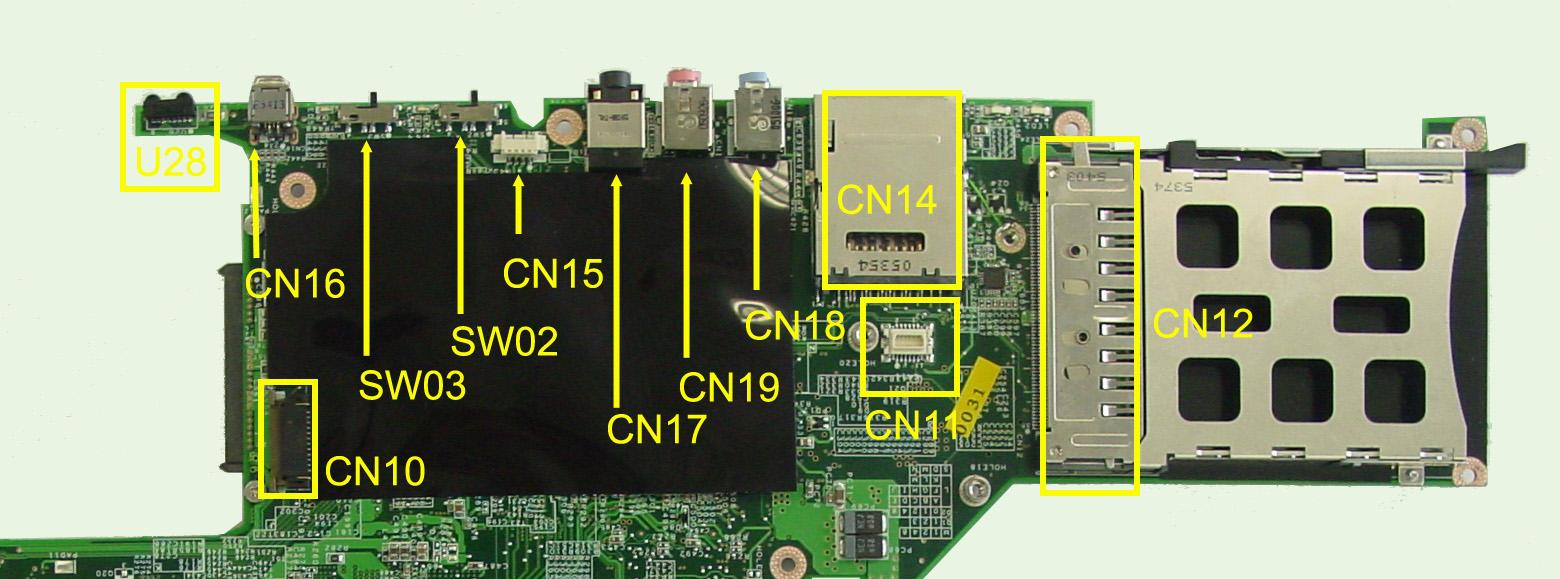

CN02 Mic connector (two pin) CN15 Speaker connector (four pin) CN03 Main board to button board FFC connector (16 pin) CN16 1394 (four pin) CN04 LCD connector (40 pin) CN17 SPDIF (line out) CN05 daughter board cable to main board (10 pin) CN18 Audio jack/line in CN06 Keyboard FFC connector (25 pin) CN19 Audio jack/mic CN07 Touchpad FFC connector (four pin) U06 V-RAM CN08 USB U10 V-RAM CN09 USB U28 IR module CN10 Smart card FFC connector SW02 Slider switch CN12 PCMCIA card header SW03 Slider switch CN14 Five-in-one card reader

FRU (Field Replaceable Unit) List

This chapter offers the FRU (Field Replaceable Unit) list in global configuration of Travelmate 8210/ 8200 series. Refer to this chapter whenever ordering the parts to repair or for RMA (Return Merchandise Authorization). Please note that when ordering FRU parts, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number is changed, it will NOT be noted on the printed service guide. For Acer authorized service providers, your Acer office may have a different part number code from those given in the FRU list of this printed service guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for service.

Note: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose them properly, or follow the rules set by your regional Acer office on how to return it.
