Chapter 5 Jumper and Connector Locations

Jumper and Connector Locations

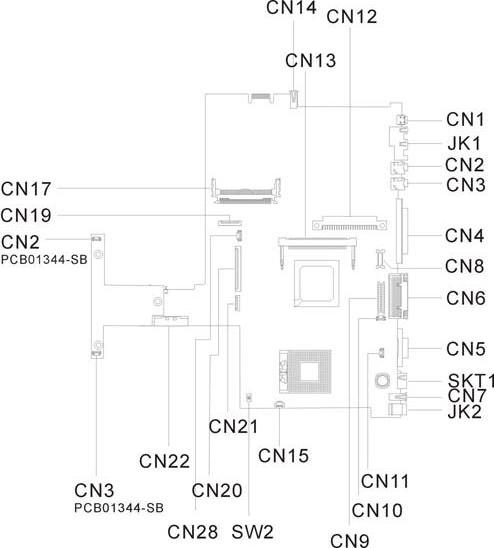

Top View

CN17 Cardbus Socket CN1 IEEE 1394 CN15 FAN Connector JK1 RJ45/11 CN2 Line-in Port CN3 Line-out Port CN4 Parallel Port CN6 Port Replicator CN5 VGA Port SKT1 PS/2 Port CN7 USB Port JK2 DC-in Port CN14 USB Port CN28 RTC Battery Connector CN8 LCD FPC Connector CN9 LED/Inverter Board Connector CN11 Microphone in Port CN10 LCD Cover Switch Connector CN20 Keyboard Connector CN21 TouchPad Connector CN22 External CD/DVD-ROM Module Connector CN12 HDD Connector

CN23 Battery Connector SW2 See SW2 Setting listed below

SW2 Settings

SW4 Setting

Switch 1 ON: Enable password check OFF: Disable password check Switch 2 ON: Enable BootBlock Erasable OFF: Disable BootBlock Erasable

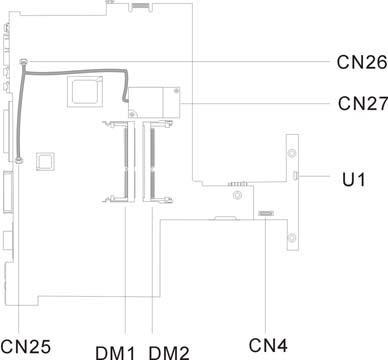

CN4 RF Module Connector U1 FIR CN25 Modem Connector DM2 DIMM Socket 2 CN26 Modem Connector DM1 DIMM socket 1 CN27 Modem board socket
