Chapter 5 Jumper and Connector Locations

Jumper and Connector Locations

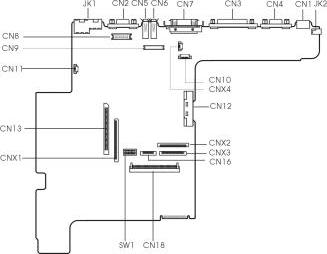

Top View

PCB No. 99206

CN1 PS/2 keyboard and Mouse Port CN12 CD-ROM Connector CN2 External Display Port CN13 PCMCIA Socket Connector CN3 Parallel Port CN16 Touch Pad Cable Connector CN4 Serial Port CN18 Hdd Connector CN5 USB Port 1 CNX1 Diskette Drive Connector CN6 USB Port 2 CNX2 Keyboard Cable Connector CN7 Expansion Port CNX3 Digital finger Print Sensor Connector (For castor only) CN8 LED & Inverter Connector CNX4 TV BD Connector CN9 LCD Connector JK1 Modem / Lan Port CN10 Cover Switch JK2 DC-in Port CN11 Launch Key Connector SW1 Switch

Keyboard Switch Settings

SW-1

SW-2

English OFF OFF Reserved Japanese ON OFF Reserved UK OFF ON Reserved English-International OFF OFF Reserved

SW-3

SW-4/5

SW-4

Acer OFF OFF

SW-6: Check Password

SW6 = OFF, Enable SW-6 = ON, Disable

SW-7: Boot Block Boot

SW-7 = OFF, Disable SW-7 = On, Enable

SW-5

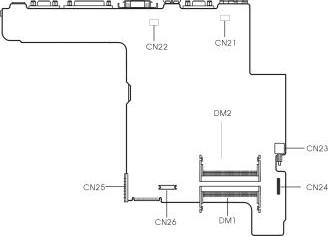

CN21 Modem Card Cable Connector CN25 Battery Connector CN22 Modem Card Cable Connector CN26 Modem Connector CN23 Power Push Switch DM1 DIMM 1 Socket CN24 Audio Connector DM2 DIMM 2 Socket (Reverse)
