Removing the LCD Bezel

1. See “Removing the Battery Pack” on page 51. 2. See “Removing the SD Dummy Card” on page 51. 3. See “Removing the Express Dummy Card” on page 52. 4. See “Removing the Lower Cover” on page 53. 5. See “Removing the Fan Module” on page 60. 6. See “Removing the CPU Heatsink Module” on page 61. 7. See “Removing the CPU” on page 62. 8. See “Removing the Middle Cover” on page 64. 9. See “Removing the Keyboard” on page 65. 10. See “Removing the LCD Module” on page 66. 11. Remove the six rounded screw caps as shown.

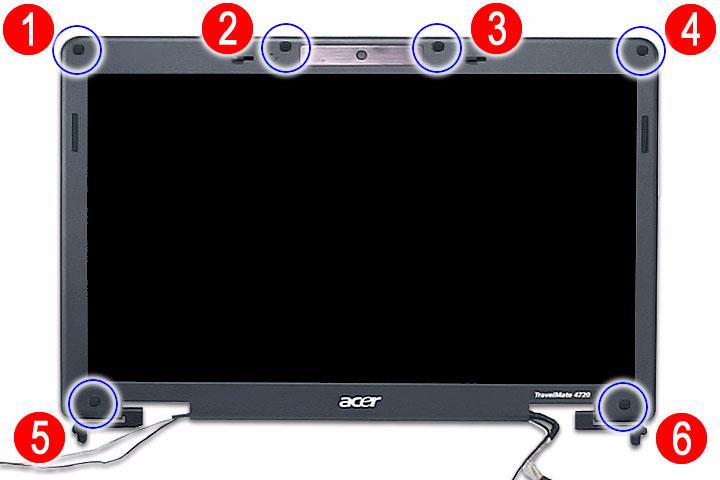

12. Remove the six screws (Ex2, Hx4) on the LCD module in the order as shown.

Step Size (Quantity) Color Torque

1~4 M2.5 x L5 (4) Black 3.0 kgf-cm 5~6 M2.5 x L6 (2) Black 3.0 kgf-cm
