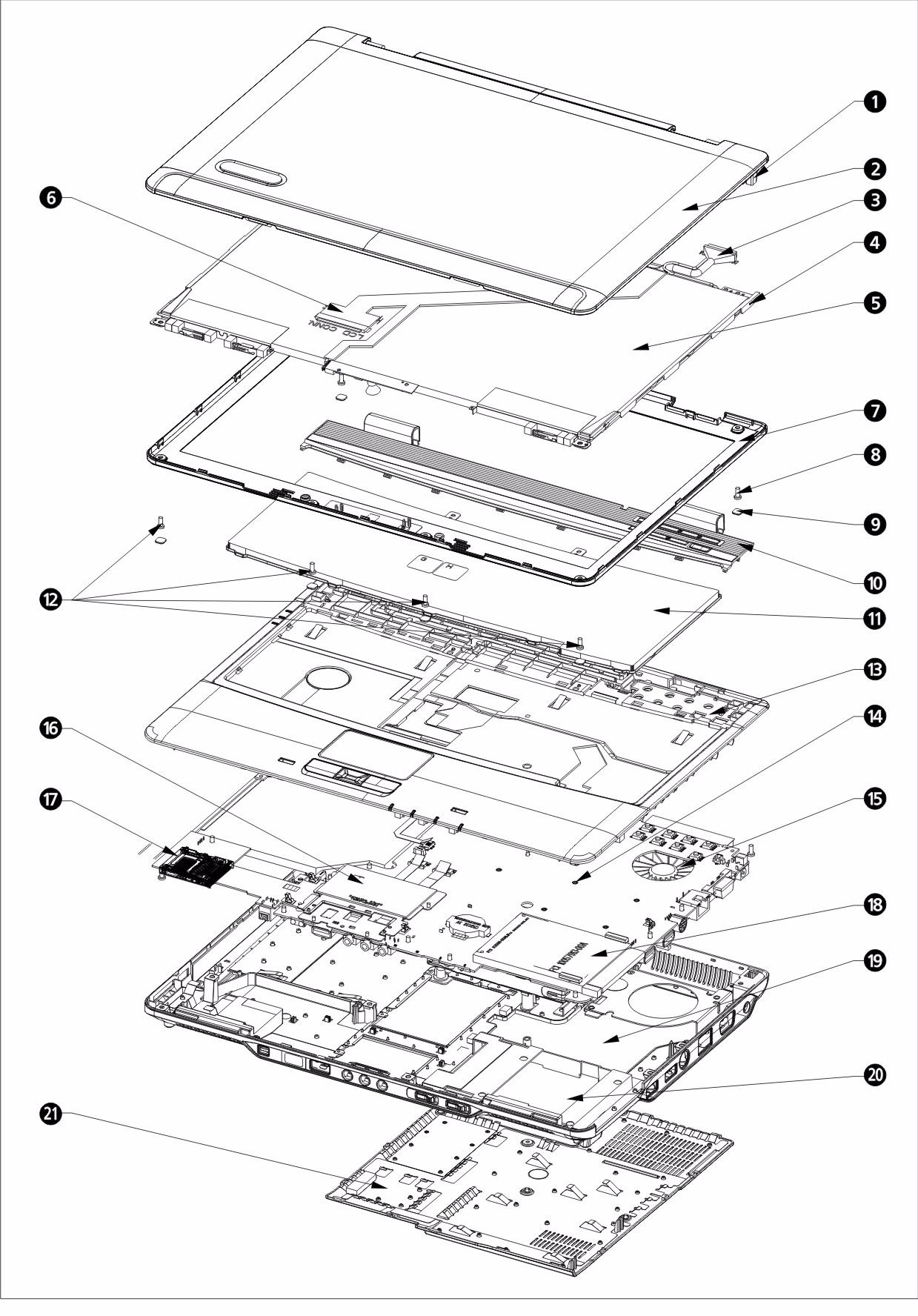

Travelmate 4720/4320 Exploded Diagram

1 LCD hinge 2 LCD back cover 60.4H008.001 3 LCD cable 4 LCD bracket 33.4H008.001, 33.4H009.001 5 LCD panel LK.14105.019, LK.14105.018, LK.14108.006, LK.14108.007, LK.1410D.015, LK.1410D.016 6 LCD FPC cable 50.4H010.011, 50.4H010.001, 50.4H010.021 7 LCD bezel 60.4H009.001 8 M2.5 x L6 scews 86.00E33.736 9 Rounded screw caps 47.4H005.001 10 Middle cover 60.4H004.001 11 Keyboard 9J.N8882.K1D 12 M2.5 x L6 scews 86.00E33.736 13 Upper case 60.4H002.001, 60.4H001.01 14 Mainboard MB.TK.501.001 15 System fan 23.10193.001 16 Touchpad bracket 33.4H004.001 17 5-in-1 card reader 18 PCI card socket 19 Lower case 60.4H005.001 20 HDD KH.08007.021, KH.12004.006, KH.12007.010, KH.12008.018 21 Lower cover 42.40C08.001

NOTE: The FRU List is not for Travelmate 4720/4320. The FRU list for Travelmate 4720/4320 is not ready as the service guide released. We will update the FRU list as soon as we got the latest FRU list.
