Removing the Bluetooth Board

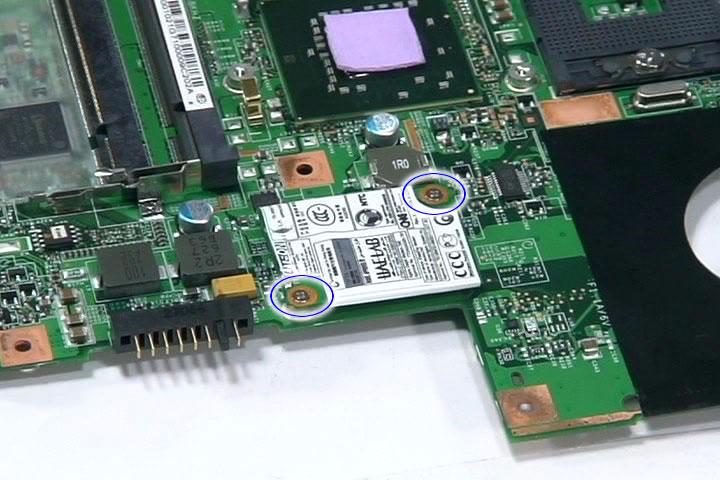

12. See “Remove the Daughter Board” on page 74. 13. See “Removing the Mainboard” on page 76. 14. Remove the two screws (C) on the modem board.

Step Size (Quantity) Color Torque 1~2 M2 x L3 (2) Silver 1.6 kgf-cm

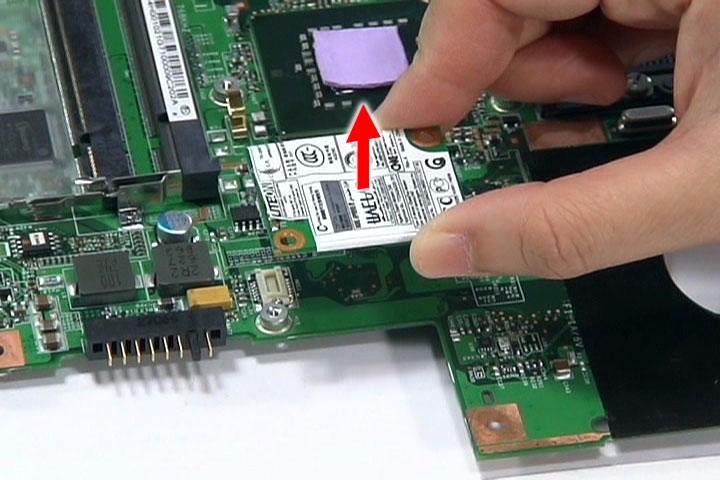

15. Detach the modem board from the mainboard.

1. See “Removing the Battery Pack” on page 51. 2. See “Removing the SD Dummy Card” on page 51. 3. See “Removing the Express Dummy Card” on page 52. 4. See “Removing the Lower Cover” on page 53. 5. See “Removing the Fan Module” on page 60. 6. See “Removing the CPU Heatsink Module” on page 61. 7. See “Removing the CPU” on page 62. 8. See “Removing the Middle Cover” on page 64. 9. See “Removing the Keyboard” on page 65. 10. See “Removing the LCD Module” on page 66. 11. See “Separating the Upper Case from the Lower Case” on page 70. 12. See “Remove the Daughter Board” on page 74. 13. See “Removing the Mainboard” on page 76.
