Separating the Upper Case from the Lower Case

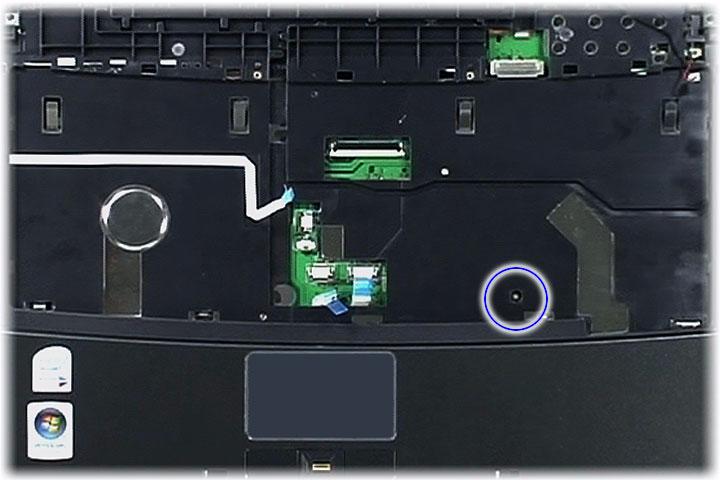

1. See “Removing the Battery Pack” on page 51. 2. See “Removing the SD Dummy Card” on page 51. 3. See “Removing the Express Dummy Card” on page 52. 4. See “Removing the Lower Cover” on page 53. 5. See “Removing the Fan Module” on page 60. 6. See “Removing the CPU Heatsink Module” on page 61. 7. See “Removing the CPU” on page 62. 8. See “Removing the Middle Cover” on page 64. 9. See “Removing the Keyboard” on page 65. 10. See “Removing the LCD Module” on page 66. 11. Remove the screw (A) on the top panel.

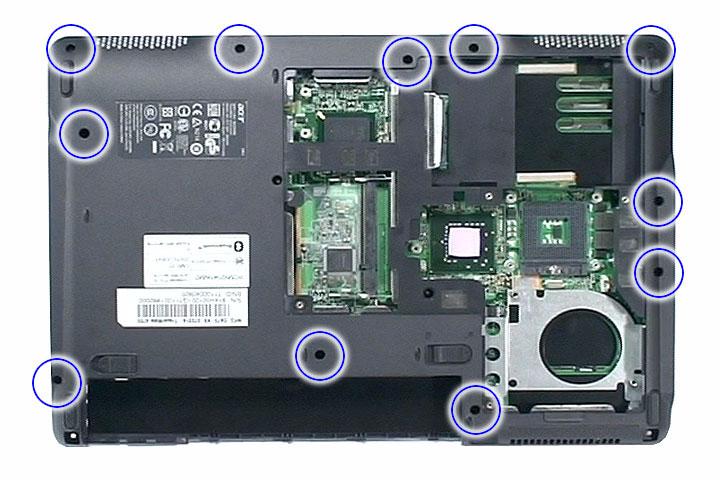

12. Turn the system over and remove the 11 screws (E) on the bottom panel.

Step Size (Quantity) Color Torque

1 M2 x L4 (1) Black 1.6 kgf-cm

Step Size (Quantity) Color Torque 1~11 M2.5 x L6 (11) Black 3.0 kgf-cm
