Chapter 1 System Specifications
System Specifications
Features
This computer was designed with the user in mind. Here are just a few of its many features:
Performance Intel® Pentium® M processor at 1.3 ~ 1.7 GHz or higher Intel 855PM Chipset Memory upgradeable up to 2GB with 2 slots Internal removable optical drive (AcerMedia bay) High-capacity, Enhanced-IDE hard disk Li-Ion main battery pack Power management system with ACPI (Advanced Configuration Power Interface)
Display
14.1” or 15.0” Thin-Film Transistor (TFT) displaying at 1024x768 XGA resolution or 15.0” Thin-Film
Transistor (TFT) displaying at 1400x1050 SXGA+ resolution ATI Mobility Radeon 9700 with 64MB of external DDR video RAM, supporting Microsoft-DirextX9.0 3D graphics engine Simultaneous LCD and CRT display support S-video for output to a television or display device that supports S-video input DualViewTM display support
Multimedia 16-bit high-fidelity AC’97 Codec stereo audio Built-in dual speakers High-speed optical drive (AcerMedia bay)
Connectivity High-speed fax/data modem port Ethernet/Fast Ethernet port Fast infrared wireless communication Three USB 2.0 (Universal Serial Bus) ports (Two in rear and one on left) IEEE 1394 port InviLink 802.11b/g wireless LAN (manufacturing optional) Bluetooth ready (manufacturing optional)
One type II CardBus PC Card slot One RJ-45 jack (Ethernet 10/100) One RJ-11 phone jack (V.92) One DC-in jack for AC adapter One parallel port One VGA port for external monitor One speaker/headphone-out jack (3.5mm mini jack) One microphone-in jack Three USB 2.0 ports (Two in rear and one on left) One FIR port (IrDA) One S-video port One IEEE1394 port

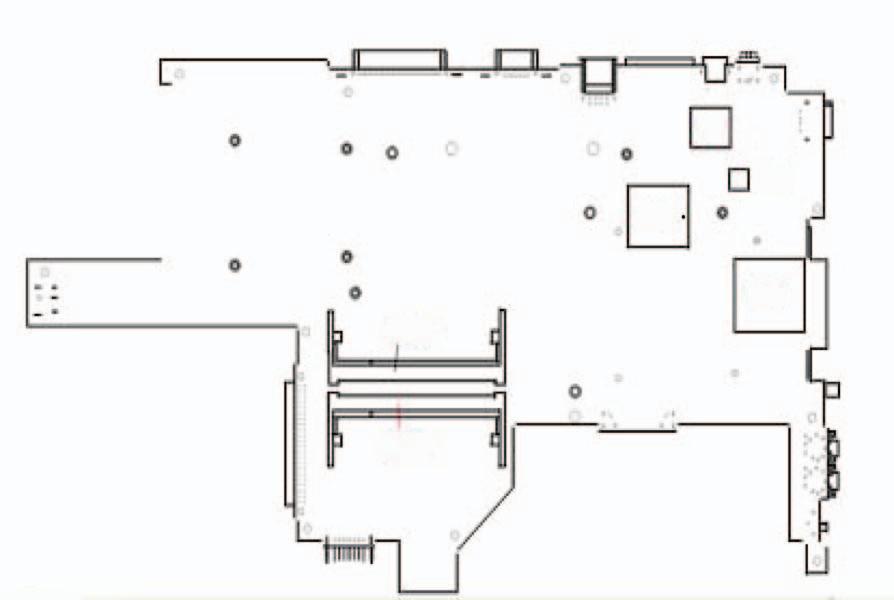

Top View
JP1 CRT Connector JP16 Module Connector
JP2 Parallel Port JP17 Mini PCI Connector
JP3 IEEE 1394 Connector JP18 Speaker Connector JP4 TV-OUT Connector JP19 Headphone-out Jack JP5 RJ11/RJ45 Connector JP20 SD Socket
JP6 USB Connector X2 JP21 Microphone-in Jack JP7 CPU FAN Connector JP22 HDD Connector
JP8 USB Connector JP23 LED Cable Connector
JP9 POWER Board Connector PCN1 AC-IN Jack
JP10 MBC Connector PJP9 Battery Connector JP11 VGA Board Connector SW3 Wireless Kill Switch
JP12 CPU Socket 479pin U9 BIOS ROM JP13 VGA Board Connector SW1 Lid Switch
JP15 PCMCIA Socket U17 North Bridge
JP25 SO-DIMM Socket U32 AC’97 Codec
JP26 SO-DIMM Socket U35 CardBus Controller
U29 IEEE 1394 Connector U36 EC
A general introduction of ports allow you to connect peripheral devices, as you would with a desktop PC.
Front Open View
# Icon Item Description 1 Display screen Also called LCD (liquid-crystal display), displays computer output. 2 Power Button Turns on the computer power. 3 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
4 Click buttons (left and right)
The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button. 5 Palmrest Comfortable support ares for your hands when you use the computer. 6 Keyboard Inputs data into your computer. 7 Status indicators LEDs (light-emitting diode) that turn on and off to show the status of the computer, its functions and components. 8 Launch keys Two special keys for frequently used programs.
# Icon Item Description 1 Latch Latch for opening and colsing the computer. 2 AcerMedia bay For hot-swappable modules including 24x CD-ROM, 8x DVD-ROM, or 24/10/8/24x DVD/CD-RW combo or 2x DVD-RW.

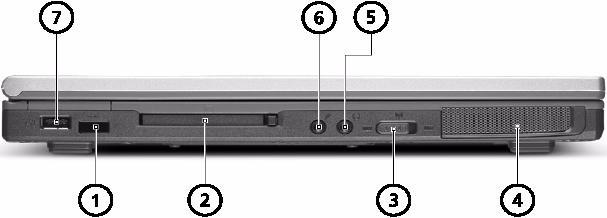

# Icon Item Description 1 Infrared port Interfaces with infrared devices (e.g., infrared printer, IR-aware computer).
2 PC card slot Accepts one Type II 16-bit PC card or 32bit CardBus PC card.
3 Wireless communication switch Enables and disables wireless communication devices.
4 Stereo speaker Outputs sound. 5 Headphone/Speaker/ Line-out jack Connects to headphones or other line-out audio devices (speakers).
6 Microphone/Line-in jack Accepts input from external microphone, or other audio line-in devices (e.g., audio CD player, stereo walkman and etc.).
7 One USB 2.0 port Connects to Universal Serial Bus devices (e.g., USB mouse, USB camera).

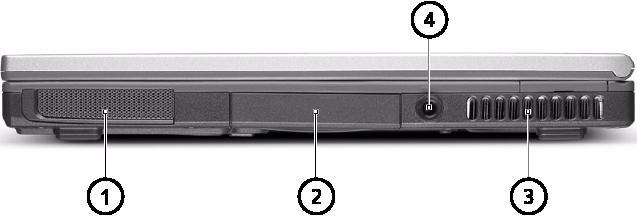

# Icon Item Description
1 Stereo speaker Outputs sound. 2 HDD Houses the computer hard disk.
3 Ventialtion slot Enables the computer to stay cool, even after prolonged use. 4 DC-in jack Connects the AC adapter.
# Item Description# Item Description # Item Description # Icon Item Description 1 IEEE 1394 port Connects IEEE 1394 devices.
2 S-video Connects to a television or display device with S-video input.
3 Ethernet port Connects to an Ethernet 10/100-based network.
4 Modem port Connects to a phone line.
5 Two USB 2.0 ports Connects to Universal Serial Bus devices (e.g., USB mouse, USB camera).
6 External display port Connects to a display device (e.g., external monitor, LCD projector).
7 Parallel port Connects to a parallel device (e.g., parallel printer).
8 Security keylock Connects to a Kensington-compatible computer security lock.
Icon Item# Description 1 RAM slot Houses the computer’s main memory. 2 AcerMedia bay release latch Unlatches the AcerMedia drive for removing the optical drive. 3 AcerMedia bay Houses an AcerMedia drive module. 4 Battery bay Houses the computer’s battery pack. 5 Battery release latch Unlatches the battery to remove the battery pack. 6 Hard disk bay Houses the computer’s hard disk (securedby a screw). 7 Cooling fan Helps keep the computer cool. Note: Don’t cover or obstruct the opening of the fan.
The computer has six easy-to-read status icons below the display screen.
The status LCD displays icons that show the status of the computer and its components.
Icon Function Description HDD Lights when Hard Disk Drive is activated.
ODD Lights when Optical Disk Drive is activated.
Scroll lock Lights when Scroll Lock is activated.
Caps lock Lights when Caps Lock is activated.
Pad lock (cursor) Lights when Pad lock is activated.
Num lock Lights when Num Lock is activated.
Wireless/Bluetooth indicator
Orange indicators that wireless LAN is enables; blue indicators that Bluetooth (optional) is enabledLights when the Wireless LAN or Bluetooth capabilities are enabled. Power Lights green when the power is on. Flashes when the computer is in standby mode.
Battery Lights green. Flashes when the battery is being charged or low capacity.
1. Charging: Flashing 1 sec. and off 3 sec. 2. Low capacity (about 10% for 8-cell battery and about 15% for 4-cell battery): Flashing 0.25 sec. and off 0.25 sec.
4. Fully charged: Stead on

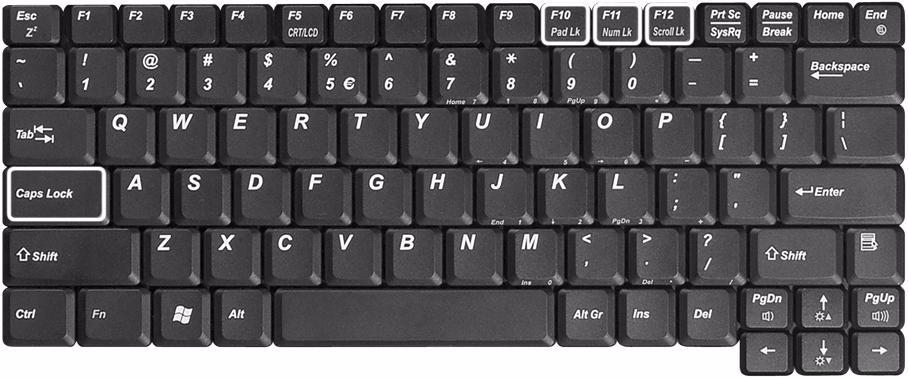

The keyboard has four lock keys which you can toggle on and off.
Lock Key Description Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.
Pad lock (Fn-F10) Num lock (Fn-F11)
Scroll lock (Fn-F12) When Pad Lock is on, the embedded keypad is enabled. In this mode the keypad is cursor function. When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad. When Scroll Lock is on, the screen moves one line up or down when you press w and y respectively. Scroll Lock does not work with some applications.
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the right hand side of the keycaps.
Desired Access Num Lock On
Number keys on embedded keypad
Type numbers in a normal manner. Main keyboard keys Hold <Fn> while typing letters on embedded keypad. Num Lock Off
Type the letters in a normal manner.

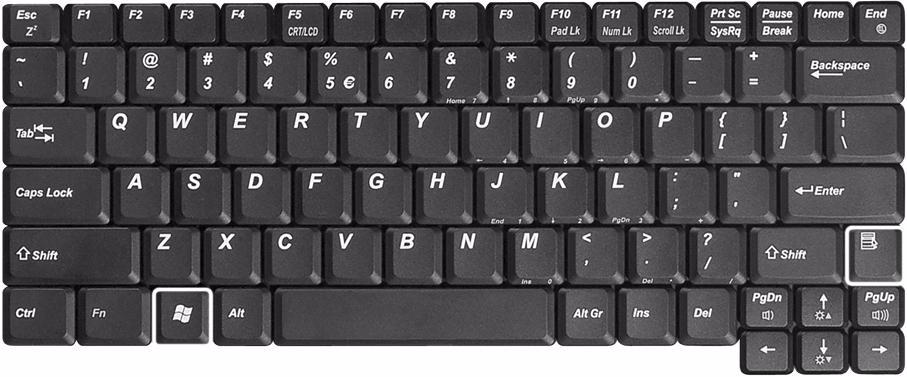

The keyboard has two keys that perform Windows-specific functions.
Key Windows logo key Icon
Application key Description Start button. Combinations with this key perform special functions. Below are a few examples:
+ Tab (Activates next taskbar button)
+ E (Explores My Computer)
+ F (Finds Document)
+ M (Minimizes All)
j + + M (Undoes Minimize All)
+ R (Displays the Run... dialog box) Opens a context menu (same as a right-click).

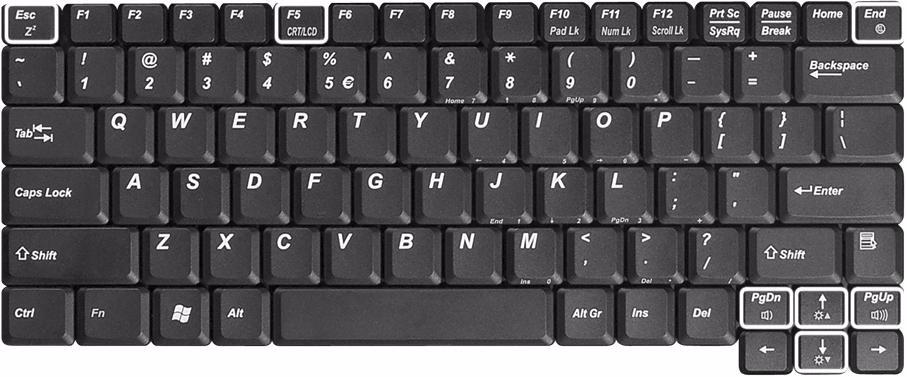

The computer uses hotkey or key combinations to access most of the computer’s controls like sreen brightness and volume output. To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.
Hot Key Icon Function Description Fn-Esc Sleep Puts the computer in Sleep mode.
Fn-F5 Display toggle Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor. Fn-End Speaker toggle Turns the speakers on and off.
Fn-PgUp Volume up Increases the speaker volume.
Fn-PgDn Volume down Decreases the speaker volume.
Fn-w
Fn-y Brightness up Increases the screen brightness.
Brightness down Decreases the screen brightness
If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a European layout, you can type the Euro symbol on your keyboard.
NOTE: For US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-International.
To verify the keyboard type in Windows 2000 and Windows Millennium Edition, follow the steps below: 1. Click on Start, Settings, Control Panel. 2. Double-click on Keyboard. 3. Click on the Language tab. 4. Verify that keyboard layout used for “En English (United States)” is set to United States-International. If not, select and click on Properties; then select United States-International and click on OK. 5. Click on OK.
To verify the keyboard type in Windows XP, follow the steps below: 1. Click on Start, Control Panel. 2. Double-click on Regional and Language Options. 3. Click on the Language tab and click on Details. 4. Verify that the keyboard layout used for "En English (United States)" is set to United States-International.
To type the Euro symbol: 1. Locate the Euro symbol on your keyboard. 2. Open a text editor or word processor. 3. Hold Alt Gr and press the Euro symbol. NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/ typography/faq/faq12.htm for more information.
Located at the top of keyboard are three buttons. The left-most button is the power button. To the right of the power button are the two launch keys. They are designated as the programmable buttons (P1 and P2).
Launch Key Default application P1 User-programmable P2 User-programmable
The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.
Touchpad Basics
The following items teach you how to use the touchpad:
Move your finger across the touchpad to move the cursor. Press the left and right buttons located on the edge of the touchpad to do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad produces similar results.
NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad’s responsiveness.
Function Left Button Right Button Tap
Execute Click twice quickly
Tap twice (at the same speed as double-clicking the mouse button) Select Click once Tap once Drag Click and hold, then use finger to drag the cursor on the touchpad Tap twice (at the same speed as double-clicking a mouse button) then hold finger to the touchpad on the second tap to drag the cursor
Access context menu Click once
Processor
CPU type Item Specification Intel® Pentium® M Processor at 1.3~1.7 GHz
CPU package µ
FCBGA package CPU core voltage Intel® Pentium® M Processor supports automatic selection of power supply voltage CPU I/O voltage 1.05V
BIOS
Item Specification
BIOS vendor Insyde BIOS Version Insyde MobilePRO BIOS 4.0 BIOS ROM type Flash ROM BIOS ROM size 512KB BIOS package 32 lead of PLCC Bupported protocols ACPI 1.0b,PC Card 95, SM BIOS 2.3, EPP/IEEE 1284, ECP/IEEE 1284 1.7 & 1.9, PCI 2.2, PnP 1.0a, DMI 2.0, USB, VGA BIOS, CD-ROM bootable BIOS password control Set by setup manual
Second Level Cache
Item Specification
Cache controller Built-in CPU Cache size Intel(R) Pentium(R) M Processor 1M 1st level cache control Always enabled 2nd level cache control Always enabled Cache scheme control Fixed in write-through
System Memory
Item Specification
Memory controller Intel 855PM Memory size 128MB/256MB/512MB/1024MB(1GB) DIMM socket number 2 sockets Supports memory size per socket 1024MB Supports maximum memory size 2GB (by two 1024MB SO-DIMM module) Supports DIMM type DDR Synchronous DRAM Supports DIMM Speed 333 MHz Supports DIMM voltage 2.5V Supports DIMM package 200-pin SO-DIMM Memory module combinations You can install memory modules in any combinations as long as they match the above specifications.
Memory Combinations
Slot 1 Slot 2 Total Memory
0MB 128MB 128MB 0MB 256MB 256MB 0MB 512MB 512MB 0MB 1024MB 1024MB 128MB 0MB 128MB 128MB 128MB 256MB 128MB 256MB 384MB 128MB 512MB 640MB 128MB 1024MB 1152MB 256MB 0MB 256MB 256MB 128MB 384MB 256MB 256MB 512MB 256MB 512MB 768MB 256MB 1024MB 1280MB 512MB 0MB 512MB 512MB 128MB 640MB 512MB 256MB 768MB 512MB 512MB 1024MB 512MB 1024MB 1536MB 1024MB 0MB 1024MB 1024MB 128MB 1152MB 1024MB 256MB 1280MB 1024MB 512MB 1536MB 1024MB 1024MB 2048MB(2G) NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations.
. LAN Interface
Item Supports LAN protocol 10/100 Mbps LAN connector type RJ45 LAN connector location Rear side Specification
. Modem/Bluethooth Interface
Item Specification
Data modem data baud rate (bps) 56K Supports modem/bluetooth protocol V.92 for MDC / Bluetooth 1.1 standard for BT modem Modem connector type RJ11 Modem connector location Rear side
Hard Disc Drive Interface
Item Vendor & Model Name
Capacity (MB) Bytes per sector Toshiba MK2023GAS HGST IC25N020ATMR04-0 Specification
HGST IC25N030ATMR04-0 Toshiba MK3021GAS FJV MHT2030AT HGST IC25N040ATMR04-0 Toshiba MK4021GAS Seagate ST94011A HGST HTS548040M9AT00
HGST IC25N060ATMR04-0 Toshiba MK6021GAS FJV MHT2060AT HGST HTS548060M9AT00 Toshiba MK6022GAX 20000 30000 40000 60000
512 512 512 512
Data heads 2 2 3 4 Drive Format Disks 1 1 2 2 Spindle speed (RPM) 4200 RPM 4200 RPM 4200 RPM 5400 RPM for Seagate ST94011A HGST HTS548040M9AT00 4200 RPM 5400 RPM for HTS548060M9AT00 Toshiba MK6022GAX
Performance Specifications Buffer size 2048KB 2048KB 2048KB 2048KB Interface ATA-5 ATA-5 ATA-5 ATA-5 Max. media transfer rate (diskbuffer, Mbytes/s) 164.6~ 257.1 154.3~ 298.0 154.3~ 298.0 154.3~ 298.0 Data transfer rate (host~buffe r, Mbytes/s) 100 MB/Sec. Ultra DMA mode-5 100 MB/Sec. Ultra DMA mode-5 100 MB/Sec. Ultra DMA mode-5 100 MB/Sec. Ultra DMA mode-5
DC Power Requirements Voltage tolerance 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5%
CD-ROM Interface
Item Specification Vendor & model name TEAC 24X CD-ROM CD-224E-C85 QSI 24X CD-ROM SCR-242 Performance Specification With CD Diskette With DVD Diskette Transfer rate (KB/sec) (Mode1) 4X-5.7X PCAV 600-855KByte/s 10.3X-24X CAV 1552-3600KByte/s (Mode2) 4X-5.7X PACV 684.4-975.3KBytes/s 10.3X-24X CAV 1769-4104KByte/s 3.3X-8X CAV 4463-10820KByte/s
Data Buffer Capacity 192 KBytes Interface IDE/ATAPI
Item
Specification Applicable disc format DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R (read, single border), DVD-RW(read) DVD-RAM (read, Version2.1), DVD-RAM (read, Version 1.0) CD: CD-Audio, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, CD-I, CD-I Bridge (Photo-CD, Video-CD) Multisession CD (Photo-CD, CD-EXTRA, CD-R, CD-RW), CD-R (read), CD-RW (read) Loading mechanism Load: Manual Release: (a) Electrical Release (Release Button) (b) Release by ATAPI command (c) Emergency Release
Power Requirement Input Voltage +5 V +/- 5 % (Operating) +/- 8 % (Start up) Input Voltage +5 V +/- 0.25V
DVD-ROM Interface
Item Specification
Vendor & model name Toshiba (SR-C2612) Performance Specification With CD Diskette With DVD Diskette Transfer rate (KB/sec) (Mode1) 4X-5.7X PCAV 600-855KByte/s 10.3X-24X CAV 1552-3600KByte/s (Mode2) 4X-5.7X PACV 684.4-975.3KBytes/s 10.3X-24X CAV 1769-4104KByte/s 3.3X-8X CAV 4463-10820KByte/s
Data Buffer Capacity 192 KBytes Interface IDE/ATAPI Applicable disc format DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R (read, single border), DVD-RW(read) DVD-RAM (read, Version2.1), DVD-RAM (read, Version 1.0) CD: CD-Audio, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, CD-I, CD-I Bridge (Photo-CD, Video-CD) Multisession CD (Photo-CD, CD-EXTRA, CD-R, CD-RW), CD-R (read), CD-RW (read) Loading mechanism Load: Manual Release: (a) Electrical Release (Release Button) (b) Release by ATAPI command (c) Emergency Release
Power Requirement Input Voltage +5 V +/- 5 % (Operating) +/- 8 % (Start up) Input Voltage +5 V +/- 0.25V
Combo Drive Interface
Item Specification Vendor & model name Lite-on 24X DVD+RW COMBO LSC-24082K QSI 24x DVD+RW COMBO SBW242C KME24x DVD+RW COMBO UJDA750QT-A Performance Specification With CD Diskette With DVD Diskette
Item Specification
Transfer rate (KB/sec) (Mode1) 4X-5.7X PCAV 600-855KByte/s 10.3X-24X CAV 1552-3600KByte/s (Mode2) 4X-5.7X PACV 684.4-975.3KBytes/s 10.3X-24X CAV 1769-4104KByte/s 3.3X-8X CAV 4463-10820KByte/s
Data Buffer Capacity 192 KBytes Interface IDE/ATAPI Applicable disc format DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R (read, single border), DVD-RW(read) DVD-RAM (read, Version2.1), DVD-RAM (read, Version 1.0) CD: CD-Audio, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, CD-I, CD-I Bridge (Photo-CD, Video-CD) Multisession CD (Photo-CD, CD-EXTRA, CD-R, CD-RW), CD-R (read), CD-RW (read) Loading mechanism Load: Manual Release: (a) Electrical Release (Release Button) (b) Release by ATAPI command (c) Emergency Release
Power Requirement Input Voltage +5 V +/- 5 % (Operating) +/- 8 % (Start up) Input Voltage +5 V +/- 0.25V
DVD Dual Interface
Item Specification Vendor & model name HLDS 2x DVD-Dual GWA-4040N Toshiba 4x DVD-Dual SD-R6372 Performance Specification With CD Diskette With DVD Diskette Transfer rate (KB/sec) (Mode1) 4X-5.7X PCAV 600-855KByte/s 10.3X-24X CAV 1552-3600KByte/s (Mode2) 4X-5.7X PACV 684.4-975.3KBytes/s 10.3X-24X CAV 1769-4104KByte/s 3.3X-8X CAV 4463-10820KByte/s
Data Buffer Capacity 192 KBytes Interface IDE/ATAPI Applicable disc format DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R (read, single border), DVD-RW(read) DVD-RAM (read, Version2.1), DVD-RAM (read, Version 1.0) CD: CD-Audio, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, CD-I, CD-I Bridge (Photo-CD, Video-CD) Multisession CD (Photo-CD, CD-EXTRA, CD-R, CD-RW), CD-R (read), CD-RW (read) Loading mechanism Load: Manual Release: (a) Electrical Release (Release Button) (b) Release by ATAPI command (c) Emergency Release
Power Requirement Input Voltage +5 V +/- 5 % (Operating) +/- 8 % (Start up) Input Voltage +5 V +/- 0.25V
Audio Interface
Item Specification
Audio Controller Realtek ALC202 AC97 Codec Audio onboard or optional Built-in Mono or Stereo Stereo Resolution 20 bit stereo Digital to Analog converter 18 bit stereo Analog to Ditial converter Compatibility AC97 2.2 & WHQL spec. Mixed sound source CD Sampling rate 48 KHz Internal microphone No Internal speaker / Quantity Yes / 2
Video Interface
Item Video vendor ATI Video name M11P Chip voltage Core/1.2V Supports ZV (Zoomed Video) port No Specification
Parallel Port
Item Specification
Parallel port controller SMC FDC47N217 Number of parallel port One Location Rear side Connector type 25-pin D-type connector, in female type Parallel port function control Enable/Disable/Auto (BIOS or operating system chooses configuration) by BIOS setup Note: Depending on your operating system, disabling an unused device may help free systen resources for other devices.
Supports ECP/EPP/Bi-directional (PS/2 compatible) Yes (set by BIOS setup) Note: When Mode is selected as EPP mode, “3BCh” will not be available.
Optional ECP DMA channel (in BIOS setup) Optional parallel port I/O address (in BIOS setup) Optional parallel port IRQ (in BIOS setup) DMA channel 1
378h, 278h
IRQ7, IRQ5
USB Port
Item Specification
USB compliancy level 2.0 OHCI USB 2.0 Number of USB port 3 Location Two on rear and one on left Serial port function control Enable/Disable by BIOS setup
PCMCIA Port
Item PCMCIA controller ENE CB1410 CardBus Supports card type Type II Number of slots One type-II Access location Left panel Supports ZV (Zoomed Video) port No ZV support Supports 32 bit CardBus Yes
System Board Major Chips
Item System core logic Intel 855PM Super I/O controller SMC FDC47N217 Audio controller Realtek ALC250 Video controller ATI Mobility Radeon 9700 Hard disk drive controller Intel FW82801 Keyboard controller ENE KB910 Specification
Controller
Keyboard
Item Specification
Keyboard controller ENE KB910 Keyboard vendor & model name Standard keyboard w/o launch button embeded Total number of keypads 85/US, 86/UK keys with 101/102 key emulation Windows logo key Yes Internal & external keyboard work simultaneously Yes
Battery
Item Vendor & model name Sony/Samsung Battery Type Li-ion Pack capacity 31Wh / 63Wh Cell voltage 3.7V/cell Number of battery cell 8 Package voltag 14.8V Specification
LCD
Item Vendor & model name CMO N141X6L01 Toppoly TD141TGC B1 Specification
AU B150XG01 AU B150XG02 LG LP150X08 AU B150PG01
Mechanical Specifications LCD display area (diagonal, inch) 14.1” 14.1” 15.0” 15.0” 15.0” 15.0"
Item Specification
Display technology TFT TFT TFT TFT TFT TFT
Resolution XGA (1024* 768) XGA (1024* 768) XGA (1024* 768) XGA (1024* 768) XGA (1024* 768) SXGA (1400* 1050)
Supports colors 262K 262K 262K 262K 262K 262K
Optical Specification Contrast ratio 150 (min) 200 (Typ.)
Response time (msec) Rising: 15 Falling: 35 300:1 300:1 300:1 250:1 250:1
Not show 35 25 30 50
Limuinance, white, 5P (cd/ m2) Brightness control Contrast control 150 150 180 200 150 150
key-board hotkey key-board hotkey key-board hotkey key-board hotkey key-board hotkey
key-board hotkey No No No No No No
Suspend/ Standby control Yes Yes Yes Yes Yes Yes
Electrical Specification Supply voltage for LCD display (V) 3.3 3.3 3.3 3.3 3.3 3.3
AC Adapter
Item Specification Vendor & model name LITEON 65W, 3 PIN, PA-1650-02CA Input Requirements Input Voltage(Maximum) 137 (low range) 265 (high range) Nominal frequency (Hz) 47 - 63 Output Ratings (CV mode) Noise + Ripple 380mvp-pmax (20MHz bandwidth) for resistor load as output voltage is 18.5V Output Ratings (CC mode) DC output voltage 18.0 ~ 19.2 Constant output 3.3A Dynamic Output Characteristics Start-up time 3 sec. (@115 Vac and 230Vac full load) Hold up time 5ms min. (@115 Vac input, full load) Over Voltage Protection (OVP) 29V Short circuit protection Output can be shorted without damage, and auto recovery
AC Adapter
Item Vendor & model name DELTA ADP-65DB, 3pins Specification
Item Input Characteristics Input Rated Voltage 100V/240V Input Voltage Range 90VAC to 270VAC Input Frequency Range 47Hz to 63Hz Input Voltage Harmonic Distortion larger than or equal to 8% Specification
Input Current (100Vac, 240Vac / 3.5A loag) larger than or equal to 1.5A
Output Characteristics Output Rated Voltage 20V Output Current 0A to 3.5A Output Voltage Setting 19.5V to 21V Output Voltage Ripple and Noise(90Vac/70W load; 264Vac/ 70W load) larger than or equal to 300mVp-p
Dynamic Load Change 19.5~21V Protection Characteristics Over Voltage Protection 25V
Power Management
ACPI Mode Power Management Mech. Off (G3) All devices in the system are turned off completely. Soft Off (G2/S5) OS initiated shutdown. All devices in the system are turned off completely. Working (G0/S0) Individual devices such as the CPU and hard disk may be power managed in this state. Sleeping State (S3) CPU Power Down VGA Power Down PCMCIA Suspend Audio Power Down Hard Disk Power Down Super I/O Power Down Sleeping State (S4) Also called Hibernate state. System saves all system states and data onto the disk prior to power off the whole system.
Environmental Requirements
Temperature Operating Item
+5 ~ +35°C
Non-operating -20 ~ +65°C
Non-operating -20 ~ +65°C (storage package)
Humidity Operating 20% to 80% RH Non-operating 20% to 80% RH Specification
Mechanical Specification
Item Specification Dimensions 333.6mm (W) x 276.3mm (D) x 32mm (H) for 14.1/15.0 inch model Weight 6.15lb (2.79kg) for 14.1 inch model 6.26lb (2.84kg) for 15.0 inch model I/O Ports One type II CardBus slots, one RJ-11 modem jack, one RJ-45 network jack, one DC-in jack for AC adapter, one ECP/EPP-compliant parallel port, one external monitor port, one headphone/speaker/line-out jack (3.5mm mini jack), one microphone/line-in jack (3.5mm mini jack), three Universal Serial Bus (USB) ports, one IEEE 1394 port, one S-video port Material Cover material: ABS Indicators Power, Battery charge, HDD, ODD, Wireless/Bluetooth communication, Caps lock, Pad lock, Num lock and Scroll lock indicators Switch Power switch Lid switch User define switch 1, 2 Wireless ON/OFF switch
