Removing the LCD Brackets and FPC Cable

1. See “Removing the LCD Panel” on page 119. 2. Remove the eight securing screws (four each side) from the LCD Panel brackets.

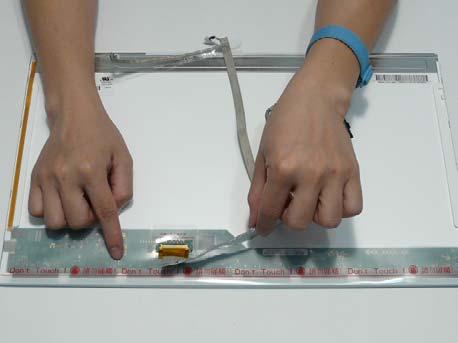

3. Remove the brackets from the LCD Panel. 4. Turn the panel over. Lift the cable as shown to detach the adhesive from the panel.

Step

Size

LCD Brackets M2*3 8

Quantity Screw Type

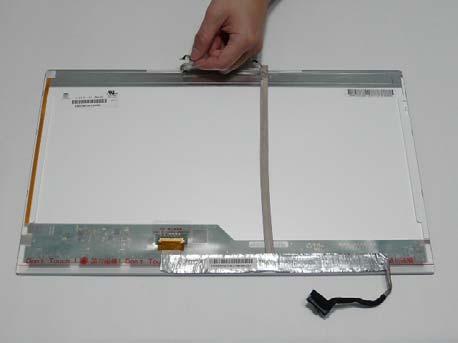

6. Disconnect the cable from the LCD Panel as shown.
