Removing the TouchPad Lock Board

1. See “Removing the Upper Cover” on page 81. 2. Open the locking latch on the FFC and disconnect it from the TouchPad Lock Board.

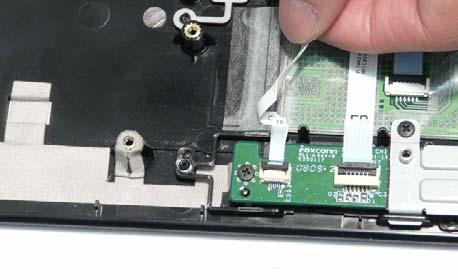

3. Lift the FFC away from the Upper Cover to detach the adhesive securing it in place.

4. Open the locking latch on the FFC and disconnect it from the Finger Print Reader.

Step

TouchPad Lock Board

Size

M2*3 1

Quantity Screw Type

6. Lift and rotate the board in the direction of the arrow to remove it from the Upper Cover.
