Removing the Power Saving Board FFC

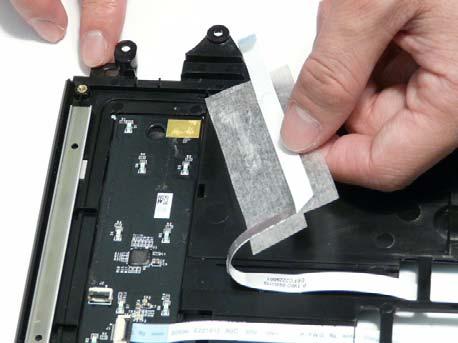

1. See “Removing the Upper Cover” on page 81. 2. Lift the protective covering and FFC away from the Upper Cover to detach the adhesive.

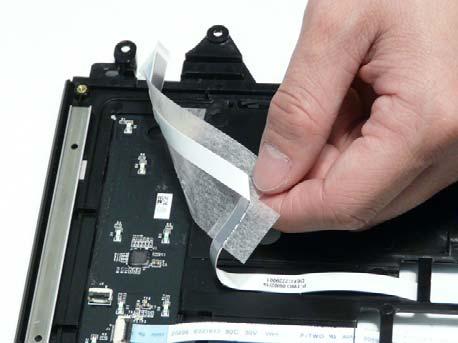

3. Continue lifting the FFC away from the Upper Cover as shown.

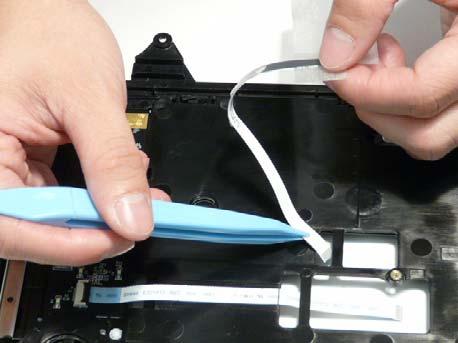

4. Remove the FFC from the Upper Cover.
