Removing the Keyboard

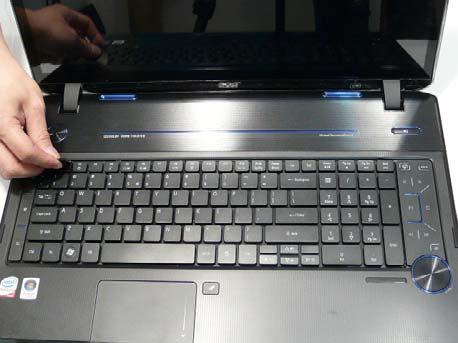

1. See “Removing the Battery Pack” on page 56. 2. Press the six securing clips inward to release the Keyboard from the Upper Cover.

3. Lift the centre of Keyboard up as shown.

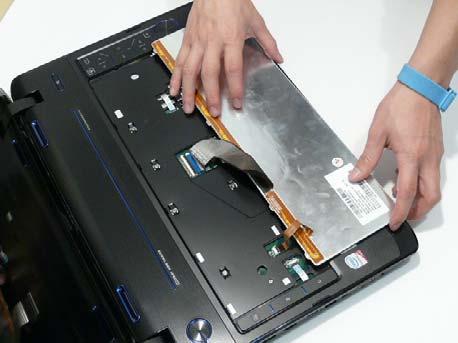

IMPORTANT: Do not remove the Keyboard from the computer; the Keyboard FFCs are still connected. 4. Turn the Keyboard over and place it on the TouchPad area to expose the FFC cables.

6. Disconnect the Keyboard cable by opening the FFC latch and removing the cable from the Mainboard.

7. Remove the Keyboard from the Upper Cover.
