Removing the Secondary Hard Disk Drive Module

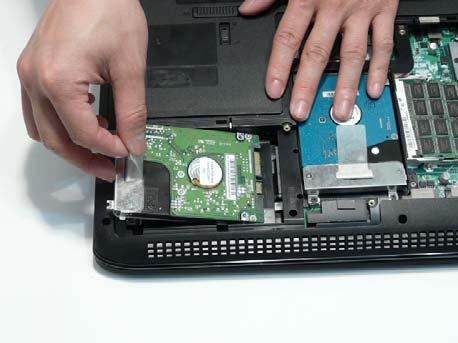

1. See “Removing the Lower Door” on page 59. 2. Use the pull-tab to slide the Secondary HDD and disconnect the interface.

3. Lift the hard disk drive module out of the bay.

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.

Step

Size

HDD2 Carrier M3*3 2

Quantity Screw Type

5. Remove the HDD from the carrier.
