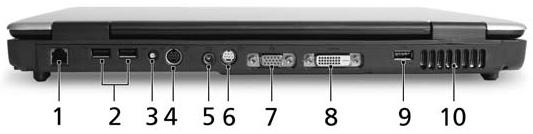

Rear View

# Icon Item # Icon Item Description # Icon Item Description

Description

Aspire 5110 / 5100 / 3100 Series# Icon Item Description # Icon Item Description 1 Modem (RJ-11) port Connects to a phone line. # Icon Item Description # Icon Item Description # Icon Item Description

2 Two USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

3 RF-in jack Accepts input signals from analog/digital TV-tuner devices (for selected models).Note: 4 AV-in port Accepts input signals from audio/video (AV) devices (for selected models). 5 Power jack Connects to an AC adapter. # Icon Item Description

6 S-video port/TV out port (NTSC/PAL) port

Connects to a television or display device with S-video input (for selected models). 7 External display (VGA) portConnects to an external display device (e.g., external monitor,

LCD projector).# Icon Item Description 8 DVI-D port Supports digital video connections Note: # Icon Item Description (for selected models).

9 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

10 N/A Ventilation slots Enable the computer to stay cool, even after prolonged use.
