Bottom Side
from Acer Aspire 5110 5100 3100 TravelMate 5510 5210 Extensa 5410 5010 Laptop Service Guide Manual -PDF D

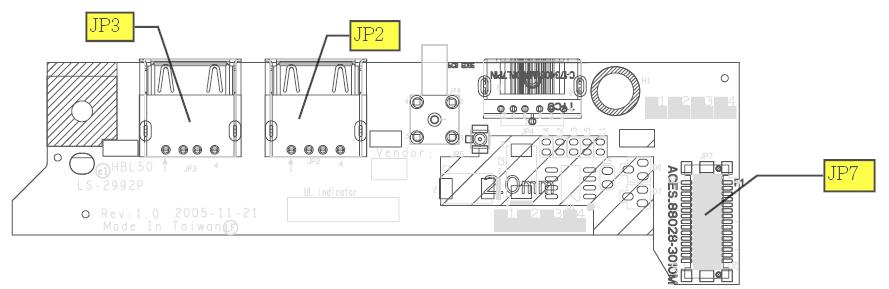

Item Description
JP2 USB CONNECTOR JP3 USB CONNECTOR JP7 LED BOARD CONNECTOR

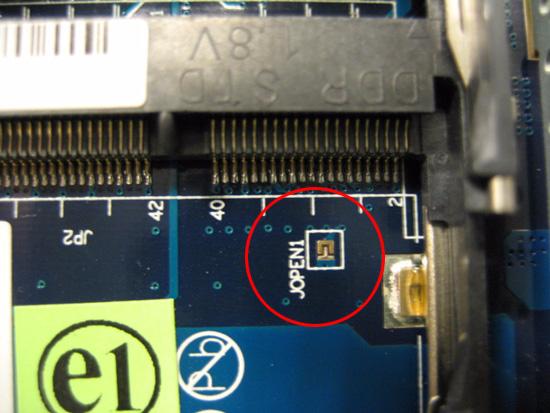

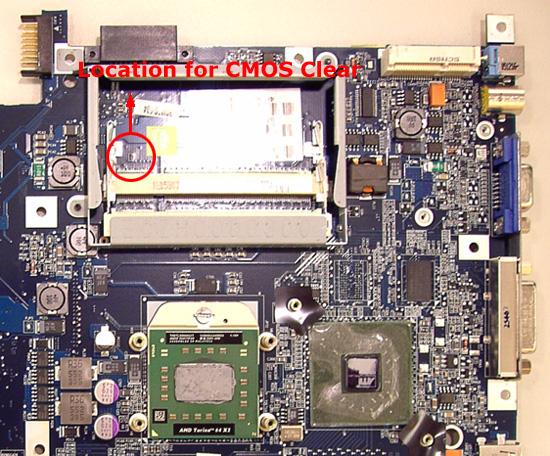

You can short JOPEN1 jump on the main board to erase CMOS data. Please refer to the images below for the location of JOPEN1 jump.
