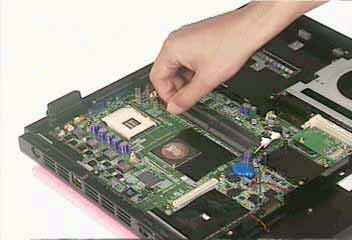

Combo Module

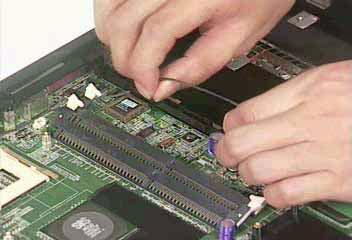

1. Place the MDC cable back to position. 2. Reconnect the MDC header. 3. Fix the wire by the slot.

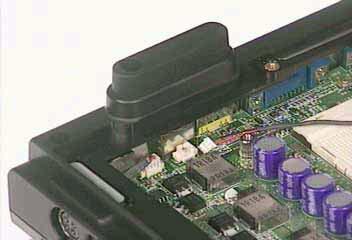

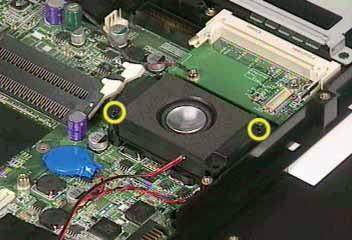

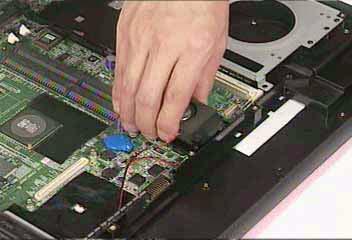

Reconnect the sub-woofer

1. Place the subwoofer back to position. 2. Secure the two screws for the sub-woofer. 3. Reconnect the sub-woofer connector.

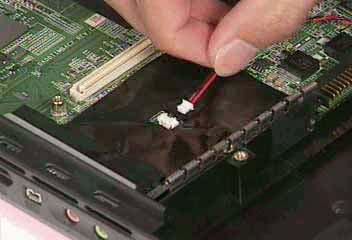

Place the LED cable back to position

1. Place the LED cable back to position. 2. Fix the wire by a tape. And the other.

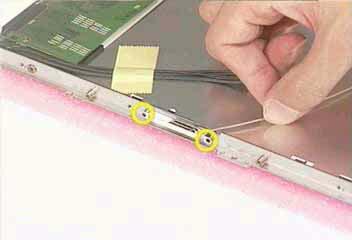

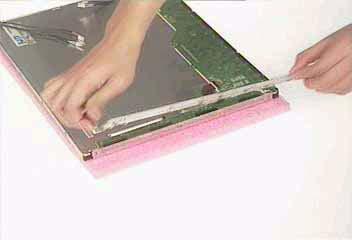

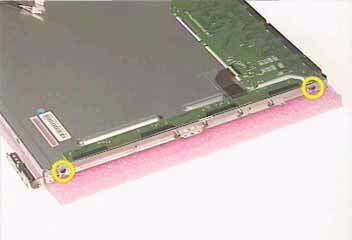

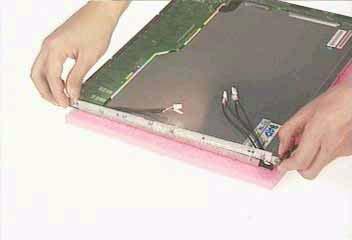

1. Place the side mount back to position. 2. Secure the side mount.

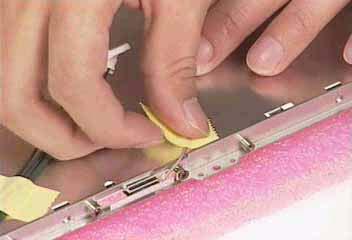

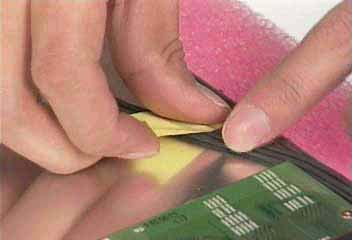

3. Repeat the same procedure on the other side. 4. Secure the wire with a tape.

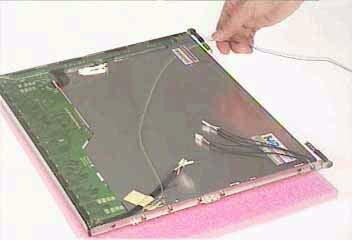

Place the wireless antenna back to position

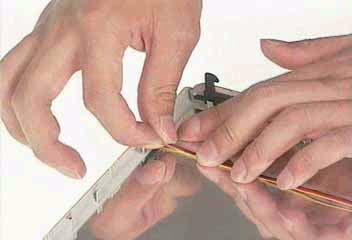

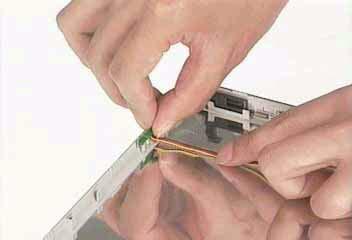

1. Place the wireless antenna back to position. 2. Secure the antenna on the one side and the other.

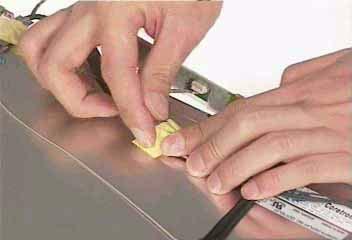

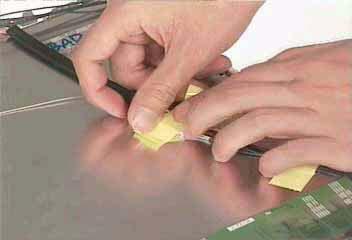

3. Secure the wireless module with a tape and the other side.

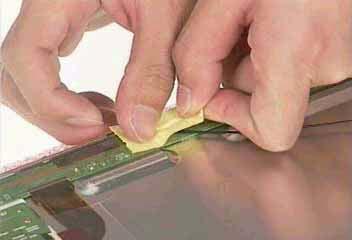

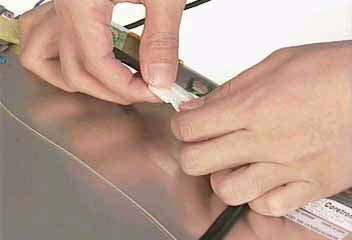

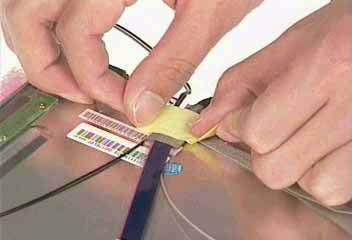

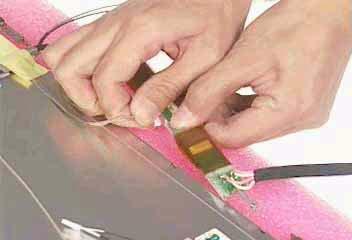

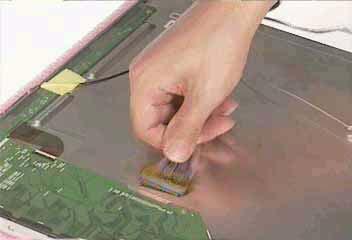

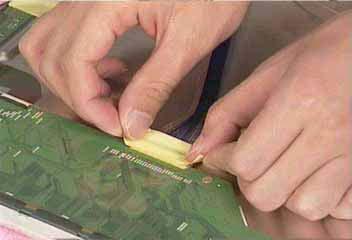

1. Reattach the LCD cable. 2. Secure the connector with a tape and the other side.

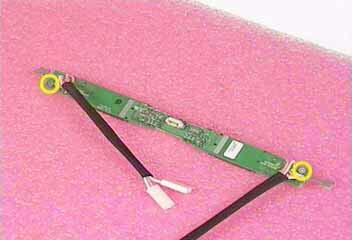

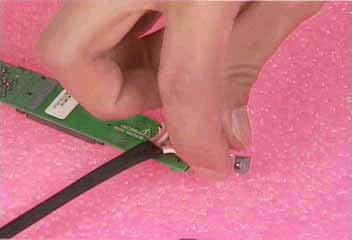

Place the inverter board back to position

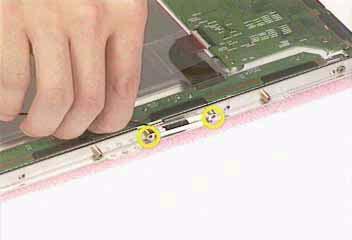

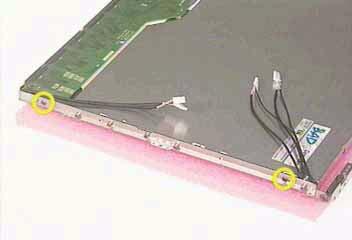

1. Place the inverter bracket back to position and the other. 2. Secure the two brackets.

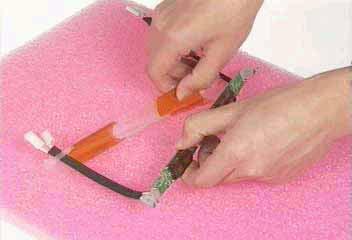

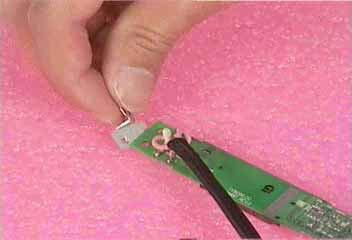

3. Place the inverter board back to a mylar. 4. Reconnect the inverter power. 5. Reconnect the inverter cables.

6. Fix the wires and repeat the same procedure on the other side.
