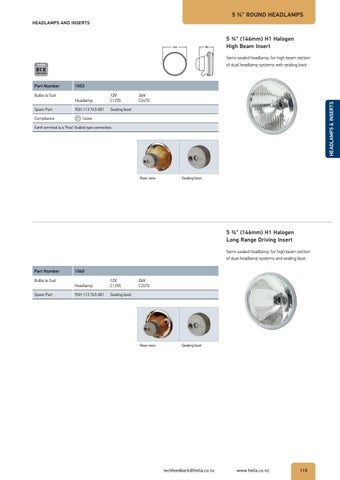

5 ¾" ROUND HEADLAMPS HEADLAMPS AND INSERTS
146
80
5 ¾" (146mm) H1 Halogen High Beam Insert Semi-sealed headlamp, for high beam section of dual headlamp systems with sealing boot.
Certified
ECE
CERTIFIED
Bulbs to Suit Spare Part Compliance
1053 Headlamp:
12V C1255
9GH 113 763-001
Sealing boot
24V C2470
HEADLAMPS & INSERTS
Part Number
14464
Earth terminal is a ‘Post’ (bullet) type connection.
Rear view
Sealing boot
5 ¾" (146mm) H1 Halogen Long Range Driving Insert Semi-sealed headlamp, for high beam section of dual headlamp systems and sealing boot. Part Number Bulbs to Suit Spare Part
1040 Headlamp:
12V C1255
9GH 113 763-001
Sealing boot
24V C2470
Rear view
Sealing boot
techfeedback@hella.co.nz
www.hella.co.nz
115
