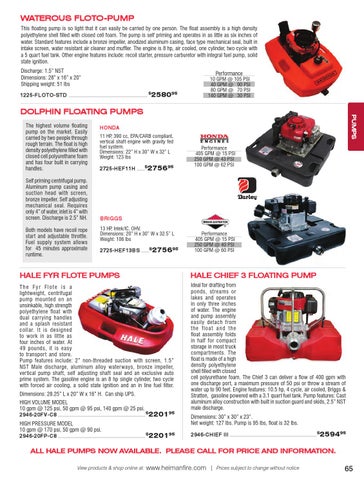

WATEROUS FLOTO-PUMP This floating pump is so light that it can easily be carried by one person. The float assembly is a high density polyethylene shell filled with closed cell foam. The pump is self priming and operates in as little as six inches of water. Standard features include a bronze impeller, anodized aluminum casing, face type mechanical seal, built in intake screen, water resistant air cleaner and muffler. The engine is 8 hp, air cooled, one cylinder, two cycle with a 5 quart fuel tank. Other engine features include: recoil starter, pressure carburetor with integral fuel pump, solid state ignition. Discharge: 1.5” NST Dimensions: 28” x 16” x 20” Shipping weight: 51 lbs
Performance
10 GPM @ 105 PSI 40 GPM @ 90 PSI 80 GPM @ 70 PSI 140 GPM @ 30 PSI
1225-FLOTO-STD .............................................................. $258095
The highest volume floating pump on the market. Easily carried by two people through rough terrain. The float is high density polyethylene filled with closed cell polyurethane foam and has four built in carrying handles. Self priming centrifugal pump. Aluminum pump casing and suction head with screen, bronze impeller. Self adjusting mechanical seal. Requires only 4” of water, inlet is 4” with screen. Discharge is 2.5” NH. Both models have recoil rope start and adjustable throttle. Fuel supply system allows for 45 minutes approximate runtime.
PUMPS
DOLPHIN FLOATING PUMPS HONDA 11 HP, 390 cc, EPA/CARB compliant, vertical shaft engine with gravity fed fuel system. Dimensions: 22” H x 30” W x 32” L Weight: 123 lbs
2725-HEF11H ......$275695
Performance 405 GPM @ 15 PSI 250 GPM @ 43 PSI 100 GPM @ 62 PSI
BRIGGS 13 HP, Intek/IC, OHV. Dimensions: 20” H x 30” W x 32.5” L Weight: 106 lbs
2725-HEF13BS ......$275695
Performance 405 GPM @ 15 PSI 250 GPM @ 40 PSI 100 GPM @ 60 PSI
HALE FYR FLOTE PUMPS
HALE CHIEF 3 FLOATING PUMP
The Fyr Flote is a lightweight, centrifugal pump mounted on an unsinkable, high strength polyethylene float with dual carrying handles and a splash resistant collar. It is designed to work in as little as four inches of water. At 49 pounds, it is easy to transpor t and store. Pump features include: 2” non-threaded suction with screen, 1.5” NST Male discharge, aluminum alloy waterways, bronze impeller, vertical pump shaft, self adjusting shaft seal and an exclusive auto prime system. The gasoline engine is an 8 hp single cylinder, two cycle with forced air cooling, a solid state ignition and an in line fuel filter.
Ideal for drafting from ponds, streams or lakes and operates in only three inches of water. The engine and pump assembly easily detach from the float and the float assembly folds in half for compact storage in most truck compar tments. The float is made of a high density polyethylene shell filled with closed cell polyurethane foam. The Chief 3 can deliver a flow of 400 gpm with one discharge port, a maximum pressure of 50 psi or throw a stream of water up to 90 feet. Engine features: 10.5 hp, 4 cycle, air cooled, Briggs & Stratton, gasoline powered with a 3.1 quart fuel tank. Pump features: Cast aluminum alloy construction with built in suction guard and skids, 2.5” NST male discharge.
Dimensions: 28.25” L x 20” W x 16” H. Can ship UPS. HIGH VOLUME MODEL 10 gpm @ 125 psi, 50 gpm @ 95 psi, 140 gpm @ 25 psi. 2946-20FV-C8 ....................................................................$220195 HIGH PRESSURE MODEL 10 gpm @ 170 psi, 50 gpm @ 90 psi. 2946-20FP-C8 .................................................................... $220195
Dimensions: 30” x 30” x 23”. Net weight: 127 lbs. Pump is 95 lbs, float is 32 lbs. 2946-CHIEF III ....................................................................$259495
ALL HALE PUMPS NOW AVAILABLE. PLEASE CALL FOR PRICE AND INFORMATION. View products & shop online at:
www.heimanfire.com
Prices subject to change without notice
65
