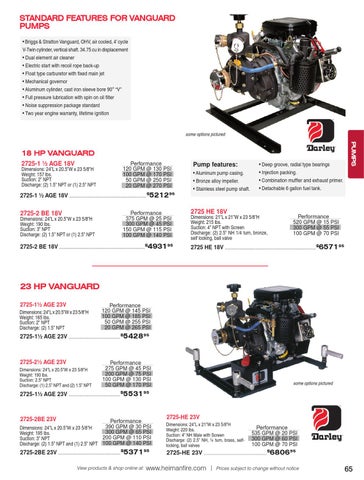

STANDARD FEATURES FOR VANGUARD PUMPS • Briggs & Stratton Vanguard, OHV, air cooled, 4’ cycle V-Twin cylinder, vertical shaft. 34.75 cu in displacement • Dual element air cleaner • Electric start with recoil rope back-up • Float type carburetor with fixed main jet • Mechanical governor • Aluminum cylinder, cast iron sleeve bore 90° “V” • Full pressure lubrication with spin on oil filter • Noise suppression package standard • Two year engine warranty, lifetime ignition
some options pictured
Performance
2725-1 ½ AGE 18V
Dimensions: 24”L x 20.5”W x 23 5/8”H Weight: 157 lbs. Suction: 2” NPT Discharge: (2) 1.5” NPT or (1) 2.5” NPT
120 GPM @ 130 PSI 100 GPM @ 170 PSI 50 GPM @ 250 PSI 20 GPM @ 270 PSI
2725-1 ½ AGE 18V ........................................................$521295
Dimensions: 24”L x 20.5”W x 23 5/8”H Weight: 190 lbs. Suction: 3” NPT Discharge: (2) 1.5” NPT or (1) 2.5” NPT
• Aluminum pump casing. • Bronze alloy impeller. • Stainless steel pump shaft.
• Deep groove, radial type bearings • Injection packing. • Combination muffler and exhaust primer. • Detachable 6 gallon fuel tank.
2725 HE 18V
Performance
2725-2 BE 18V
Pump features:
375 GPM @ 25 PSI 300 GPM @ 45 PSI 150 GPM @ 115 PSI 100 GPM @ 140 PSI
2725-2 BE 18V ..............................................................$493195
Dimensions: 21”L x 21”W x 23 5/8”H Weight: 215 lbs. Suction: 4” NPT with Screen Discharge: (2) 2.5” NH 1/4 turn, bronze, self locking, ball valve
PUMPS
18 HP VANGUARD
Performance 520 GPM @ 15 PSI 300 GPM @ 55 PSI 100 GPM @ 70 PSI
2725 HE 18V ..................................................................$657195
23 HP VANGUARD 2725-1½ AGE 23V
Performance
Dimensions: 24”L x 20.5”W x 23 5/8”H Weight: 165 lbs. Suction: 2” NPT Discharge: (2) 1.5” NPT
120 GPM @ 145 PSI 100 GPM @ 185 PSI 50 GPM @ 255 PSI 20 GPM @ 265 PSI
2725-1½ AGE 23V ....................................$542895
2725-2½ AGE 23V
Performance
Dimensions: 24”L x 20.5”W x 23 5/8”H Weight: 190 lbs. Suction: 2.5” NPT Discharge: (1) 2.5” NPT and (2) 1.5” NPT
275 GPM @ 45 PSI 200 GPM @ 75 PSI 100 GPM @ 130 PSI 50 GPM @ 170 PSI
2725-1½ AGE 23V ....................................
2725-2BE 23V
$
5531
some options pictured
95
2725-HE 23V
Performance
390 GPM @ 30 PSI Dimensions: 24”L x 20.5”W x 23 5/8”H 300 GPM @ 65 PSI Weight: 195 lbs. 200 GPM @ 110 PSI Suction: 3” NPT Discharge: (2) 1.5” NPT and (1) 2.5” NPT 100 GPM @ 140 PSI
2725-2BE 23V ............................................$537195 View products & shop online at:
Dimensions: 24”L x 21”W x 23 5/8”H Weight: 220 lbs. Suction: 4” NH Male with Screen Discharge: (2) 2.5” NH, ¼ turn, brass, selflocking, ball valves
Performance 535 GPM @ 20 PSI 300 GPM @ 60 PSI 100 GPM @ 70 PSI
2725-HE 23V ............................................$680695
www.heimanfire.com
Prices subject to change without notice
65
