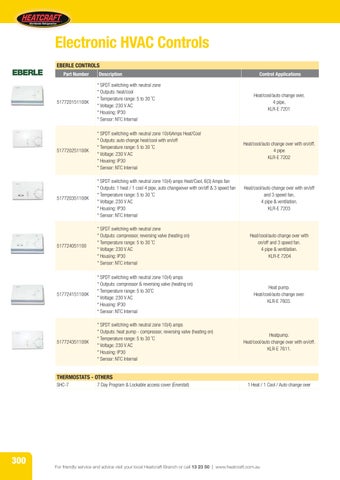

Electronic HVAC Controls EBERLE CONTROLS Part Number
Description
Control Applications
517720151100K
* SPDT switching with neutral zone * Outputs: heat/cool * Temperature range: 5 to 30 ˚C * Voltage: 230 V AC * Housing: IP30 * Sensor: NTC Internal
517720251100K
* SPDT switching with neutral zone 10(4)Amps Heat/Cool * Outputs: auto change heat/cool with on/off * Temperature range: 5 to 30 ˚C * Voltage: 230 V AC * Housing: IP30 * Sensor: NTC Internal
Heat/cool/auto change over with on/off. 4 pipe KLR-E 7202
517720351100K
* SPDT switching with neutral zone 10(4) amps Heat/Cool, 6(3) Amps fan * Outputs: 1 heat / 1 cool 4 pipe, auto changeover with on/off & 3 speed fan * Temperature range: 5 to 30 ˚C * Voltage: 230 V AC * Housing: IP30 * Sensor: NTC Internal
Heat/cool/auto change over with on/off and 3 speed fan, 4 pipe & ventilation. KLR-E 7203
517724051100
* SPDT switching with neutral zone * Outputs: compressor, reversing valve (heating on) * Temperature range: 5 to 30 ˚C * Voltage: 230 V AC * Housing: IP30 * Sensor: NTC internal
Heat/cool/auto change over with on/off and 3 speed fan. 4 pipe & ventilation. KLR-E 7204
517724151100K
* SPDT switching with neutral zone 10(4) amps * Outputs: compressor & reversing valve (heating on) * Temperature range: 5 to 30˚C * Voltage: 230 V AC * Housing: IP30 * Sensor: NTC Internal
Heat pump. Heat/cool/auto change over. KLR-E 7603.
517724351100K
* SPDT switching with neutral zone 10(4) amps * Outputs: heat pump - compressor, reversing valve (heating on) * Temperature range: 5 to 30 ˚C * Voltage: 230 V AC * Housing: IP30 * Sensor: NTC Internal
Heat/cool/auto change over, 4 pipe, KLR-E 7201
Heatpump. Heat/cool/auto change over with on/off. KLR-E 7611.
THERMOSTATS - OTHERS SHC-7
300
7 Day Program & Lockable access cover (Enerstat)
1 Heat / 1 Cool / Auto change over
