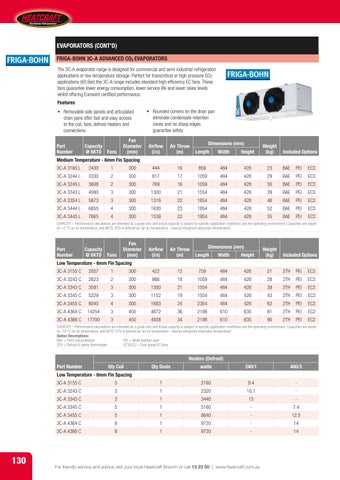

EVAPORATORS (CONT'D) FRIGA-BOHN 3C-A ADVANCED CO2 EVAPORATORS The 3C-A evaporator range is designed for commercial and semi industrial refrigeration applications or low temperature storage. Perfect for transcritical or high pressure CO2 applications (60 Bar) the 3C-A range includes standard high efficiency EC fans. These fans guarantee lower energy consumption, lower service life and lower noise levels whilst offering Eurovent certified performance. Features • Removable side panels and articulated drain pans offer fast and easy access to the coil, fans, defrost heaters and connections Part Number
Capacity @ 6KTD Fans
Fan Diameter (mm)
• Rounded corners on the drain pan eliminate condensate retention zones and no sharp edges guarantee safety Dimensions (mm)
Airflow (l/s)
Air Throw (m)
Length
Width
Height
Weight (kg)
Included Options
Medium Temperature - 6mm Fin Spacing 3C-A 3165 L
2430
1
300
444
16
859
484
428
23
BAE
PEI
EC3
3C-A 3244 L
3330
2
300
817
17
1059
484
428
29
BAE
PEI
EC3
3C-A 3245 L
3608
2
300
769
16
1059
484
428
30
BAE
PEI
EC3
3C-A 3343 L
4080
3
300
1300
21
1554
484
428
39
BAE
PEI
EC3
3C-A 3354 L
5873
3
300
1316
22
1854
484
428
46
BAE
PEI
EC3
3C-A 3444 L
6855
4
300
1630
23
1954
484
428
52
BAE
PEI
EC3
3C-A 3445 L
7665
4
300
1538
22
1954
484
428
55
BAE
PEI
EC3
CAPACITY – Performance calculations are intended as a guide only and actual capacity is subject to specific application conditions and the operating environment. Capacities are based on +2 °C air on temperature, and 6KTD. KTD is defined as “air on temperature - leaving refrigerant saturation temperature”.
Part Number
Capacity @ 6KTD Fans
Fan Diameter (mm)
Dimensions (mm)
Airflow (l/s)
Air Throw (m)
Length
Width
Height
Weight (kg)
422
15
759
484
428
21
2TH
PEI
EC3
Included Options
Low Temperature - 6mm Fin Spacing 3C-A 3155 C
2057
1
300
3C-A 3243 C
2623
2
300
866
18
1059
484
428
28
2TH
PEI
EC3
3C-A 3343 C
3591
3
300
1300
21
1554
484
428
39
2TH
PEI
EC3
3C-A 3345 C
5229
3
300
1152
19
1554
484
428
43
2TH
PEI
EC3
3C-A 3455 C
8040
4
300
1683
24
2354
484
428
62
2TH
PEI
EC3
3C-A 4364 C
14254
3
450
4872
36
2198
610
635
81
2TH
PEI
EC2
3C-A 4366 C
17700
3
450
4938
34
2198
610
635
90
2TH
PEI
EC2
CAPACITY – Performance calculations are intended as a guide only and actual capacity is subject to specific application conditions and the operating environment. Capacities are based on -18 °C air on temperature, and 6KTD. KTD is defined as “air on temperature - leaving refrigerant saturation temperature”. Option Descriptions: BAE = Paint coil protection PEI = White painted case 2TH = Defrost & safety thermostats EC3/EC2 = Dual speed EC fans
Heaters (Defrost) Part Number
Qty Coil
Qty Drain
watts
240/1
400/3
Low Temperature - 6mm Fin Spacing
130
3C-A 3155 C
5
1
2160
9.4
-
3C-A 3243 C
3
1
2320
10.1
-
3C-A 3343 C
3
1
3440
15
-
3C-A 3345 C
5
1
5160
-
7.4
3C-A 3455 C
5
1
8640
-
12.5
3C-A 4364 C
8
1
9720
-
14
3C-A 4366 C
8
1
9720
-
14
