Install software

09

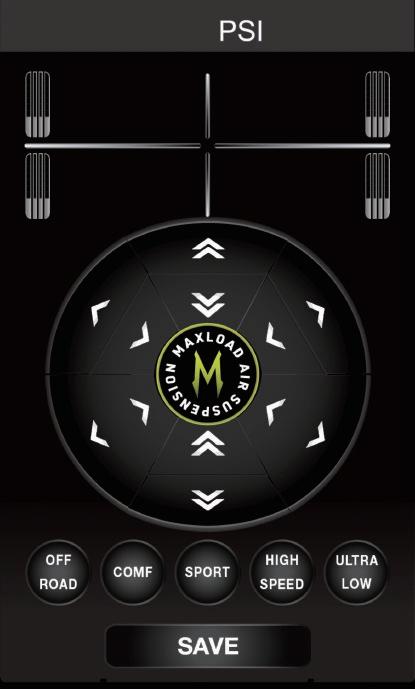

Fig.(10-2) 3.Enter H1 app(Fig.10-1). 4.Set the Max.Pressure of the tank, press "SAVE" after inputting the value(145psi is suggested,the Max. Pressure can' t be above 200psi) 5.Set the Min.Pressure of the tank, press "SAVE" after inputting the value.(The value must be below the Max.Pressure). 6.Set "Height hysteresis" ,press "SAVE" after inputting value. "Height hysteresis" means the control system adjusts the car height within the range of error when the height value of car minus the system setting value ,which is above height hysteresis. 4% is suggested during the installation; 8% is suggested after installation.Then give the users to use(Different kinds of cars may have different installations). 7.The buttons in the middle are adjustment functions. 8."FULL-AUTOMATIC ADJUSTMEN": the control system adjust full automatically. Before start, make sure there is no any obstacles above and under the vehicle. During the adjustment, the vehicle will be risen to the highest position and lowered to the lowest position, press "STOP" if any abnormalities occur. After the process, the app will popup the result, if succeed, the vehicle will be adjust to COMFORT mode, if not, there are problems with the hardware check the simple troubleshooting. 9."MANUAL ADJUSTMENT": adjust the system manually.
