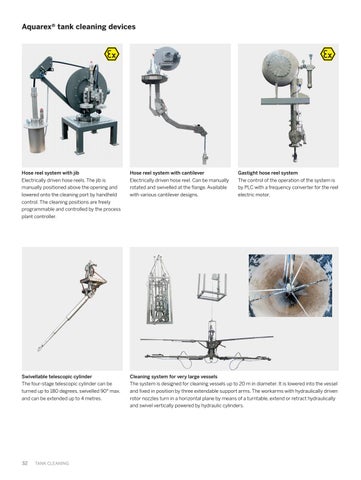

AquarexÂŽ tank cleaning devices
Hose reel system with jib Electrically driven hose reels. The jib is manually positioned above the opening and lowered onto the cleaning port by handheld control. The cleaning positions are freely programmable and controlled by the process plant controller.
Hose reel system with cantilever Electrically driven hose reel. Can be manually rotated and swivelled at the flange. Available with various cantilever designs.
Swivellable telescopic cylinder The four-stage telescopic cylinder can be turned up to 180 degrees, swivelled 90° max. and can be extended up to 4 metres.
Cleaning system for very large vessels The system is designed for cleaning vessels up to 20 m in diameter. It is lowered into the vessel and fixed in position by three extendable support arms. The workarms with hydraulically driven rotor nozzles turn in a horizontal plane by means of a turntable, extend or retract hydraulically and swivel vertically powered by hydraulic cylinders.
32
TANK CLEANING
Gastight hose reel system The control of the operation of the system is by PLC with a frequency converter for the reel electric motor.
