PORTFOLIO Selected projets
HUGUES AZAMBRE
CONTENTS
RESIDENTIAL: FROM THE GROUND UP Auriol
8 - 11
Curves of time
12 - 13
Landscaped island
14 - 15
RESIDENTIAL: RENEWAL & RENOVATION Nanterre
18 - 19
Gambetta
20 - 21
Garges
22 - 23
Europe Schuman
24 - 25
Baptiste's Vine
26 - 27
White cloak
28 - 31
MIXED USED: SYMBIOTISM SoHo Backyard
34 - 35
Céüse
36 - 39
Wolf's lowland
40 - 41
The city of taste
42 - 45
HUGUES AZAMBRE M.Arch - Architectural designer - Licenced Architect in France - Bilingual French/English I believe that every architect has the capacity to impact the quality of life for individuals through research, design, planning, attention to detail and discussion. I am also convinced that architects play a pivotal role in transitioning towards a more sustainable way of living. Through our choices, we consistently have the opportunity to think outside the box, challenge the obvious,and therefore, make a meaningful difference.
PREVIOUS EXPERIENCE Groupe Arcane Architectes Architect - junior project manager July 2020 - January 2023 - "All design and documentation phases for renovation and extension of existing multi-storey buildings
- Revitalization and refurbishment concept design competitions for multifamily housing - BIM production, management and coordination on various models for specific operational uses January - March 2019
Ateliers O-S architectes Intern Architect - Concept design competition for multifamily housing
July - December 2018
July - September 2015
JKLN Architecte Intern Architect - Concept design competitions: multifamily housing, mixed-use buildings - Design development and construction documents for multifamily housing
Brenac & Gonzalez & Associés Architectural intership - Urban design, furniture design, concept design competition: offices
ACCOMPLISHMENTS & COMPETITIONS Spring 2019
Spring 2017
Spring 2016
Fall 2015

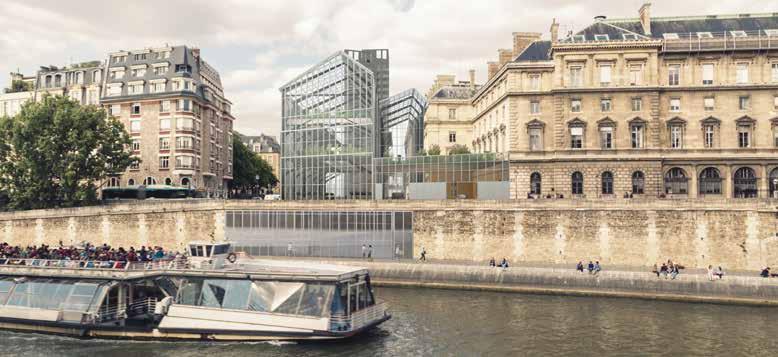

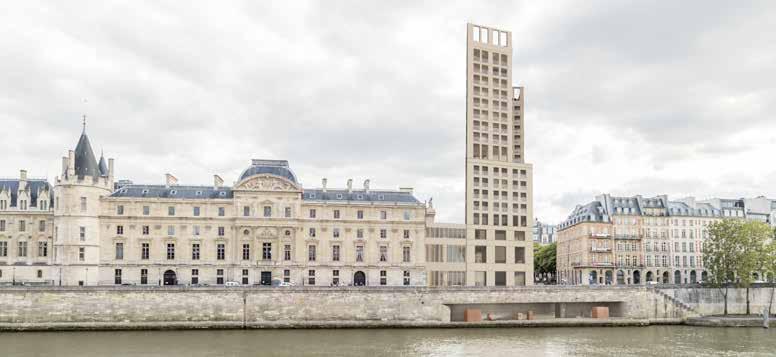

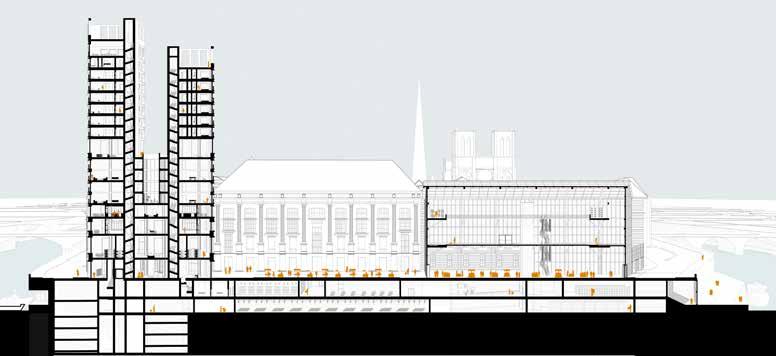

Design competition for the Institut de France - Redefining the spaces avalaible for the library inside a remarkable historical building (Paris, France)
Multi-Comfort House Student Contest Edition 1rst national place - Regeneration and extension of two existing buildings in a changing neighborhood (Madrid, Spain)
Isover Multi-Comfort House Student Contest Edition
2nd national place - Designing a sustainable district, variation of townhouses and multifamily houses (Minsk, Belarus)

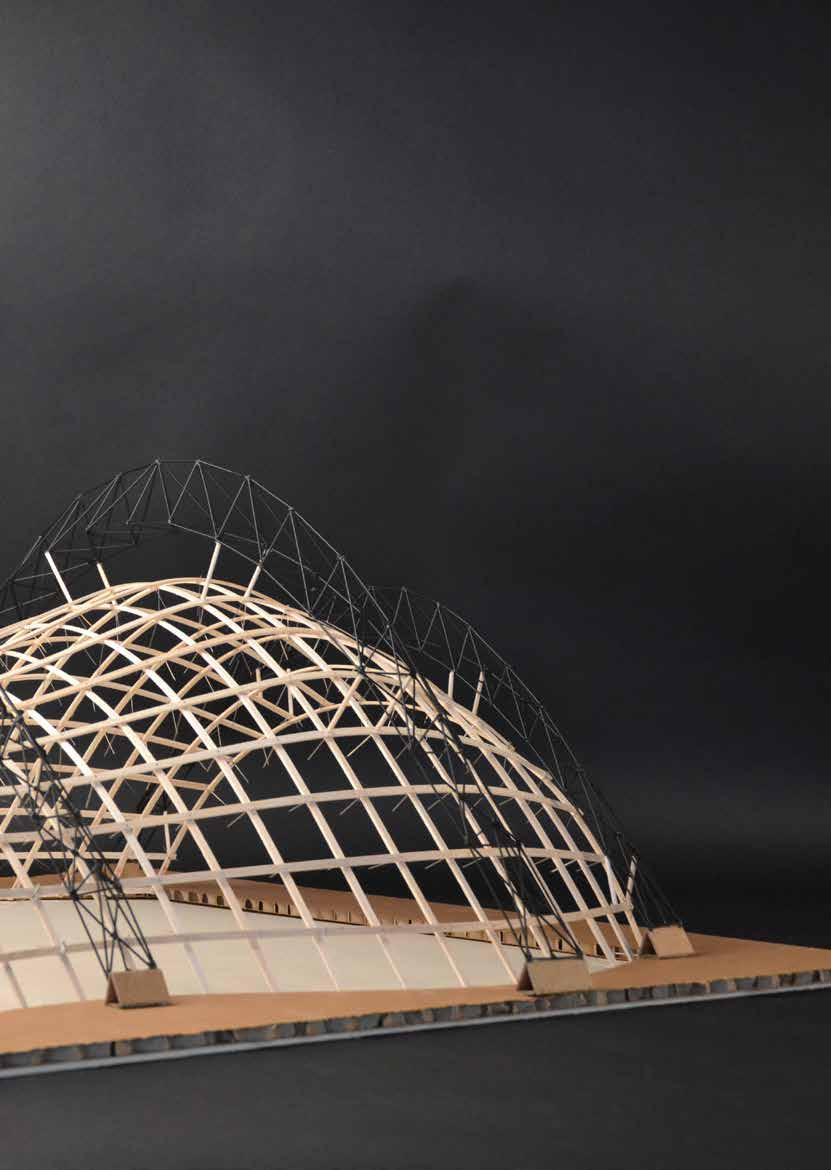

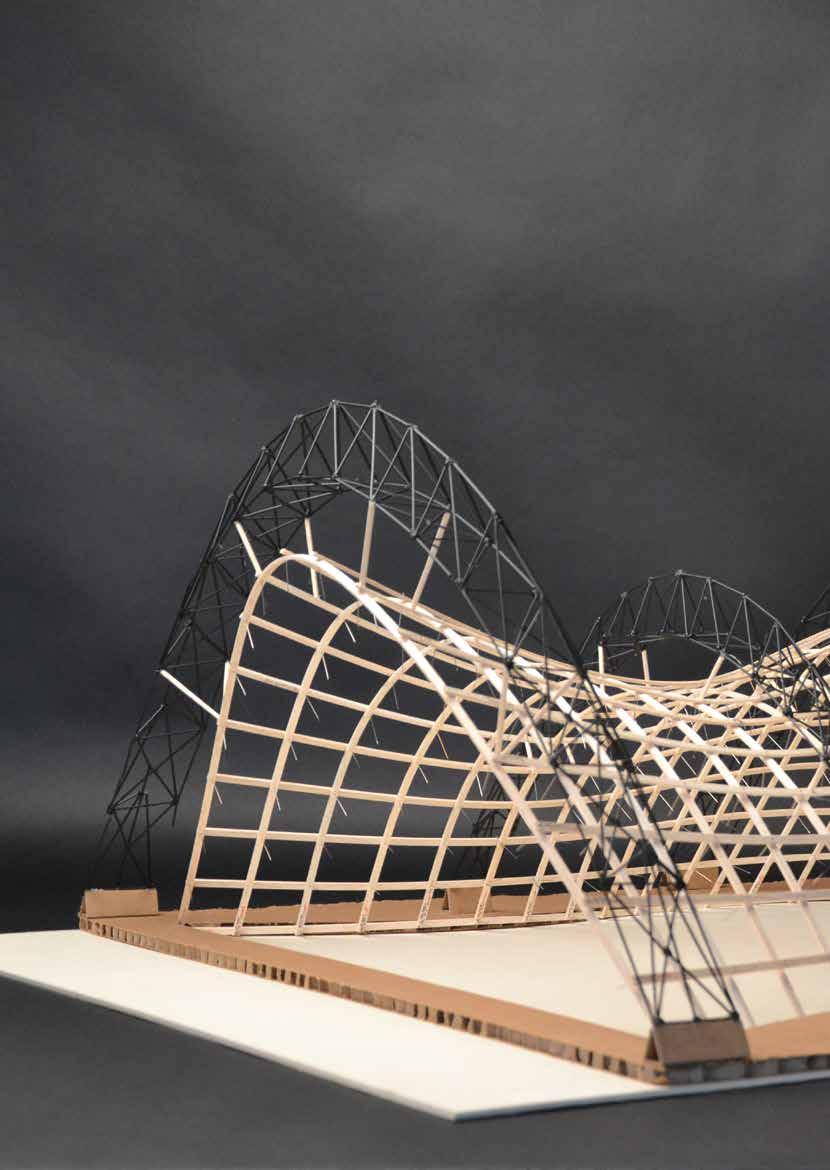

Inovation competition: CLIMAX - Recycled wood pavillon, an initation to low carbon construciton (Paris, France)
SKILLS 3D Modeling and rendering
Graphic design and analysis
Archicad
Photoshop
Revit
InDesign
Lumion
Illustrator
Rhino 3D
Microsoft Office
Autocad
Dial +
Grasshopper
Ecotect
CERTIFICATIONS March 2021 October 2022
FCBA technological institute - Urban densification and timber frame construciton: extension of existing buildings
Center of formation on Environment, City and Architecture: EVA & CERTIVEA - Building in a ciruclar economy: Low carbon and sustainable design
EDUCATION
2021 - 2022
Authorisation to exercice the «Maîtrise d’Oeuvre en son Nom Propre» École Nationale Supérieure d’Architecture de Paris Malaquais, Paris, France «Project management in one’s own name», equivalent of registerd architect - Architect registration thesis: Stakes and limits of a specialized firm in a booming market
2016 - 2019
Master’s degree in Architecture, graduated with honours École Nationale Supérieure d’Architecture de Paris Malaquais, Paris, France - Master’s thesis: Images in print media, a tool to shape the story of contemporary architecture
2016
International exchange semester Carleton University, Ottawa, Ontario, Canada - Azrieli School of Architecture & Urbanism: Fall term: Urbanity, Dwelling and community
2012 - 2016
Bachelor’s degree in Architecture École Nationale Supérieure d’Architecture de Paris Malaquais, Paris, France - Bachelor’s thesis: France’s embassies, a manifesto for french architecture ?
OTHER ACADEMIC EXPERIENCES 2009 - 2012
University Pierre et Marie Curie - Biochemistry, bachelor program
REFERENCES Direct contact information available upon request Estelle Hopsort
Managing Partner, Groupe Arcane Architecte, 6 rue Mercœur, 75011 Paris, France
Jasmine Kenniche le Nouëne Founding Partner, JKLN Architecte, 15 Rue René Boulanger, 75010 Paris, France
Xavier Gonzalez
Founding Partner, Brenac&Gonzalez&Associés, 36 Rue des Jeûneurs, 75002 Paris, France Professor Emeritus TPCAU, ENSAPM, Paris, France
Marc Benard
Founding Partner, Equateur , 68 Boulevard de Sebastopol, 75003 Paris, France Associate Professor TPCAU, ENSAPM, Paris, France
CONTACT h.azambre@gmail.com
+1 (647) 390-3974
Toronto, Ontario
Porfolio
Holder of a valid open work permit
HOUSING: FROM THE GROUND UP
AURIOL Location: Paris, France Type: Multifamily housing Frim: JKLN Role: Design development and Construction documents Date: 2018 Budget: 3,9M€ Size: 1700 m2 Carpet Area
Located in an ever-changing neighborhood, this project is an integral part of a larger development featuring 135 residential units and a school. This particular building, consisting of 23 modern flats, serves as a muchneeded link between the existing nearby residences and the forthcoming structures. Rather than being a stand-alone building, it integrates with the street front, creating a harmonious urban continuum.
Simplicity in materials, movements, and shapes accentuates the details of the preassembled concrete facade, especially the openwork railings. They allow ample natural light to flow into the condos while preserving the privacy of its inhabitants. The regularity of the floor plan offers generous exterior spaces for residents, allowing a seamless connection between the indoor and outdoor through private loggias allocated to each family.
The palette of "sand" tones vary according to the degree of intimacy of the spaces
Site plan
8
Interior atmospheres

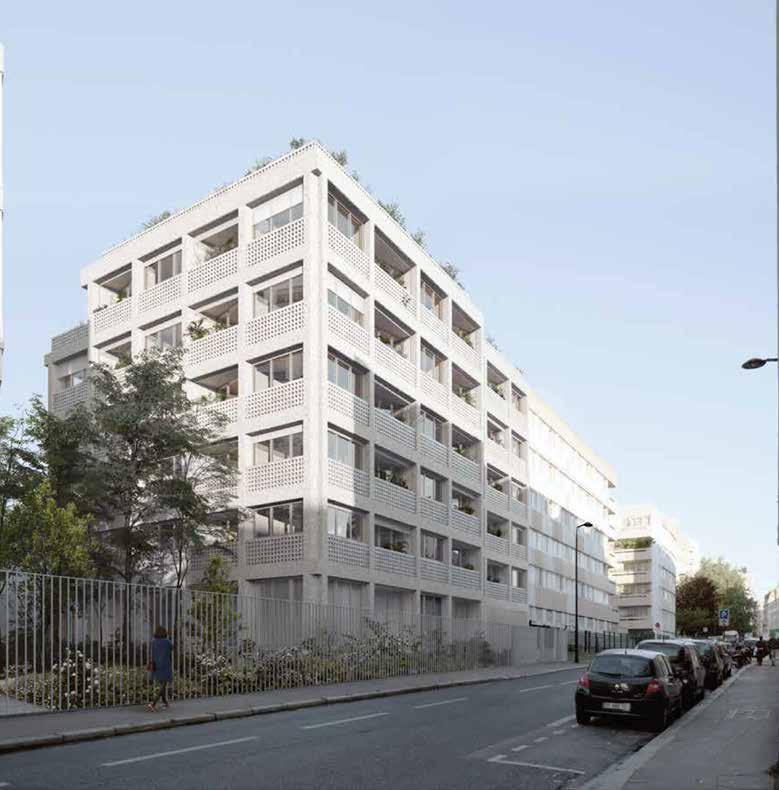

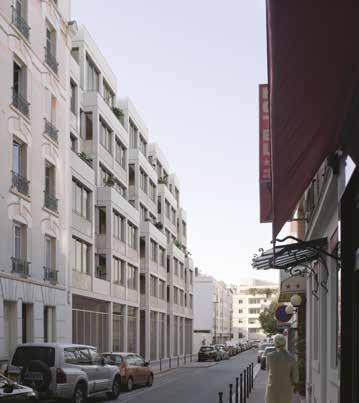

Street level rendering
9
The combination of a wooden bearing structure, and a self-supporting precast concrete facade, facilitates a clean and efficient building phase

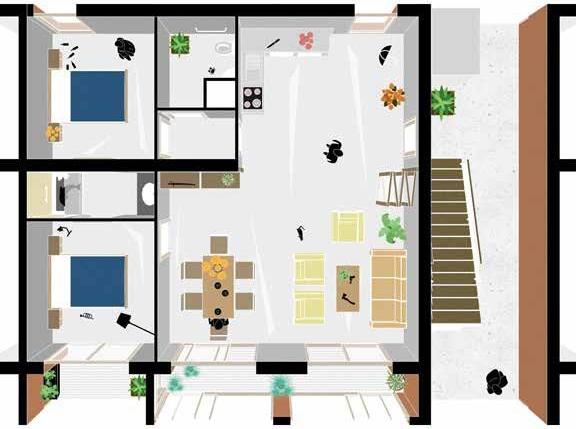

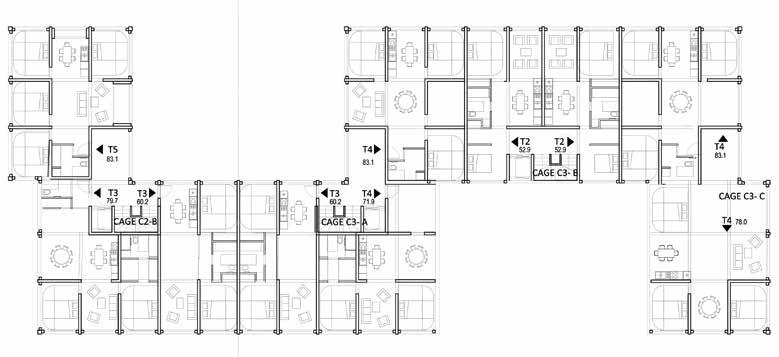

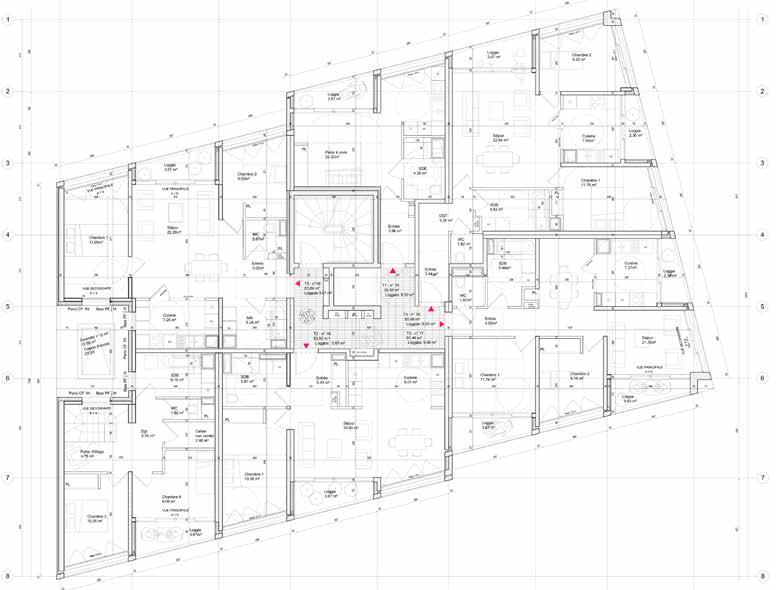

Floorplan
10

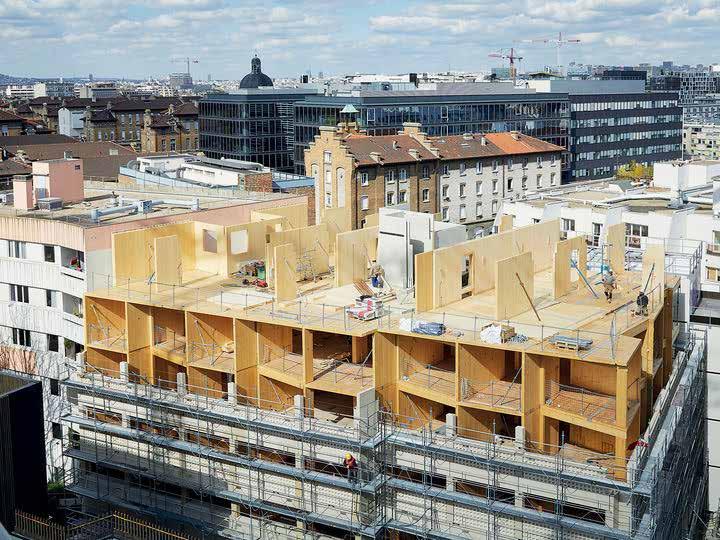

Building phase photo
11
CURVES OF TIME Location: Paris, France Type: Multifamily housing Frim: JKLN Role: Concept design Date: 2017 Budget: 2M€ Size: 850 m2 Carpet Area
Various priorities in the previous periods have led to a shift in the street front. This building is located at the junction between these timelines. A blind sidewall with a geometrical stone layout, as an archeological relic, will be the witness of the evolution of the street. The rest of the building is all about letting light enter smoothly in the living spaces. A central concave composition allows to capture diverse orientations and animates the
plan. Organized by gradual slides, the facade creates a rhythm while reducing the depth of the blind gable. The design proposed for the project aligns with criteria for urban integration, longevity, and the required maintenance for an undertaking of this nature. The objective is to provide a discreet and elegant architecture that can effectively mediate between the historic fabric and the modern context of the street
The thickness of the massive stone facade ensures that the facade is selfsupporting, waterproof, and with great thermal inertia for maximal comfort

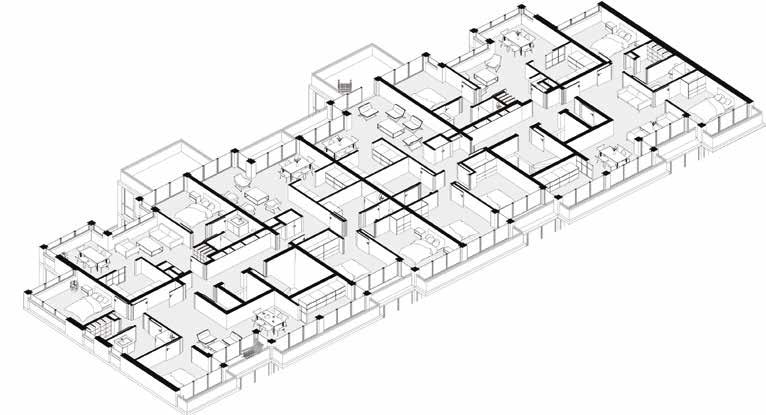

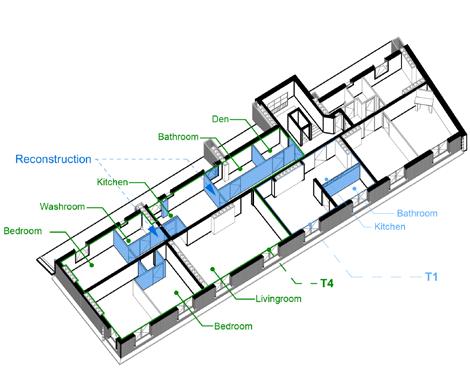

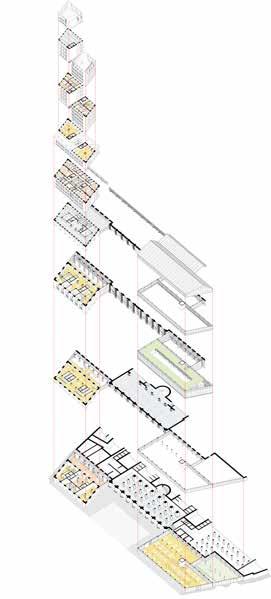

Floorplan layout, axonometric view
12
Parti diagram
GSPublisherVersion 0.0.100.100

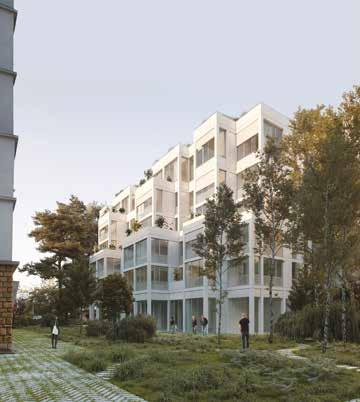

Street level rendering
13
LANDSCAPED ISLAND Location: Boulogne-Billancourt, France Type: Multifamily housing Frim: JKLN Role: Concept design Date: 2017 Budget: 4.5M€ Size: 2070 m2 Carpet Area
In a tranquil and linear street, the project introduces variations in depth to assert its presence in a subtle manner. Along the front side, the mosaic gridlike façade serves as a protective filter, safeguarding the inner gardens from any disturbances at street level. The lower protective layer gradually recedes as the levels ascend, giving rise to a multitude of balconies. This attenuation of the building's mass not only enhances its
visual appeal but also affords diverse perspectives of the surroundings. On the rear side of the structure, the emphasis shifts to seamlessly integrating nature into each apartment. Through expanses of generously glazed areas that extend beyond the primary façade plane, residents can disconnect from the urban mineralogy and relish a small semblance of wilderness.
The judicious juxtaposition of mass-colored and bush-hammered concrete results in a harmoniously unified warm stone-colored façade appearing smooth from afar

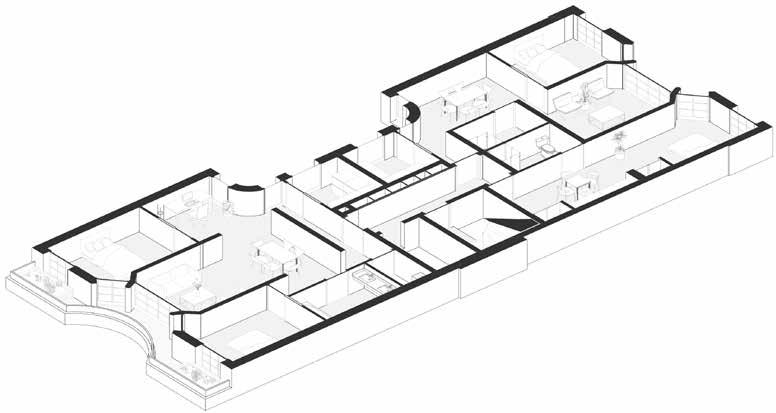

Floorplan layout, axonometric view
14
Parti diagram

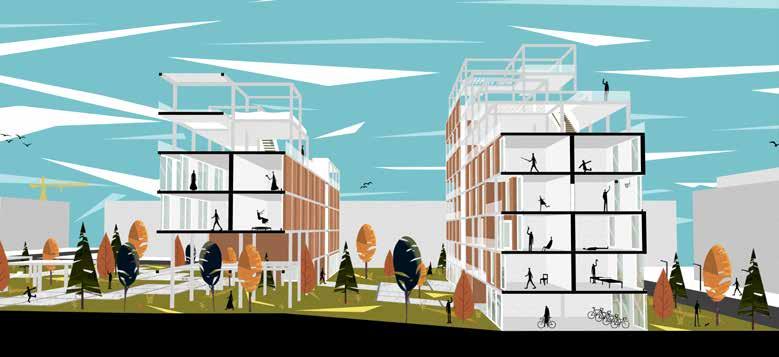

Cross section, axonometric view
15
HOUSING: RENEWAL & RENOVATION
NANTERRE Location: Nanterre, France Type: Retrofit & Reclad Frim: Groupe Arcane Architectes Role: Concept design Date: 2023 Budget: Undisclosed Size: 540 condos

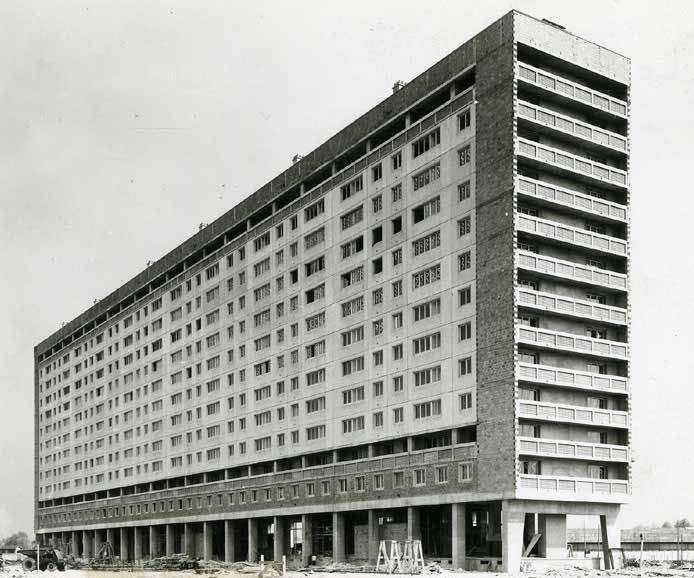

These iconic buildings designed by Bernard Zehrfuss are infused with the ideals of the mid-1950s. However, the evolution of public space usage combined with land pressure and security concerns, have depraved the building of its original qualities. The once generous and open ground floor has been occupied by shops and storage units, concealing the massive concrete pillars and obstructing the views to and from the gardens.
The goal is to reintroduce the building's original essence while adapting to contemporary constraints. Reinstating an open and traversable ground level is essential, as well as reviving the notion of a visible structure, only this time, it’s supporting the newly added balconies. To counterbalance the linear and imposing scale of these buildings, foldable aluminum cladding adorned with golden edges were randomly placed.
Transcending the linearity of a simple form with subtle angles at every scale

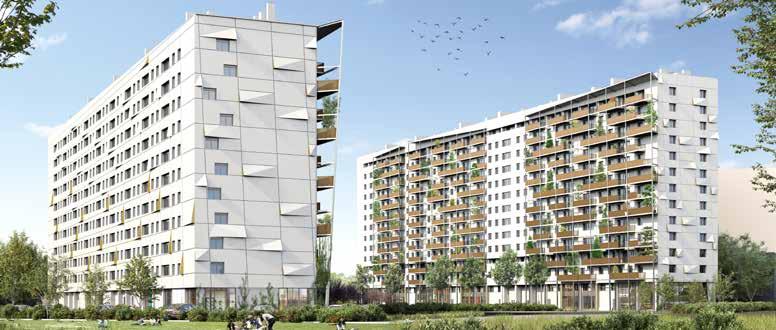

Rendering from the opposite building's balconies
18
Parti diagram
Eastern facade
19
GAMBETTA Location: Paris, France Type: Renovation & Landscaping Frim: Groupe Arcane Architectes Role: Design from concept to construction & BIM Managment Date: 2022-2023 Budget: 5,8M€ Size: 7500 m2 Carpet Area
Situated directly adjacent to the stone wall of the Père Lachaise cemetery, this notable complex of three brick buildings erected in the late 1930s, faces the challenges of evolving times, both in terms of environmental factors and functional requirements. Technical upgrades to the building are necessary to achieve better interior comfort. A comprehensive reimagining of outdoor spaces, complemented by the
incorporation of diverse amenities on the ground floor is proposed to rethink the residents' habits. Moreover, to respond to the local population requirements, certain apartments have undergone thorough reconfiguration, responding better to small family needs or adjustments to floor plans to enhance accessibility for individuals with reduced mobility. Advanced BIM design facilitates more effective long-term building oversight
A technical, yet unobtrusive intervention, to modernize and enhance its internal comfort without compromising the external aesthetic

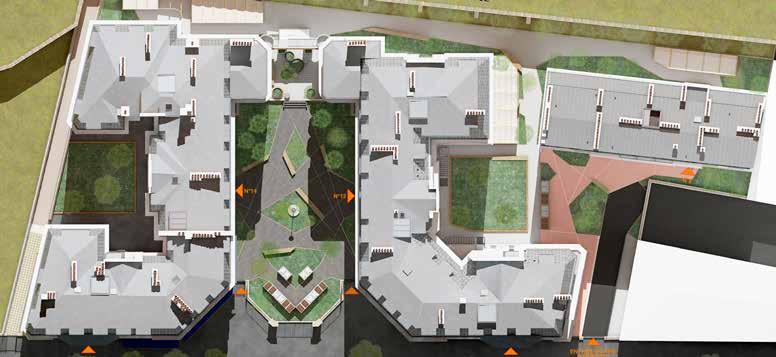

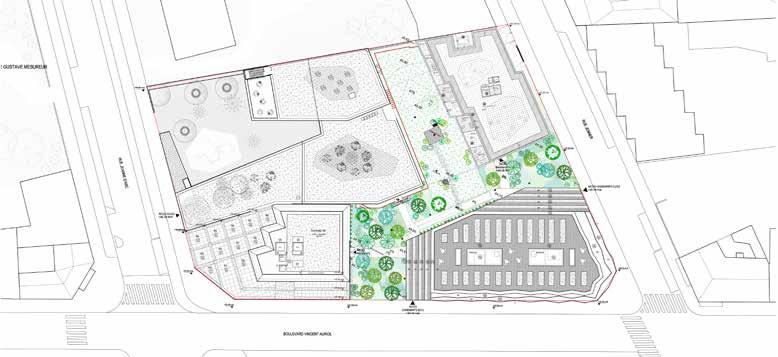

Site plan
20
Outdoor atmospheres

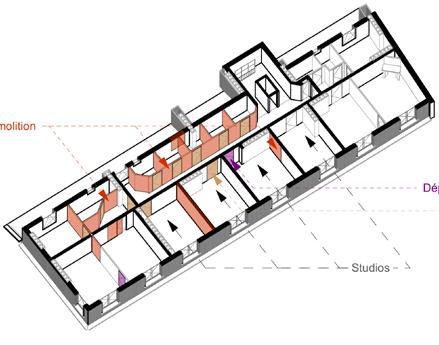

Demolition
Construction
ios
ud
St

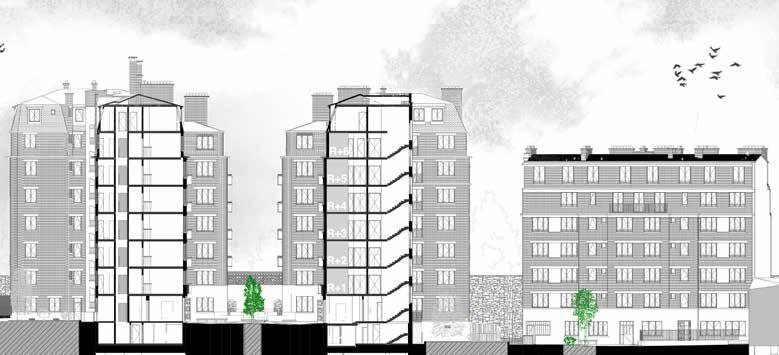

Cross section
21
et
GARGES Location: Garges-Lès-Gonesses, France Type: Renovation & Reclad Frim: Groupe Arcane Architectes Role: Concept design Date: 2022 Budget: 21M€ Size: 35 237 m2 Carpet Area
This neighborhood is one of the numerous collective housing neighborhoods in Garges, it’s located south of the main road that divides the city in two and a few steps away from the train station. The architectural heritage consists of twelve buildings, three towers, seven linear blocks, and a double central block. The entire area follows a very orthogonal layout. The heart of this block is a central high-quality park; a few prime
buildings gravitate around it, while others face areas mostly designated for parking. These buildings were constructed in the mid-1960s, following the classic style typical of that era. The residence is mostly open to public access, promoting a permeable interaction with its surroundings. The spaces between the buildings are all accessible, allowing all facades to be visible to both residents and visitors.
V U E 0 5 P la c e V olta ir e - P S E _ 2
Establish a coherence among buildings that exhibit divergent architectural styles by accentuating the original graphic lines inherent to the buildings' structures
HABILITATION E 605 L O GE ME NT S r ge s 0 2 / L e s P e up lie r s r ge s 0 3 / L e B o is d e la D a m e B l a n c h e 14 0 G a r ge s L e s G o n e s s e s
Maîtrise d'ouvrage
Groupement
IN'L I
GROUPE ARCANE Architecture
5, place de la Pyramide 92088 PARIS LA DEFENSE
GTM BATIMENT Entreprise générale
SOGETI INGENIERIE Be TCE
VUE 05 - PLACE VOLTARIE -PSE2

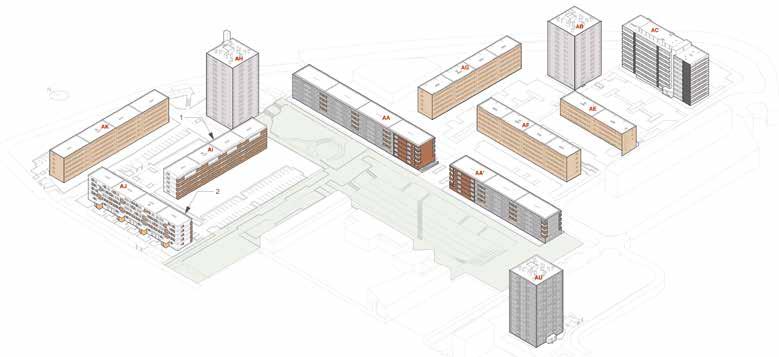

Site axonometric view
22
Date
Plan N°
Oct. 2021
Echelle
06
Texture variation on cladding panels
V U E 0 3 P la c e d e s V e r ge r s - B a s e
TION EMENT S P e up lie r s o is d e la D a m e B l a n c h e es Gone sse s
Maîtrise d'ouvrage
Groupement
IN'L I
GROUPE ARCANE Architecture
5, place de la Pyramide 92088 PARIS LA DEFENSE
D O C U M E N T O F F R E I NI T IA L E M O D I F I É E - B â t i m e n t s - S up p r e s s io n d u pr oje t d e b a lc o ns e n p i g n o n s - Ma int ie n d e l'o uv e r t ur e d e s lo ggia s e n p i g n o n s - R e m p l a c e m e n t d u b a r da ge f a ux c la ir e -v oie b o is pa r d u b a Date
GTM BATIMENT Entreprise générale
SOGETI INGENIERIE Be TCE
V U E 0 2 C h e m i n d e l'E s p é r a nc e - B a s e
ABILITATION
Groupement
IN'L I
GROUPE ARCANE
Echelle

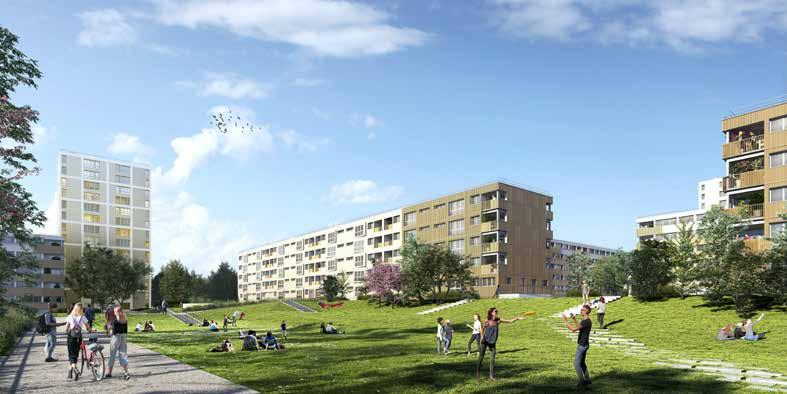

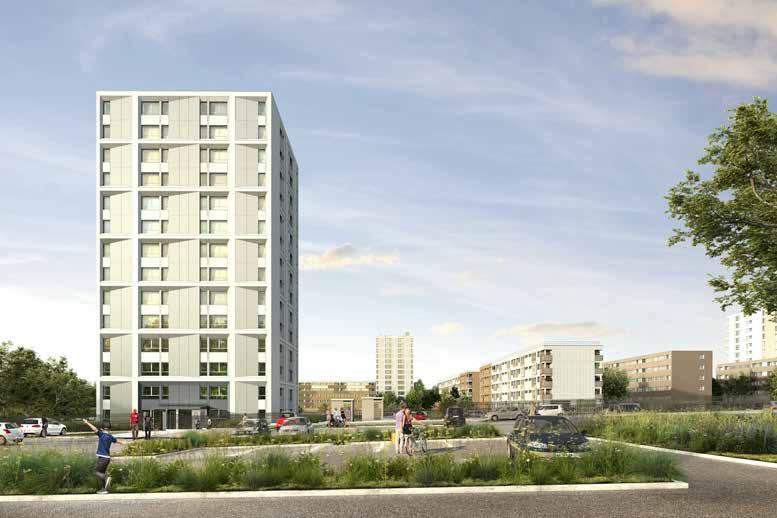

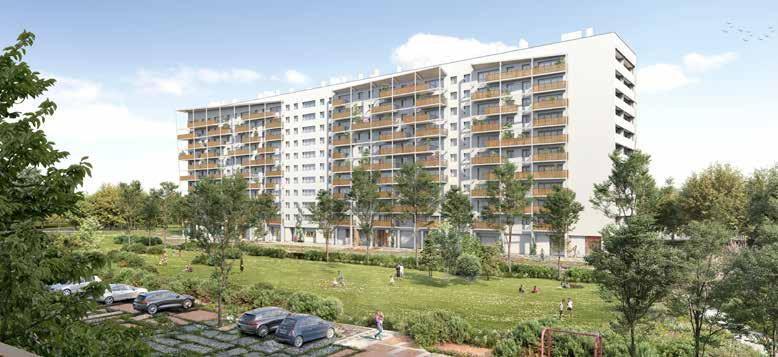

Park level rendering
23 Maîtrise d'ouvrage
Oct. 2021
VUE 03 - PLACE DES VERGERS - BASE
D O C U M E N T O F F R E INIT IA L E M O D I F I É E - B â t i m e n t s A A A A ' - S up p r e s s io n d u pr oje t d e b a lc o ns e n p i g n o n s - Ma int ie n d e l'o uv e r t ur e d e s lo ggia s e n p i g n o n s - R e m p l a c e m e n t d u b a r da ge f a ux c la ir e -v oie b o is pa r d u b a r da ge mé t a ll Date
GTM BATIMENT
SOGETI INGENIERIE
Oct. 2021
Plan N°
EUROPE SCHUMAN Location: Colombes, France Type: Housing, Renovation Frim: Groupe Arcane Architectes Role: Construction documents Date: 2021 Budget: 10,3 M€ Size: 17 357 m2 Carpet Area
Although located on the outskirts of the city, the residence benefits from a strategic position, close to the city center, shops, amenities, and public transportation. Additionally, the site is at the intersection of two important axes, which will soon accommodate the extension of Tramway. This intersection is marked by the presence of an Olympic Stadium, the future venue for official Field Hockey competitions for the 2024
Olympics. The architectural design of the facades, combined with the natural aging of the building and the materials used at the time of construction, has resulted in various manifestation of decay and discomforts for tenants. The project has simple objectives: to enhance the architectural heritage and bring it into the present time to equally coexist with the newer buildings and to improve its energy performance.
Be a beacon of sustainability by employing enduring, low-maintenance materials that endorse re-cladding and restoration, eschewing the need for reconstruction

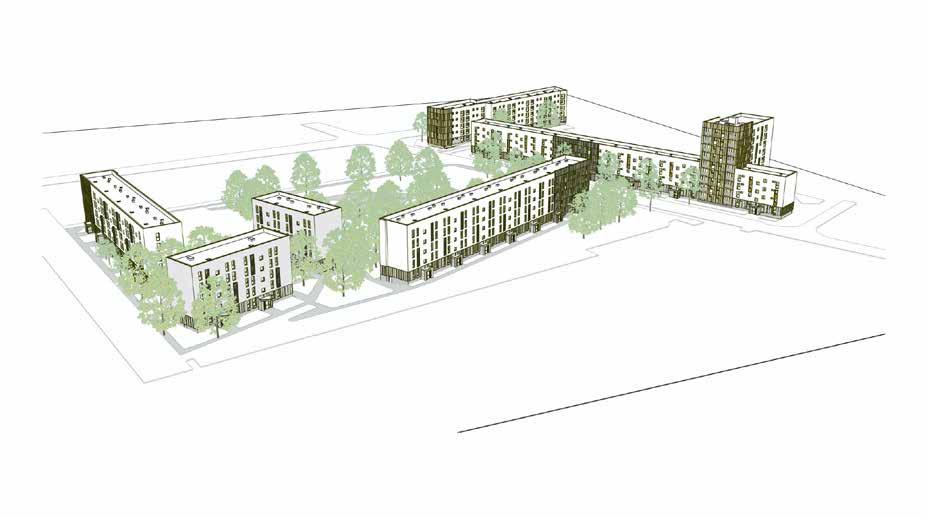

Site axonometric view
24
Recladding strategy
COPING: Lacquered aluminum PARAPET: Masonry height increased Existing handrail removed INSULATION: Rock wool 14cm WATERPROOFING REVITALIZATION: Insulation on parapet + flashing band
WATERPROOFING + INSULATION: Existing preserved INSULATION: Former EMI removed, 22cm rock wool CLADDING: Fiber cement Copanel Hydro series, smooth finish Dark gray, ventilated CARPENTRY: Insulating extension around windows Thickness > 4cm HEAD: Lacquered aluminum CARPENTRY:
Fixed window, integrated PVC shutter box Retrofit installation, existing frame preserved
FRAMING: Lacquered aluminum SILL: Lacquered aluminum drip Natural shade CLADDING: Fiber cement Copanel Hydro series, smooth finish Dark gray, ventilated BASE: Existing sill preserved and insulated BASE: Siporex INSULATION: Former EMI removed, 22cm rock wool FRAMING: Fiber cement cladding Copanel Hydro series, smooth finish Dark gray, ventilated
Detail, section and axonometric representation
25
BAPTIST'S VINE Location: Villiers-le-Bel, France Type: Housing, Renovation Frim: Groupe Arcane Architectes Role: Design Development and Construction Documents Date: 2020 Budget: 7,6M€ Size: 21 893 m2 Carpet Area
On the fringes of the city, where a former vineyard once grew, stands a once pleasant ensemble of structures enveloping landscaped gardens. The swift urban expansion, simmering social tensions, and escalating demand for social housing have compelled the city council to reassess this arrangement. To improve circulation and avert the creation of sprawling sectors devoid of vehicular access, a fresh thoroughfare will be
conceived, accompanied by its edifices, linking the primary parking area with the rear of the plot and its surroundings. Concurrent with the urban renewal, the entire ground level must adapt to embrace the influx of individuals stemming from these newfound entry points. Additionally, the enhancement of the water distribution network and interior finishes within each residence presents alternatives to the pre-existing installations.
Align building envelope with standard requisites, while contemporizing its aesthetic to harmonize with the architectural development of the neighborhood
Site plan
26
N°3: Coupe sur loggias
R+2
N°4: Pla
Panneau Aquapanel sur ossature métallique support ITE Imposte bois existante conservée Isolée par EMI Enduit mince sur isolant Teinte blanche Arase imposte existante conservée
Garde-corps existant conservé peint Tôle perforée type DAMPERE Teinte gris clair - RAL 9007
Garde-corps existant conservé Peint
Isolation - Laine minérale
Tôle perforée type DAMPERE Teinte gris clair - RAL 9007 1,00
Bardage plaques fibres-ciment sur ossature métallique Classement Q4 Teinte gris clair ou blanc Lame d'air
R+1
Système de fixation du bardage
Peinture de sol
Armature d'angle Peinture sous face Imposte bois existant conservé Isolé par EMI Volet roulant intérieur tablier métallique Teinte blanche Menuiserie existante remplacée PVC blanc Tranche optionnelle
Multiple scales of intervention
2,50
Persienne coulissante aluminium 14mm - Sidonie Remplissage aluminium extrudé Teinte gris clair - RAL 9007
Garde-corps existant conservé peint Rail métallique - cadre volet Garde-corps existant conservé Peint
Tôle perforée type DAMPERE Teinte gris clair - RAL 9007 Isolation - Laine minérale
Tôle perforée type DAMPERE Teinte gris clair - RAL 9007
Enduit mince sur isolant Teinte blanche ou gris
RDC
Cheville fixée à fleur Peinture de sol Armature d'angle
Ravalement soubassement
NOTA VOLETS ROULANTS: Volets roulants tablier aluminium pour toutes les pièces aux RDC et R+1. Volets roulants tablier PVC pour les chambres des autres étages. NOTA: PLANS EXISTANTS SAISIS SELON LES PLANS D'ARCHIVES DE LA VILLE. TOUTE INTERVENTION DEVRA FAIRE L'OBJET DE RELEVES PREALABLES Projet Maîtrise d'ouvrage Maîtrise d'œuvre Le Clos Baptiste GROUPE ARCANE LOGO 1-3-5 Place Joseph Presmane - 1 Place Bois Joli - 1 Allée des commerces - 1-3- CDC habitat Architectes DU BET Place de la Traverse. 95400 Villiers-Le-Bel GCC Sogeti Ingénierie Bâtiment

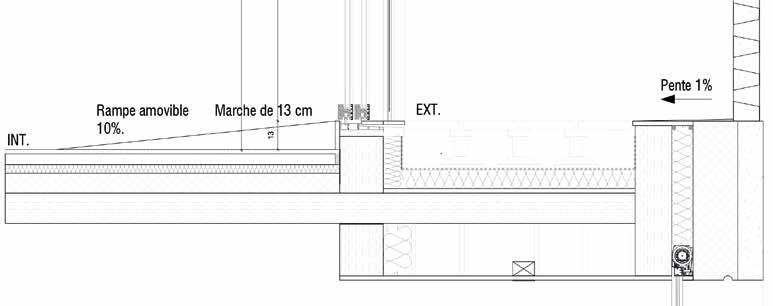

N°3: Coupe sur loggias N°4: Plan sur loggias RDC Détails: DÉTAIL LOGGIA
N°5: Plan sur loggias étage

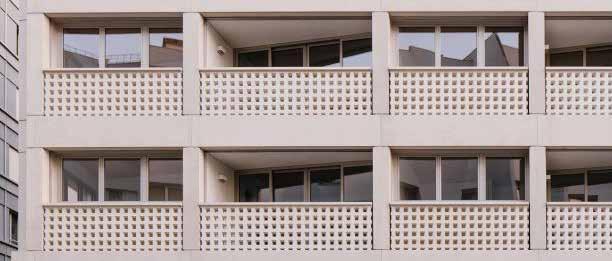

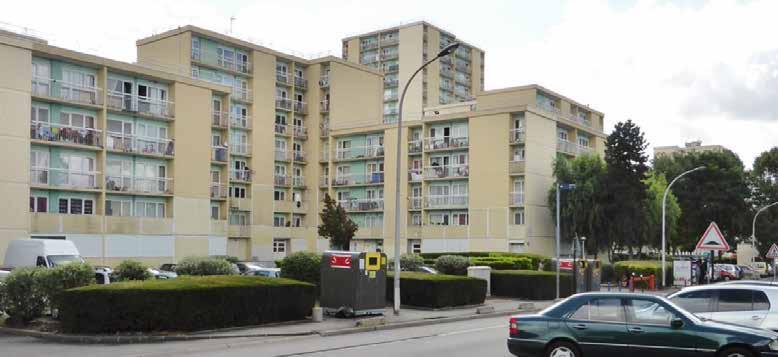

Projected transformations, rendring and photo
27
N°5: Pl
WHITE CLOAK Location: Madrid, Espagne Type: Renewal: city block Collaboration: Charles Bugny, Thomas Magnaval Role: Concept design Date: 2017 Mentoring: Marc Benard
This project aims to requalify both existing buildings and the surrounding public space. The approach involves enveloping the entire site with a new skin, creating a visual and conceptual unity to the project. This new envelope encompasses the structural and insulating needs for the buildings, as well as a circulation framework that serves for the placement of the new outdoors activities in the park.
The intervention creates a new micro social center in a neighborhood that has become a mere dormitory. The project's ambition is to recreate a dynamic social life throughout the year in an aging neighborhood and to promote a new way of living, using, and sharing public space for residents and passersby.

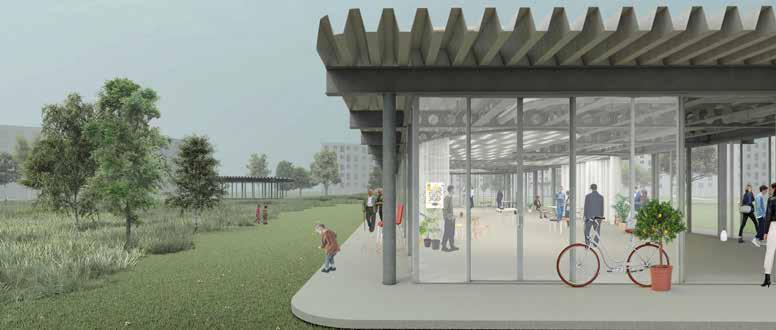

Park level rendering
28
Parti diagram
Cross section
29
Unify the park and the newly extended building by a common aesthetic to better invite to share the new living spaces created
Site axonometric view
30
SLIDING WINDOW 1 2
PLOTS 3 INSULATION 20CM 4 CONCRETE SLAB 15CM 5 6
TRIPLE GLAZING WINDOW 7 8
GLASS HANDRAIL 9 10
CONCRETE SCREED
11 12
13
LINTEL
14
DECK
15
FACADE DETAIL - 1:25
01 Détail Detail, facade extension GSEducationalVersion GSPublisherVersion 9.19.79.100

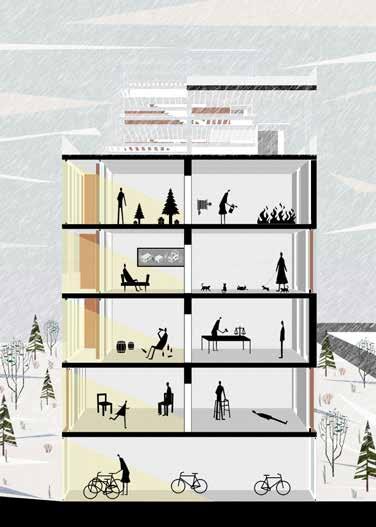

Climatic cross sections, winter and summer
31
1:25
MIXED USED: SYMBIOTISM
SOHO BACKYARD
Location: Les Courtillières, France Type: Renewal & Flex spaces Collaboration: Hugo Taillardat, Antoine Chauvin, Seongmoon Yoo Role: Concept Design Date: 2020
Since the Modernist era, zoning urbanism has sought to separate workplaces from "non-work life" spaces. This simplistic assumption about the nature of work, which considers offices, like industries, to be set apart from residential areas, assumes an obvious perspective. However, the evolution of work patterns tends towards a fragmentation of these monofunctional areas. The very recent health crisis since
spring 2020 has also demonstrated that work can be integrated into a domestic living environment. This phenomenon is not new, and at various times, forms of integration have developed: the Haussmannian building, the Californian garage, and more recently, SoHo. We draw lessons from these examples to envision future workplaces on multiple scales, as it can take diverse forms and be integrated into residential fabrics.

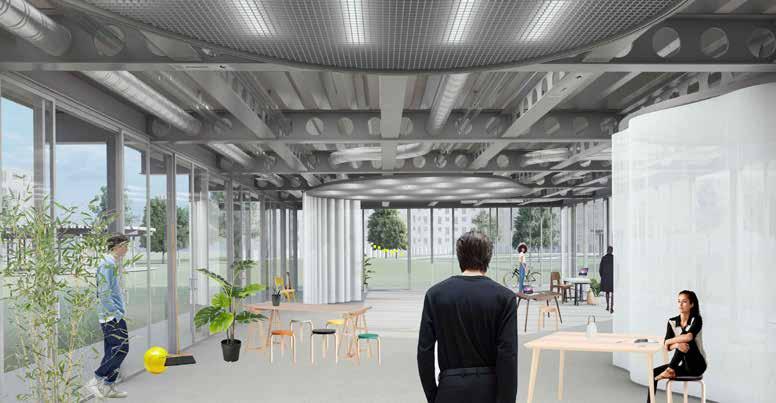

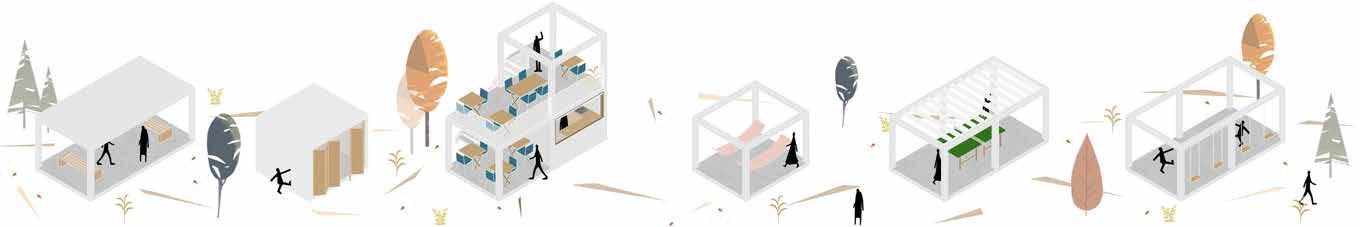

Rethinking the workplace as a living situation, with various temporalities, as an appropriate, customizable and reversible space

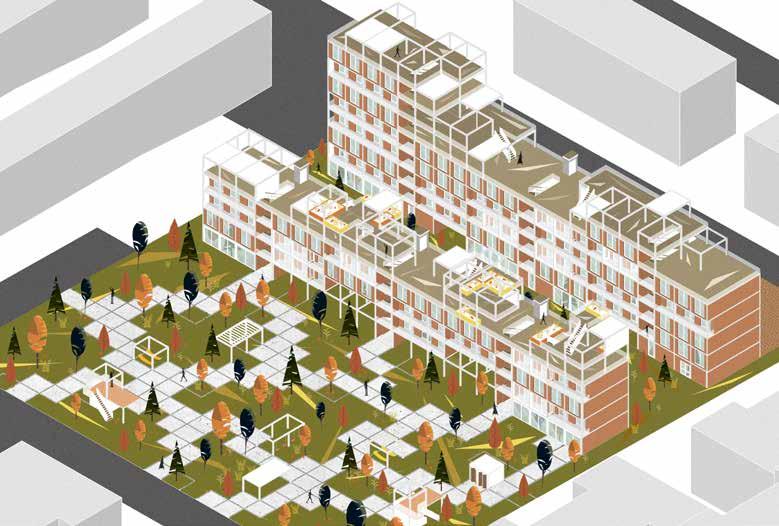

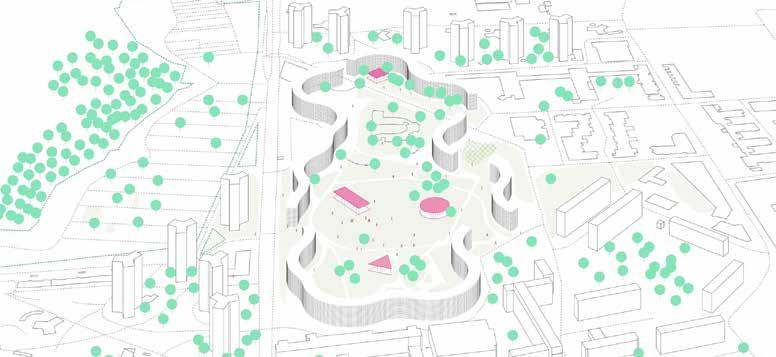

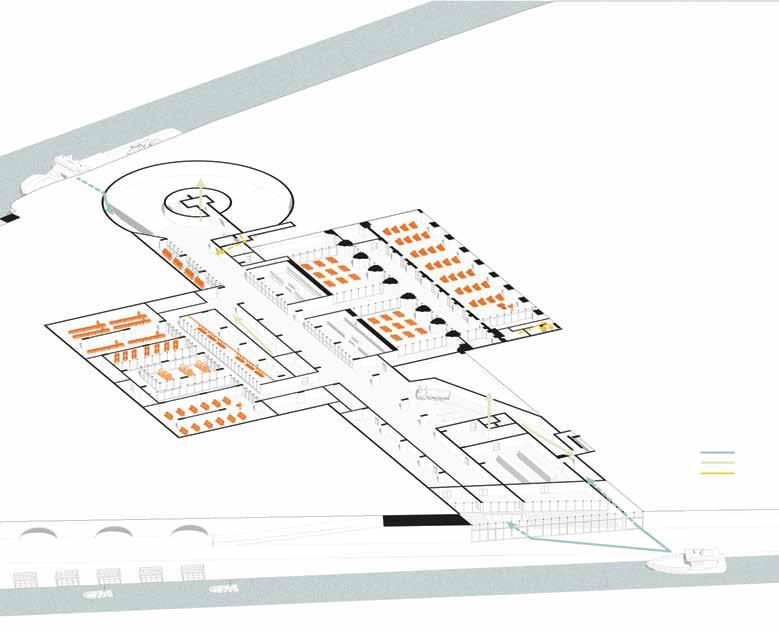

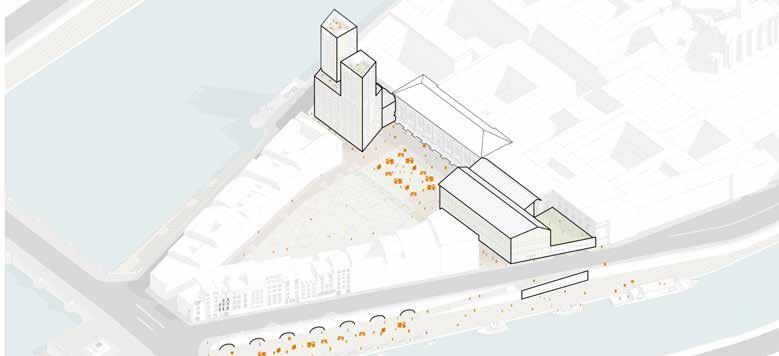

Site axonometric view
34
Cross section, pavilions & site

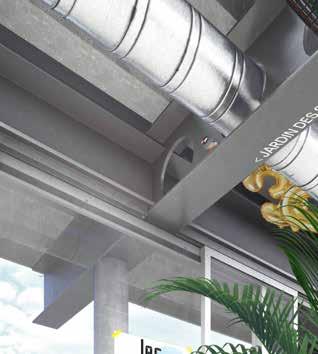

Cross section detail, technical ceiling
35
CÉÜSE Location: Bagnolet, France Type: Community & sports center Collaboration: Seongmoon Yoo Role: Concept Design Date: 2019 Mentoring: P. Garcia, M.Mercuriali Size: 3420m2 Carpet Area
The sports project consists of three fundamental principles. The first is the reuse of existing levels to create a programmatic base, onto which a suspended volume is attached, serving as a landmark for the entire site. Numerous paths for users are created on the surfaces of these different volumes. The suspended volume, like a lantern, is supported by the concrete shell, which also serves as a climbing
wall. The sports facility is situated at the center of the redevelopment intervention, aiming to connect the centrality created to the East by the two new cultural and logistical programs, the garden to the South, and the motel and train station complex to the West. The ground floor is organized around a central axis that serves the various activity areas. This layout optimizes the reuse of the existing concrete structure.

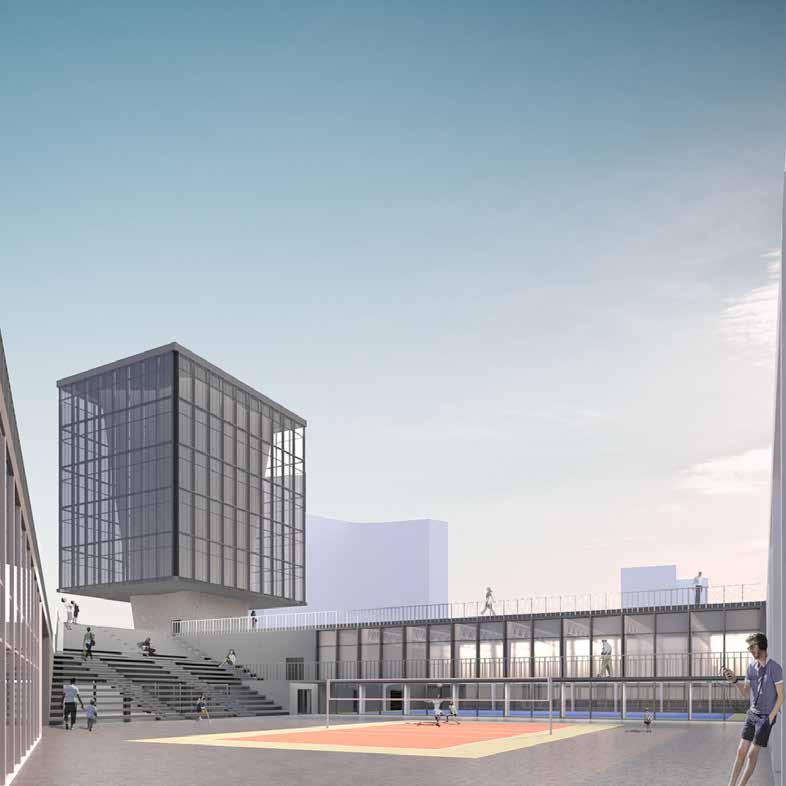

Bus station street view rendering
36
Socle
Signal
Socle
Parcours
Signal
Parcours
Parti diagram
Axonométrie de circulation
que
Vers Jardin 76,00
Vers Motel 83,60 Vers Eurolines 78,77
Vers Mercuriales 83,60 Vers cour, parking, café 76,00
Vers sports Espaces sportifs principaux: 1035 m2 76,00 Espaces sportifs principaux: 1035 m2 Espaces sportifs secondaires: 970 m2 Espaces sportifs secondaires: 970 m2 Espaces detentes et bureaux: 365 m2 Espaces detentes et bureaux: 365 m2 Espaces techniques: 235m2 Toutes directions Espaces techniques: 235m2 Vestiaires: 260 76,00 Vestiaires: 260 m2m2 Circulation hall: Circulation etet hall: 555555 m2 m2 GSPublisherVersion 0.0.100.100
The reuse of existing levels to create a programmatic base, and a reconversion that makes possible to articulate all the circulations of the Peninsula intervention
Cross section, preventing overheating
37
Plan nv 89.00
11
12
13
9
10
8
11
12
9
10
13
4
4
3
1. Entrée 2. Local vélo 3. Halle 4. Administration 5. Boutique 6. Espace détente 7. Salle multisports 8. Cour 9. Salle de danse 10. Vestiaire 11. Stockage 12. Local poubelle 13. Local technique
1 2 6
7
5
0
4
8
12
16
3
1. Entrée 2. Local vélo 3. Halle 4. Administration 5. Boutique 6. Espace détente 7. Salle multisports 8. Cour 9. Salle de danse 10. Vestiaire 11. Stockage 12. Local poubelle 13. Local technique
1 2 6
5
18
19
Plans de Rdc et R+3 avec toiture sportive
20
0
4
8
12
16
0
20
4
8
The glass volume floating like a lantern carried by the concrete shell serving as a climbing wall, a new signal for the neighborhood
Cross section, reused structures
38
12
16
20
Subway station streetview rendering
39
WOLF'S LOWLAND Location: Lausanne, Switzerland Type: Urban expansion Frim: JKLN Role: Concept design Date: 2017 Budget: Undisclosed Size: 23 153 m2 Carpet Area
The runoff emanating from the mineral surfaces of the edifices is channelled into a network of interlinked swales. This expanse functions as a dynamic ecological corridor, bedecked with trees, shrubbery, and grasses, interspersed within the rich soil lining the swales. This arrangement amplifies the seasons' nuances while offering a flourishing habitat for indigenous fauna. Elevated wooden walkways traverse
this domain, facilitating unimpeded permeability and minimal disruption to the natural realms. Three primary plazas are strategically positioned, serving as focal points in proximity to significant public entrances and commercial zones. The privacy of flats is safeguarded from this vibrant periphery by a vegetative buffer shielding views and mitigating noise.
A new eco-neighborhood with overlap of strong ecological connections and public use of the open spaces

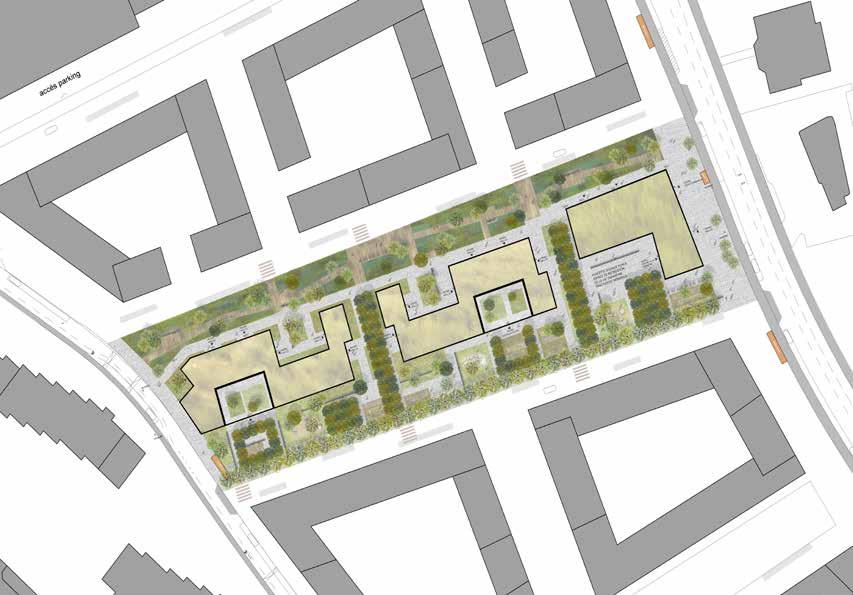

Site plan
40
Parti diagram
Floorplan
41
THE CITY OF TASTE Location: Paris, France Type: Logistical, Commercial, Educationnal, Hospitality, & Renovation Date: 2019 Mentoring: Xavier Gonzalez, Emmanuel Person
The "Cité du Goût" is a showcase for responsible food practices at the heart of the Île de la Cité. It is first and foremost part of an extensive territory, that of the Seine Valley, and brings the best of these regions to the center of the capital by boat, aiming to promote an alternative to the environmentally detrimental and saturated road logistics. At the scale of Paris, it aspires to address the growing concern of Parisians and
some visitors about sustainable urban food. To achieve this, it gathers practices that aim to communicate, explain, and demonstrate the means to minimize the transportation and costs of food consumed in Paris. Products transported by boat and locally produced vegetables in underground or greenhouse cultures allow the smooth operation of all the facilities.
Educate through the culinary experience to alternatives of production and consumption in the city
4
4
3
3
2
2
1
1
42
Floorplan
Parti diagram
Flux issus du transport fluvial Flux issus de la production locale Flux issus des visiteurs
Underground production and processing
43

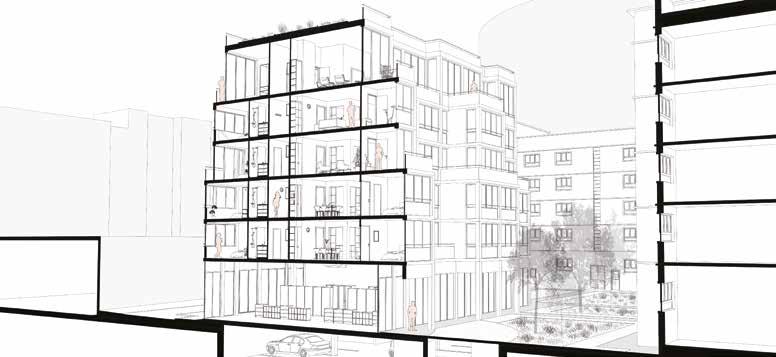

Cross section, Iceberg Restaurant's terrace Higher levels
Panoramic restaurant Penthouses' terrace
Penthouses
Snack bar and residence terrace
Shared residences
Lower levels
Cellar
Hotel restaurant
Cooking class workshops
Gourmet bookstore Greenhouse, above and in-ground culture
Docks Palace library terrace
Land cooperative and hotel lobby
Tasting Living Educating
Indoor market
Producing Circulations Logistics
Exploded axonometry, mixed use
44

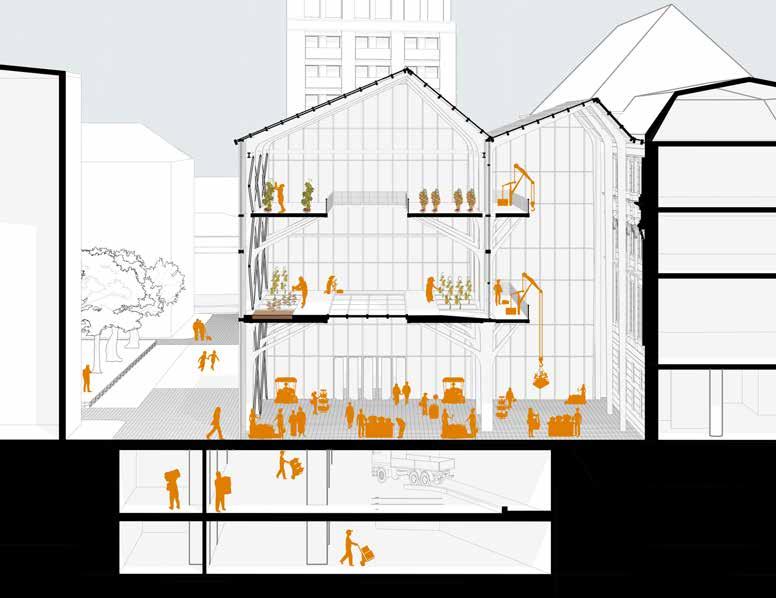

Cross section, Marketplace
45
Hugues Azambre Architectural designer Licenced architect in France h.azambre@gmail.com +1 (647) 390 3974
