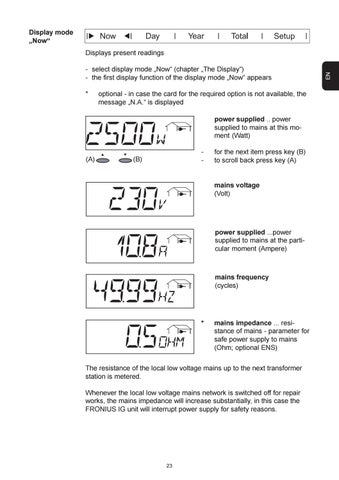

Display mode „Now“
- select display mode „Now“ (chapter „The Display“) - the first display function of the display mode „Now“ appears *
optional - in case the card for the required option is not available, the message „N.A.“ is displayed power supplied .. power supplied to mains at this moment (Watt)
(A)
-
(B)
for the next item press key (B) to scroll back press key (A)
mains voltage (Volt)
power supplied ...power supplied to mains at the particular moment (Ampere)
mains frequency (cycles)
*
mains impedance ... resistance of mains - parameter for safe power supply to mains (Ohm; optional ENS)
The resistance of the local low voltage mains up to the next transformer station is metered. Whenever the local low voltage mains network is switched off for repair works, the mains impedance will increase substantially, in this case the FRONIUS IG unit will interrupt power supply for safety reasons.
23
EN
Displays present readings
