785.392.3017
FAX
BOX 232 • MINNEAPOLIS, KS • 67467
785.392.2845
www.huyett.com

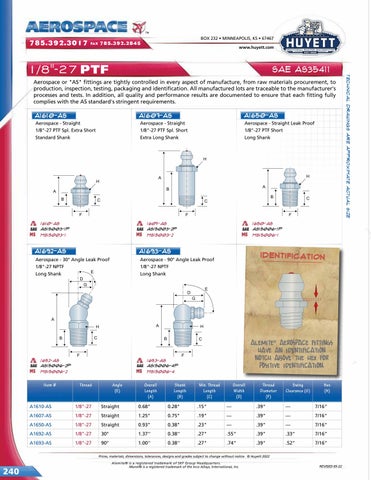

1/8"-27 PTF
SAE AS35411
A1610-AS
A1607-AS
A1650-AS
Aerospace - Straight 1/8"-27 PTF Spl. Extra Short Standard Shank
Aerospace - Straight 1/8"-27 PTF Spl. Short Extra Long Shank
Aerospace - Straight Leak Proof 1/8"-27 PTF Short Long Shank
1610-AS AS15003-1P MS15003-1
1607-AS AS15003-2P MS15003-2
1650-AS AS15006-1P MS15006-1
A1692-AS
A1693-AS
Aerospace - 30° Angle Leak Proof 1/8"-27 NPTF Long Shank
Aerospace - 90° Angle Leak Proof 1/8"-27 NPTF Long Shank
1692-AS AS15006-2P MS15006-2
Item #
Id en tif ica tio n
ALEMITE® AEROSPACE FITTINGS HAVE AN IDENTIFICATION NOTCH ABOVE THE HEX FOR POSITIVE IDENTIFICATION.
1693-AS AS15006-4P MS15006-4
Thread
Angle (E)
Overall Length (A)
Shank Length (B)
Min. Thread Length (C)
Overall Width (D)
Thread Diameter (F)
Swing Clearance (G)
Hex (H)
A1610-AS
1/8"-27
Straight
0.68"
0.28"
.15"
—
.39"
—
7/16"
A1607-AS
1/8"-27
Straight
1.25"
0.75"
.19"
—
.39"
—
7/16"
A1650-AS
1/8"-27
Straight
0.93"
0.38"
.23"
—
.39"
—
7/16"
A1692-AS
1/8"-27
30°
1.37''
0.38''
.27"
.55"
.39"
.33"
7/16"
A1693-AS
1/8"-27
90°
1.00''
0.38''
.27"
.74"
.39"
.52"
7/16"
Prices, materials, dimensions, tolerances, designs and grades subject to change without notice. © Huyett 2022
240
Alemite® is a registered trademark of SKF Group Headquarters. Monel® is a registered trademark of the Inco Alloys, International, Inc.
REVISED 05-22
Technical Drawings are Approximate Actual Size
Aerospace or "AS" fittings are tightly controlled in every aspect of manufacture, from raw materials procurement, to production, inspection, testing, packaging and identification. All manufactured lots are traceable to the manufacturer's processes and tests. In addition, all quality and performance results are documented to ensure that each fitting fully complies with the AS standard's stringent requirements.
