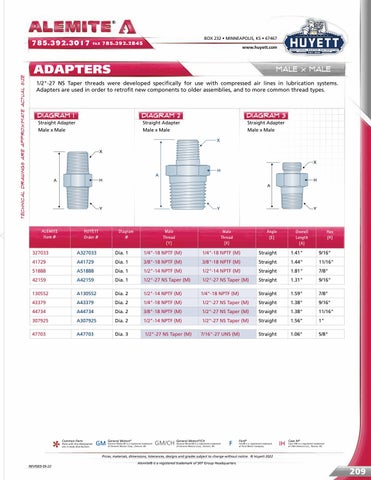

ADAPTERS
Male x male
1/2"-27 NS Taper threads were developed specifically for use with compressed air lines in lubrication systems. Adapters are used in order to retrofit new components to older assemblies, and to more common thread types.
DIAGRAM 1
DIAGRAM 2
DIAGRAM 3
Straight Adapter Male x Male
Straight Adapter Male x Male
Straight Adapter Male x Male
ALEMITE Item #
HUYETT Order #
Diagram #
Male Thread (Y)
Male Thread (X)
Angle (E)
Overall Length (A)
Hex (H)
327033
A327033
Dia. 1
1/4"-18 NPTF (M)
1/4"-18 NPTF (M)
Straight
1.41"
9/16"
41729
A41729
Dia. 1
3/8"-18 NPTF (M)
3/8"-18 NPTF (M)
Straight
1.44"
11/16"
51888
A51888
Dia. 1
1/2"-14 NPTF (M)
1/2"-14 NPTF (M)
Straight
1.81"
7/8"
42159
A42159
Dia. 1
1/2"-27 NS Taper (M)
1/2"-27 NS Taper (M)
Straight
1.31"
9/16"
130552
A130552
Dia. 2
1/2"-14 NPTF (M)
1/4"-18 NPTF (M)
Straight
1.59"
7/8"
43379
A43379
Dia. 2
1/4"-18 NPTF (M)
1/2"-27 NS Taper (M)
Straight
1.38"
9/16"
44734
A44734
Dia. 2
3/8"-18 NPTF (M)
1/2"-27 NS Taper (M)
Straight
1.38"
11/16"
307925
A307925
Dia. 2
1/2"-14 NPTF (M)
1/2"-27 NS Taper (M)
Straight
1.56"
1"
47703
A47703
Dia. 3
1/2"-27 NS Taper (M)
7/16"-27 UNS (M)
Straight
1.06"
5/8"
Common Parts
Parts with this designation are in wide distribution.
