F CASE STUDY
CASE STUDY

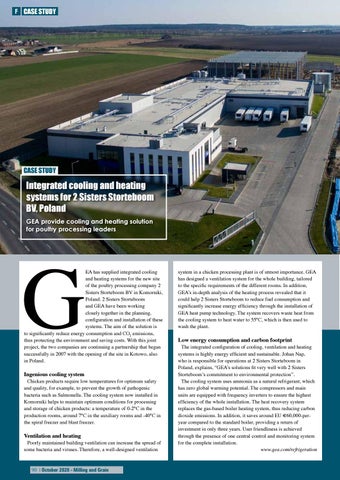

Integrated cooling and heating systems for 2 Sisters Storteboom BV, Poland
G
GEA provide cooling and heating solution for poultry processing leaders
EA has supplied integrated cooling and heating systems for the new site of the poultry processing company 2 Sisters Storteboom BV in Komorniki, Poland. 2 Sisters Storteboom and GEA have been working closely together in the planning, configuration and installation of these systems. The aim of the solution is to significantly reduce energy consumption and CO2 emissions, thus protecting the environment and saving costs. With this joint project, the two companies are continuing a partnership that began successfully in 2007 with the opening of the site in Kotowo, also in Poland.
Ingenious cooling system
Chicken products require low temperatures for optimum safety and quality, for example, to prevent the growth of pathogenic bacteria such as Salmonella. The cooling system now installed in Komorniki helps to maintain optimum conditions for processing and storage of chicken products: a temperature of 0-2°C in the production rooms, around 7°C in the auxiliary rooms and -40°C in the spiral freezer and blast freezer.
Ventilation and heating
Poorly maintained building ventilation can increase the spread of some bacteria and viruses. Therefore, a well-designed ventilation 90 | October 2020 - Milling and Grain
system in a chicken processing plant is of utmost importance. GEA has designed a ventilation system for the whole building, tailored to the specific requirements of the different rooms. In addition, GEA’s in-depth analysis of the heating process revealed that it could help 2 Sisters Storteboom to reduce fuel consumption and significantly increase energy efficiency through the installation of GEA heat pump technology. The system recovers waste heat from the cooling system to heat water to 55°C, which is then used to wash the plant.
Low energy consumption and carbon footprint
The integrated configuration of cooling, ventilation and heating systems is highly energy efficient and sustainable. Johan Nap, who is responsible for operations at 2 Sisters Storteboom in Poland, explains, “GEA’s solutions fit very well with 2 Sisters Storteboom’s commitment to environmental protection”. The cooling system uses ammonia as a natural refrigerant, which has zero global warming potential. The compressors and main units are equipped with frequency inverters to ensure the highest efficiency of the whole installation. The heat recovery system replaces the gas-based boiler heating system, thus reducing carbon dioxide emissions. In addition, it saves around EU €60,000-peryear compared to the standard boiler, providing a return of investment in only three years. User friendliness is achieved through the presence of one central control and monitoring system for the complete installation. www.gea.com/refrigeration
