Cable Railing
SIMPLICITY. VERSATILITY. UNOBSTRUCTED VIEWS.
Cable Railing
Achieve a modern look and showcase views with versatile stainless steel cable railing components, offering low maintenance and easy installation—perfect for decks and stairs.
Bezdan Cable
Bezdan Cable is the go-to choice for stunning stainless steel cable railings that offer unobstructed views. With a comprehensive range of off-theshelf solutions, including pre-drilled posts and fittings for metal, wood, and concrete, it saves installers time and cost. Stainless steel cable railings are available in satin and black finishes, adding style to any deck or stair project.
RailFX®

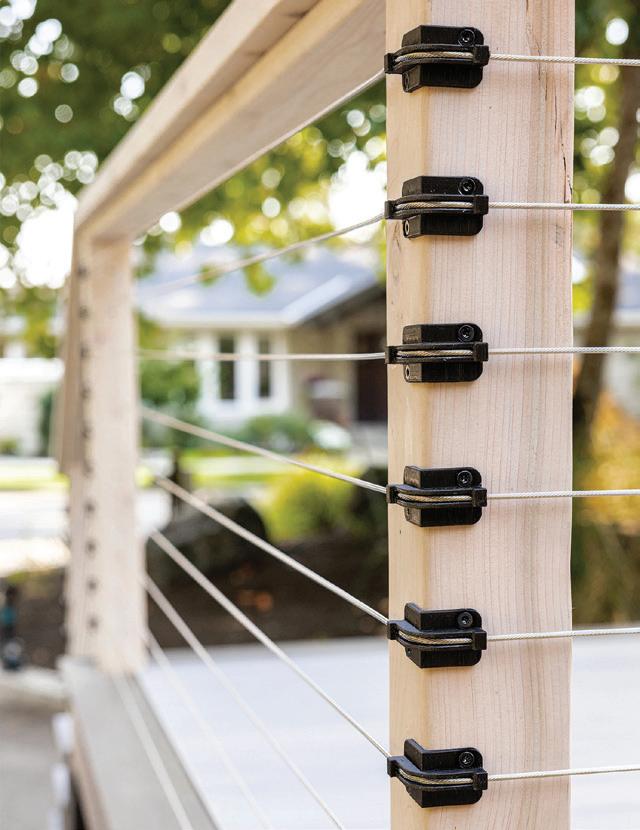

RailFX® offers a cable railing system with Express Mount Brackets™ that attach to the exterior of posts, maintaining clear views. The cables run continuously around a single corner post, simplifying installations and eliminating the need to drill through the posts.
The Choice for Cable Railing on Decks and Stairs
Bezdan is a leader in cable railing, backed by over two decades of experience. We've helped shape building code changes to allow horizontal guard infill and developed a product line that brings unique cable railing options to the market.
Our knowledgeable Sales and Customer Service Teams provide customers with pre and post-sales support with quoting services, product recommendations, and installation resources so you can deliver exceptional projects.
The Dependable Choice for Cable Railing
Choose Bezdan for your cable railing needs. From residential projects to large commercial installations, our quoting services provide tailored solutions to fit your budget. Our products are backed by comprehensive test and engineering reports, ensuring the quality you can trust.
Let us take the guesswork out of your next project. Use the online Request a Quote form and a Sales Representative will connect with you to provide:
4 Product recommendations to ensure an efficient and cost effective project
4 Custom take-offs to guide you through your specific project installation
4 The resources you need to ensure a successful installation
Go to geobezdan.com/quote-request
Horizontal Guard Rail and Code
Bezdan is an advocate for code changes allowing horizontal guard rails in Canada. Stay updated with us for the latest industry changes.
Bezdan's Pivotal Role in the Code Change
After over a decade of voluntary effort, Bezdan celebrates the code changes to allow horizontal guard infill. Nearly all of Canada has adopted the National Building Code articles that permit ornamental guards like cable rail. Learn more at geobezdan.com/national-building-code
Check out all the options to create a versatile, horizontal look on stairs geobezdan.com/horizontal-railing

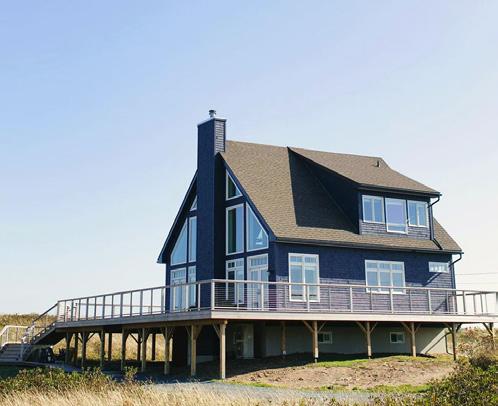

Get inspired by our photo gallery with dozens of cable railing projects at geobezdan.com/gallery/cable-railing
Cable Railing Basics
Key Insights for Selecting and Installing Cable Railing
1 START WITH THE POST FRAMEWORK
Select Your Mounting Substrate

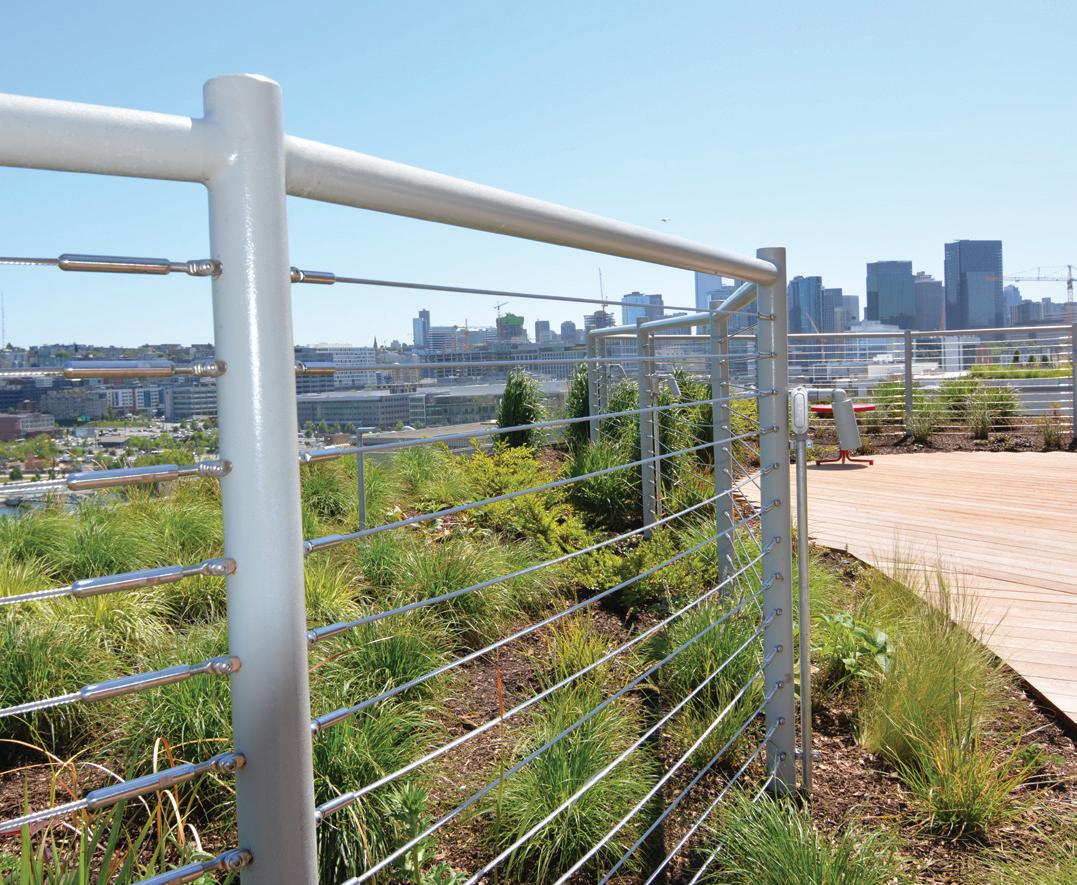

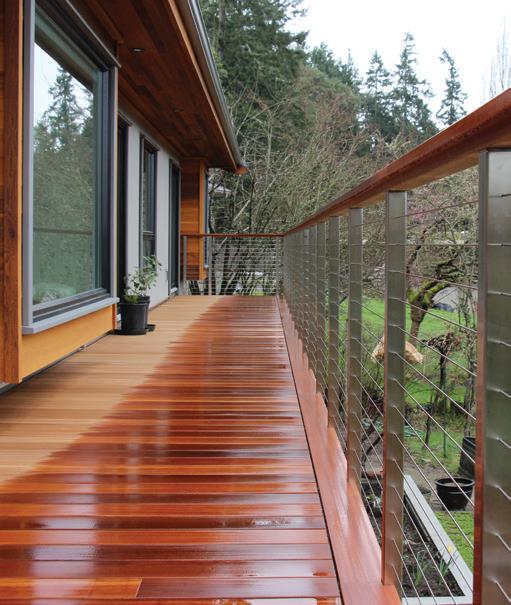

Metal Post

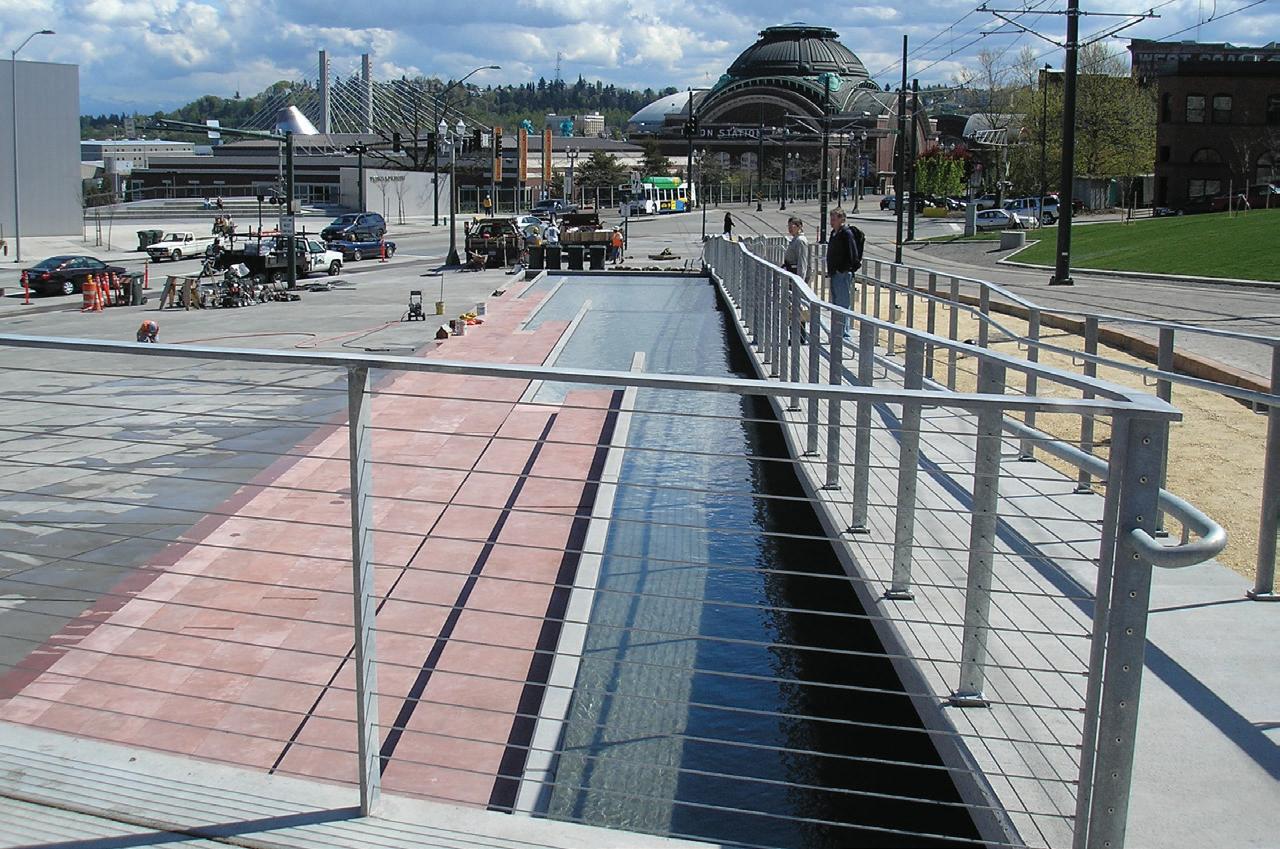

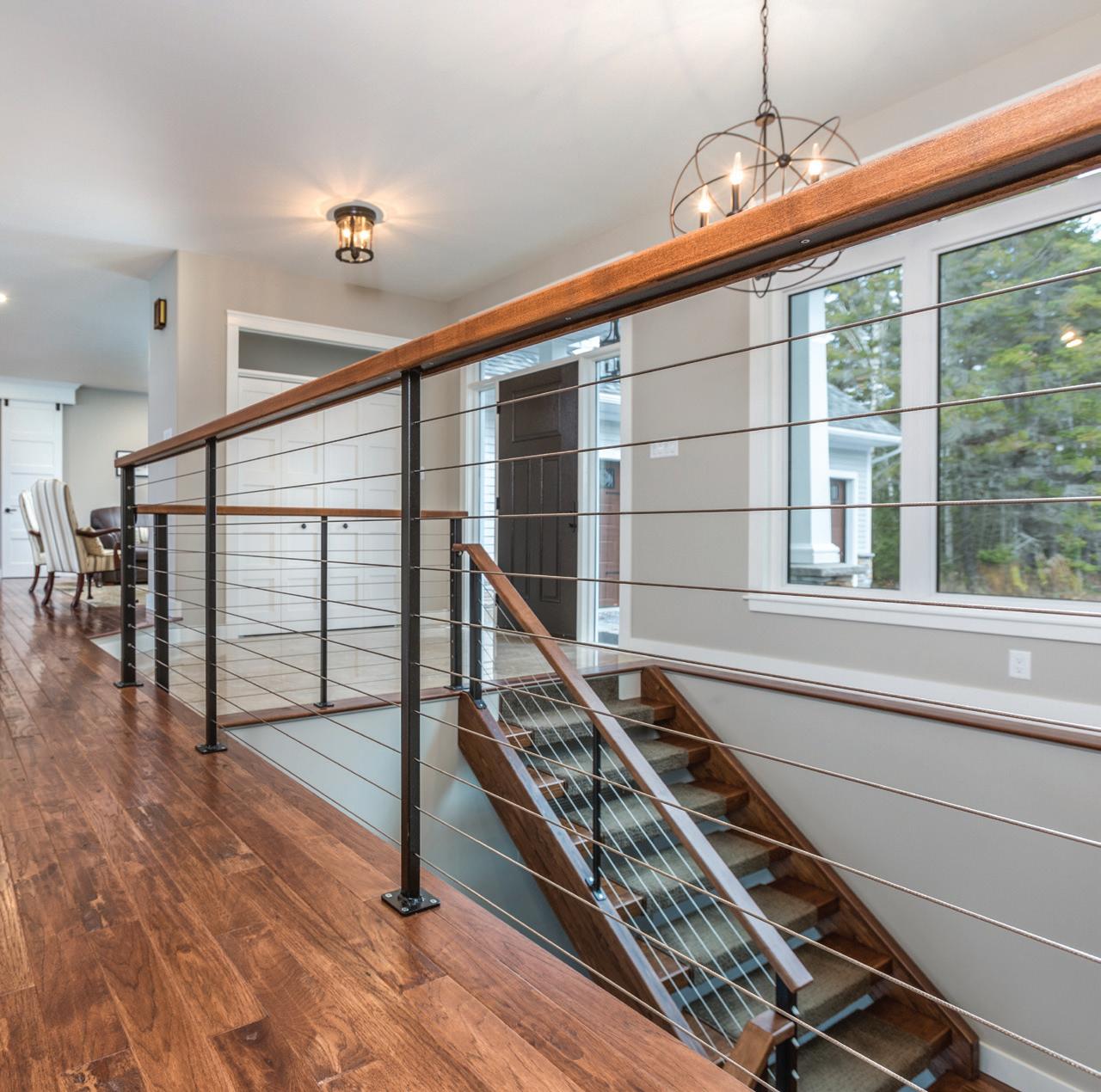

Cable railing with stainless steel posts is popular as it provides a contemporary look that fits with various home decors, from an industrial-style loft to trending modern farmhouse interiors.
Concrete

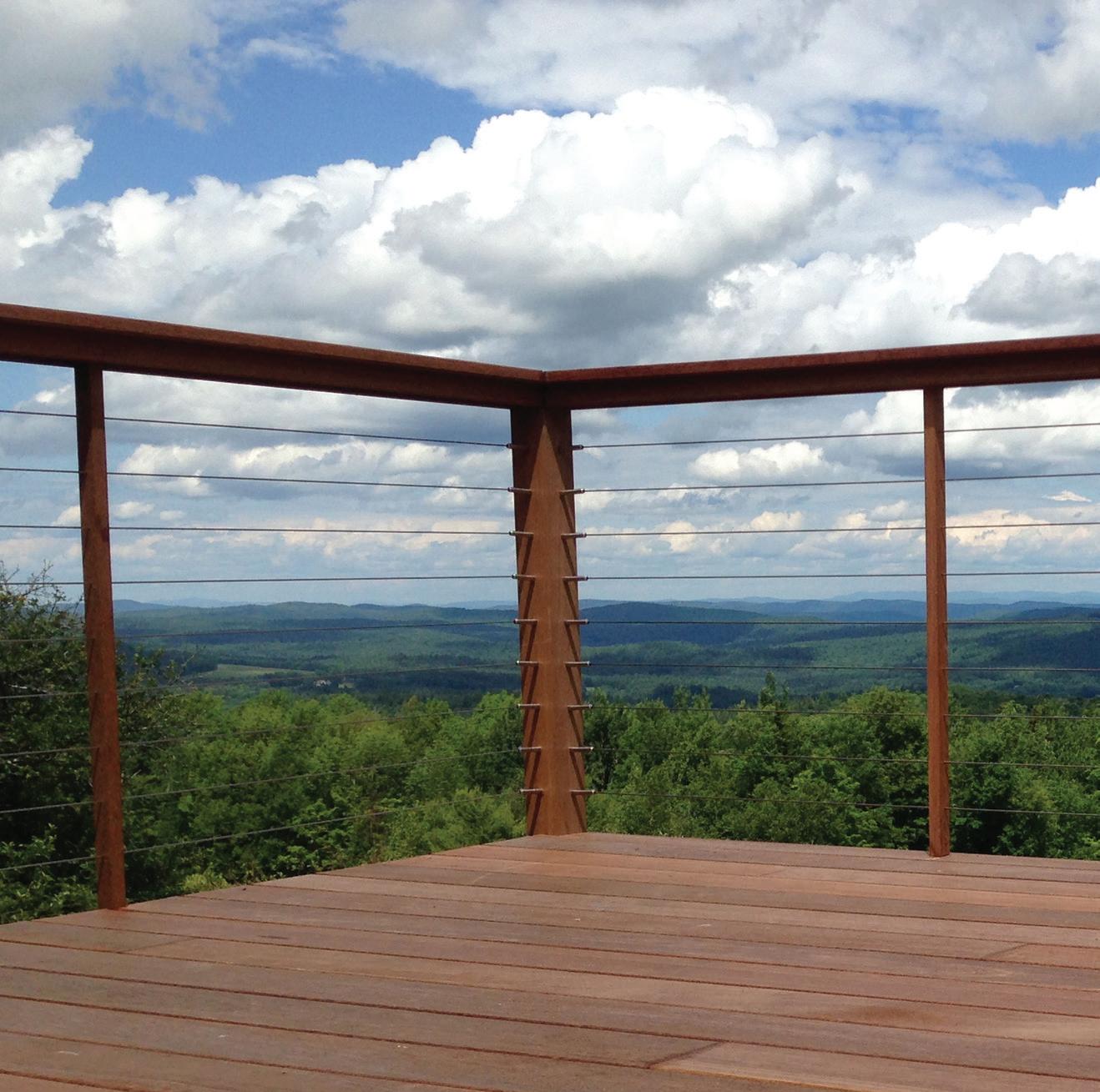

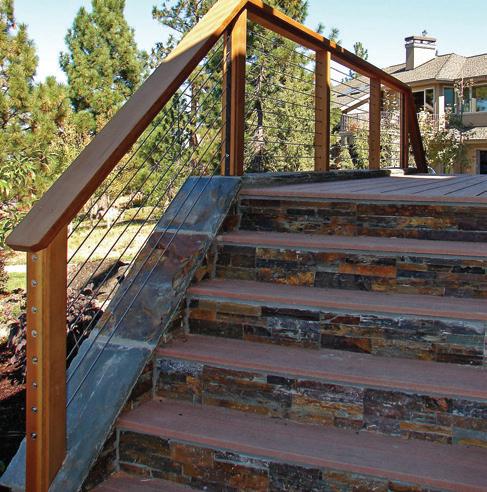

Cable railing with wood posts is widely used to combine the natural warmth and beauty of wood with the contemporary appeal of stainless steel cable.

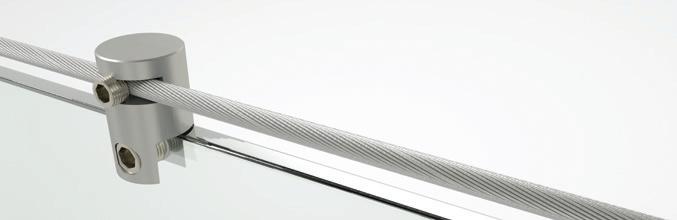

In some cases, a post is not required or not possible due to limited space, so cable infill must secure directly to a concrete substrate, like a foundation wall, when installing on a deck.
Select The Post Mounting Option
Fascia mount posts are attached to the side of the deck’s structure, offering a clean, unobstructed deck surface that's easy to maintain.
Surface mount posts are installed directly onto the surface, offering flexibility and ease of installation. This option works especially well for floating stair designs.

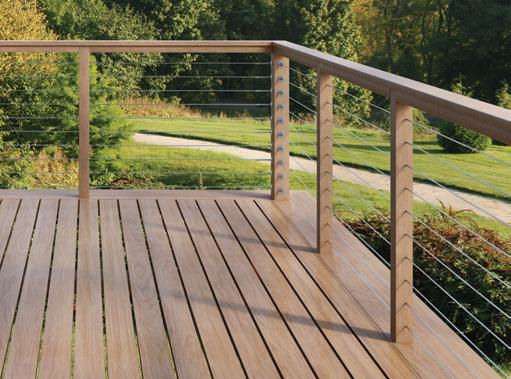

Wood Post
Fascia Mount Post
Surface Mount Post
2 POST SPACING AND REQUIREMENTS
Key Considerations for Planning and Installing Cable Railing
A The cable should be supported by a post, mid-post, or cable brace no less than every 48 inches to keep consistent spacing, prevent sagging, and support the top rail.
B A top rail is always necessary for structural integrity when building a guard rail with cable infill.
C A complete railing will include 9 – 14 rows of cable depending on post height, framework construction, and cable spacing.
D A three-inch spacing between rows is recommended as it considers cable deflection to comply with the code requirement that no opening be large enough that a 4" sphere can pass. Bezdan Cable posts are pre-drilled with a spacing of less than 3 inches to ensure limited deflection.
E The railing framework must be stable and robust enough to support cable tensioned to prevent cable deflection from allowing a 4" sphere to pass.
Cable Railing 101
New to cable railing or looking to expand your knowledge? Explore Cable Railing 101 for the basics, installation guidance, and expert tips to get you started.
Check out geobezdan.com/news/cable-railing-101/
Cable Railing Basics
Key Insights for Selecting and Installing Cable Railing
3 HOW TO HANDLE CORNERS
Common Solutions for Corner Installations

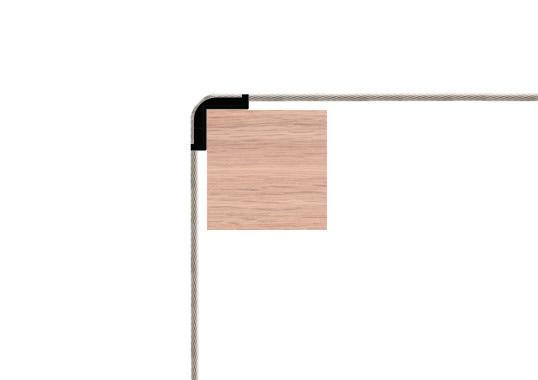

Since the properties of cable do not accommodate bends past 45 degrees, to create a 90 degree corner and to allow for proper tensioning, choose from these solutions:

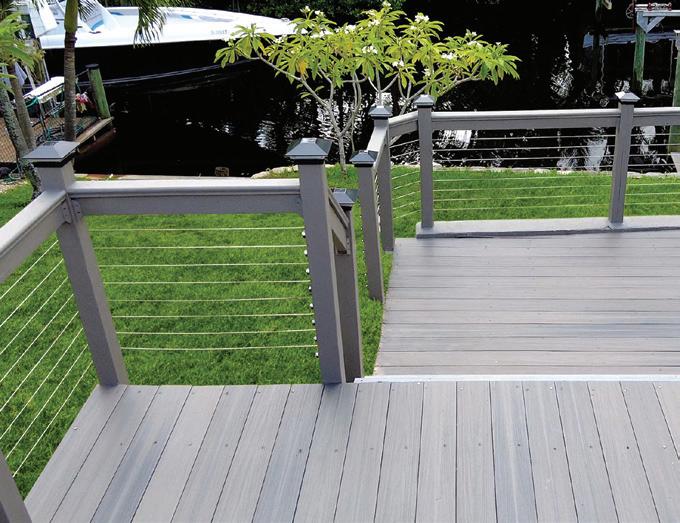

Double Post Configuration (Terminated)
The cable run can terminate at the end post and start up again at the next post to create the 90˚ corner.

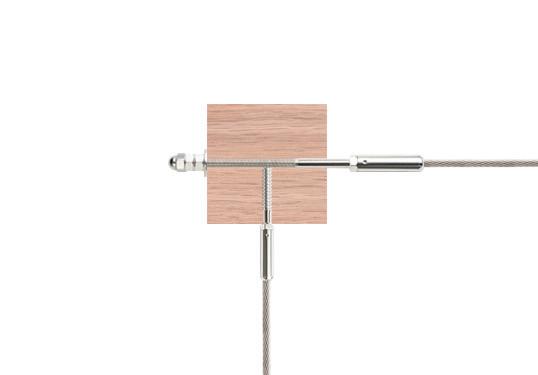

Single Post Configuration (Terminated)
Use through-post with a surface mount fitting (as shown) or opt for only surface mount fittings for a streamlined, balanced look.

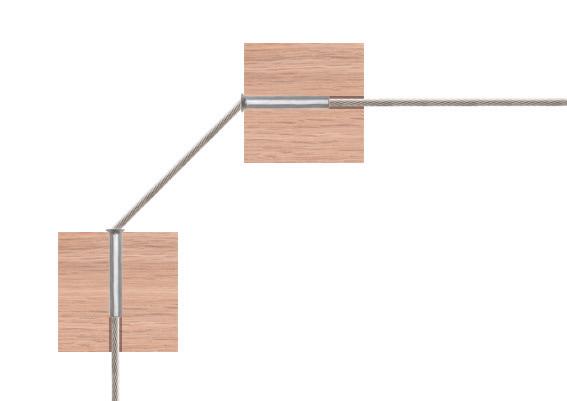

Double Post Configuration (Continuous)
Another solution is to place posts to allow for the cable to pass through at a maximum of 45 degrees.
Single Post Configuration (Continuous)
Another solution is to use Express Mount Brackets to allow for the cable to run continuously around the post.
Cable Railing

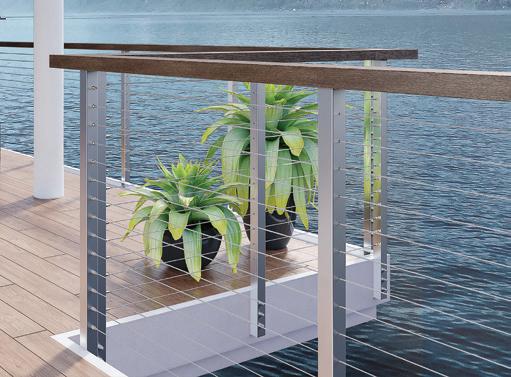

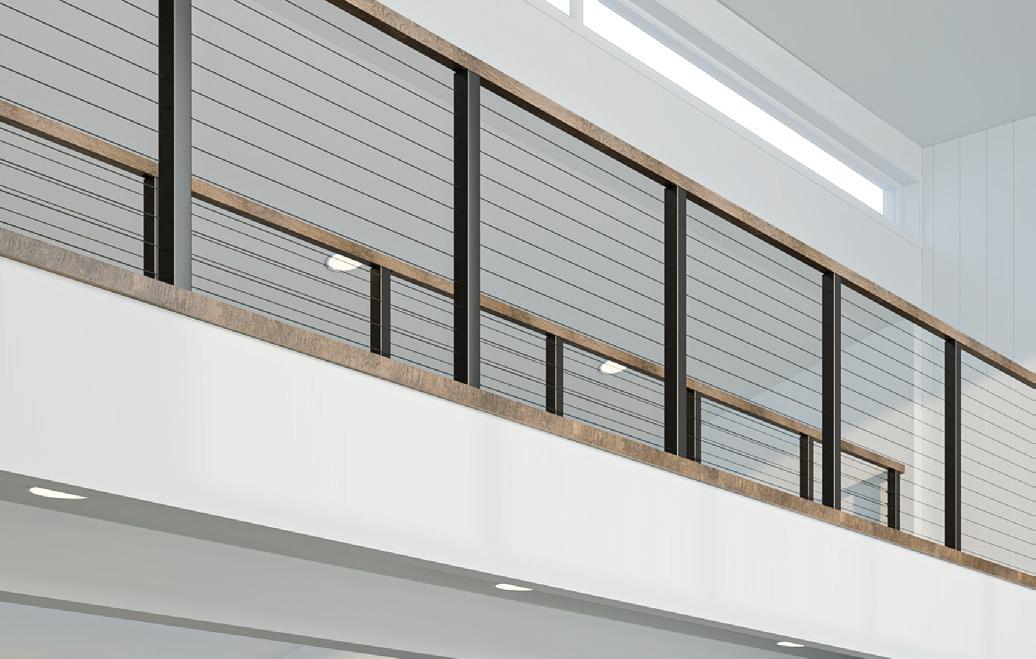

Metal Post
Frameworks
SIMPLICITY. VERSATILITY. UNOBSTRUCTED VIEWS.
Design modern railings with low-maintenance stainless steel components for metal, wood, or concrete. Enjoy the versatility of cable infill for indoor and outdoor settings while showcasing the view.

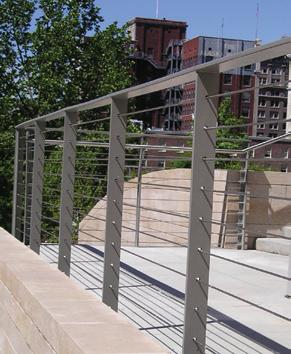

Combine metal posts with cable infill for contemporary railings.
u Suits pipe or round aplications
u Through-post and surface mount installations

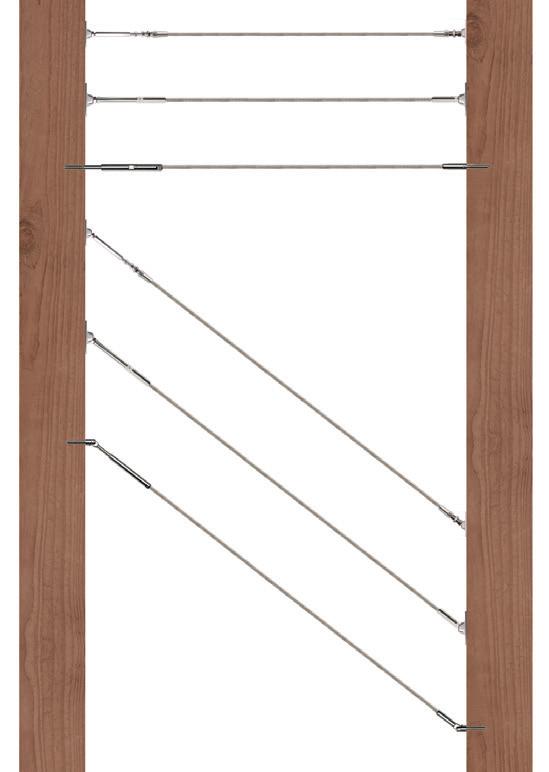

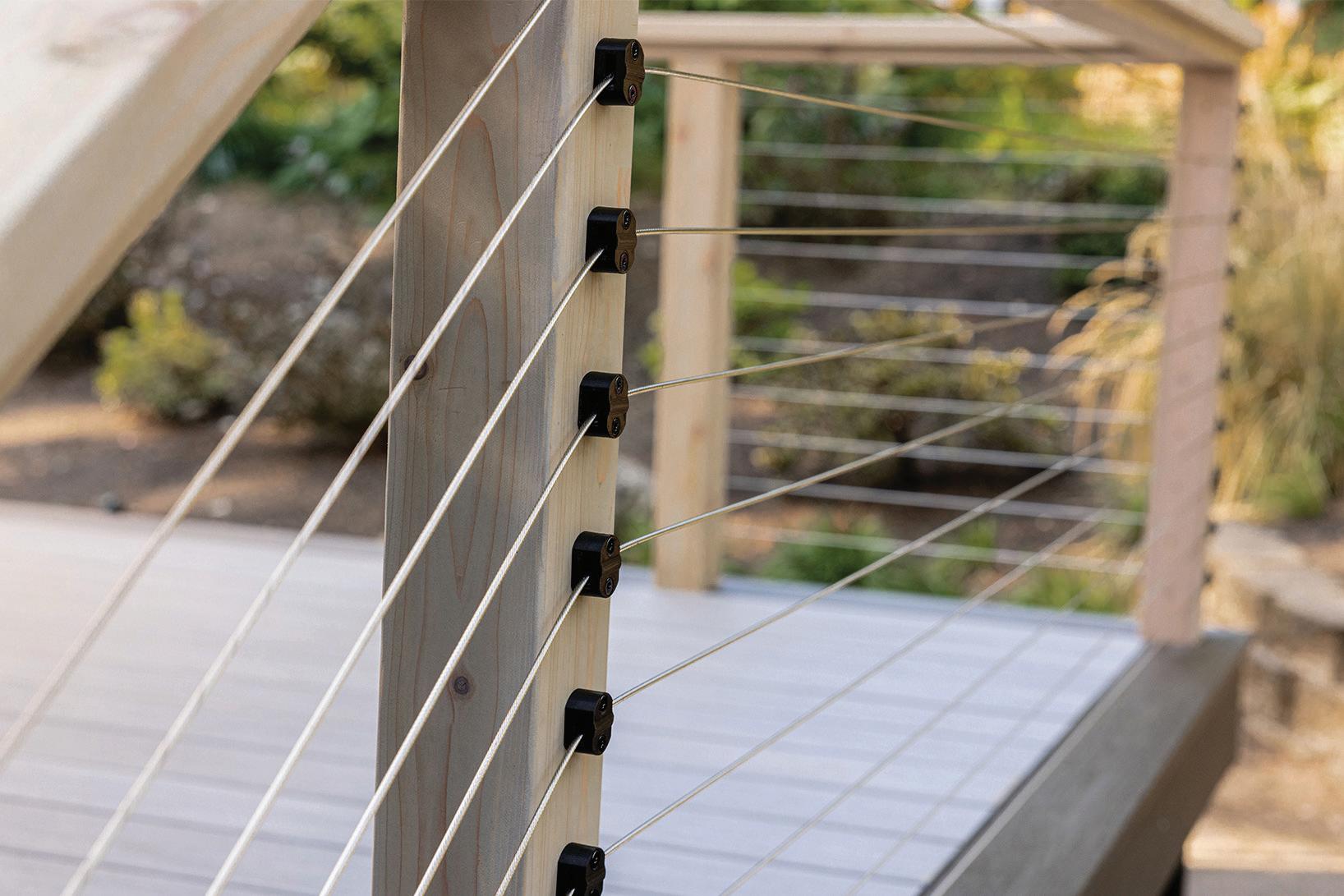

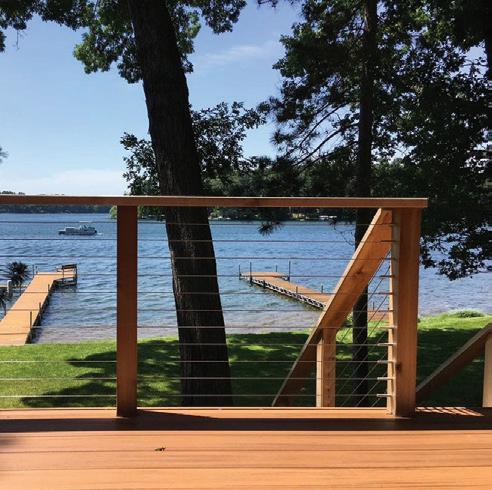

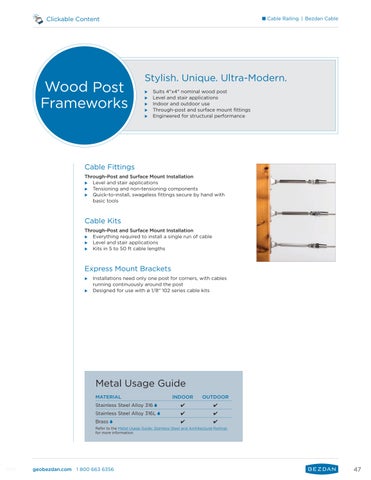

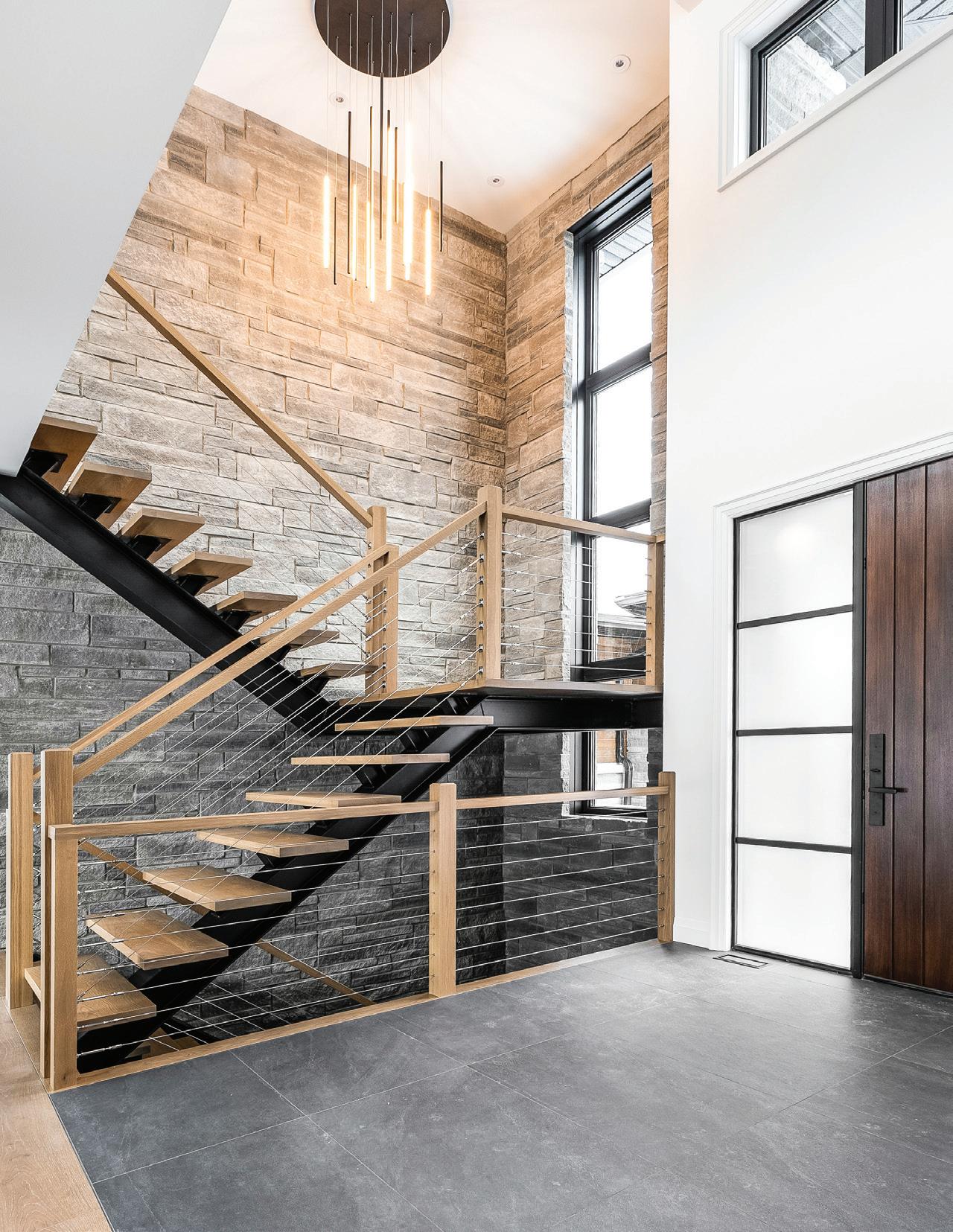

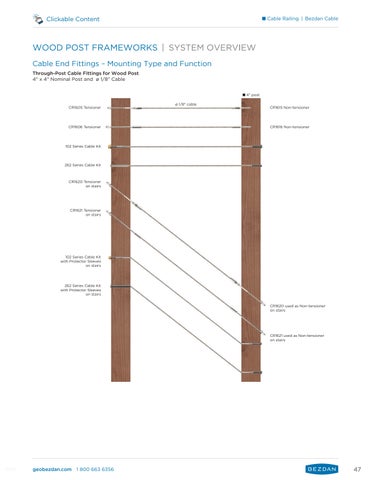

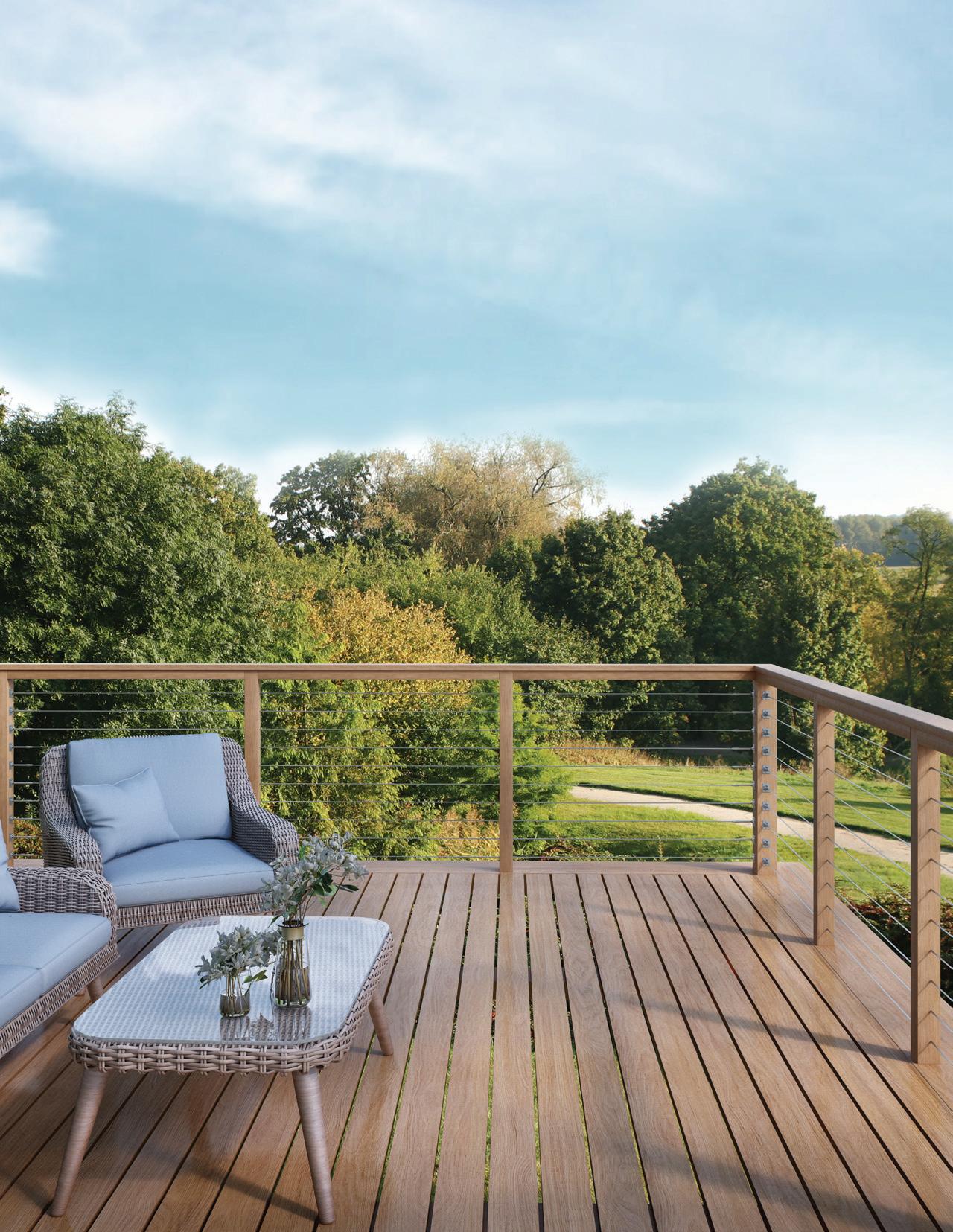

Wood Post
Frameworks

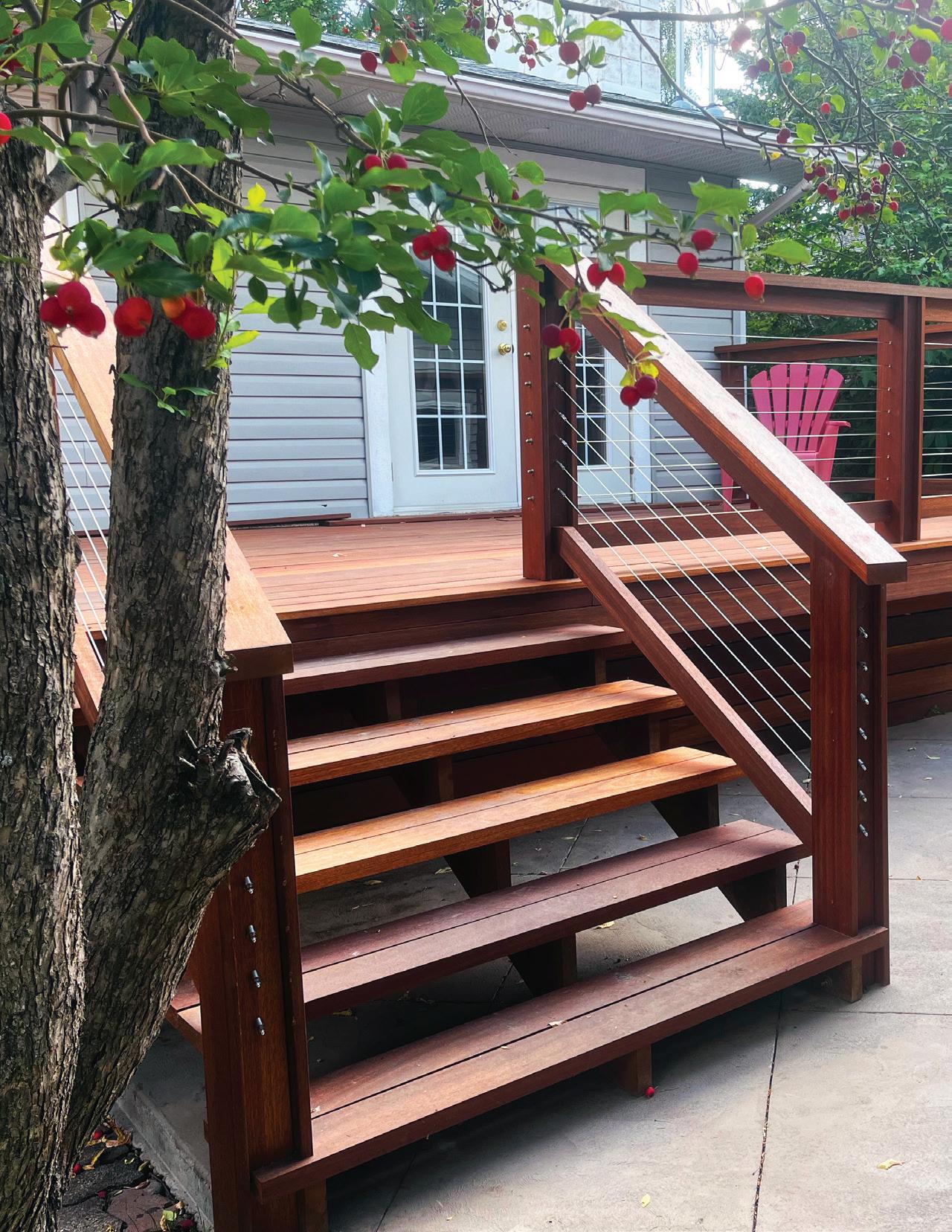

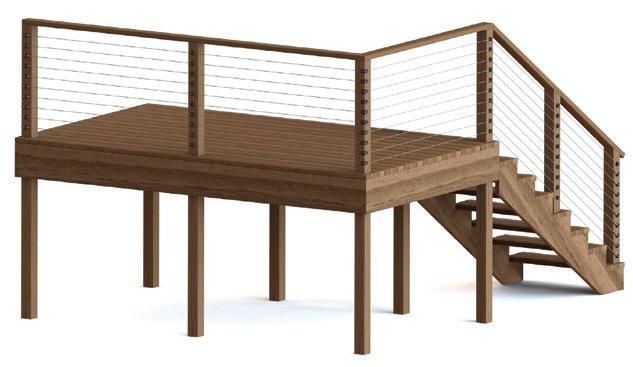

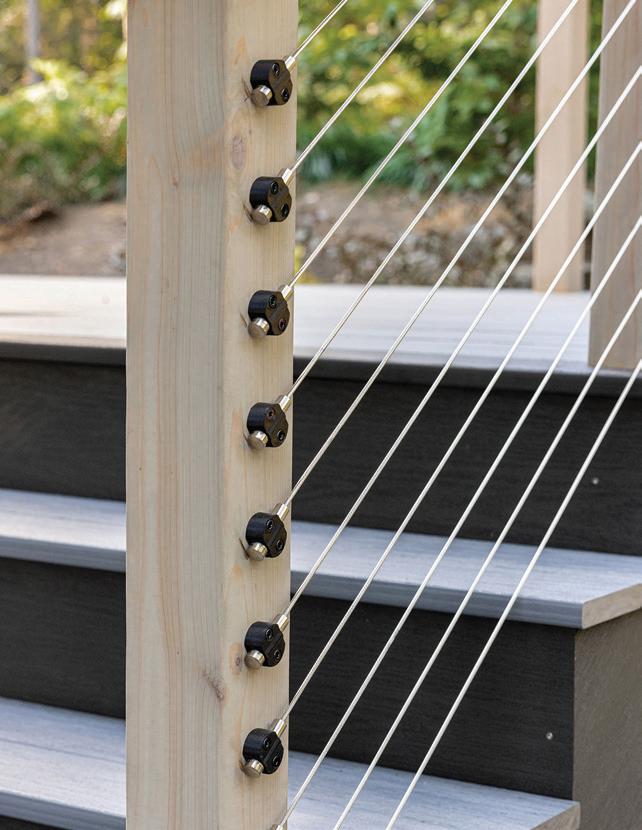

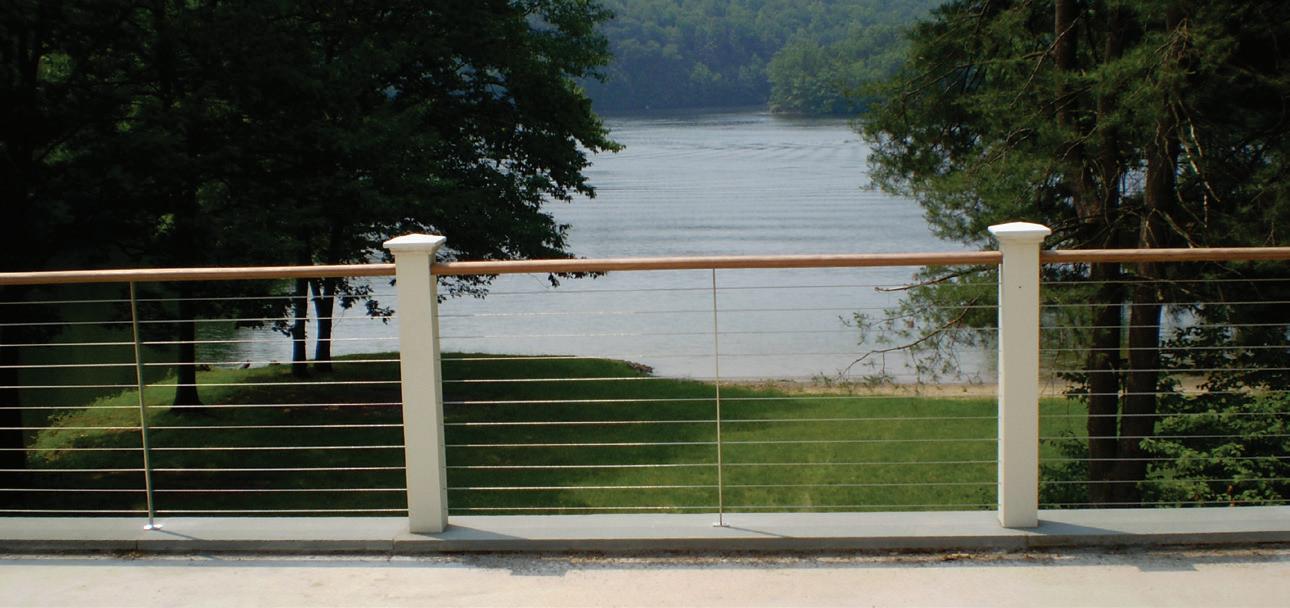

Combine the warmth of wood with cable infill for modern railings.
u Suits 4"x4" nominal post
u Level and stair applications
u Through-post and surface mount installations
Concrete Applications
Connect cable infill to concrete for a simple, clean railing.
u Suits frameworks with concrete surfaces
u Level applications
u Surface mount installation

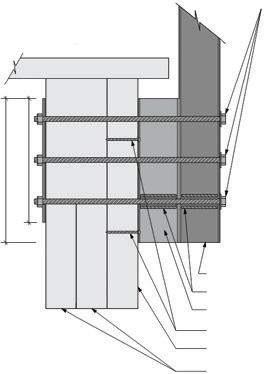

FIGURE 1: Fascia Mount, Pre-Drilled Post CR1650 and CR1651; Tensioner CR1605; Non-Tensioner CR1610; Top Mount Bracket CR1690; Cable CR1600

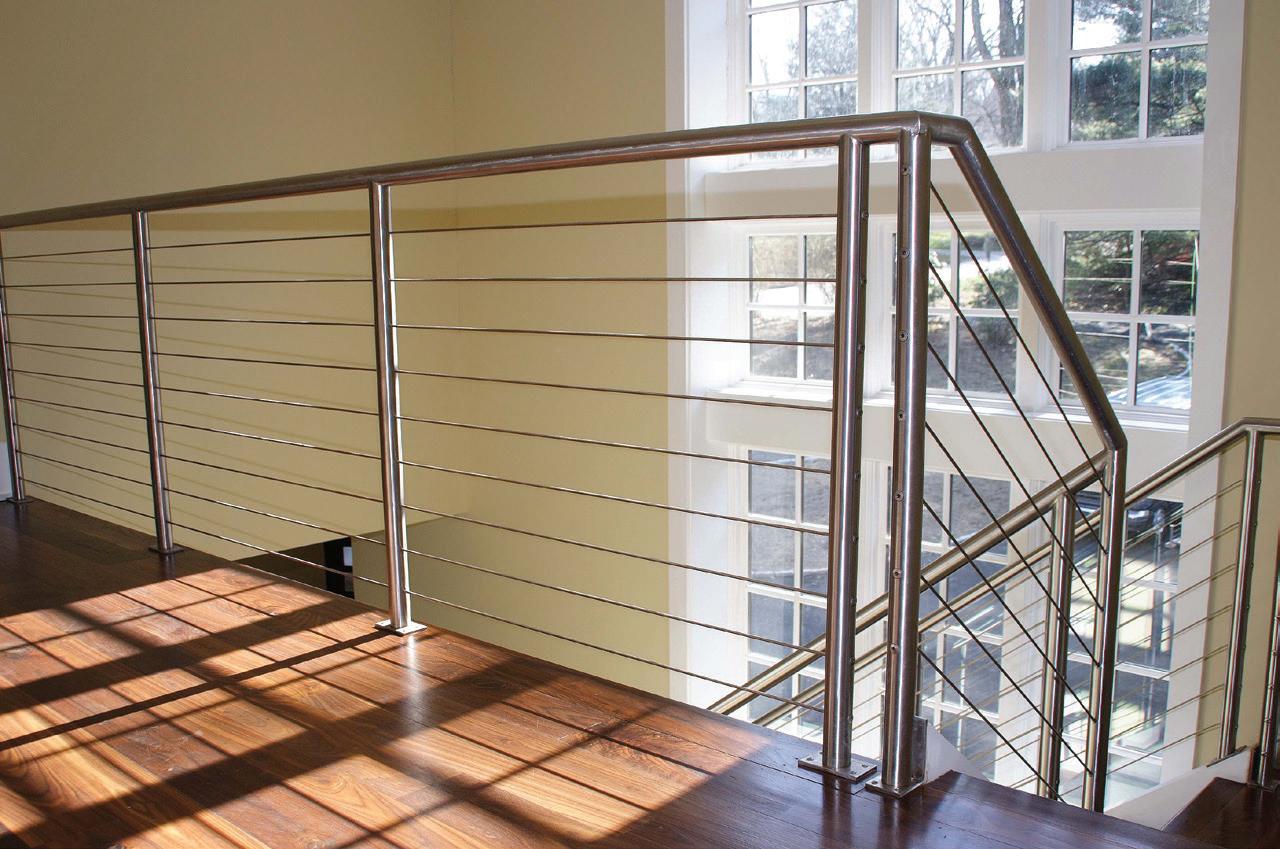

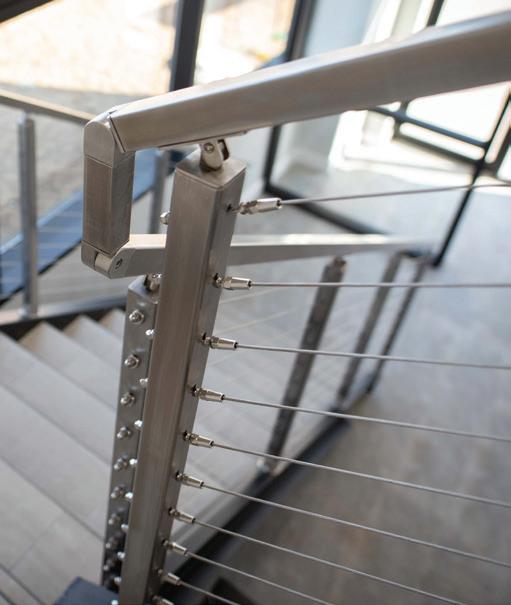

Metal Post Frameworks
Clean. Contemporary. Timeless.
u Suits pipe or round and square tubing
u Level and stair applications
u Indoor and outdoor use
u Through-post and surface mount fittings
u Engineered for structural performance
Cable Posts and Brackets
Surface and Fascia Mount Posts
u Pre-drilled for a cost-effective off-the-shelf solution
u Suitable for through-post fittings
u End and intermediate posts for level and stair applications

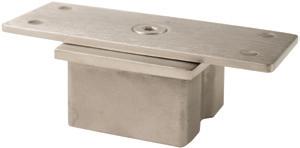

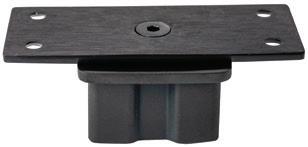

Top Mount Brackets
u Level and stair applications
u Precision fit components with extremely tight tolerances
u Use with Bezdan surface and fascia mount posts

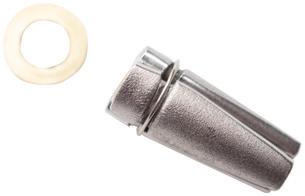

Cable Fittings
Through-Post and Surface Mount Installation
u Level and stair applications
u Tensioning and non-tensioning components
u Quick-to-install, swageless fittings secure by hand with basic tools
Cable Kits
Through-Post Installation
u Everything required to install a single run of cable
u Level and stair applications
u Kits in 5 to 50 ft cable lengths
Metal Usage Guide
METAL POST FRAMEWORKS | SYSTEM OVERVIEW
Cable Fitting Solutions

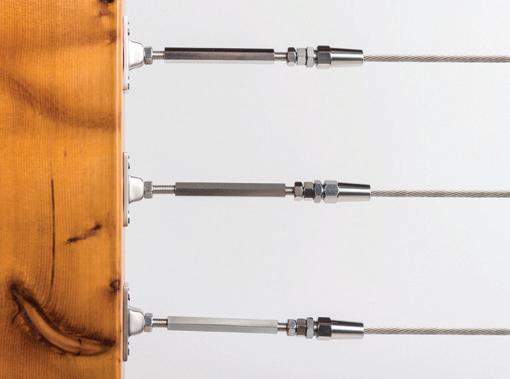

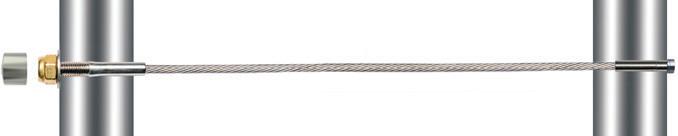

Cable railing is formed using multiple runs of cable and end fittings. Each run of cable includes one tensioning and one nontensioning fitting. End fittings are distinguished by their installation method and are available as through-post and surface mount for level and stair applications.
When planning cable railing, start with the most visible side of the railing framework which will likely be the longest run. To achieve maximum views with no visible hardware, select a through-post fitting. Access to the back of the end post is required to secure these fittings. Alternatively, when the back of the post is inaccessible, a surface mount fitting can be secured to the inside of the post. A complete railing requires 9 - 14 rows of cable depending on post height and framework. A 3" spacing between rows is recommended to comply with code requirements.
Mounting Type Options
Select from through-post and surface mount mounting type options to suit accessibility of the posts in the railing framework, function, and design preferences.

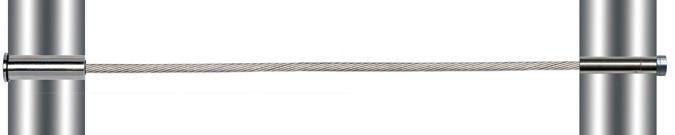

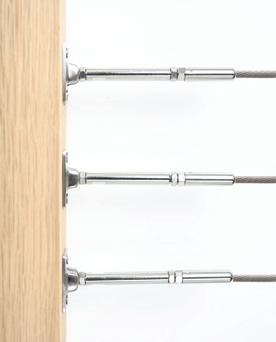

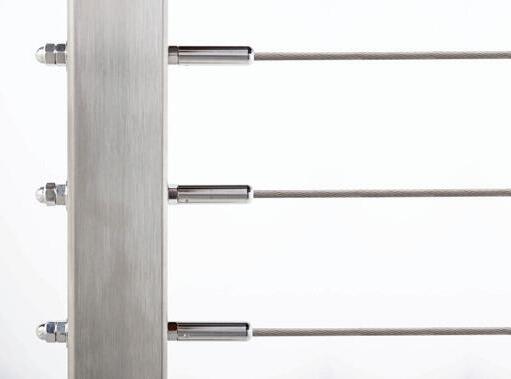

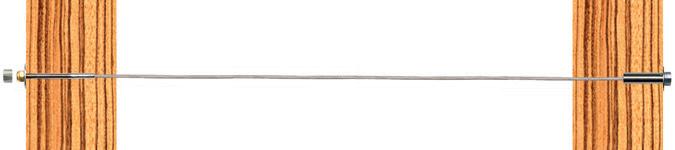

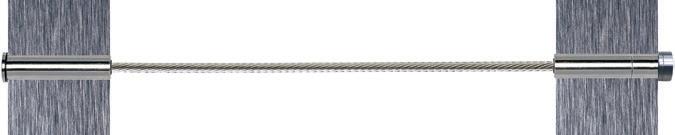

Through-Post
Fittings pass through the post with minimal obstruction to maximize views. A minimum distance of 2.5"– 3" from the back of the post to the wall is needed to install and secure though-post fittings.
Surface Mount
Fittings are secured to the inside of the post, which is ideal for when the back of a terminating post is inaccessible or when a single post is used at the corner. This solution allows for perfectly aligned cable runs, creating a clean and efficient design.

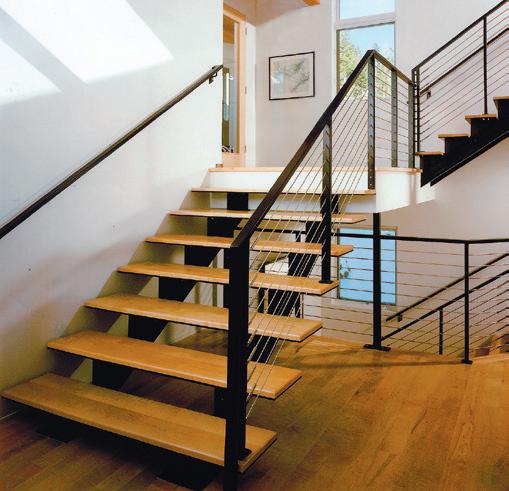

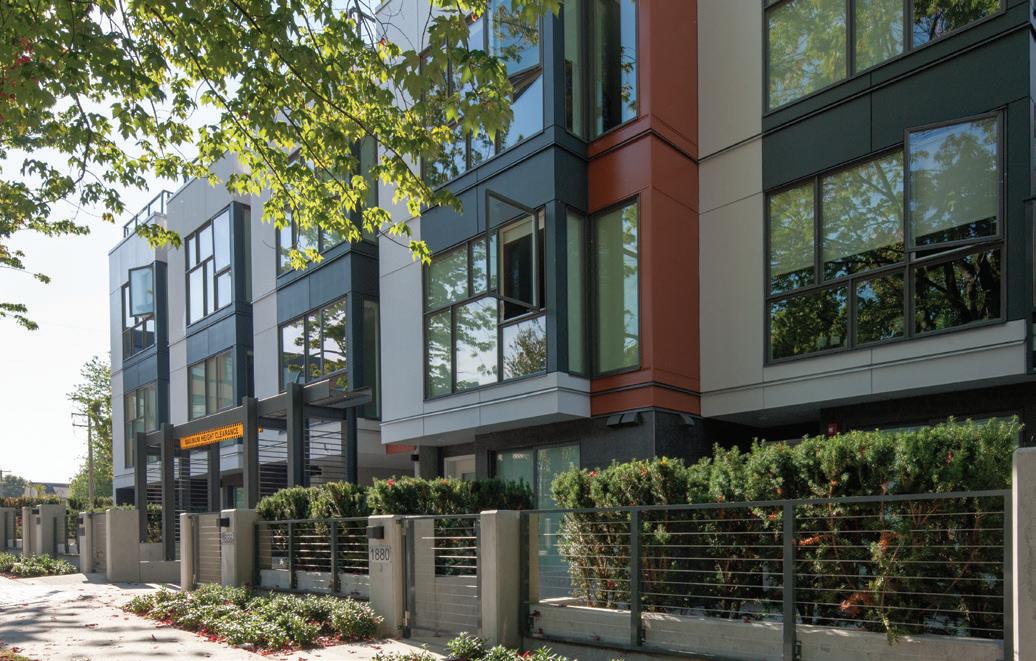

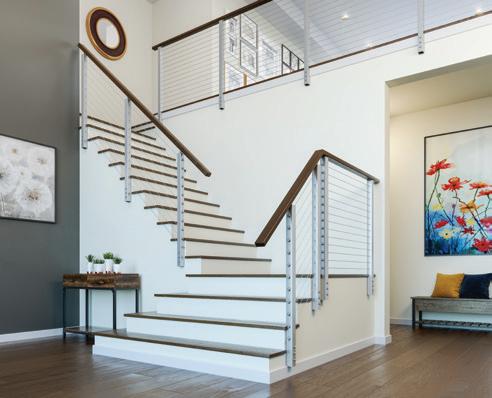

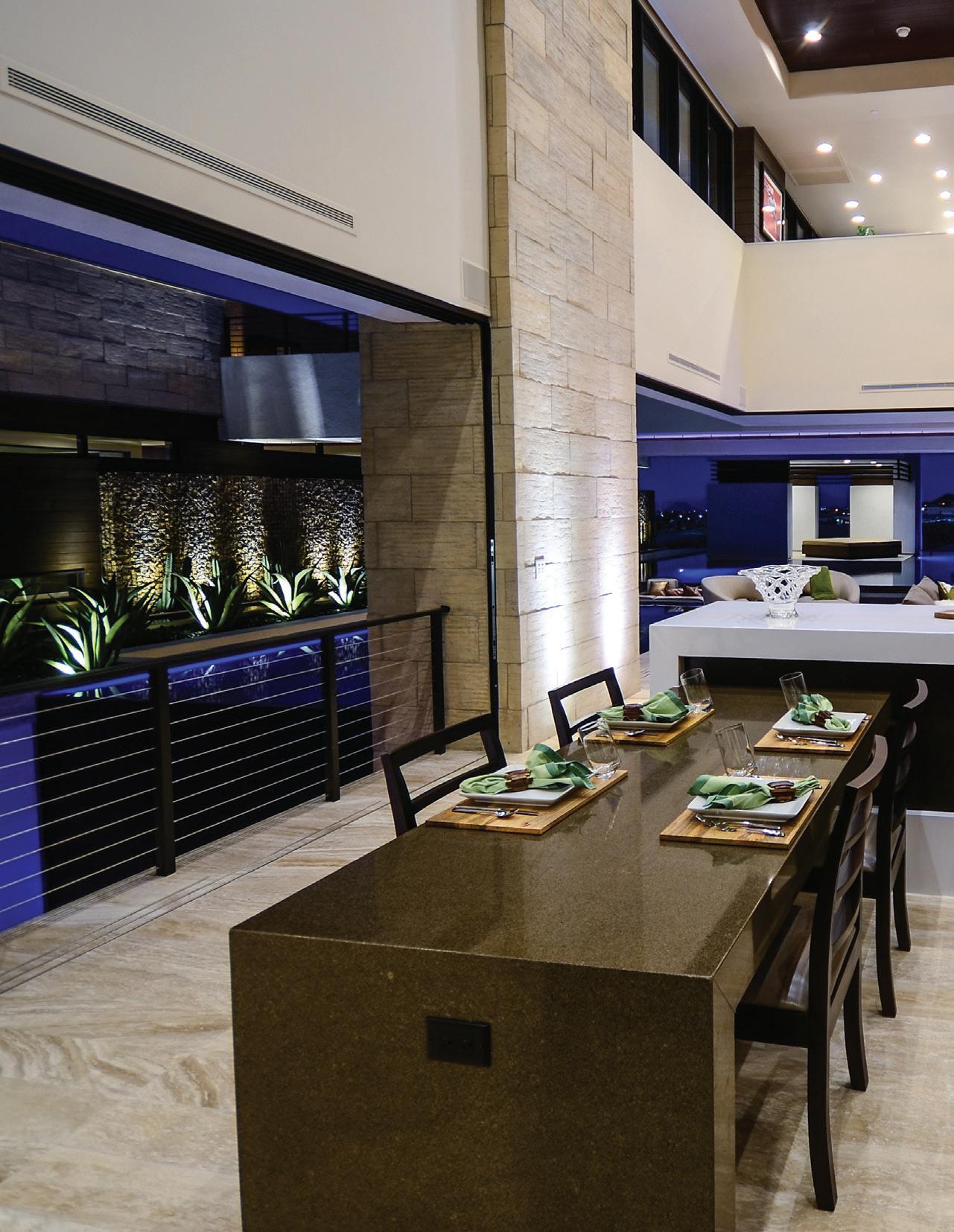

Get Inspired

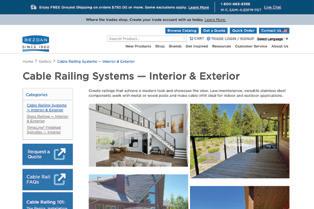

Discover design ideas for indoor and outdoor spaces. Explore our gallery of stunning cable railing projects for inspiration.
Check out geobezdan.com/gallery/cable-railing
METAL POST FRAMEWORKS | SYSTEM OVERVIEW

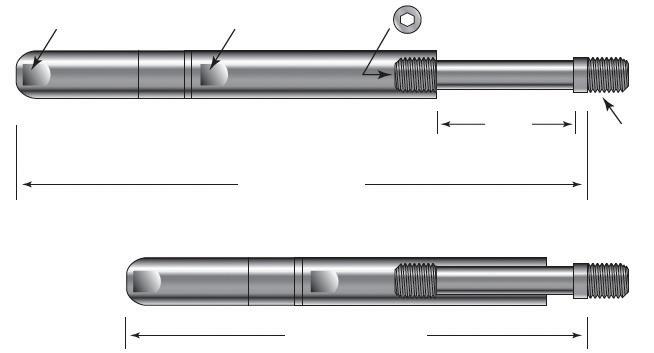

Cable End Fittings – Mounting Type and Function

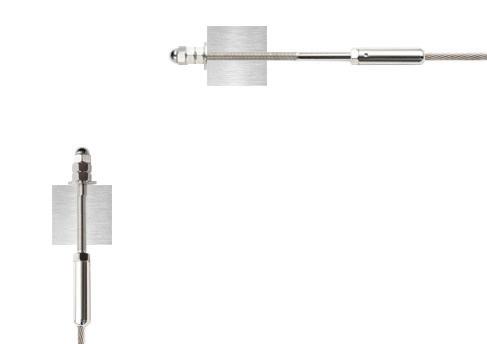

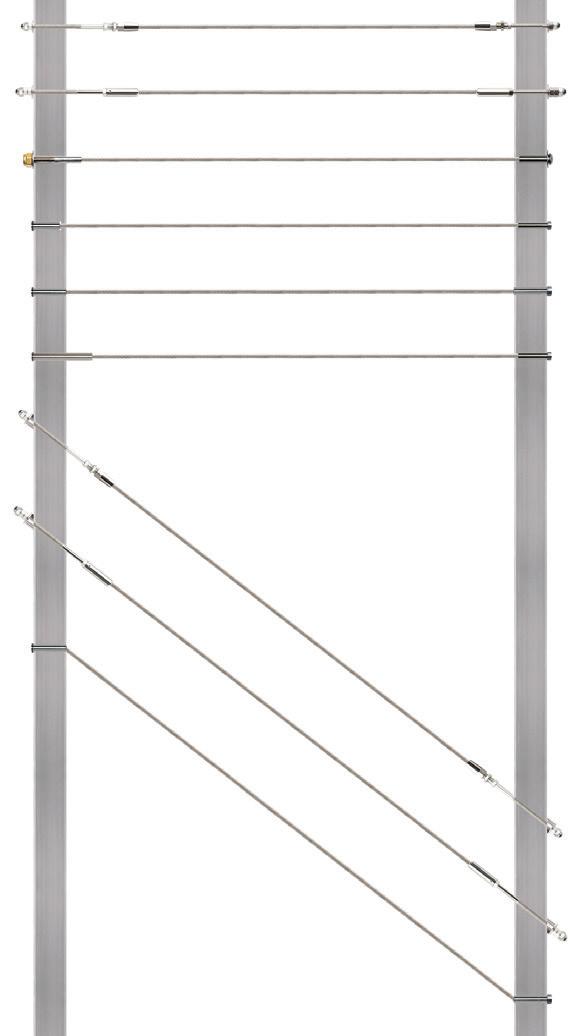

Through-Post Cable Fittings for Square Post 2" Square Post and ø 1/8" Cable
Cable fittings for metal posts can be used with different metal post thicknesses and may look different from the illustration
CR1605
CR1606
METAL POST FRAMEWORKS | SYSTEM OVERVIEW
Cable End Fittings – Mounting Type and Function

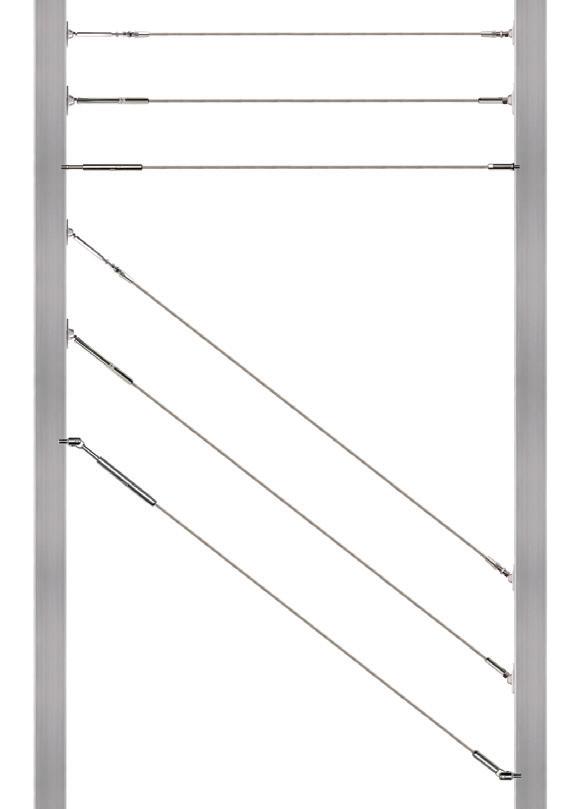

Surface Mount Cable Fittings for Square Post 2" Square Post and ø 1/8" Cable

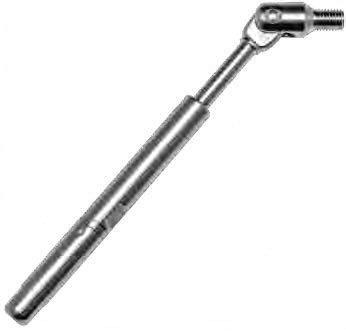

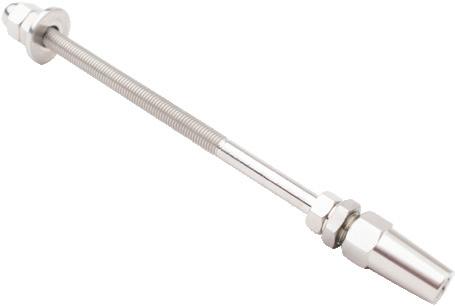

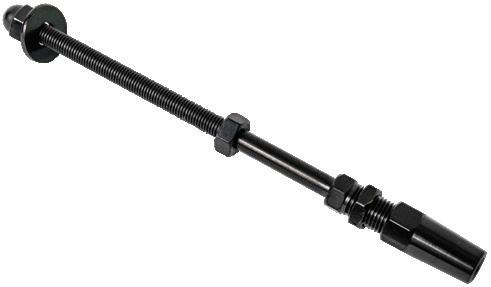

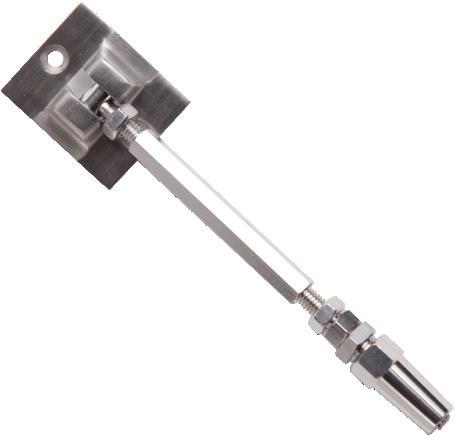

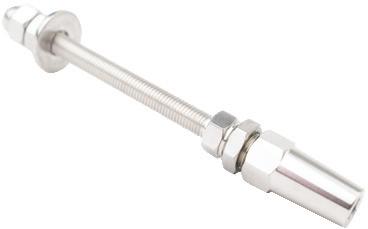

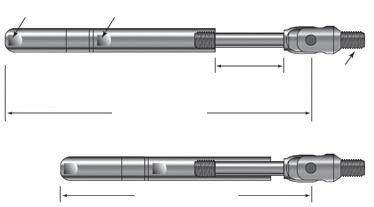

CR1630 Tensioner
CR1631 Tensioner
PL-SFC-MS-4 Tensioner
CR1630 Tensioner on stairs
CR1631 Tensioner on stairs
PL-SFC-MP-4 Tensioner on stairs
CR1635 Non-tensioner
CR1636 Non-tensioner
PL-FM-MS-4 Non-tensioner
CR1635 Non-tensioner on stairs
CR1636 Non-tensioner on stairs
PL-CL-RP-4 Non-tensioner on stairs

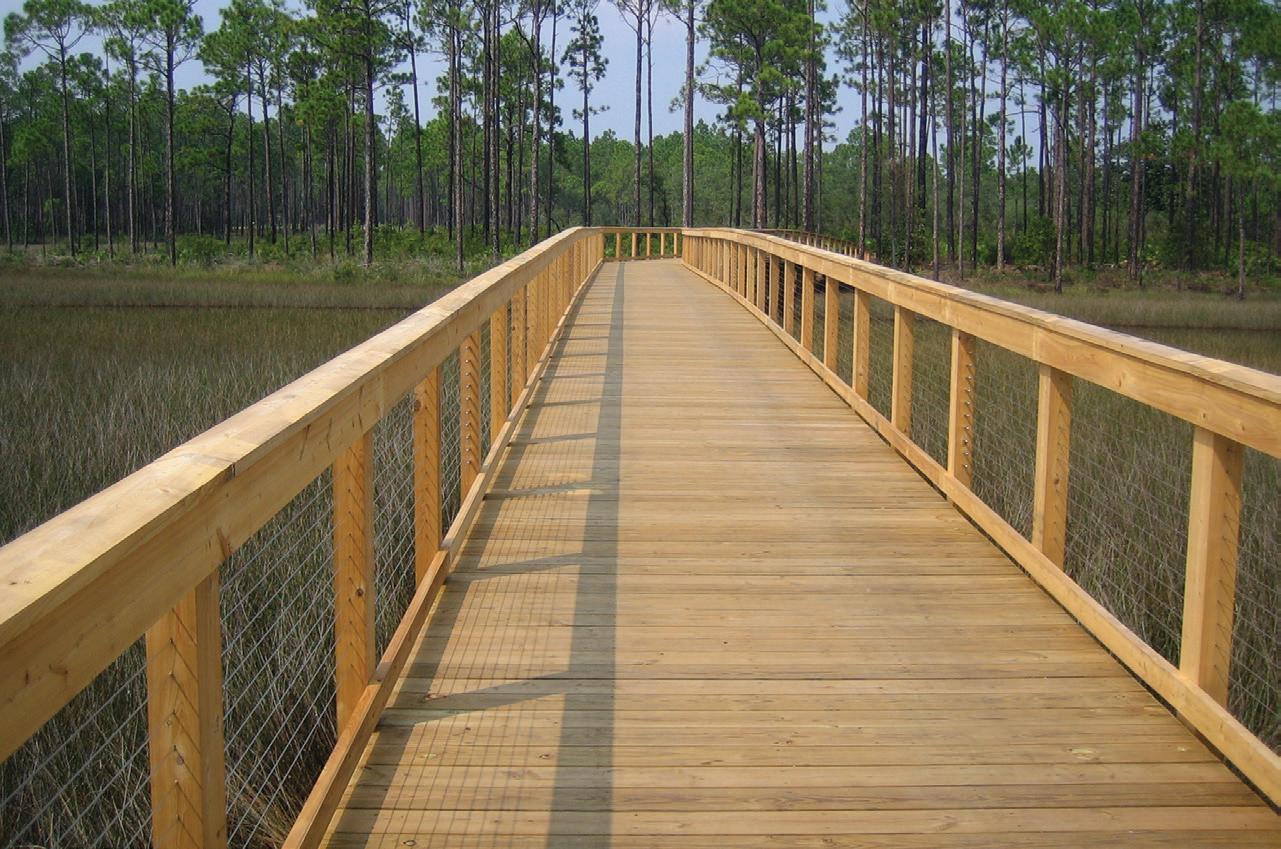

Larger Cable Sizes

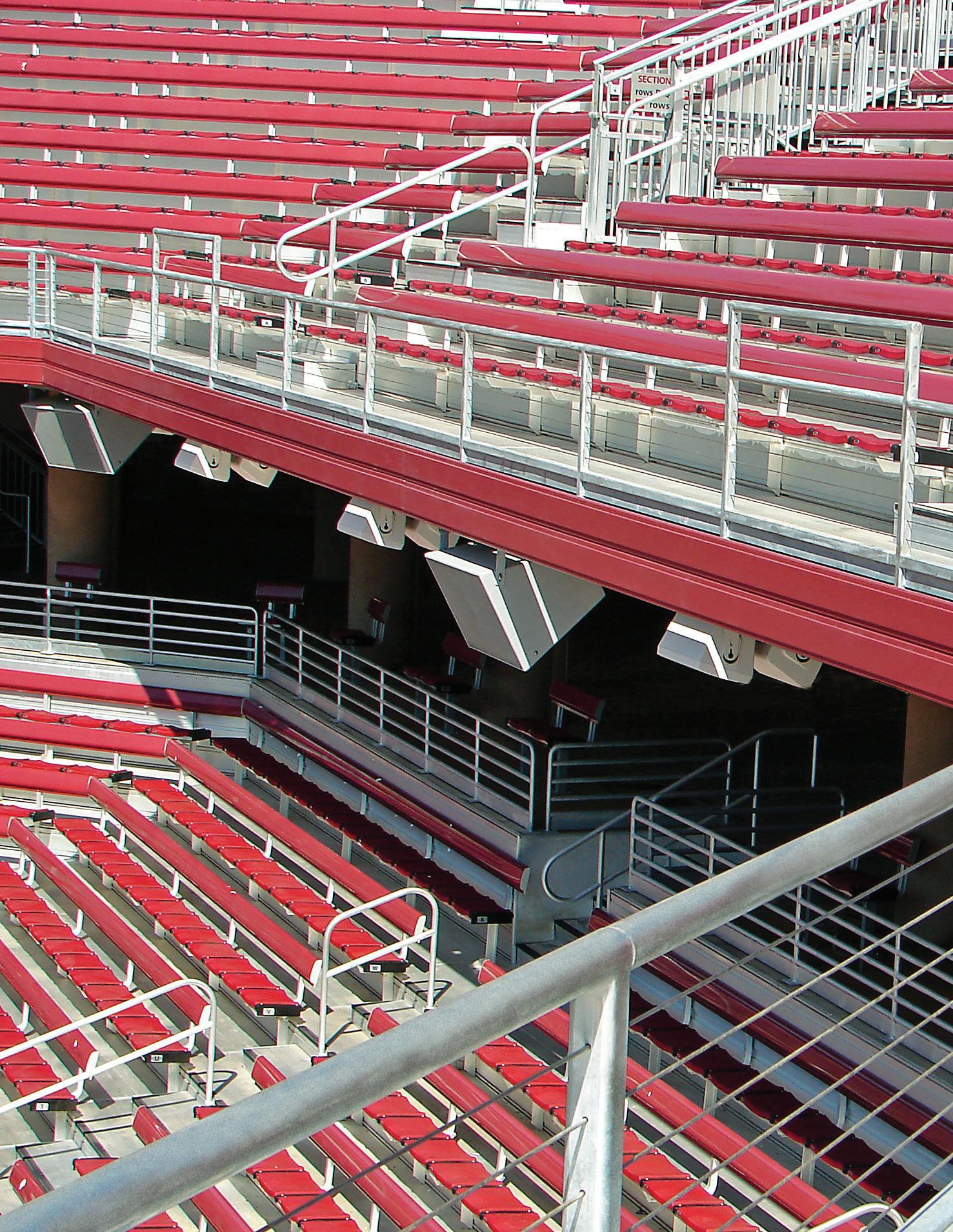

For commercial or public applications, 3/16" or 1/4" diameter cable is recommended. Please contact your Sales Representative for design and technical support.
METAL POST FRAMEWORKS | SURFACE MOUNT POSTS
Square Post, Surface Mount, Plain
Cover Flange
Provides a finishing element for posts with a low profile cover flange for a clean and subtle look.
u Part #CR1669, CR1769 | Bezdan Cable page 23
OVERVIEW
w Post wall thickness is 0.12" to accommodate top mount brackets
w Plain post, drill to suit cable, for use on stairs or level applications
w Use with Bezdan Cable throughpost fittings
w The extremely tight tolerance on the post tubing ensures a precision fit and quick-bonding with fittings
w Use Bezdan approved quickbonding adhesive to greatly reduce installation time
w Meets ASTM A554 standard
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Top mount brackets for cable post, level and adjustable
w Tensioner, through-post
w Non-tensioner, through-post
w Cover flange for surface cable posts
INSTALLATION
w Holes in base are drilled for ø 3/8" anchors (supplied by others)
METAL POST FRAMEWORKS | SURFACE MOUNT POSTS

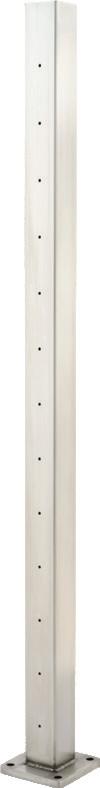

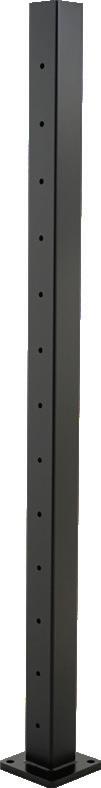

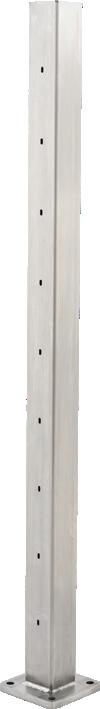

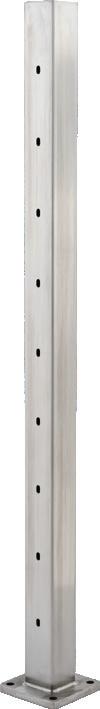

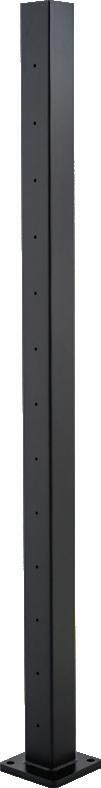

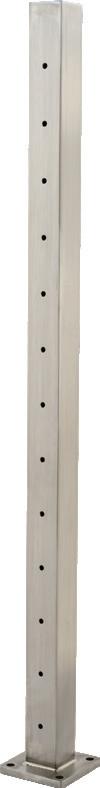

Square Post, Surface Mount, Pre-Drilled
OVERVIEW
w Post wall thickness is 0.12" to accommodate top mount brackets
w End posts are pre-drilled for through-post cable fittings
w Intermediate posts are predrilled for 1/8" diameter cable
w Level and stair applications
w Hole placement designed to meet code requirements for cable spacing
w The extremely tight tolerance on the post tubing ensures a precision fit and quick-bonding with fittings
w Use Bezdan approved quick bonding adhesive to greatly reduce installation time.
w Meets ASTM A554 standard
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Top mount brackets for cable post, level and adjustable
w Tensioner, through-post
w Non-tensioner, through-post
w Cover flange for surface cable posts
INSTALLATION
w Holes in post are drilled for ø 3/8" anchors (supplied by others)
w Corner applications require the use of two end posts
w Engineered for installation on wood, steel, and concrete substrates
w Refer to the Downloads section on the product page for installation instructions

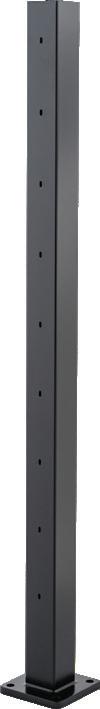

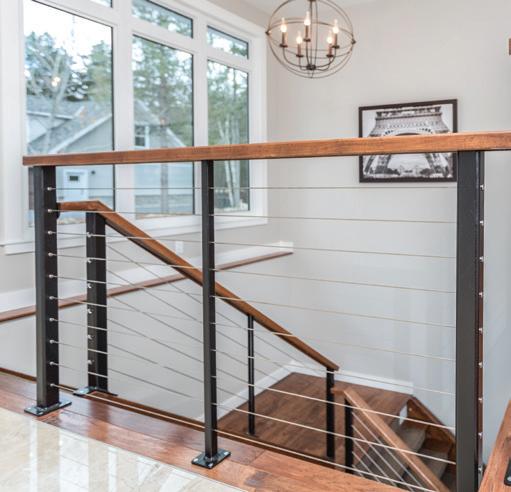

METAL POST FRAMEWORKS | SURFACE MOUNT POSTS
Square Post, Surface Mount, Pre-Drilled
OVERVIEW

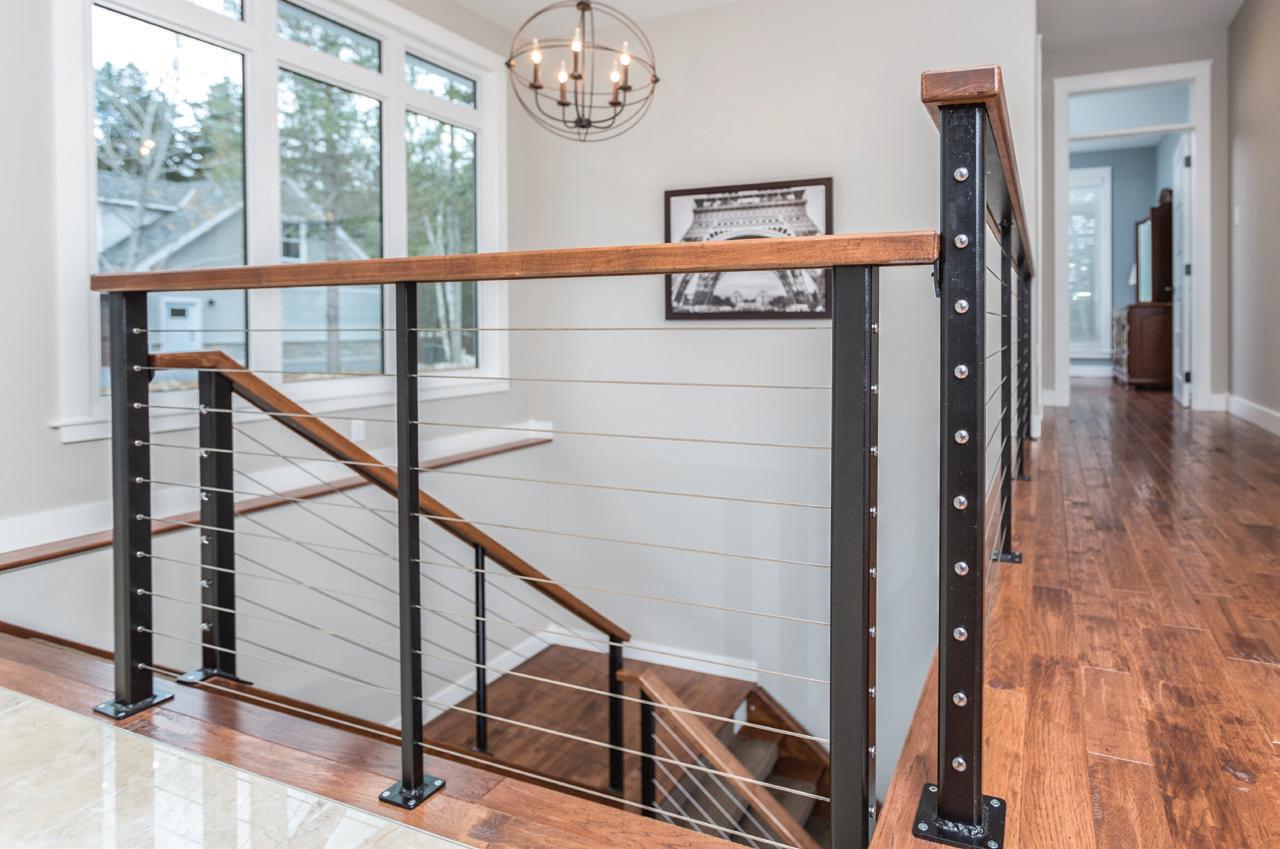

w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w Post wall thickness is 0.12" to accommodate top mount brackets
w End posts are pre-drilled for through-post cable fittings
w Intermediate posts are predrilled for 1/8" diameter cable
w Level and stair applications
w Hole placement designed to meet code requirements for cable spacing
w The extremely tight tolerance on the post tubing ensures a precision fit and quick-bonding with fittings
w Use Bezdan approved quick bonding adhesive to greatly reduce installation time.
w Meets ASTM A554 standard
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Top mount brackets for cable post, level and adjustable
w Tensioner, through-post
w Non-tensioner, through-post
w Cover flange for surface cable posts
INSTALLATION
w Holes in post are drilled for ø 3/8" anchors (supplied by others)
w Corner applications require the use of two end posts
w Engineered for installation on wood, steel, and concrete substrates
w Refer to the Downloads section on the product page for installation instructions
METAL POST FRAMEWORKS | FASCIA MOUNT POSTS

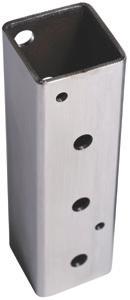

Square Post, Fascia Mount, Pre-Drilled
OVERVIEW
w Post wall thickness is 0.12" to accommodate top mount brackets
w End posts are pre-drilled for through-post cable fittings
w Intermediate posts are predrilled for 1/8" diameter cable
w Level and stair applications
w Hole placement designed to meet code requirements for cable spacing
w The extremely tight tolerance on the post tubing ensures a precision fit and quick-bonding with top mount brackets
w Use Bezdan approved Loctite 680 quick-bonding adhesive with fittings to expedite installation time
w Engineering Report
w Meets ASTM A554 standard
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Top mount brackets for cable post, level and adjustable
w Tensioner, through-post
w Non-tensioner, through-post
INSTALLATION
w Holes in post are drilled for ø 3/8" anchors (supplied by others)
w Corner applications require the use of two end posts
w Engineered for installation on wood, steel, and concrete substrates
w Refer to the Downloads section on the product page for installation instructions
w Installation is easy with user-friendly installation videos

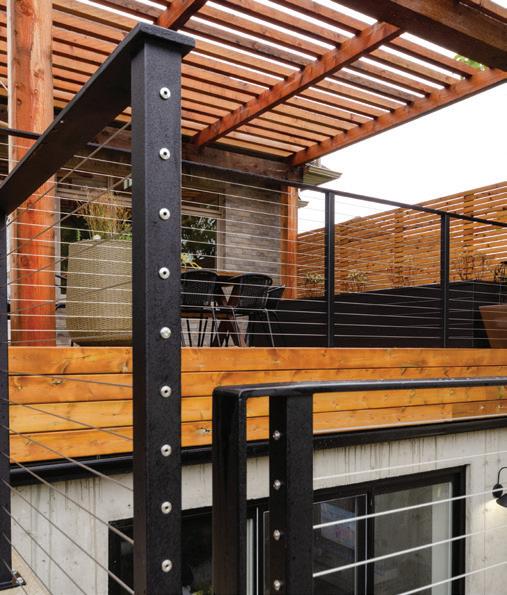

METAL POST FRAMEWORKS | FASCIA MOUNT POSTS
Square Posts, Fascia Mount, Pre-Drilled
OVERVIEW
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w Post wall thickness is 0.12" to accommodate top mount brackets
w End posts are pre-drilled for through-post cable fittings
w Intermediate posts are predrilled for 1/8” diameter cable
w Level and stair applications
w Hole placement designed to meet code requirements for cable spacing
w The extremely tight tolerance on the post tubing ensures a precision fit and quick-bonding with top mount brackets
w Use Bezdan approved Loctite 680 quick-bonding adhesive with fittings to expedite installation time
w Engineering Report
w Meets ASTM A554 standard
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Top mount brackets for cable post, level and adjustable
w Tensioner
w Non-tensioner, through-post
INSTALLATION
w Holes in post are drilled for ø 3/8" anchors (supplied by others)
w Corner applications require the use of two end posts
w Engineered for installation on wood, steel, and concrete substrates
w Refer to the Downloads section on the product page for installation instructions
w Installation is easy with user-friendly installation videos
METAL POST FRAMEWORKS | FASCIA MOUNT POSTS
Block for Fascia Mount Post
3/8" Anchors (supplied by others) Bezdan Fascia Mount Post
1/4" Wood Screws (supplied by others)
Fascia
OVERVIEW
w The block is used with fascia mount cable posts for balconies and decks with flooring or nosing overhangs
w Use with Bezdan 2" x 2" x 0.12" square stainless steel fascia mount pre-drilled posts
w Requires a 0.94" x 0.125" x 1.75" Alloy 316 stainless steel support cylinder to be installed in the bottom hole line of block and post (see diagram)
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w Engineering Report
w Meets ASTM A554 standard
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Fascia mount cable posts
w Support cylinder in alloy 316 (supplied by others)
INSTALLATION
w Install support cylinders in the bottom hole line of the block and post. Refer to ILLUSTRATION 1
w Holes in block are drilled for ø 3/8" anchors (supplied by others)
w Engineered for installation on wood, steel, and concrete substrates
w Refer to the Downloads section on the product page for installation instructions
ILLUSTRATION 1
Support Cylinders Installation w Cylinders to be stainless steel alloy 316 with cross sectional dimensions of 0.94" x 0.125" x 1.75" (supplied by others)
w Install support cylinders in the bottom hole line of the block and post
Bezdan Fascia Mount Post
Substrate
METAL POST FRAMEWORKS | TOP MOUNT BRACKETS
Top Mount Bracket, Fixed, Flat Saddle
OVERVIEW
w Suits Bezdan 2" x 2" x 0.12" square posts for level applications
w Top mount bracket with ultra-low profile to create a streamlined railing
w Connection sleeve depth provides increased strength and ample surface area for adhesive application
w Use Bezdan approved Loctite 680 quick-bonding adhesive with fittings to expedite installation time
w A reservoir in the bracket sleeve accommodates any excess adhesive
w Available to suit square or rectangular handrail
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w Meets AISI steel grade designation
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Square posts, surface and fascia mount
w Loctite 680
w Suggested fastener:
• Saddle to handrail, flat type, indoor/limited outdoor:
Part #9934 for metal, #9930 for wood
• Saddle to handrail, #10 flat head machine screw (supplied by others)
METAL POST FRAMEWORKS | TOP MOUNT BRACKETS
Top Mount Bracket, Adjustable, Flat Saddle
OVERVIEW
w Suits Bezdan 2" x 2" x 0.12" square posts for stair applications
w Top mount bracket with ultra-low profile to create a streamlined railing
w Connection sleeve depth provides increased strength and ample surface area for adhesive application
w Use Bezdan approved Loctite 680 quick-bonding adhesive with fittings to expedite installation time
w A reservoir in the bracket sleeve accommodates any excess adhesive
w Available to suit square or rectangular handrail
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w Meets AISI steel grade designation
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Square posts, surface and fascia mount
w Loctite 680
w Suggested fastener:
• Saddle to handrail, flat type, indoor/limited outdoor: Part #9934 for metal, #9930 for wood
• Saddle to handrail, #10 flat head machine screw (supplied by others)
METAL POST FRAMEWORKS | SURFACE MOUNT POSTS
Cover Flange for Surface Mount Cable Posts
OVERVIEW
w Fits 2" x 2" Square Posts, Surface Mount
w Provides a finishing element for posts and anchor plate
w Low profile for a clean and subtle look
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w 2" x 2" Square Posts, Surface Mount
Quality, Safety and Performance
Quick-to-install, swageless fittings.
u Alloy 316L for maximum corrosion resistance
u CNC machined for precision craftsmanship
u Electro-polished and beautiful satin finish
u Posts and fittings engineered to meet NBC
METAL POST FRAMEWORKS | THROUGH-POST CABLE FITTINGS

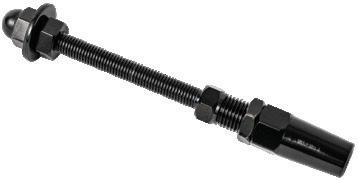

Tensioner with Receiver Cone Jaw, ø 1/8" Cable
OVERVIEW
w Tensioning through-post cable fitting with receiver cone jaw
w For use with metal posts on level and stair applications
w For stair applications, this fitting must serve as both the tensioner and non-tensioner
w Use with Bezdan 2" x 2" square, pre-drilled, fascia or surface mount post
w Swageless tensioning component
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 45 feet when paired with another tensioning fitting
w Supplied with acorn nut for a finished look
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Non-tensioner with receiver cone
w Surface and fascia mount cable posts
w Beveled washer for stair applications
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
w Installation is easy with user-friendly installation videos
METAL POST FRAMEWORKS | THROUGH-POST CABLE FITTINGS
Non-Tensioner Stud with Receiver Cone Jaw, ø 1/8" Cable
OVERVIEW
w Non-tensioning through-post cable fitting with receiver cone jaw
w For use with metal posts on level applications
w Use with Bezdan 2" x 2" square, pre-drilled, fascia or surface mount post for level applications
w Swageless tensioning component
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 25 feet when paired with a tensioning fitting
w Supplied with acorn nut for a finished look
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Tensioner with receiver cone jaw
w Surface and fascia mount cable posts
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
w Installation is easy with user-friendly installation videos
METAL POST FRAMEWORKS | THROUGH-POST CABLE KITS
102 Series Kits, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits 2" round or square post
w Level and stair applications
w Suits runs up to 50 ft
w Kit includes:
• Cable, 1x19 L.H. lay
• Tensioner: Pre-attached threaded swaging stud
• Non-tensioner: Pull-Lock® swageless fitting
• Brass locknut
• 5/8" stainless steel flat washer
• Delrin washer
2.94" (1/8" Cable)
(3/16" Cable)
• Stainless steel cap
• Stud bushing
METAL USAGE
w 316 indoor/outdoor use
w Brass indoor/outdoor use
RELATED PRODUCTS
w Stainless steel cap (optional)
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Refer to ILLUSTRATION 2 and ILLUSTRATION 3
w Installation is easy with user-friendly installation videos
• 102 Series - Level
• 102 Series - Stairs
Pre-Attached Threaded Swaging Stud and Cable
Pull-Lock® shown with Delrin Washer
Locknut and Stainless Steel Washer and Cap
Delrin® Washer 5/8" Stainless Steel Flat Washer
ILLUSTRATION 2
Level Runs and Runs with One Corner
w Requires a dedicated end post for each run
w A double post corner configuration is required to create a 90˚ corner with two 45˚ bends
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
w Corner bend does not exceed 45˚ at any one time

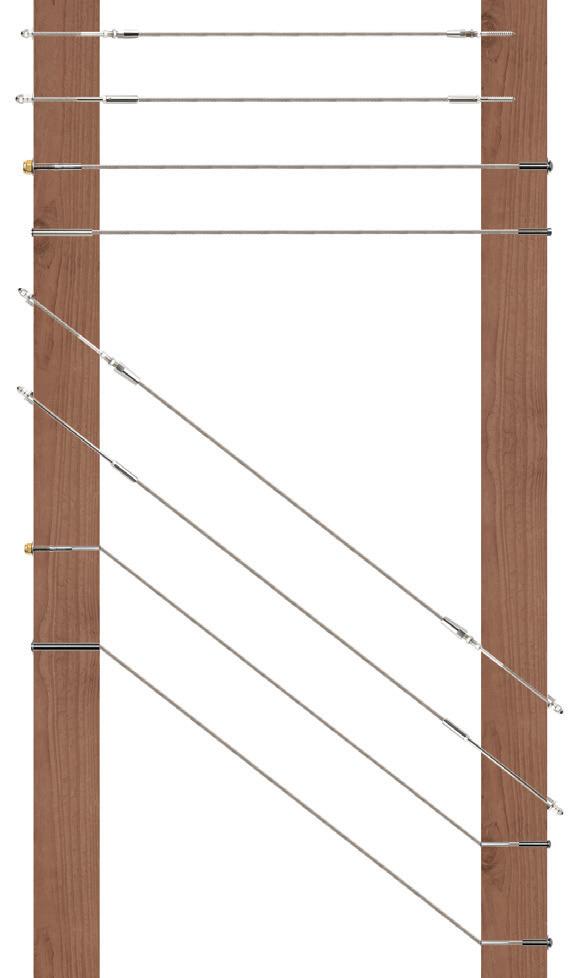

ILLUSTRATION 3
Stairs
w For some installations, the kink method will allow for a transition from stairs to a level section using a single row of cable. Refer to the video
FIGURE 2: Through-Post Components for Metal Posts
Pull-Lock® Pre-attached Threaded Swaging Stud with Stainless Steel Cap
METAL POST FRAMEWORKS | THROUGH-POST CABLE KITS
212 Series Kits, ø 1/8" Cable
OVERVIEW
w Suits 1-1/2" round or square post
w Level applications (for stair applications refer to 232 series kits)
w Suits runs up to 25 ft
w Kit includes:
• ø 1/8" cable, 1x19 L.H. lay
• Tensioner: Invisiware® receiver + pre-attached threaded swaging stud
• Non-tensioner: Pull-Lock® swageless fitting
Pre-Attached Threaded Swaging Stud and Cable
Plain Posts - Drill to Suit
Plain stainless steel posts are available in various heights, from 34 to 42 inches. Cut the posts to size and drill to suit cable railing infill.
u Bezdan Stainless I Stainless Steel Posts and Bases
• Delrin washers (2)
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Cable release key
w Cable clip
w Bezdan Stainless ø 1-1/2" posts
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Refer to ILLUSTRATION 4
Invisiware® Receiver
Pull-Lock® shown with Delrin Washer
Receiver Head
Delrin® Washers

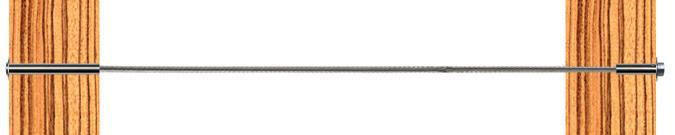

ILLUSTRATION 4
Level Runs
w Requires a dedicated end post for each run
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
FIGURE 3: 212 Series Kit and 232 Series Kit for Metal Post
METAL POST FRAMEWORKS | THROUGH-POST CABLE KITS
232 Series Kits, ø 1/8" Cable
OVERVIEW
w Suits 2" round or square post
w Level and stair applications
w Suits runs up to 25 ft
w Kit includes:
• ø 1/8" cable, 1x19 L.H. lay
• Tensioner: Invisiware® receiver + pre-attached threaded swaging stud
• Non-tensioner: Pull-Lock® swageless fitting
• Delrin washers (2)
METAL USAGE
Pre-Attached Threaded Swaging Stud and Cable
Stainless Steel Spacer
For 1-1/2" posts on stairs, use the 232 series with a 1/2" stainless steel spacer to properly achieve necessary tension and fit.
u Stainless Steel Spacer | Cable Railing page 78
w 316 indoor/outdoor use
RELATED PRODUCTS
w Cable release key
w Stainless steel spacer
w Cable clip
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Refer to ILLUSTRATION 5 and ILLUSTRATION 6
Invisiware® Receiver
Pull-Lock® shown with Delrin Washer
Receiver Head
Delrin® Washers
5
Level Runs
w Requires a dedicated end post for each run
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
Long Runs with One Corner
w For long cable runs that extend 25' or need to accommodate a corner, use the 262 Series (see page 32).
ILLUSTRATION 6
Stairs
w For 1-1/2" posts on stairs, use the 232 Series with a 1/2" stainless steel spacer (see page 30)
w Stainless Steel Spacer (see page 78)
ILLUSTRATION
FIGURE 4: 232 Series Kit for Metal Post
Pull-Lock®
Invisiware® receiver with 1/2" stainless steel spacer
262 Series Kits, ø 1/8" Cable
OVERVIEW
w Suits 2" round or square post
w Level applications
w Suits runs up to 50 ft
w Can accommodate a level run with one corner
w Kit includes:
• ø 1/8" cable, 1x19 L.H. lay
• Tensioner: Invisiware® receiver + pre-attached threaded swaging stud
• Non-tensioner: Pull-Lock® swageless fitting
Pre-Attached Threaded Swaging Stud and Cable
• Delrin washers (2)
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Cable release key
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Refer to ILLUSTRATION 7
w Installation is easy with user-friendly installation videos
• 262 Series - Level
• 262 Series - Stairs
Consult Local Building Authorities
Invisiware® Receiver
Pull-Lock® shown with Delrin Washer
Receiver Head
Delrin® Washers
ILLUSTRATION 7
Level Run with One Corner
w Requires a dedicated end post for each run
w A double post corner configuration is required to create a 90˚ corner with two 45˚ bends
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
w When used with a 2" post there will be a minimum of 1-1/2" of the receiver exposed
Level Runs with Two Corners
w For cable runs that need to accommodate two corners, please contact your Sales Representative.
3-1/2" min.
FIGURE 5: 262 Series Kit for Metal Post
METAL POST FRAMEWORKS | THROUGH-POST CABLE FITTINGS
Pull-Lock®, ø 1/8" Cable
Cleaner and Protectant

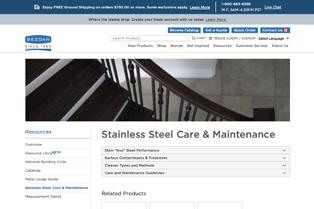

Proper care and maintenance preserves the appearance and integrity of stainless steel after installation.
u Cleaner and Protectant Kit I Bezdan Cable page 83
OVERVIEW
w Available to suit 1-1/2" and 2" post
w Swageless non-tensioning component
w Level and stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Supplied with cap for a clean finished look
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Tensioner with Threaded Clevis/Bolt
w Stainless steel spacer
w Delrin washer
w Cable release key
FIGURE 6: Post 9425; Brackets 9601, 9603 and 9606; Flange 9402; Tube 9010; Cap 9254; Elbows 9231 and 9233; Spacer SPC-R6-.500; 212 and 232 Kits
METAL POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS

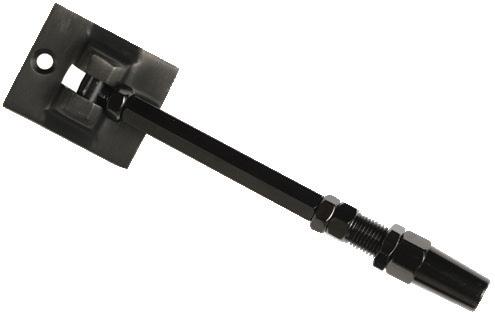

Tensioner with Receiver Cone Jaw, ø 1/8" Cable
OVERVIEW
w Tensioning surface mount cable fitting with receiver cone jaw
w For use with metal posts on level and stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Swageless tensioning component
w Fittings can achieve angles up to 180°
w Suits runs up to 45 ft when paired with another tensioner
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Screws for metal post supplied by others
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Non-tensioner with receiver cone jaw
w Fasteners for metal posts (supplied by others)
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
Fastener Plate Detail
Drilled for #8 screws (supplied by others)
METAL POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Non-Tensioner with Receiver Cone Jaw, ø 1/8" Cable
OVERVIEW
w Non-tensioning surface mount
cable fitting with receiver cone jaw
w For use with metal posts on level and stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Swageless non-tensioning component
w Fittings can achieve angles up to 150°
w Suits runs up to 25 ft when paired with a tensioner
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Screws for metal post supplied by others
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Tensioner with receiver cone jaw
w Fasteners for metal posts (supplied by others)
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
Drilled for #8 screws (supplied by others)
METAL POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS

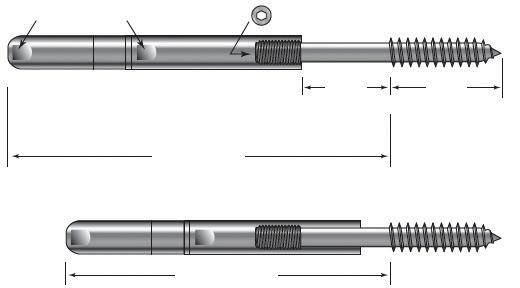

Push-Lock® Tensioner with Threaded Bolt, ø 1/8" and ø 3/16" Cable
Larger Cable Sizes
For commercial or public applications, 3/16" or 1/4" diameter cable is recommended. Please contact your Sales Representative for design and technical support.
OVERVIEW
w Suits post and flat bar
w Swageless tensioning component
w Level applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
w Two-part tensioner: adjustable ± 1.00" to allow for sufficient take-up
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Non-Tensioner with Threaded Bolt
w Cable cutter
w Cleaner and protectant
METAL POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Push-Lock® Non-Tensioner with Threaded Bolt, ø 1/8" and ø 3/16" Cable
Stainless Steel Cable Spools
Spools come in two finishes: stainless (ø 1/8", ø 5/32", or ø 3/16") and black oxide (ø 1/8"). The 1x19 L.H. lay configuration is ideal for architectural railings. Available in 25 ft, 100 ft, and 500 ft lengths in alloy 316 with a polished, corrosion-resistant finish.
u Cable | Accessories page 74
OVERVIEW
w Suits post and flat bar
w Swageless non-tensioning component
w Level applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
w Delrin washer included
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Tensioner with Threaded Bolt
w Cable cutter
w Cleaner and protectant
Delrin® Washer
.375" Wrench Flat
METAL POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS

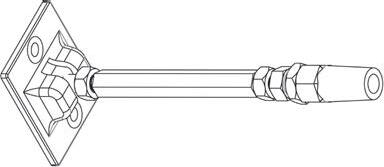

Push-Lock® Tensioner with Threaded Clevis, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits post and flat bar
w Swageless tensioning component
w Stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
w Two-part tensioner: adjustable ± 1.00" to allow for sufficient take-up
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Non-Tensioner with Threaded Clevis
w Cable cutter
w Cleaner and protectant
Need Help Planning Your Project?
Let us simplify your cable railing project! Submit our online Request a Quote form, and a Sales Representative will assist you with product recommendations, custom take-offs and resources you need for success.
Go to geobezdan.com/quote-request
METAL POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Push-Lock® Non-Tensioner with Threaded Clevis, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits post and flat bar
w Swageless non-tensioning component
w Stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Tensioner with Threaded Clevis
w Cable cutter
w Cleaner and protectant
METAL POST FRAMEWORKS | ALL CONFIGURATIONS
Installation Guide
The railing framework must be stable and robust enough to support cable tensioned to prevent cable deflection from allowing a 4” sphere to pass.
End Posts
Since hundreds of pounds of tension are being applied to end posts using cable railing, posts must be strong enough to support the tension. Please carefully review the requirements outlined on this page to ensure your installation provides appropriate support. For more detailed technical information regarding framework for cable rail installations go to bezdancable.com
u Stainless steel alloy 316 posts are strongly recommended for exterior applications
u The railing framework must be stable and robust enough to support cable tensioned to prevent cable deflection from allowing a 4” sphere to pass
u Must be securely mounted to the deck to prevent the post from coming loose when cables are tensioned
u The 212 Series and the 232 Series (for stair applications) have been tested for use with Bezdan's stainless steel ø 1-1/2" posts. Test results available upon request.
u The 102, 232 and 262 Series metal post kits are designed for use with 2" square tube
u Wall thickness of end posts to be a minimum 1/4" to handle the load when the cables are tensioned while intermediate posts can be 1/8"
Intermediate Posts
The cable should be supported in some manner no less than every 48" along its run to keep the cable rungs from spreading.
Intermediate posts, other than those that are structurally necessary, can be a thin metal cable brace with holes for the cables to pass through (see Illustration above).
Top and Bottom Rail
Must be sufficient in strength for structural integrity. A bottom rail is not required but does help distribute the force away from the lower portion of the post. If using aluminum, the end posts should be reinforced. A bottom rail to prevent bowing is recommended.
Completing the Cable Railing
Cable railing requires 9–14 rows of cable depending on post height and railing framework. A 3" spacing between rows is recommended to comply with code requirements. All runs of cable and end fittings are installed before tensioning. Follow the recommended tensioning sequence to ensure proper installation and achieve optimal results.
Max. 48"
Max. 48"
Max. 48"
Max. 48"
3" clear opening between cables.
Support posts no more than every 48".
Consult Local Building Authorities
This product information is not intended for use as a recommendation for using or installing cable rail. It is the customer’s responsibility to ensure compliance with local, provincial or national building codes. Always consult with your local building department before starting your project. See the 2015 National Building Code under the “Resources” tab or visit geobezdan.com/national-building-code
National Building Code cover image reproduced with the permission of the National Research Council of Canada, copyright holder.

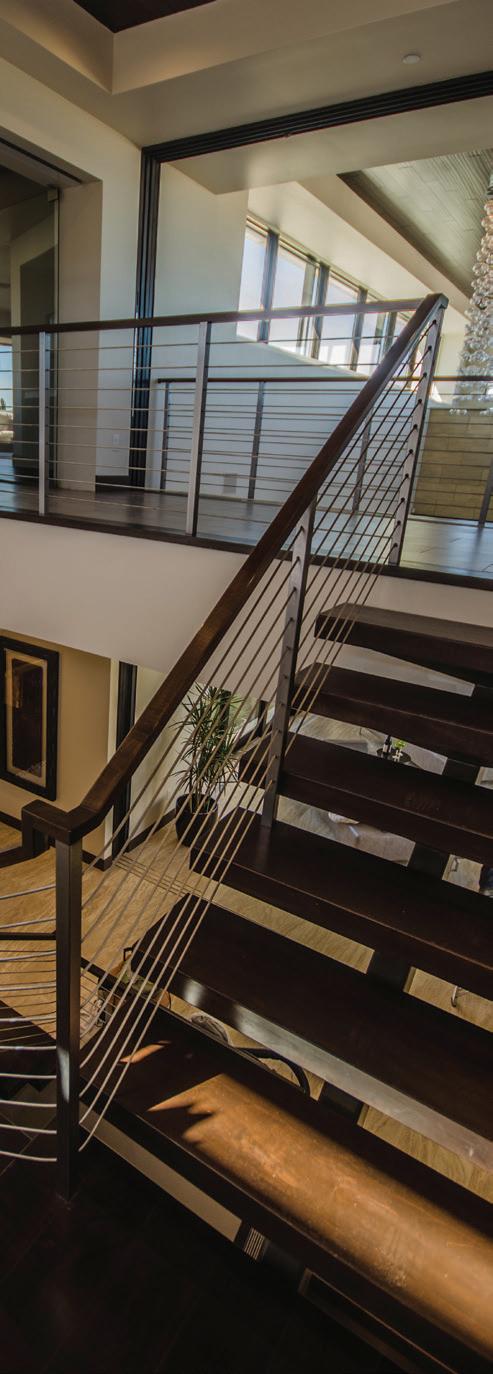

FIGURE 7: 232 Series Kit for Metal Post
FIGURE 8: Bezdan Surface Mount Fittings CR1630 and CR1635; Bezdan Cable CR1600
Wood Post Frameworks
u Suits 4"x4" nominal wood post
u Level and stair applications
u Indoor and outdoor use
u Through-post and surface mount fittings
u Engineered for structural performance
Cable Fittings
Through-Post and Surface Mount Installation
u Level and stair applications
u Tensioning and non-tensioning components
u Quick-to-install, swageless fittings secure by hand with basic tools
Cable Kits
Through-Post and Surface Mount Installation
u Everything required to install a single run of cable
u Level and stair applications
u Kits in 5 to 50 ft cable lengths
Express Mount Brackets
u Installations need only one post for corners, with cables running continuously around the post
u Designed for use with ø 1/8" 102 series cable kits
Metal Usage Guide
WOOD POST FRAMEWORKS | SYSTEM OVERVIEW
Cable Fitting Solutions
Cable railing is formed using multiple runs of cable and end fittings. Each run of cable includes one tensioning and one nontensioning fitting. End fittings are distinguished by their installation method and are available as through-post and surface mount for level and stair applications.
When planning cable railing, start with the most visible side of the railing framework which will likely be the longest run. To achieve maximum views with no visible hardware, select a through-post fitting. Access to the back of the end post is required to secure these fittings. Alternatively, when the back of the post is inaccessible, a surface mount fitting can be secured to the inside of the post. A complete railing requires 9 – 14 rows of cable depending on post height and framework. A 3" spacing between rows is recommended to comply with code requirements.
Mounting Type Options
Select from through-post and surface mount mounting type options to suit accessibility of the posts in the railing framework, function, and design preferences.
Through-Post
Fittings pass through the post with minimal obstruction to maximize views. A minimum distance of 2.5"– 3" from the back of the post to the wall is needed to install and secure though-post fittings.
Surface Mount
Fittings are secured to the inside of the post, which is ideal for when the back of a terminating post is inaccessible or when a single post is used at the corner. This solution allows for perfectly aligned cable runs, creating a clean and efficient design.
Get Inspired
Discover design ideas for indoor and outdoor spaces. Explore our gallery of stunning cable railing projects for inspiration.
Check out geobezdan.com/gallery/cable-railing
WOOD POST FRAMEWORKS | SYSTEM OVERVIEW
Cable End Fittings – Mounting Type and Function
Through-Post Cable Fittings for Wood Post 4" x 4" Nominal Post and ø 1/8" Cable
WOOD POST FRAMEWORKS | SYSTEM OVERVIEW
Cable End Fittings – Mounting Type and Function
Surface Mount Cable Fittings for Wood Post 4" x 4" Nominal Post and ø 1/8" Cable
CR1630 Tensioner
CR1631 Tensioner
PL-SFC-WS-4 Tensioner
CR1630 Tensioner
CR1631 Tensioner
PL-SFC-WP-4-1 Tensioner on stairs
n 4" post
CR1635 Non-tensioner
CR1636 Non-tensioner

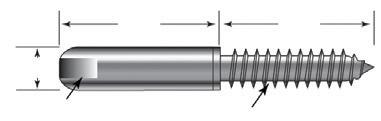

PL-LAG-4 Non-tensioner
Post Protector Sleeves
Post protector sleeves are required for corner and stair applications to keep the cable from biting into the wood.
u Part #CR1905 | Cable Railing page 79
CR1635 Non-tensioner on stairs
CR1636 Non-tensioner on stairs
PL-LAG-CL-TE4-1 Non-tensioner on stairs
FIGURE 9: Stair Tensioner CR1620; Washer CR1910; Tensioner CR1605-L; Cable CR1600
WOOD
Tensioner with Receiver Cone Jaw, ø 1/8" Cable
Black Stainless (PVD) Cleaning and Care
Clean PVD using a soft cloth or damp sponge with mild soap and water, then buff dry to avoid water deposits. Do not use cleaners containing ammonia, bleach or acid or caustic agents. Avoid abrasive cleaners and brushes.
OVERVIEW
w Tensioning through-post cable fitting with receiver cone jaw
w For use with 4" x 4" nominal wood post on level applications
w Swageless tensioning component
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 45 feet when paired with another tensioning fitting
w Supplied with acorn nut for a finished look
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Non-tensioner lag with receiver cone jaw
w Cable cutter
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
WOOD POST FRAMEWORKS | THROUGH-POST CABLE FITTINGS

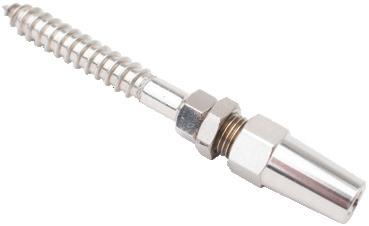

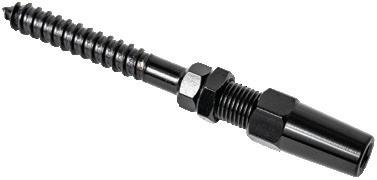

Non-Tensioner Lag with Receiver Cone Jaw, ø 1/8" Cable
OVERVIEW
w Non-tensioning through-post cable fitting with receiver cone jaw
w For use with 4" x 4" nominal wood post on level applications
w Swageless non-tensioning component
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 25 feet when paired with a tensioning fitting
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Tensioner with receiver cone jaw
w Cable cutter
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
FIGURE 10:
WOOD POST FRAMEWORKS | THROUGH-POST CABLE FITTINGS
Tensioner with Receiver Cone Jaw, ø 1/8" Cable
OVERVIEW
w Tensioning through-post cable fitting with receiver cone jaw
w For use with 4" x 4" nominal wood post on stair applications
w For stair applications, this fitting must serve as both the tensioner and non-tensioner
w Swageless tensioning component
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 45 feet when paired with another tensioning fitting
w Supplied with acorn nut for a finished look
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Beveled washers
w Cable cutter
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
WOOD POST FRAMEWORKS | THROUGH-POST CABLE KITS
102 Series Kits, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits 4"x4" nominal post
w Level and stair applications
w Suits runs up to 50 ft
w Kit includes:
• Cable, 1x19 L.H. lay
• Tensioner: Pre-attached threaded swaging stud
• Non-tensioner: Pull-Lock® swageless fitting
• Brass locknut
• 1" stainless steel flat washer
• 7/16" SAE stainless steel flat washer
• Stainless steel cap
METAL USAGE
w 316 indoor/outdoor use
w Brass indoor/outdoor use
RELATED PRODUCTS
w RailFX® Express Mount fittings
w Post protector sleeves
w Stainless steel cap (optional)
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Refer to ILLUSTRATION 8
w Installation is easy with user-friendly installation videos
• 102 Series - Level
• 102 Series - Stairs
ILLUSTRATION 8
Level Runs and Runs with One Corner
w Requires a dedicated end post for each run
w A double post corner configuration is required to create a 90˚ corner with two 45˚ bends
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
w Post protector sleeves required for corner bend (sold separately)
Express Mount Brackets
Designed for use with 102 Series Kits, 1/8" diameter cable, allow for installations on one post for corners, with cables running continuously around the post.
u Express Mount Brackets | Cable Railing page 77
FIGURE 11: Surface Mount Components for Wood Posts
POST FRAMEWORKS | THROUGH-POST CABLE KITS
262 Series Kits, ø 1/8" Cable
OVERVIEW
w Suits 4"x4" nominal post
w Level and stair applications
w Can accommodate a level run with one corner
w Suits runs up to 50 ft
w Kit includes:
• ø 1/8" cable, 1x19 L.H. lay
• Tensioner: Invisiware® receiver +pre-attached threaded swaging stud
• Non-tensioner: Pull-Lock® swageless fitting
• 7/16" SAE stainless steel flat washers (2)
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Cable release key
w Cable Clip
w Post protector sleeves
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Refer to ILLUSTRATION 9 and ILLUSTRATION 10
w Installation is easy with user-friendly installation videos
• 262 Series - Level
• 262 Series - Stairs
Invisiware® Receiver
Pull-Lock® shown with Stainless Steel Washer
Invisiware® Receiver Head
ILLUSTRATION 9
Level Runs
w Requires a dedicated end post for each run
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
ILLUSTRATION 10
Level Runs with One Corner
w Requires a dedicated end post for each run
w A double post corner configuration is required to create a 90˚ corner with two 45˚ bends
w There must be at least 3-1/2" of space behind the terminating post to allow access to install the fittings
w Post protector sleeves required for corner bend (sold separately)
Level Runs with Two Corners
w For cable runs that need to accommodate two corners, please contact your Sales Representative.
FIGURE 12: 262 Series Kit for Wood Post
WOOD POST FRAMEWORKS | THROUGH-POST CABLE FITTINGS
Pull-Lock®, ø 1/8" Cable
OVERVIEW
w Suits 4" x 4" nominal post
w Swageless non-tensioning component
w Level and stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Supplied with cap for a clean finished look
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Tensioner with Lag
w Cable release key
w Post protector sleeves
w Stainless washer 7/16 SAE (supplied by others)

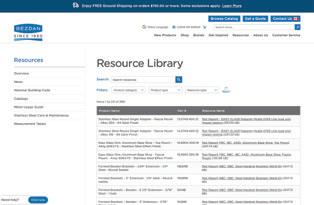

Resource Library
Visit the Resource Library to quickly and easily find test and engineering reports for our Bezdan Cable products.
Check out geobezdan.com/resource-library/
FIGURE 13: Tensioner CR1630, Non-Tensioners CR1635 and CR1615, and Cable CR1600
WOOD POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Tensioner with Receiver Cone Jaw, ø 1/8" Cable
Black Stainless (PVD) Cleaning and Care
Clean PVD using a soft cloth or damp sponge with mild soap and water, then buff dry to avoid water deposits. Do not use cleaners containing ammonia, bleach or acid or caustic agents. Avoid abrasive cleaners and brushes.
OVERVIEW
w Tensioning surface mount cable fitting with receiver cone jaw
w For use with wood posts on level and stair applications
w Swageless tensioning component
w Fittings can achieve angles up to 180°
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 45 ft when paired with a tensioner
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Supplied with two #8, alloy 316 stainless steel wood screws
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Non-Tensioner with receiver cone jaw
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
Drilled
WOOD POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Non-Tensioner with Receiver Cone Jaw, ø 1/8" Cable
Post Protector Sleeves
Post protector sleeves are required for corner and stair applications to keep the cable from biting into the wood.
u Part #CR1905 | Cable Railing page 79
OVERVIEW
w Non-tensioning surface mount
cable fitting with receiver cone jaw
w For use with wood posts on level and stair applications
w Swageless non-tensioning component
w Fittings can achieve angles up to 150°
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8"
w Suits runs up to 25 ft when paired with a tensioner
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w CNC machined for precision craftsmanship
w Electro-polished for superior quality and finish
w Supplied with two #8, alloy 316 stainless steel wood screws
w Test Report
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Tensioner with receiver cone jaw
INSTALLATION
w The receiver cone jaw requires a wrench to secure the cable
w Refer to the Downloads section on the product page for installation instructions
WOOD POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Push-Lock® Tensioner with Hanger Bolt, ø 1/8" and ø 3/16" Cable
Larger Cable Sizes
For commercial or public applications, 3/16" or 1/4" diameter cable is recommended. Please contact your Sales Representative for design and technical support.
OVERVIEW
w Suits 4"x 4" nominal post
w Swageless tensioning component
w Level applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
w Two-part tensioner: adjustable ± 0.78" to allow for sufficient take-up
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Lag
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Installation is easy with user-friendly installation videos
WOOD POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS
Push-Lock® Non-Tensioner Lag, ø 1/8" and ø 3/16" Cable
Stainless Steel Cable Spools
Spools come in two finishes: stainless (ø 1/8", ø 5/32", or ø 3/16") and black oxide (ø 1/8"). The 1x19 L.H. lay configuration is ideal for architectural railings. Available in 25 ft, 100 ft, and 500 ft lengths in alloy 316 with a polished, corrosion-resistant finish.
u Cable | Accessories page 74
OVERVIEW
w Suits 4"x 4" nominal post
w Swageless non-tensioning component
w Level applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® tensioner with hanger bolt
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Installation is easy with user-friendly installation videos
.375" Wrench Flat
WOOD POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS

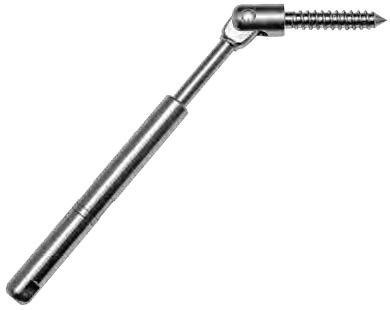

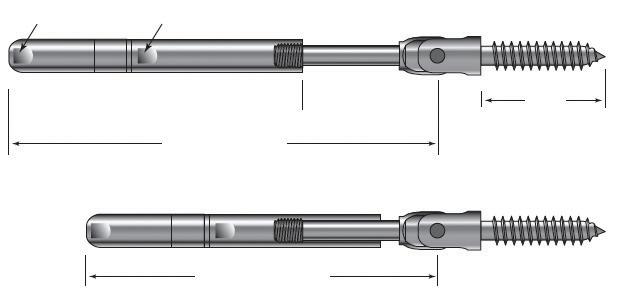

Push-Lock® Tensioner with Lag Clevis, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits 4"x 4" nominal post
w Swageless tensioning component
w Stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
w Two-part tensioner: adjustable ± 1.00" to allow for sufficient take-up
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Non-Tensioner Lag with Clevis
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Installation is easy with user-friendly installation videos
Need Help Planning Your Project?
Let us simplify your cable railing project! Submit our online Request a Quote form, and a Sales Representative will assist you with product recommendations, custom take-offs and resources you need for success.
Go to geobezdan.com/quote-request
WOOD POST FRAMEWORKS | SURFACE MOUNT CABLE FITTINGS

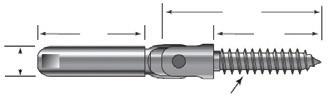

Push-Lock® Non-Tensioner Lag with Clevis, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits 4"x 4" nominal post
w Swageless non-tensioning component
w Stair applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® tensioner with hanger bolt
w Cable cutter
w Cleaner and protectant
INSTALLATION
w Installation is easy with user-friendly installation videos
WOOD POST FRAMEWORKS | ALL CONFIGURATIONS
Installation Guide
The railing framework must be stable and robust enough to support cable tensioned to prevent cable deflection from allowing a 4” sphere to pass.
End Posts
Since hundreds of pounds of tension are being applied to end posts using cable railing, posts must be strong enough to support the tension. Please carefully review the requirements outlined on this page to ensure your installation provides appropriate support. For more detailed technical information regarding framework for cable rail installations go to bezdancable.com
u A minimum 4"x4" nominal post (3-1/2"x3-1/2" actual size) end post is required to keep from bending when cables are tensioned
u The railing framework must be stable and robust enough to support cable tensioned to prevent cable deflection from allowing a 4” sphere to pass
u Must be securely mounted to the deck to prevent the post from coming loose when cables are tensioned
Intermediate Posts
The cable should be supported in some manner no less than every 48" along its run to keep the cable rungs from spreading.
Intermediate posts, other than those that are structurally necessary, can be a thin metal cable brace with holes for the cables to pass through (see Illustration above).
Top and Bottom Rail
The top and bottom rail must be sufficient in strength for structural integrity. A bottom rail is not required but does help distribute the force away from the lower portion of the post. If using aluminum, the end posts should be reinforced. A bottom rail to prevent bowing is recommended.
Completing
the Cable Railing
Cable railing requires 9–14 rows of cable depending on post height and railing framework. A 3" spacing between rows is recommended to comply with code requirements. All runs of cable and end fittings are installed before tensioning. Follow the recommended tensioning sequence to ensure proper installation and achieve optimal results.
Recommended Tensioning Sequence
3" clear opening between cables.
Support posts no more than every 48"
Consult Local Building Authorities
This product information is not intended for use as a recommendation for using or installing cable rail. It is the customer’s responsibility to ensure compliance with local, provincial or national building codes. Always consult with your local building department before starting your project. See the 2015 National Building Code under the “Resources” tab or visit geobezdan.com/national-building-code
National Building Code cover image reproduced with the permission of the National Research Council of Canada, copyright holder.
FIGURE 14: Surface Mount Components for Wood Posts
FIGURE 15: Through-Post Components
Concrete Applications
Classic, Clean and Versatile
u Mounts to concrete surface
u Level applications
u For indoor and outdoor use
u Surface mount fittings
Cable Fittings
Surface Mount Installation
u Level applications
u Tensioning and non-tensioning components
u Quick-to-install, swageless fittings secure by hand with basic tools
Metal Usage Guide
CONCRETE APPLICATIONS | SURFACE MOUNT
Push-Lock® Tensioner Turnbuckle Anchor Bolt, ø 1/8" and ø 3/16" Cable
OVERVIEW
w Suits concrete surface
w Swageless tensioning component
w Level applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
w Five piece tensioner: adjustable ± 2.00" to allow for sufficient take-up
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Non-Tensioner
Anchor Bolt
w Cable release key
w Cable cutter
w Concrete anchor (supplied by others)
INSTALLATION
w Refer to ILLUSTRATION 11
ILLUSTRATION 11
w The concrete anchor (supplied by others) is driven into a pre-drilled hole in the concrete surface
w The short thread of the anchor bolt portion of the fitting is threaded into the concrete anchor
w The lock nut is installed first, followed by the body and the Push-Lock® stud
w Attach the cable to the Push-Lock®
w Tension is created by using the body as a turnbuckle
w Secure with lock nut to prevent loosening
CONCRETE APPLICATIONS | SURFACE MOUNT
OVERVIEW
w Suits concrete surface
w Swageless non-tensioning component
w Level applications
w Use with Bezdan stainless steel cable, 1x19 left hand lay, ø 1/8" and ø 3/16"
w Clean design with no visible threads: prevents buildup of particles that can cause corrosion
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w Push-Lock® Tensioner Turnbuckle Anchor Bolt
w Cable cutter
w Cable release key
w Concrete anchor (supplied by others)
INSTALLATION
w A concrete anchor (supplied by others) is driven into a pre-drilled hole in the concrete surface
w The anchor bolt is threaded into the concrete anchor
w Attach cable to the Push-Lock®
Consult Local Building Authorities
This product information is not intended for use as a recommendation for using or installing cable rail. It is the customer’s responsibility to ensure compliance with local, provincial or national building codes. Always consult with your local building department before starting your project. See the 2015 National Building Code under the “Resources” tab or visit geobezdan.com/national-building-code
National Building Code cover image reproduced with the permission of the National Research Council of Canada, copyright holder.
FIGURE 16: Fascia Mount Posts CR1750, CR1751, CR1755, CR1756, Tensioner CR1705, Non-Tensioner CR1710, Top Mount Brackets CR1790, CR1791 and Cable CR1600
Accessories for Cable Railings
EASY INSTALLATION. AMAZING RESULTS
Projects can be completed with fasteners and tools for easy installation of cable railings. Cleaning products are also available to protect and maintain stainless steel components.
Accessories
Find what you need to install, clean and maintain cable railings:
u Cable
u Express mount brackets
u Beveled Washers and Spacers
u Replacement Parts
u Post Protectors
u Tools and Cleaners
u Cable Clips
ACCESSORIES | CABLE
Stainless Steel Cable, 1x19 L.H. Lay, ø 1/8" and ø 3/16"
OVERVIEW
w ø 1/8" and ø 3/16" cable with 1x19
METAL USAGE w 316 indoor/outdoor use
RELATED PRODUCTS w Tensioning and non-tensioning fittings
Black Oxide, Stainless Steel Cable, 1x19 L.H. Lay, ø 1/8"
OVERVIEW
w ø 1/8" cable with 1x19 left hand lay
METAL USAGE w 316 indoor/outdoor use
RELATED PRODUCTS
w Tensioning and non-tensioning fittings
INSTALLATION
w Special handling and care required to preserve the appearance and integrity of the cable railing installation. Refer to the full disclaimer
FIGURE 18: Express Mount Brackets
Express Mount Brackets
OVERVIEW
w For surface mount installation on wood post on level and stair applications
w Ideal for use with 36" wood posts with holes drilled at 3-1/8"
w 10 rows of cable are recommended to complete the railing depending on post height
w Designed for use with 102 Series Kit for ø 1/8" Cable
w Brackets come in package of 10 or 20 depending on application
w Wood screws and T25 Torx bit included
w Durable polymer construction backed by a limited lifetime warranty
RELATED PRODUCTS
w 102 Series Kit for ø 1/8" Cable
INSTALLATION
w Brackets attach to the post's exterior. No drilling through posts is required.
w Use a single cable kit to complete one row with up to two corners or seamlessly transition from level to stair railing without stop-and-restart fittings
w Installation is easy with user-friendly installation videos
RFXFMCIFKIT
RFXFMCCFKIT
ACCESSORIES | BEVELED WASHER AND SPACER
Beveled Washers
OVERVIEW
w Available to suit multiple angles
w Use to ensure proper installation of through-post tensioner at an angle
w Black stainless steel offers a beautiful, durable, chip-free satin finish that is scratch resistant
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
Stainless Steel Space
OVERVIEW
w Used to allow for receiver extension in a stair application with 1-1/2" posts
METAL USAGE
w 316 indoor/outdoor use
RELATED PRODUCTS
w 232 Series Kits
ACCESSORIES | REPLACEMENT PARTS
Delrin Washer
OVERVIEW
w Seal for components to prevent water seepage and bimetallic corrosion
RELATED PRODUCTS
w Invisiware® receiver
w Pull-Lock®
Post Protector Sleeve, ø 1/8" and ø 3/16" Cable
OVERVIEW
w For corner and stair applications up to 45˚ to keep cable from biting into the wood
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
INSTALLATION
w Refer to ILLUSTRATION 12
ILLUSTRATION 12
Post Protector Sleeve Installation
w Pre-drill wood posts with a 1/4" hole on the side of the posts where the cable exits at an angle
w Tap the post protector sleeve into the wood post for a snug fit
w Post protector sleeves are designed to protect wood posts from chafing and incidental damage from the cables rubbing around the outside of the mid post cable holes
Post Protector Sleeve
ACCESSORIES | REPLACEMENT PARTS
Jaw, ø 1/8" Cable
OVERVIEW
w Replacement jaw and washer
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Receiver Cone tensioner and non-tensioner fittings
Receiver Cone, ø 1/8" Cable
OVERVIEW
w Replacement receiver cone
w Meets AISI steel grade designation
METAL USAGE
w 316L indoor/outdoor use
RELATED PRODUCTS
w Receiver Cone tensioner and non-tensioner fittings
ACCESSORIES | TOOLS
Cable Cutter
OVERVIEW
w For burr-free cutting of ø 1/8" cable
w Shear-cut blades give clean and sharp cuts
Cutting Wheel
OVERVIEW
w Cut faster, freer and cooler, with less power than standard thin cut-off wheels
w Heavily reinforced for extra safety yet flexible and resilient to resist twisting and bending
w Gives a true and straight cut every time
Limited Warranty
Bezdan warrants to the original property owner/purchaser that Bezdan stainless steel cable and fittings are free of defect for a period of ten (10) years from the date of receipt. This warranty covers defects in workmanship and materials under normal use, conditions, installation and maintenance in accordance with the product specifications and procedures described in the cable rail installation and maintenance instructions. Learn more at geobezdan.com/bezdan-cable
Cable Release Key
OVERVIEW
w Suits ø 1/8" cable
w Releases cable from Push-Lock® and Pull-Lock® fittings before cable is tensioned
RELATED PRODUCTS
w All series kits for 1/8" cable
w Push-Lock® fittings
w Pull-Lock® fittings
INSTALLATION
w Cable release key opens the spring loaded jaws that grip the cable prior to tensioning
Stainless Steel & Maintenance
Find tips for maintaining stainless steel for stain resistance, surface treatment, cleaning methods, and care guidelines to keep products looking their best.
Check out geobezdan.com/stainless-steel-care
ACCESSORIES | CLEANING PRODUCTS
Stainless Steel Cleaner and Protectant Kit
OVERVIEW
w Engineered to penetrate metal pores deeply, displace moisture and dissolve minor corrosion
w Leaves a clean, waxy coating with superior, long-lasting durability
w T-9 protects metals for months, including steel, cast iron, aluminum, and copper, without harming paint, plastic and vinyl
w Kit includes T9 spray-on protectant and Rust Free spray-on stain remover
Stainless Steel Cleaner and Protectant Bundle
OVERVIEW
w This conveniently bundled care kit will take you from installation through to regular care and maintenance
w Kit includes a large T9 spray-on protectant, Rust Free spray-on stain remover and Scotch Brite pads
ACCESSORIES | CABLE CLIP
Cable Clip
OVERVIEW
w Suits ø 1/8" cable
w Suits up to 6.35mm tempered glass or resin panel
w Minimum thickness of 4.76mm for infill recommended
w Supplied with M6 and M8 set screws
METAL USAGE
w Solid brass indoor/outdoor use
RELATED PRODUCTS
w 102 Series Kits
w 212 Series Kits
w 232 Series Kits
w 262 Series Kits
INSTALLATION
w Refer to ILLUSTRATION 13
Performance and Safety
ILLUSTRATION 13
Cable Clip Installation
w Fasten clip on cable using a stainless steel M6 set screw (supplied)
w Infill panel is securely held in place with a stainless steel M8 set screw (supplied)
Cable Clips are engineered and tested to meet the National Building Code requirements for infill loads. Test data available upon request.
CABLE RAILING | CHECKLIST
Use this checklist to guide your decision-making process and ensure you’re considering all the key factors when selecting the right cable railing solution for your project.
1
General Project Information
Project Type
o Residential
o Commercial
o Other
Project Application
o Interior
o Exterior
Railing Application
o Level
o Stair
o Both
Railing Height
o 36"
o 42"
Cable Diameter
o 1/8"
o 3/16"
2
Post and Fittings Information
Color Preference
o Satin Stainless
o Black Stainless
Installation Type
o Surface Mount
o Fascia Mount
o Other
Post Type
o Wood Post - 4x4 Nominal
o Metal Post* - Square
o Metal Post* - Round
o Metal Post* - Flat Bar
o Concrete
o Other
*Metal end posts require a minimum 1/4" wall thickness unless test approved.
Fitting Type
o Through-Post*
o Surface Mount
o Other/Combo
*A minimum distance of 2.5"-3" from the back of the post to the wall is needed to install a though-post end fitting.
Cable Color
o Satin Stainless
o Black Oxide
3
Top Rail Information
Top Rail Type
o Stainless Steel
o Wood
o Other
Request a Quote
Fill out the quote request online and one of our friendly Sales Representatives will connect with you. Projects big or small, we are here to help. geobezdan.com/quote-request
CABLE RAILING | CHECKLIST
How To Measure
Measure and sketch layout.
Identify stair sections and clearly mark measurements on the sketch (refer to illustration). Two measurements are needed to help us determine the best system for you:
1. From inside to inside of each post.
2. From outside to outside of each straight run. This includes the end posts and intermediate posts. Tip: When measuring the length of rail/cable for stairs, remember to keep the tape measure parallel to the angle of the stairs.
Sketch Your Drawing
Sketch Your Drawing
Bezdan Railing Solutions
1 800 663 6356 geobezdan.com info@geobezdan.com
To view the entire Cable Railing collection visit geobezdan.com/cable-railing
Product images shown in this brochure are for illustrative purposes only. Although we have made every effort to display colors accurately, the physical product(s) may vary slightly from the images shown.
BUILDING CODE IMPORTANT NOTICE
Information contained in this brochure is not intended as a recommendation for use or installation of products. Building codes may vary by jurisdiction and compliance with regulation is the customer’s responsibility.
Always consult your local building department or licensed engineer regarding code compliance before starting your project.
09/25
