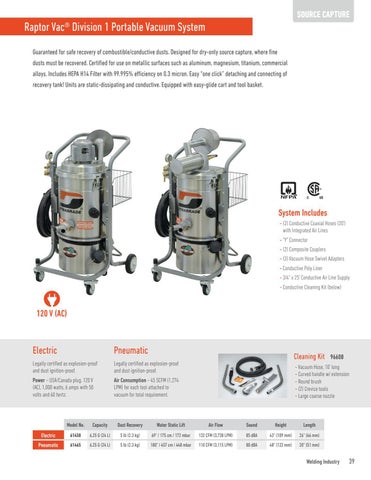

Raptor Vac® Division 1 Portable Vacuum System Guaranteed for safe recovery of combustible/conductive dusts. Designed for dry-only source capture, where fine dusts must be recovered. Certified for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Easy “one click” detaching and connecting of recovery tank! Units are static-dissipating and conductive. Equipped with easy-glide cart and tool basket.
System Includes - (2) Conductive Coaxial Hoses (20') with Integrated Air Lines - “ Y” Connector - ( 2) Composite Couplers - ( 2) Vacuum Hose Swivel Adapters - C onductive Poly Liner - 3 /4" x 25' Conductive Air Line Supply - C onductive Cleaning Kit (below)
120 V (AC)
Electric
Pneumatic
Legally certified as explosion-proof and dust ignition-proof.
Legally certified as explosion-proof and dust ignition-proof.
Power – USA/Canada plug. 120 V (AC), 1,000 watts, 6 amps with 50 volts and 60 hertz.
Air Consumption – 45 SCFM (1,274 LPM) for each tool attached to vacuum for total requirement.
Cleaning Kit 96608 - Vacuum Hose, 10' long - Curved handle w/ extension - Round brush - (2) Crevice tools - Large coarse nozzle
Model No.
Capacity
Dust Recovery
Water Static Lift
Air Flow
Sound
Height
Length
Electric
61450
6.25 G (24 L)
5 lb (2.3 kg)
69" / 175 cm / 172 mbar
132 CFM (3,738 LPM)
85 dBA
43" (109 mm)
26" (66 mm)
Pneumatic
61465
6.25 G (24 L)
5 lb (2.3 kg)
180" / 457 cm / 448 mbar
110 CFM (3,115 LPM)
80 dBA
48" (122 mm)
20" (51 mm)
