Gamber-Johnson: Material Handling Catalog 2025

MOUNT IT. POWER IT. CARRY IT.

MATERIAL HANDLING PRODUCT CATALOG

2025

TABLE OF

CONTENTS ABOUT GAMBER-JOHNSON

3

FAQS

4

MATERIAL HANDLING MOUNTS

6

ZIRKONA MOUNTS

18.

PERIPHERAL MOUNTS

24

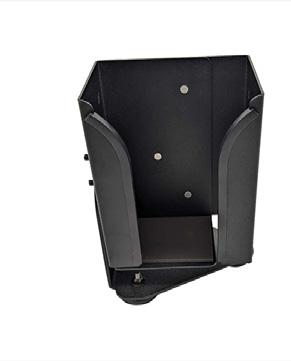

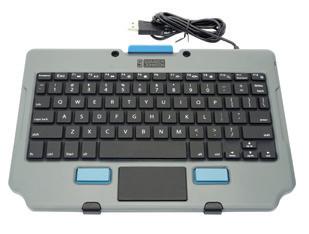

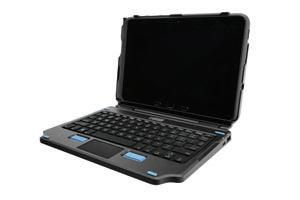

TABLET KEYBOARD BRACKETS PRINTER BRACKETS SCANNER BRACKETS AND POCKETS LIGHTS AND ANTENNA BRACKETS KEYBOARD BRACKETS KEYBOARDS ACCESSORIES

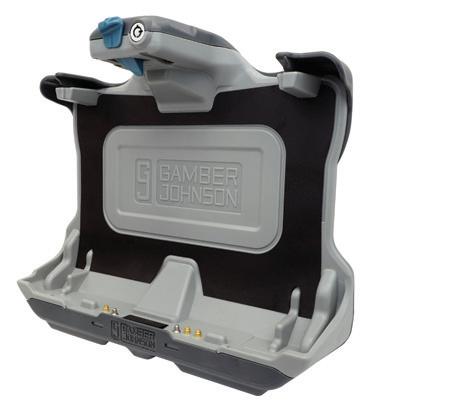

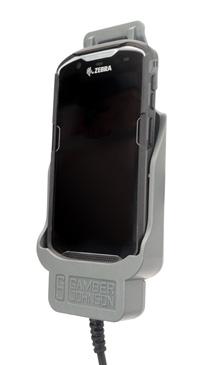

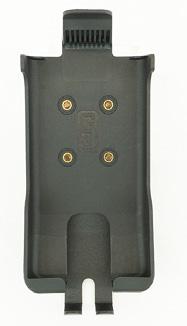

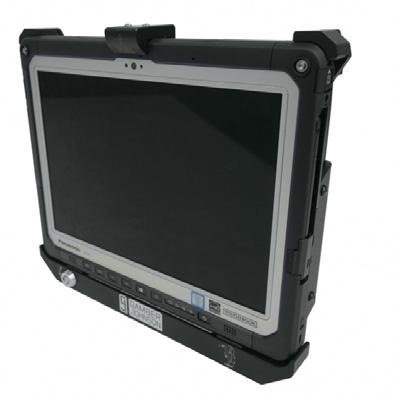

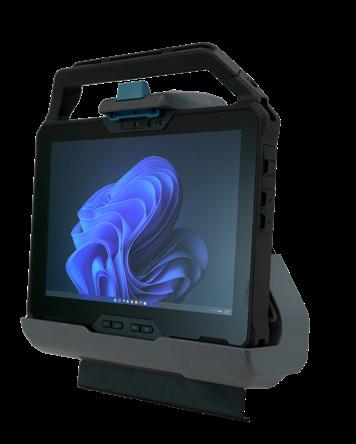

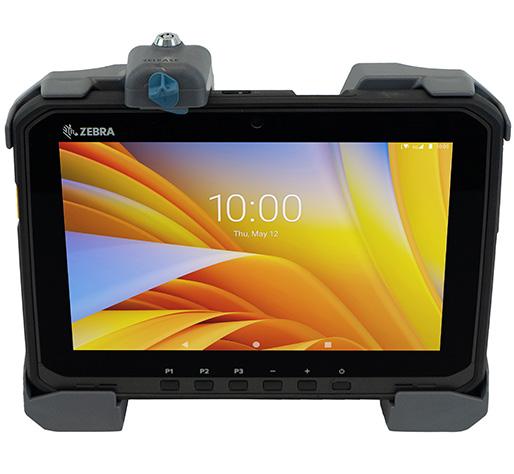

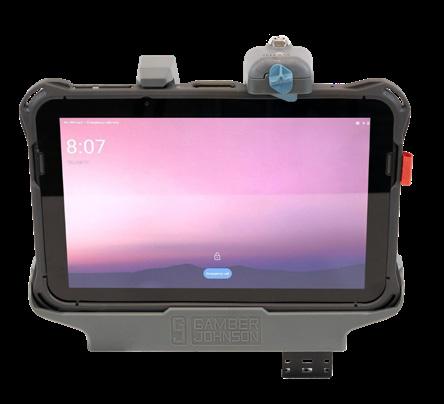

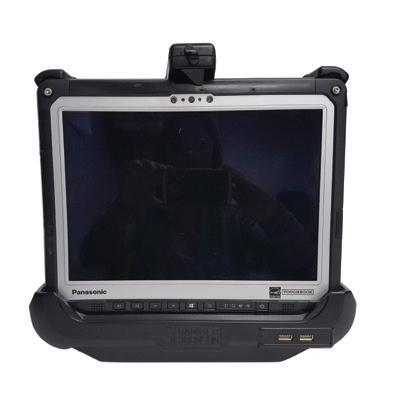

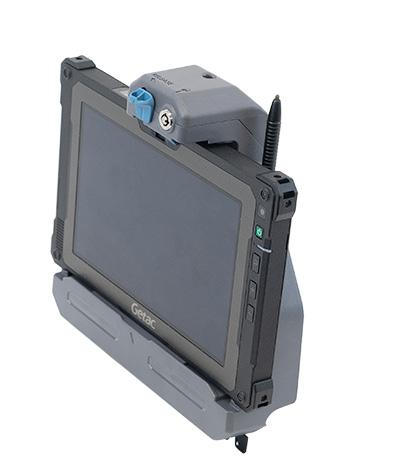

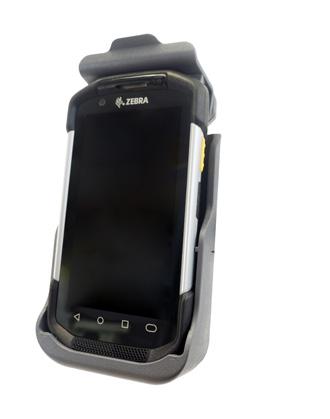

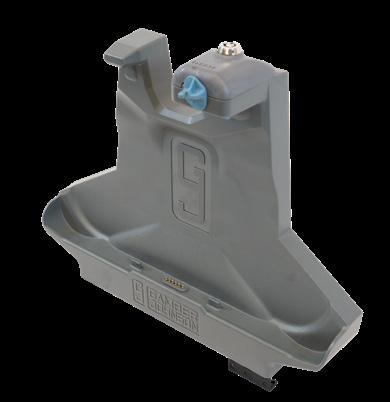

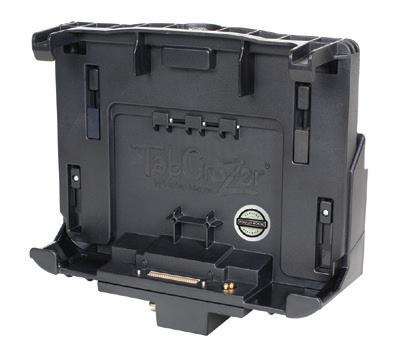

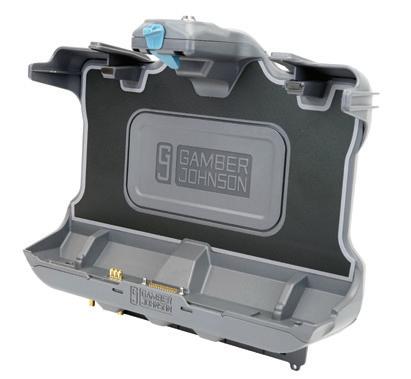

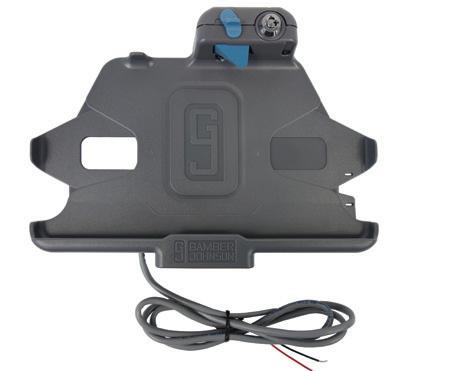

CRADLES AND DOCKING STATIONS

40

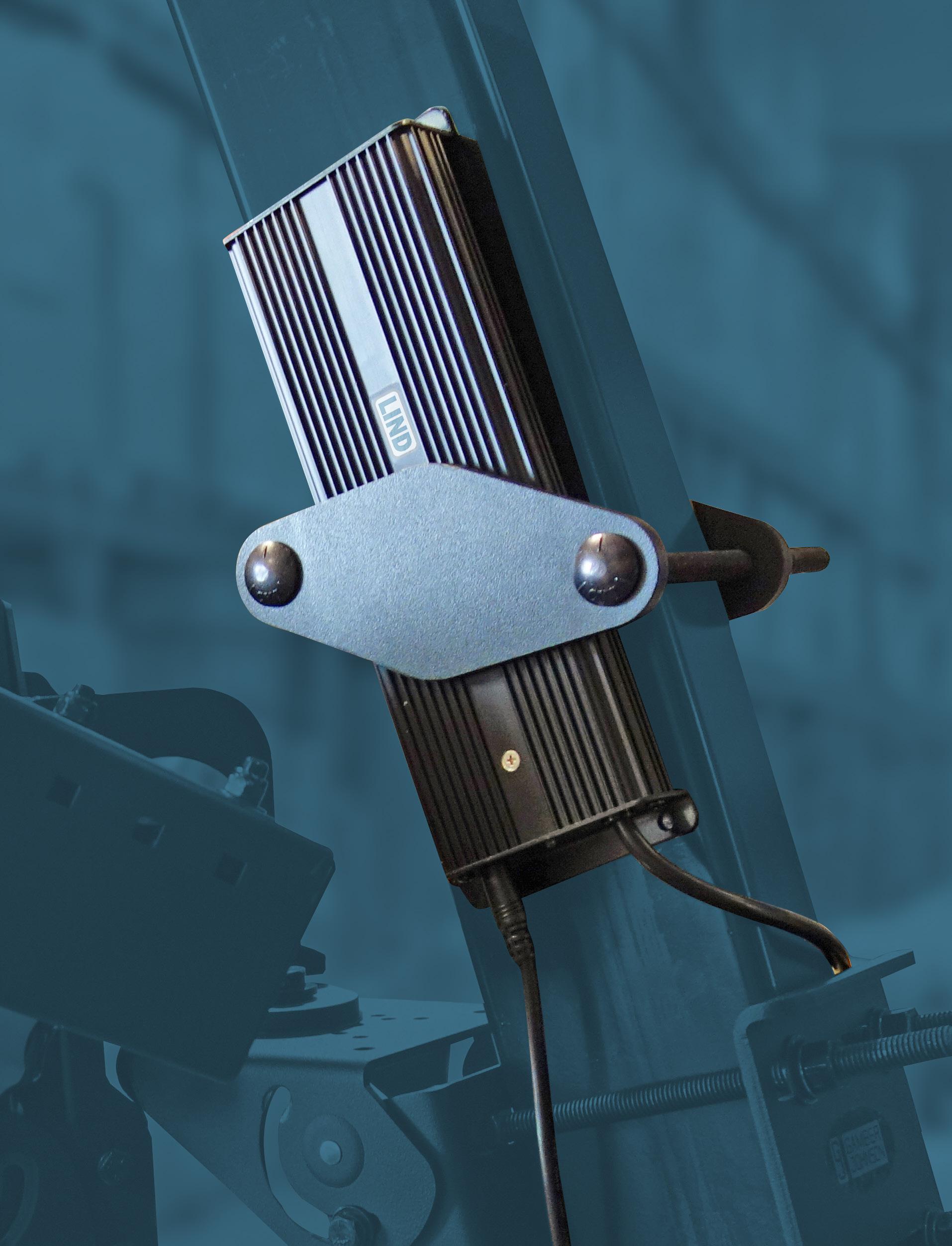

POWER SUPPLIES & MORE

68

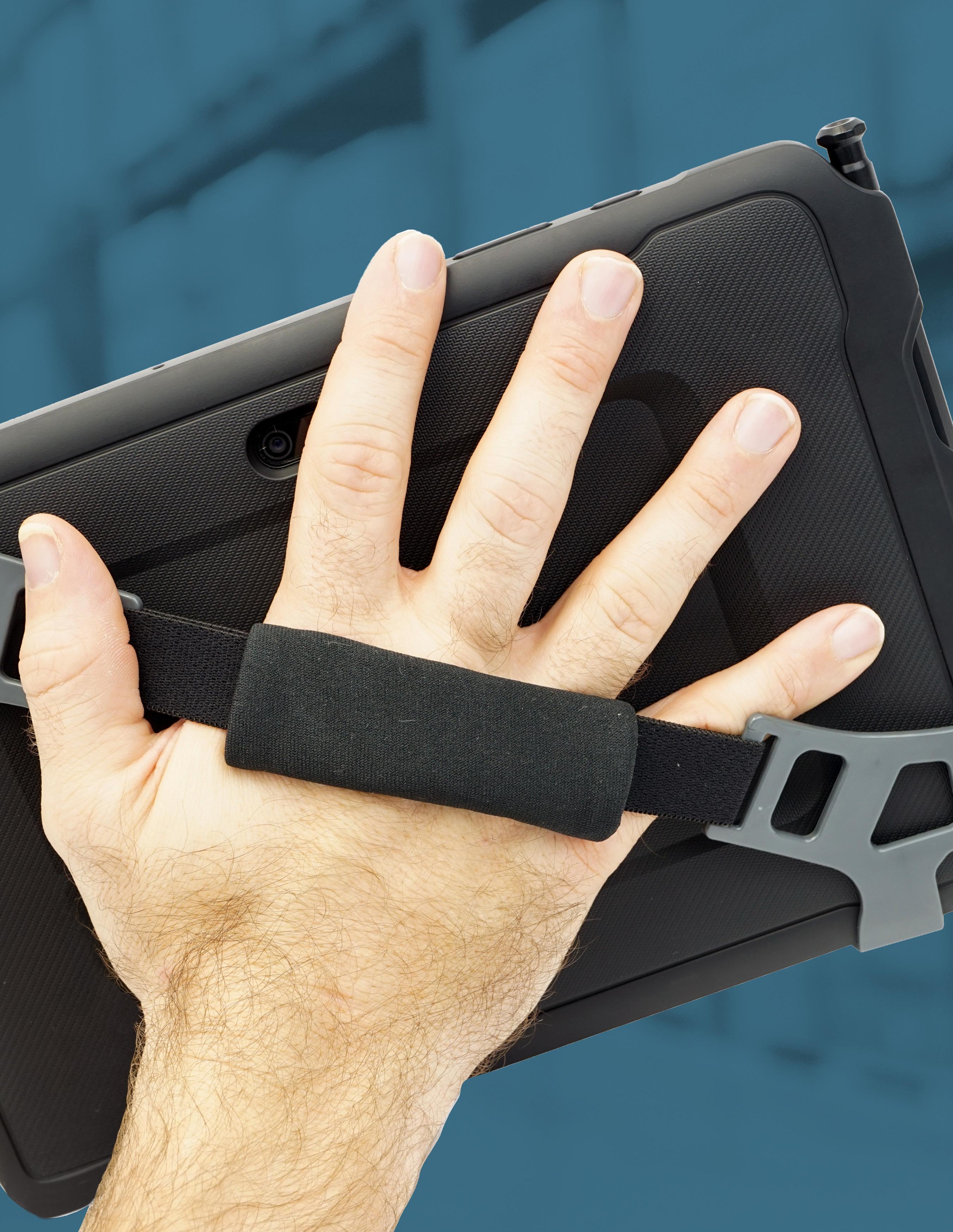

ERGONOMIC MOBILITY SOLUTIONS

74.

WARRANTY

78.78

companies Gamber-Johnson is a global name known for providing industry-leading mounting solutions to support many, diverse industries, most notably the public sector, material handling, logistics, and enterprise.

The GJ portfolio of product offerings has grown with strategic additions to our family of brands to support a broader offering.

2

From humble beginnings as a local wooden furniture manufacturer in Stevens Point, Wisconsin, Gamber-Johnson has developed into the global go-to partner for equipment mounting products.

This evolution from producing furniture in 1954 to becoming a 21st-century world leader in mounting equipment for electronics was a natural progression, fostered by a company culture of innovation and continuous improvement.

Today, Gamber-Johnson is still proudly “made in Wisconsin” and manufactures mounting components and systems for laptop and tablet computers, radios, light and siren controls, surveillance cameras, pointof-use kiosks, printers, keyboards and other devices — all meticulously designed to be rugged, reliable, and responsive.

Partnering with major technology manufacturers such as Dell, Getac, Panasonic, Samsung, and Zebra is key to this success. Gamber-Johnson is a trusted name in the industry; long known as the go-to partner for major rugged computer OEMs. With more than 25 patents and counting, the company continues to evolve, creating numerous jobs and meaningful opportunities for community stewardship.

As a pioneer in design innovation — receiving numerous awards and accolades as an industry leader — Gamber-Johnson has been the preferred choice of fleet managers for decades. Gamber-Johnson is a worldwide corporation with subsidiaries around the globe, including Precision Mounting Technologies (PMT) in Calgary. Currently, the company exports to more than 45 countries, with installations in thousands of fleets worldwide. Heroes in police, fire and emergency medical services rely on Gamber products every day in order to better protect and serve.

For these significant contributions to vital industries on a global scale, Gamber-Johnson has received

numer­ ous accolades. These include the 34th Annual Wisconsin Manufacturer of the Year Award–Medium Category, 32nd Annual Wisconsin Manufacturer of the Year Award–Medium Category and 31st Annual Special Award Winner–Exceptional Customer Relations, recognizing the company’s commitment to business excellence which makes a positive impact on the state of Wisconsin; the President’s “E” and “E” Star Awards, recognizing outstanding contributions and growth to U.S. exports; Wisconsin Governor’s Export Achievement Award, which honors the company’s work in furthering Wisconsin’s global economy; and the Cygnus Innovation Award, acknowledging that the company is at the cutting edge of emerging technologies. Gamber-Johnson has been nominated as Wis­consin Manufacturer of the Year eight times and also received the J.P. Leggett Innovator Award from Leggett & Platt, in addition to being named a “Workplace of Distinction” by Corporate Report Wisconsin.

Gamber-Johnson’s dedication to producing products that are rugged, reliable, and responsive is unparalleled. The Gamber- Johnson name has become synonymous with high quality, rugged products that can withstand even the most extreme situations. These products are guaranteed and reliable, hand tested for perfect performance every single time. With a strong focus on customer service, the Gamber-Johnson brand is responsive: offering customdesigned solutions, lightning-fast production and shipping, and working directly with technology partners to ensure the optimum fit, every time.

From the company’s local origins to its modern-day global impact, Gamber-Johnson has continued pursuing its mission — supporting our heroes and saving the world through a laser-like focus on innovation.

FOLLOW US FOR UPDATES AND NEWS @gamberjohnson @gamberjohnson @gamber_johnson @gamber-johnson @Gamber_Johnson

Looking for product training and knowledge; CHECK OUT GAMBER-GUIDES!

HASHTAG:

#gamberjohnson #ruggedreliableRESPONSIVE #gamberpride 3

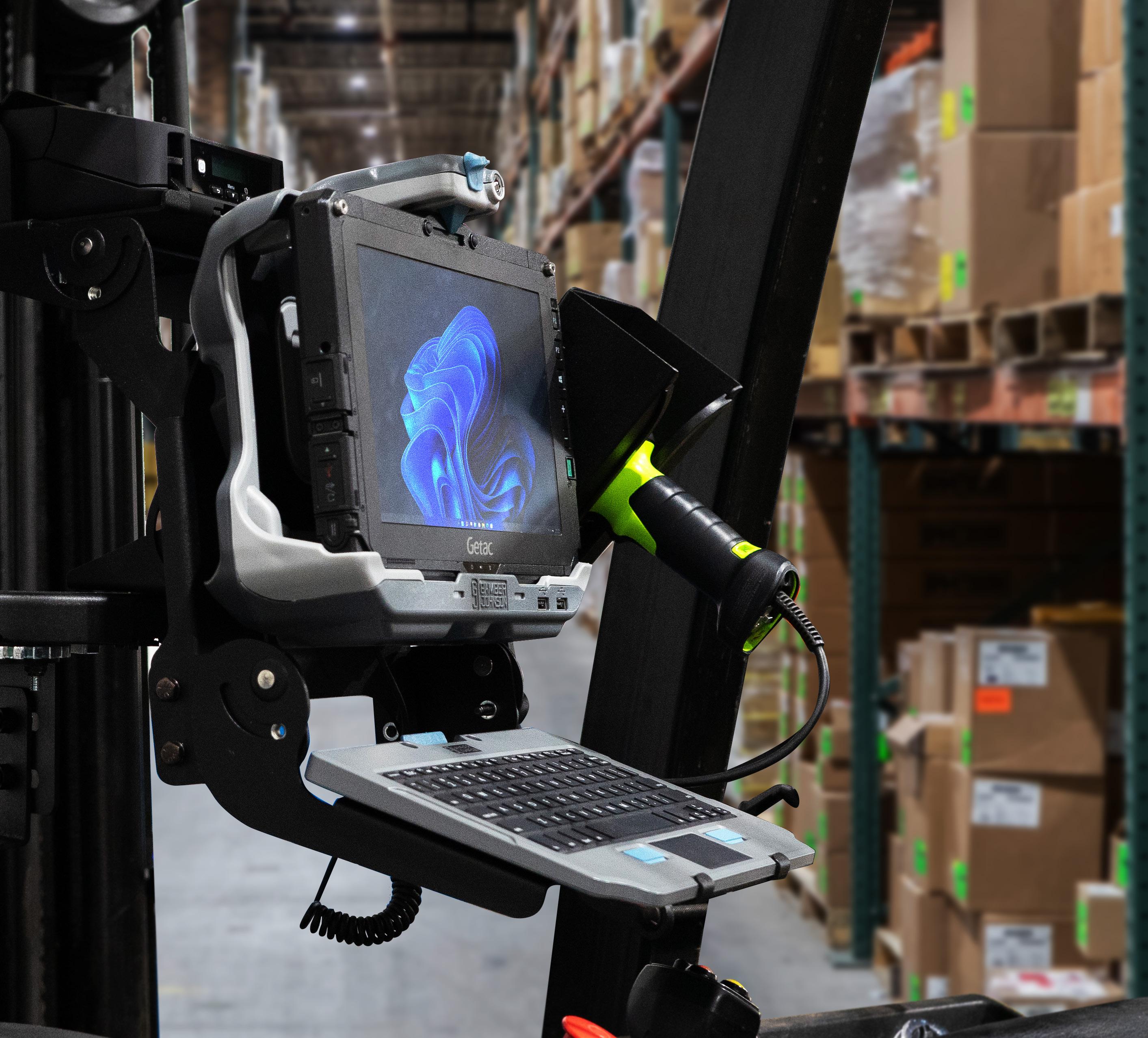

MOUNTING SOLUTIONS

FOR EVERY MATERIAL HANDLING VEHICLE

Secure your tablets and equipment with our superior mounting solutions, for ultimate peace of mind. We offer a wide range of turnkey solutions that are configurable for your material handling vehicle’s specific make and model. To narrow down the best solution for your lift vehicle begin by asking yourself these four important questions:

01

WHAT DEVICE IS BEING MOUNTED?

02

WHAT MODEL VEHICLE IS THE DEVICE BEING MOUNTED TO?

Identifying your device ensures that you get the correct dock or cradle to support your specific need and desired connectivity.

Knowing the make and model of your vehicle will allow us to recommend the best location and corresponding product needed to mount your Device.

03

WHAT IS THE CAB TYPE?

04

WHAT IS THE VEHICLE'S VOLTAGE?

05

WHAT ACCESSORIES ARE BEING MOUNTED?

Determine whether is it a open or enclosed cab.

By knowing the voltage or power requirement of your lift vehicle we can ensure that you get the appropriate power supply for your specific need.

Understanding your accessory needs will allow us to build the best enterprise solution for your team.

START-TO-FINISH

MATERIAL HANDLING SOLUTIONS

MOUNT IT GAMBER-JOHNSON boasts an extensive range of material handling mounting solutions meticulously crafted to address the specific needs of forklift operators, fl eet managers, IT departments, and vehicle OEM providers. Our solutions are not only built to endure the toughest working conditions but are also engineered to streamline user effi ciency, simplify installations, and enhance workplace safety and ergonomics.

POWER IT As a frontrunner in delivering robust mobile power solutions to the warehousing sector, LIND products have established themselves as indispensable in extreme environments where durable power solutions are paramount. For a mobile power solution that guarantees reliability and durability, look no further than a Lind mobile power solution.

CARRY IT With mobile workstations transitioning beyond forklifts, we recognize the evolving challenges in maintaining an efficient workflow. Our carrying solutions are geared towards optimizing the mobile experience by offering a range of mobile accessories that best align with end-user requirements.

5

MOUNT IT.

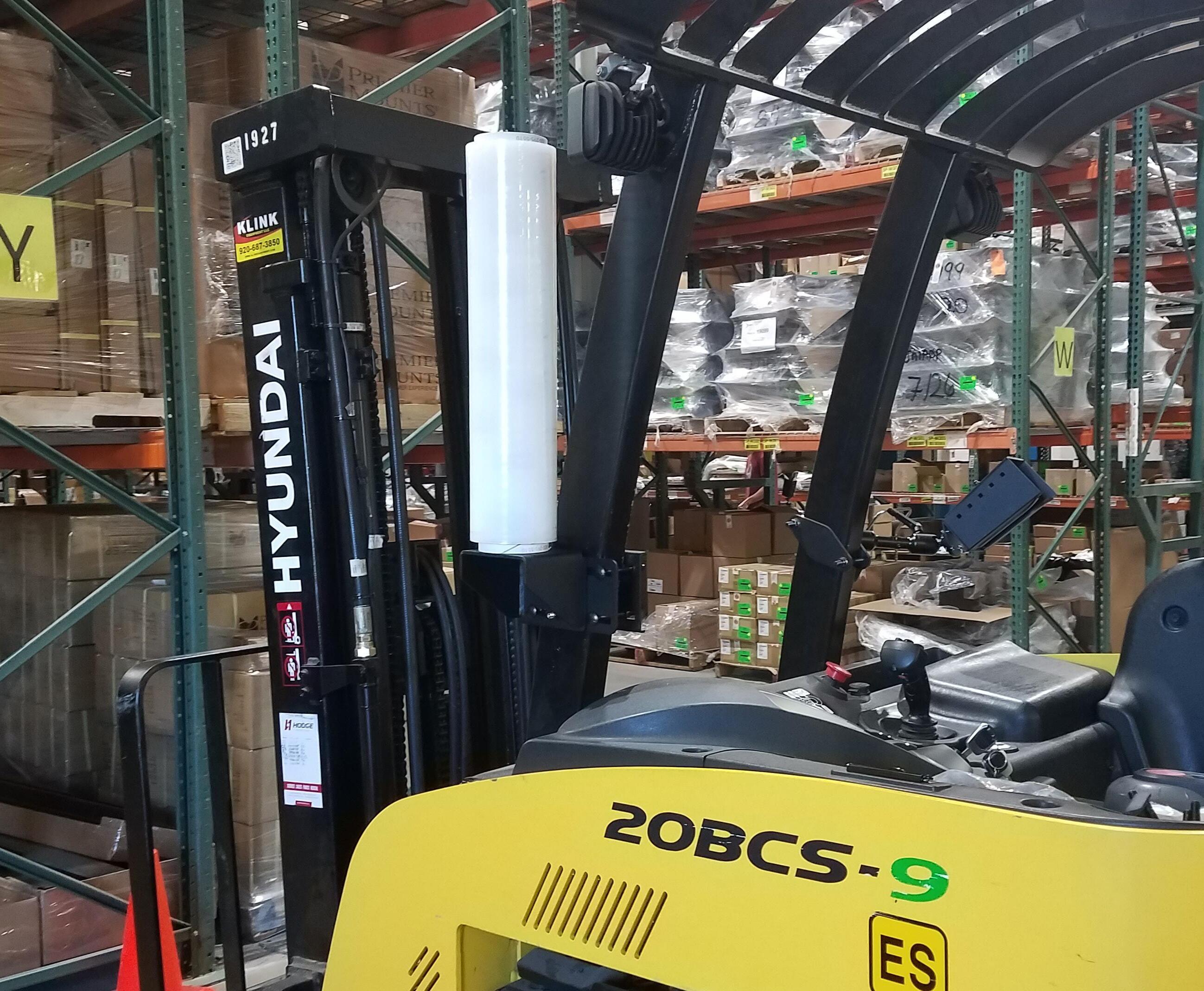

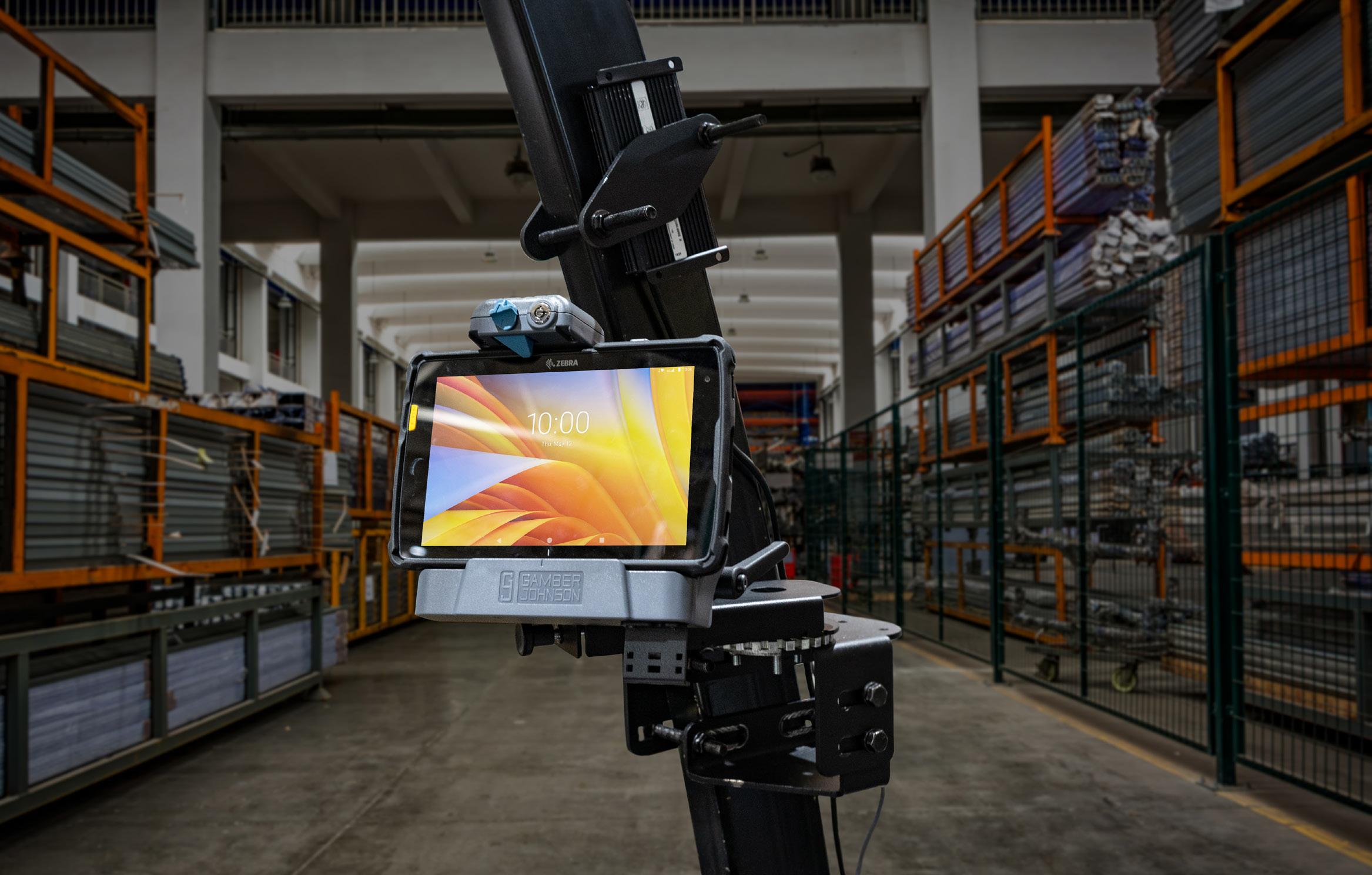

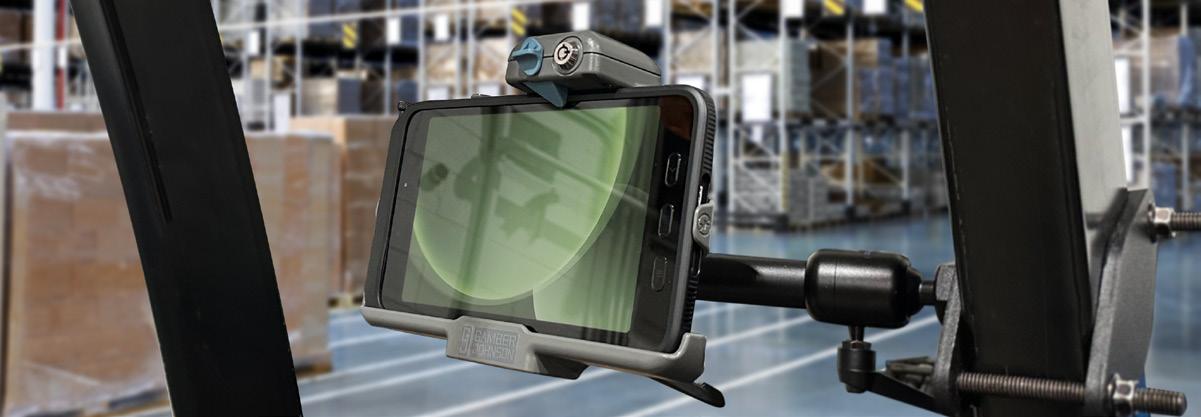

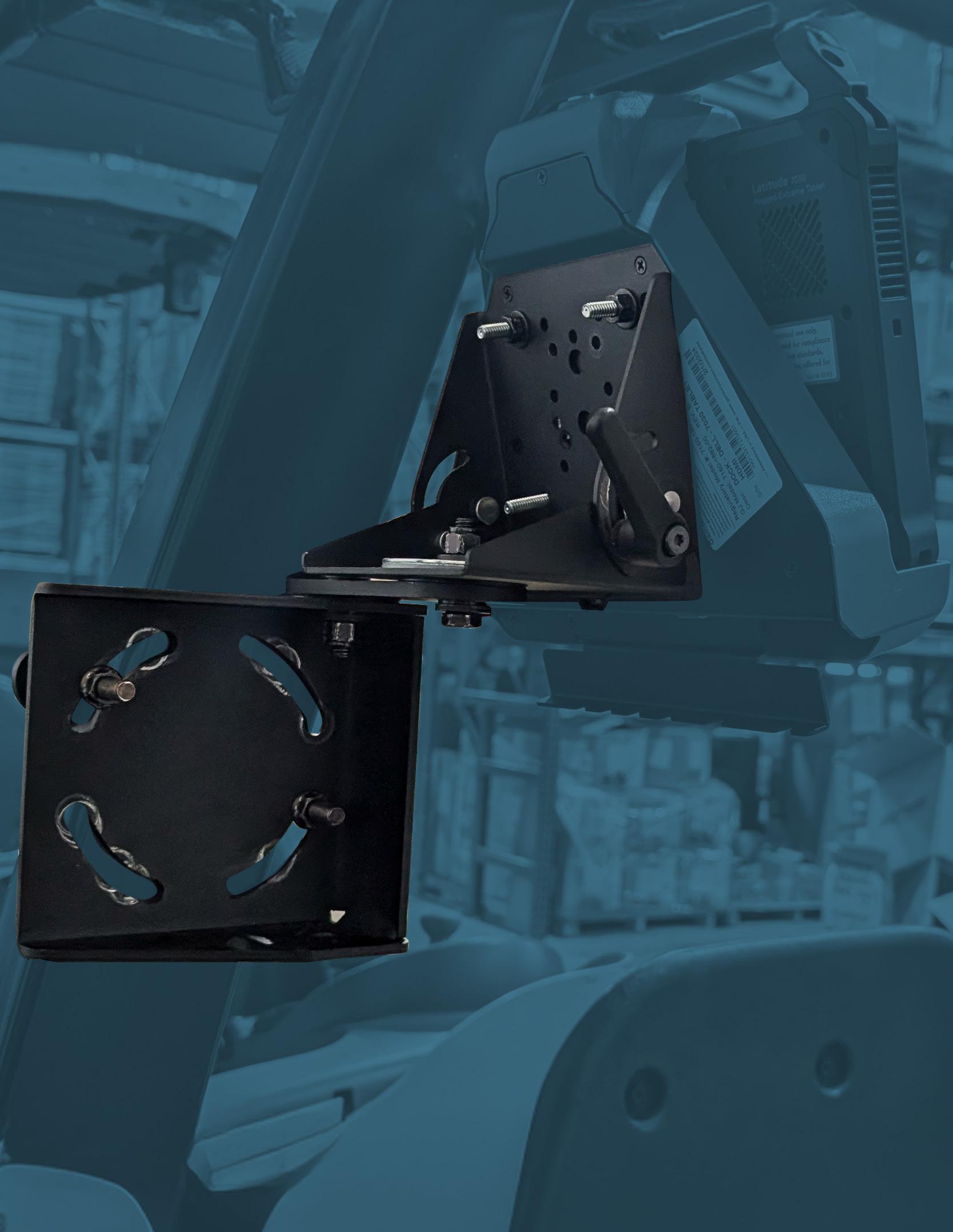

MATERIAL HANDLING MOUNTS MAXIMIZE AND SECURE THE SPACE IN YOUR VEHICLE

Securely mount your electronic devices (laptops, VMU’s, tablets) and accessories (keyboards, mobile scanners, printers, and safety lights) to your lift vehicle utilizing GamberJohnson material handling solutions. Built and designed to be as rugged as the environment they work in.

HE AV Y DUT Y GUARD LEG MOUNT S | M AT E R I A L H A N D L I N G GUARD LEG MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1995

Guard Leg Mount

7 lbs / 3.18 kg

8 in / 20.32 cm

9 in / 22.86 cm

9 in / 22.86 cm

FEATURES

• Increase warehouse safety by reducing potential blind spots caused by multiple mounts on forklift.

• Confidently secure your devices - mount is tested to Gamber-Johnson's rigorous material handling product standards to assure your devices will stay in place.

• One mount for the ensuremajority forklift rollform and rectangular overhead guard legs.

• Swing Arm allows for multiple device mounting. Tablets, printers, keyboards, etc. can be mounted in one location.

• Mounting Versatility: Mount sandwiches the guard leg and allows user to position the device at the desired height position • Limited Lifetime Warranty

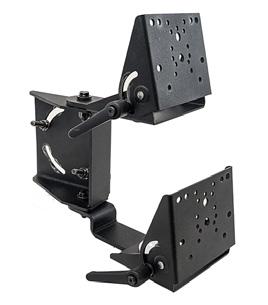

GUARD LEG MOUNT WITH DUAL ARMS ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-2020

Guard Leg Mount with Dual Arms

10.5 lbs / 4.76 kg

8 in / 20.32 cm

8 in / 20.32 cm

12 in / 30.48 cm

FEATURES

• Increase warehouse safety by reducing potential blind spots caused by multiple mounts on forklift.

• Confidently secure your devices - mount is tested to Gamber-Johnson's rigorous material handling product standards to assure your devices will stay in place.

• One mount for all forklift rollform and rectangular overhead guard legs.

• Dual Swing Arms allow for multiple device mounting. Tablets, printers, keyboards, etc. can be mounted in one location.

• Mounting Versatility: Mount sandwiches the guard leg and allows user to position the device at the desired height position • Limited Lifetime Warranty

GUARD LEG MOUNT W/LOCKING SWING ARM MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1841

Guard Leg Mount w/Locking Swing Arm Mount

10.5 lbs / 4.76 kg

8 in / 20.32 cm

8 in / 20.32 cm

12 in / 30.48 cm

FEATURES

• Mounting Versatility: Mount sandwiches the overhead guard leg and allows user to position the device at the desired height position • One mount for all rectangular and rollform forklift overhead guard legs • Locking Swing Arm locks devices in place and can be easily adjusted with one-hand operation • Standard Clevis can be swiveled 360° on locking swing arm • Standard Clevis can be tilted 90° fore and 26° aft • Standard Clevis features AMPS, NEC, and 75mm VESA hole patterns for mounting all devices • Heavy gauge steel construction for long-term durability in a rugged environment • Black powdercoat finish for maximum corrosion resistance • Limited Lifetime Warranty

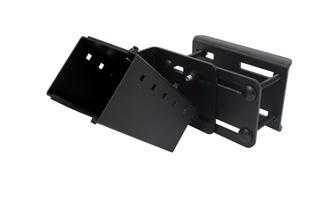

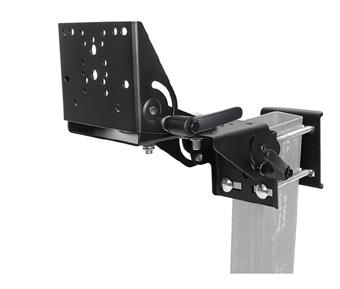

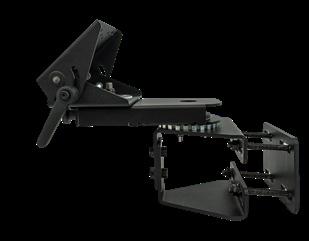

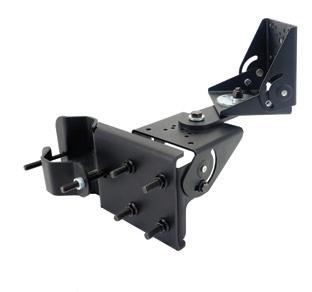

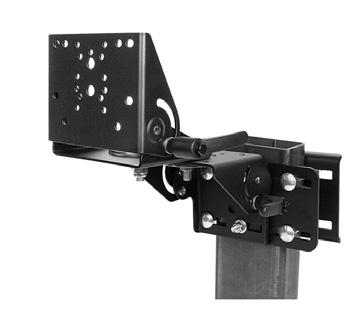

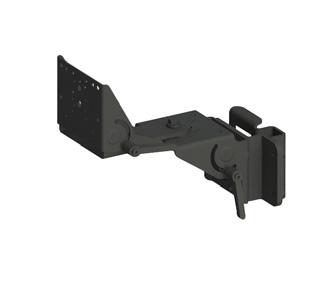

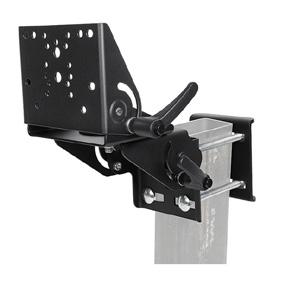

FIXED BASE, CLAMSHELL WITH ARTICULATING ARM AND LARGE PLATE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1505

Fixed Base, Clamshell with Articulating Arm and Large Plate

9.8 lbs / 4.45 kg

10.1 in/ 25.65 cm

6.6 in/ 16.76 cm

10.1 in/ 25.65 cm

FEATURES

• Fixed base allows for additional strength and stability to ensure security in the harshest of environments • AMPS, NEC, VESA 7 5mm, and Gamber-Johnson 2”x 4.09” hole patterns provided to seamlessly mount a wide variety of devices • Ability to tilt device up to 90° fore and 26° aft for optimal viewing of device screens • Articulating arm provides additional capabilities of swiveling in order to quickly move devices out of reach or bring them closer • No drilling required installation makes a quick solution to easily attach a wide range of devices to a rectangular guard leg 2.5" to 5.0" (6.35 cm to 12.7 cm) wide • Limited Lifetime Warranty

8

M AT E R I A L H A N D L I N G |

HE AV Y DUT Y GUARD LEG MOUNT S

DUAL CLAM SHELL WITH ARTICULATING ARM AND SMALL PLATE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0420

Dual Clam Shell with Articulating Arm and Small Plate

7.95 lbs. / 3.6 kg

10.08 in / 25.6 cm

7.43 in / 18.9 cm

9.96 in / 25.3 cm

FEATURES • • • • •

Attaches to rectangular forklift support braces 1.5" to 2.5" wide Clam Shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x 4.09" The entire arm can rotate around 360° and the Motion Attachment can also rotate 360° Arm can be tightened down to be locked into a permanent position Limited Lifetime Warranty

DUAL CLAM SHELL WITH ARTICULATING ARM AND LARGE PLATE ITEM NO. 7160-0421

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

Dual Clam Shell with Articulating Arm and Large Plate

10.8 lbs / 4.44 kg

10.08 in / 25.60cm

6.63 in / 16.84 cm

10.14 in / 25.76 cm

FEATURES • • • • •

Attaches to rectangular forklift support braces 2.5" to 5.0" (6.35 cm to 12.7 cm) wide Clam Shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x 4.09" The entire arm can rotate around 360° and the Motion Attachment can also rotate 360° Arm can be tightened down to be locked into a permanent position Limited Lifetime Warranty

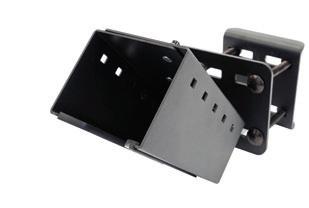

CLAM SHELL WITH SMALL PLATE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0357

Clam Shell with Small Plate

3.97 lbs. / 1.8 kg

4.6 in / 11.7 cm

6.26 in / 15.9 cm

5.1 in / 13.0 cm

FEATURES • • • • • • •

Attaches to rectangular forklift support braces 1.5” to 2.5” (3.8 cm to 6.4 cm) wide Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA Clam Shell can be tilted up or down for a total of 160° To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever A secondary bolt is included to lock the clam shell into a permanent position Plate sandwiches the overhead guard leg and allows user to position the device at the desired height position Limited Lifetime Warranty

CLAM SHELL WITH LARGE PLATE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0370

Clam Shell with Large Plate

5.80 lbs. / 2.63 kg

4.6 in / 11.68 cm

6.8 in / 17.27 cm

5.28 in / 13.41 cm

FEATURES • • • • • • •

Attaches to rectangular forklift support braces 2.5" to 5.0" wide Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA The Clam Shell can be tilted up or down for a total of 160° To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever A secondary bolt is included to lock the clam shell into a permanent position Plate sandwiches the overhead guard leg and allows user to position the device at the desired height position Limited Lifetime Warranty

9

HE AV Y DUT Y GUARD LEG MOUNT S | M AT E R I A L H A N D L I N G DUAL CLAM SHELL WITH SMALL PLATE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0366

Dual Clam Shell with Small Plate

6.18 lbs. / 2.8 kg

9.77 in / 24.8 cm

7.26 in / 18.4 cm

6.96 in / 25.3 cm

FEATURES

• Attaches to rectangular forklift support braces 1.5" to 2.5" wide • Clam Shell features the following hole patterns: AMPS, NEC and VESA 75mm , Gamber-Johnson 2"x4.09" • Tilt capabilities: • 90° forward allows for tablets to be easily mounted • 26° aft movement with a positive stop at 26° • Riveted design allows for smoother tilt movement • To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever • A secondary bolt is included to lock the clevis into a permanent position • Limited Lifetime Warranty

DUAL CLAM SHELL WITH LARGE PLATE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0367

Dual Clam Shell with Large Plate

7.98 lbs. / 3.6 kg

9.77 in / 24.8 cm

8.26 in / 21.0 cm

7.14 in / 18.1 cm

FEATURES • • • • • •

Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA, Gamber-Johnson 2" x 4.09" Tilt Capabilities: 90° forward allows for tablets to be easily mounted 26° aft movement with a positive stop at 26° Riveted design allows for smoother tilt movement To tilt the Clam Shell, simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever A secondary bolt is included to lock the clam shell into a permanent position Limited Lifetime Warranty

SECONDARY CLAM SHELL ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0371

Secondary Clam Shell

1.72 lbs. / 0.78 kg

4.60 in / 11.7 cm

5.97 in / 15.2 cm

5.17 in / 13.1 cm

FEATURES • • • • • •

Attaches to any Clam Shell (7160-0357 and 7160-0370) for additional articulation Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA The Clam Shell can be tilted up or down for a total of 160° To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever A secondary bolt is included to lock the clam shell into a permanent position Limited Lifetime Warranty

CLEVIS WITH ARTICULATING ARM ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0356

Clevis with Articulating Arm

4.23 lbs. / 1.9 kg

3.50 in / 8.9 cm

8.18 in / 20.8 cm

6.63 in / 16.8 cm

FEATURES

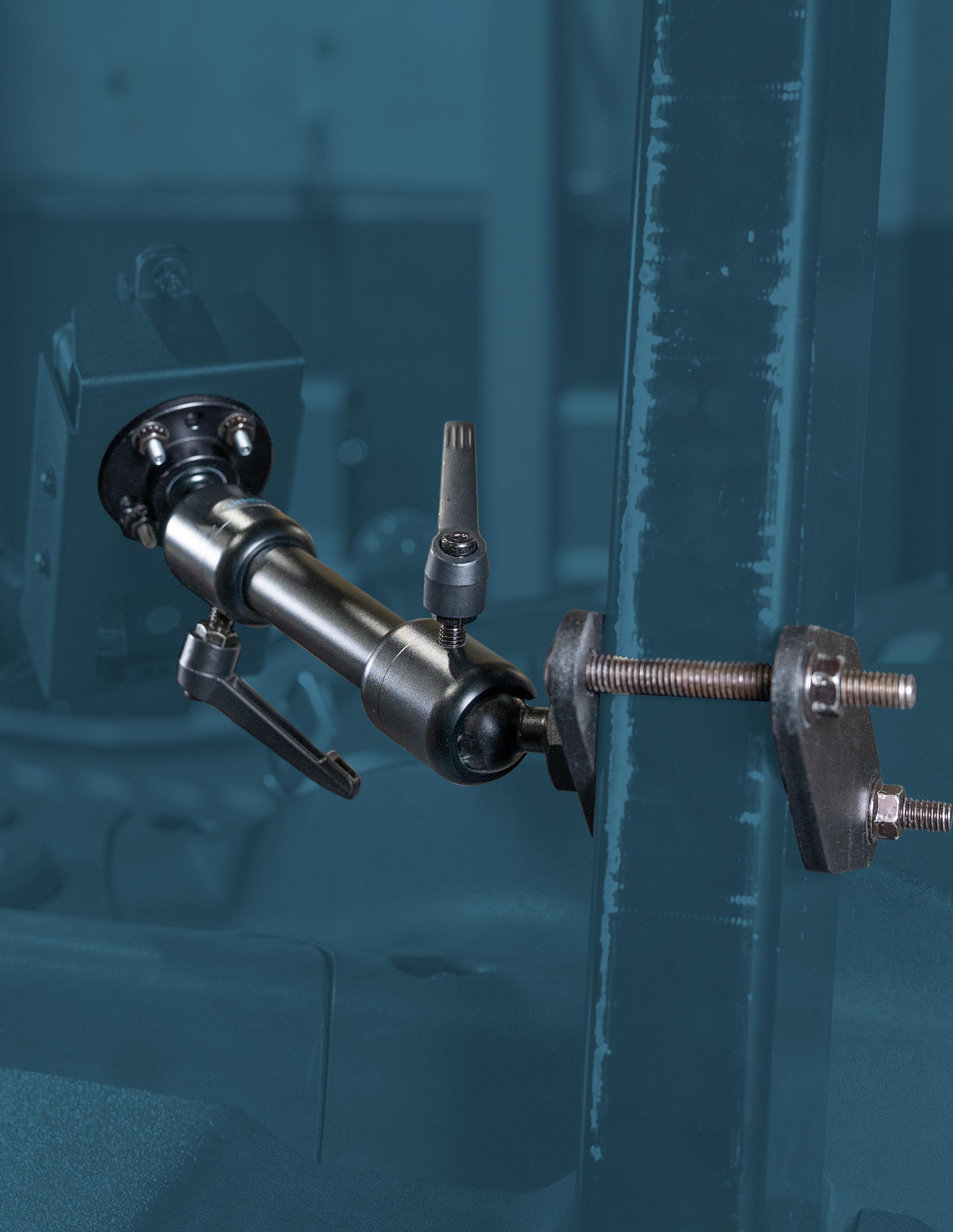

• Attaches to any Clam Shell (7160-0357, 7160-0370, 7160-0371) • The entire arm can rotate around 360 degrees and the Motion Attachment can also rotate 360 degrees Arm extends 3” bringing equipment closer to the user • Arm can be tighten down to be locked into a permanent position • Clam shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x 4.09" • Tilt capabilities: • 90° forward allows for tablets to be easily mounted • 26° aft movement with a positive stop at 26° • Riveted design allows for smoother tilt movement • Limited Lifetime Warranty

10

HE AV Y DUT Y GUARD LEG MOUNT S

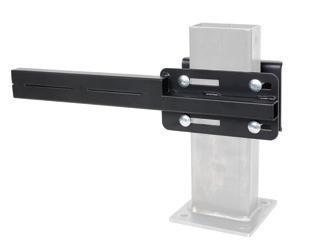

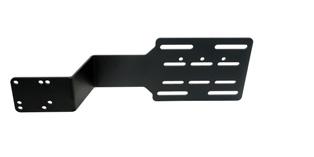

M AT E R I A L H A N D L I N G | HORIZONTAL EXTENSION ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0363

Horizontal Extension Bar

1.5" to 5.0" Rectangular Guard Leg

6.8 lbs 3.1 kg

4.4" 11.1 cm

19.0" 48.3 cm

1.2" 3.0 cm

FEATURES

Allows positioning of devices up to 15” (38.1 cm) horizontally from the inside of the guard leg Creates a solid and secure point to adapt various Gamber-Johnson’s mounts Allows for multiple system configurations based on the style of forklift and computer configuration.

Limited Lifetime Warranty

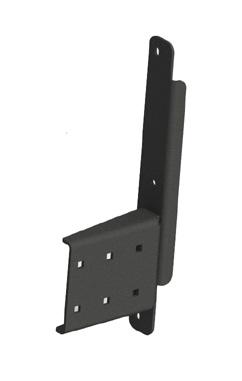

ROLL FORM BRACKETS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0418

Yale/Hyster and Crown Roll Formed Pillar Bracket

Roll Formed Guard Leg for OEM Specific Forklifts

2.7 lbs 1.2 kg

4.7" 12 cm

5.8" 14.8 cm

2.3" 5.7 cm

7160-0814

Toyota, Jungheinrich, and CAT Roll Formed Pillar Bracket

Roll Formed Guard Leg for OEM Specific Forklifts

2.7 lbs 1.2 kg

4.7" 12 cm

6.8" 17.3 cm

2.0" 5.1 cm

7160-0815

Linde Roll Formed Pillar Bracket

Roll Formed Guard Leg for OEM Specific Forklifts

2.7 lbs 1.2 kg

4.7" 12 cm

5.8" 14.8 cm

1.1" 2.8 cm

7160-1542

CLARK Roll Formed Pillar Bracket

Roll Formed Guard Leg for OEM Specific Forklifts

2.7 lbs 1.2 kg

4.7" 12 cm

5.7" 14.4 cm

3.3" 8.4 cm

FEATURES

7160-0418

7160-0814

• Designed to perfectly fit OEM specific forklifts • Creates a solid and secure point to adapt Gamber-Johnson’s Clam Shell Mounts • Limited Lifetime Warranty

ROLL FORM KITS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7170-0705

Yale/Hyster and Crown Roll Formed Pillar Mount Kit Kit Includes: Roll Formed Bracket (7160-0418) and Dual Clam Shell with Articulating Arm (7160-0420)

Roll Formed Guard Leg for OEM Specific Forklifts

10.7 lbs 4.8 kg

10.1" 25.7 cm

7.4" 18.8 cm

12.4" 31.5 cm

7170-0706

Toyota, Jungheinrich, and CAT Roll Formed Pillar Mount Kit Kit Includes: Roll Formed Bracket (7160-0814) and Dual Clam Shell with Articulating Arm (7160-0420)

Roll Formed Guard Leg for OEM Specific Forklifts

10.7 lbs 4.8 kg

10.1" 25.7 cm

7.4" 18.8 cm

12.1" 30.7 cm

LINDE Roll Formed Pillar Mount Kit Kit Includes: Roll Formed Bracket (7160-0815) and Dual Clam Shell with Articulating Arm (7160-0420)

Roll Formed Guard Leg for OEM Specific Forklifts

10.7 lbs 4.8 kg

10.1" 25.7 cm

7.4" 18.8 cm

11.2" 28.4 cm

7170-0707

7170-0706

7170-0707

FEATURES • • • • •

7170-0705

Designed to perfectly fit OEM specific forklifts Articulating arm allows greater positioning capabilities and brings the device closer to the user Creates a solid and secure point to adapt Gamber-Johnson’s Clam Shell Mounts Kitted mounting solutions for ease of ordering Limited Lifetime Warranty

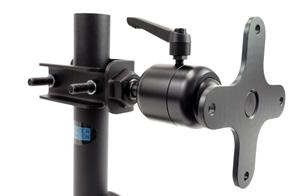

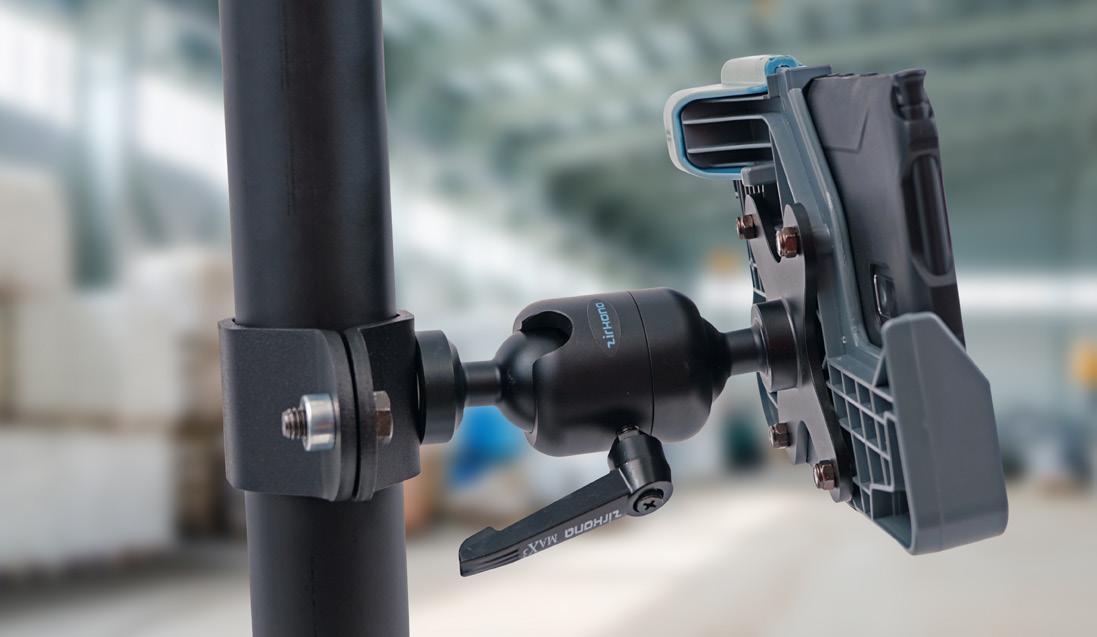

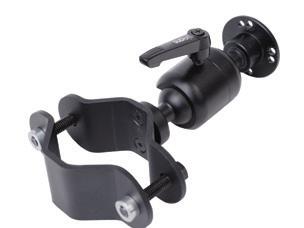

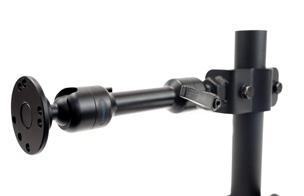

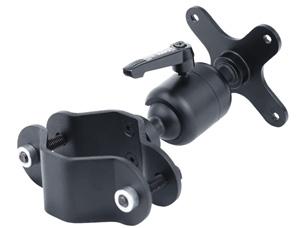

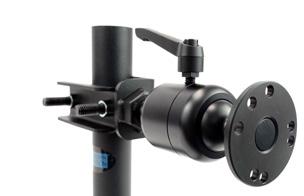

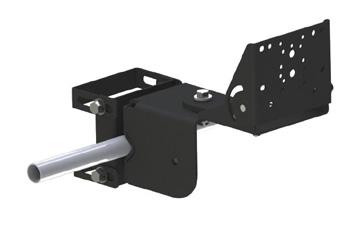

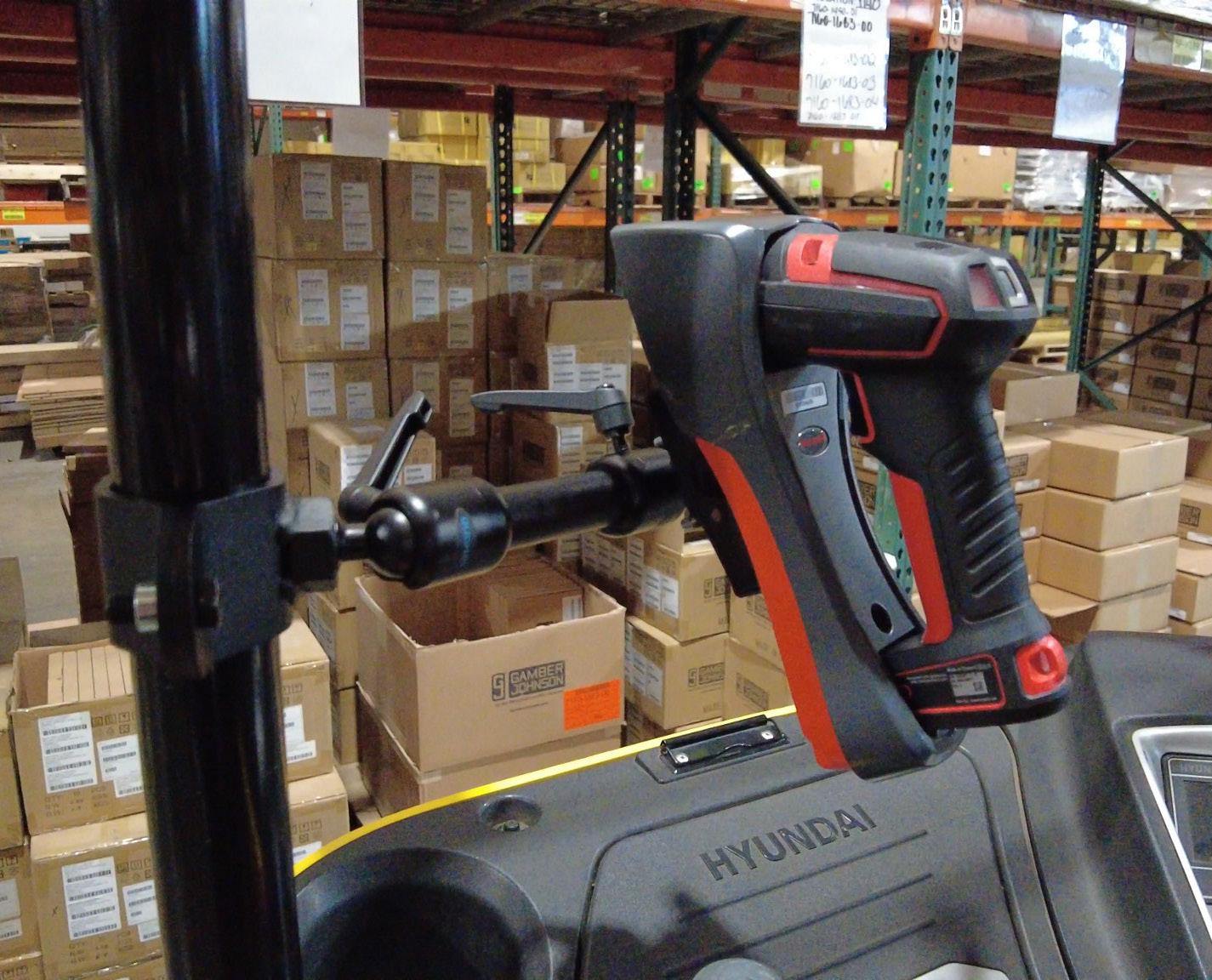

ROUND POLE/TUBE MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

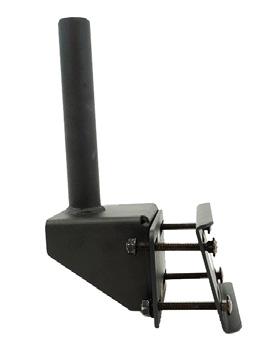

7160-0561

Guard Leg 2" to 3" Tube Clamp

Cylindrical Pole/Tube Ranging Between 2" and 3"

3.8 lbs 1.7 kg

5.3" 13.3 cm

3.4" 8.6 cm

10.0" 25.4 cm

7170-0703

Forklift Pole Mount Kit Kit Includes: Guard Leg 2" to 3" Tube Clamp (7160-0561) and Dual Clam Shell with Articulating Arm (7160-0420)

Cylindrical Pole/Tube Ranging Between 2" and 3"

12.0 lbs 5.4 kg

7160-0561

10.1" 25.7 cm

11.0" 27.9 cm

10.1" 25.7 cm

FEATURES

• Configure an optimal solution to fit any size cylindrical pole or tubular style profiles varying between 2" (5.08 cm) and 3" (7.62 cm) in diameter • Improved, no drilling required, mounting solution for enhanced ease of installation • Adaptable to support various Gamber-Johnson mounts to securely mount an assortment of devices and peripherals • Limited Lifetime Warranty

7170-0703

11

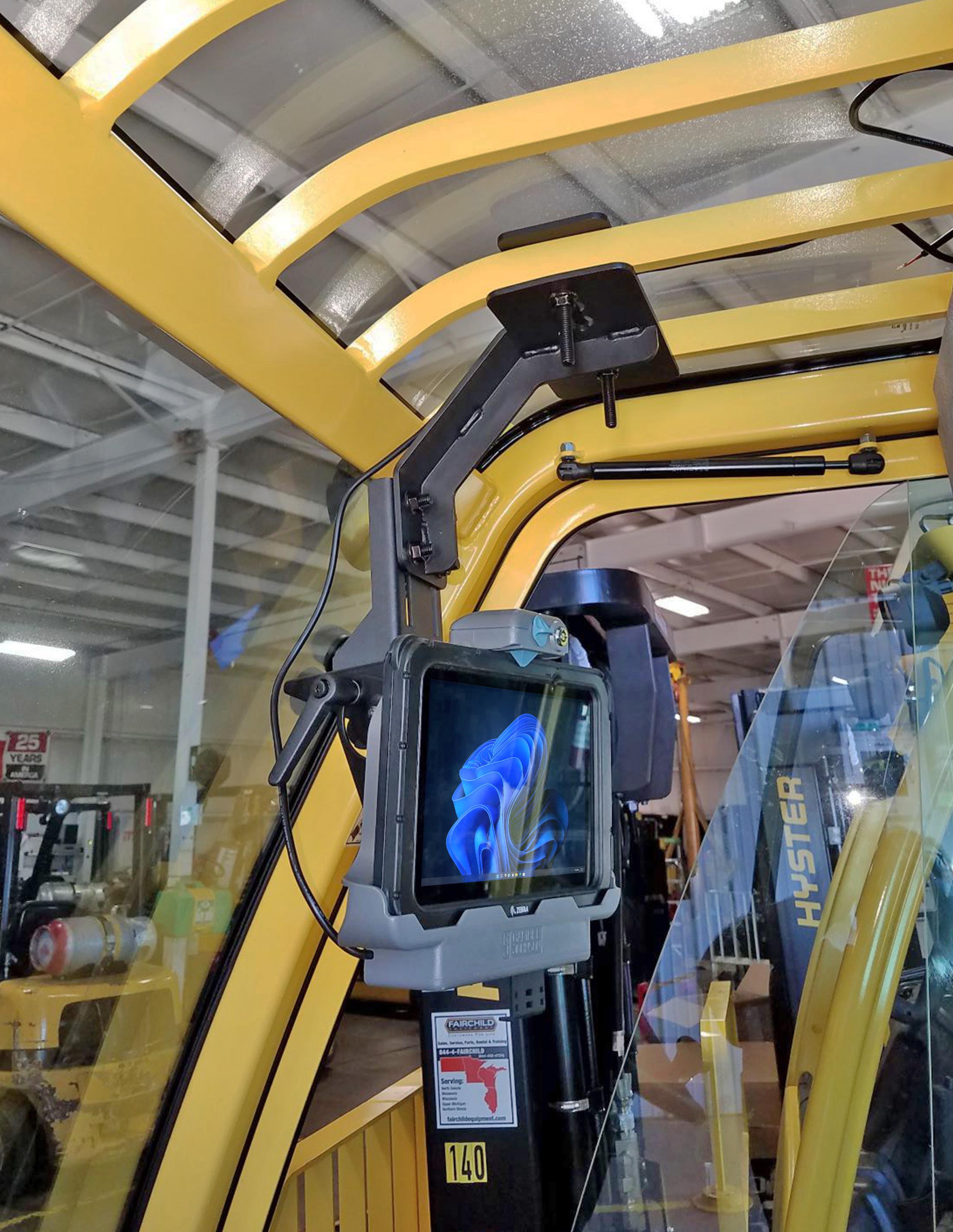

OVERHE AD GUARD MOUNT S | M AT E R I A L H A N D L I N G OVERHEAD BAR MOUNTS 7160-1156

ITEM NO.

DESCRIPTION

PLACEMENT

MOVEMENT CAPABILITIES WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1156

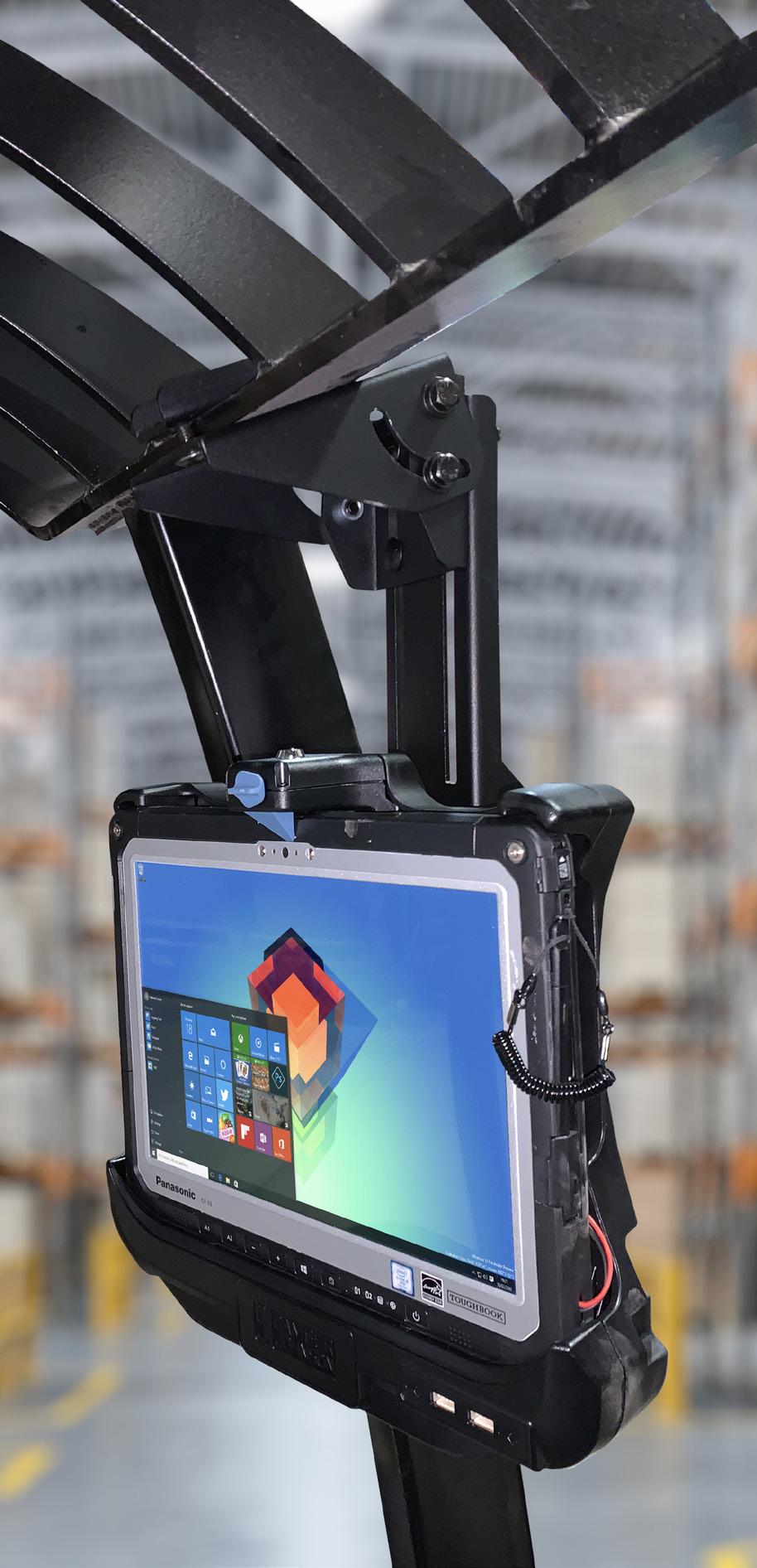

Overhead Bar Mount

Attaches to Crossmember of Overhead Guard

Clevis Tilt 90° fore / 26° aft Clevis Rotation - 360°

4.8 lbs 2.2 kg

10.0" 25.4 cm

7.5" 19.1 cm

7.0" 17.8 cm

7160-115601

Tall Overhead Bar Mount

Attaches to Crossmember of Overhead Guard

Clevis Tilt 90° fore / 26° aft Clevis Rotation - 360°

6.7 lbs 3.0 kg

14.0" 35.6 cm

7.5" 19.1 cm

7.0" 17.8 cm

FEATURES • • • •

Provides ergonomic tilt and rotation options to position device Quick adjust lever to effortlessly tilt to desired position Allows for flexibility in mounting in different positions overhead Multiple mounting hole patterns including AMPs, NEC, and VESA 75 mm to support various Gamber-Johnson devices and other peripherals • Limited Lifetime Warranty

7160-1156-01

7160-1261

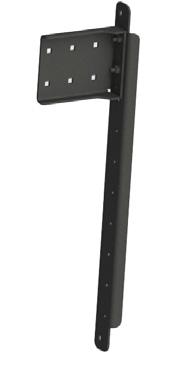

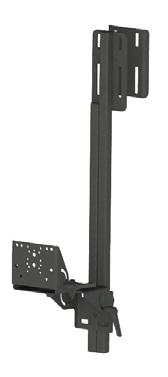

VERTICAL EXTENSION AND KIT ITEM NO.

7170-0704

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0856

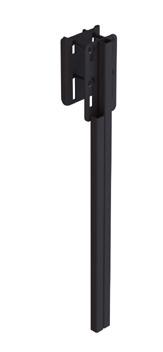

Vertical Extension Bar

Attaches to Crossmember of Overhead Guard

8.8 lbs 4.0 kg

4.4" 11.1 cm

31.0" 78.7 cm

1.2" 3.0 cm

7170-0704

Overhead Guard Extension Kit Kit Includes: Vertical Extension Bar (71600856) and Dual Clam Shell with Articulating Arm (7160-0420)

Attaches to Crossmember of Overhead Guard

16.8 lbs 7.6 kg

10.1" 25.7 cm

31.0" 78.7 cm

10.1" 25.7 cm

FEATURES • • • •

Allows positioning of devices up to 27" (68.58 cm) vertically from the top of the overhead guard Creates a solid and secure point to adapt various Gamber-Johnson’s mounts Allows for multiple system configurations based on the style of forklift and computer configuration Limited Lifetime Warranty

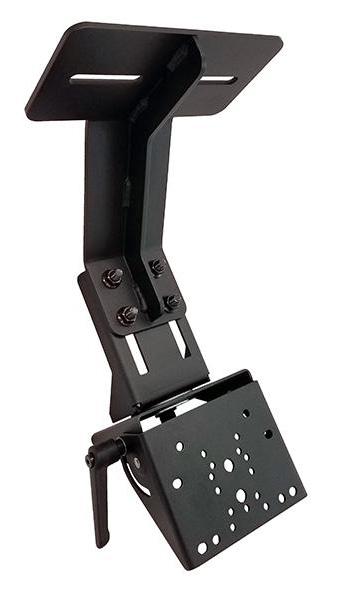

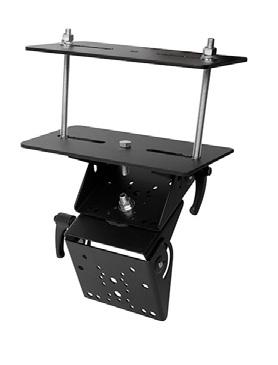

ADJUSTABLE OVERHEAD GUARD MOUNTS ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1591

Adjustable Overhead Guard Bar Mount - Short

7 lbs / 3.18 kg

10.38 in / 26.37 cm

5 in / 12.7 cm

4.5 in / 11.43 cm

7160-1591-01

Adjustable Overhead Guard Bar Mount - Tall

10 lbs / 4.54 kg

14.38 in / 36.53 cm

5 in / 12.7 cm

4.5 in / 11.43 cm

7160-1591

FEATURES

7160-1591-01

12

• Positions device at the forward most point of the cross bar allowing for a secure and ergonomic position • Attaches to angled or vertical forward cross bars, from 0-90 degrees, allowing the mount to attach to a variety of OEM overhead guards • Vertical adjustability allows the end user to position the device to their specific need • Updated back plate design allows the mount to be attached between narrow and wide overhead guard grates • Allows for flexibility in mounting in different positions overhead • Provides ergonomic tilt and swivel options to position your device • Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

OV E RHE AD GUARD MOU NT S

EXTENDED OVERHEAD GUARD MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0368

Extended Overhead Guard Mount with Clevis

9.7 lbs 4.4 kg

13.2" 33.4 cm

10.0" 25.4 cm

5.6" 14.2 cm

FEATURES

• Provides an 8" (20.32 cm) extension from the overhead guard in order to bring devices closer to the user • Multiple mounting hole patterns including AMPs, NEC, and VESA 75 mm to support various Gamber-Johnson devices and other peripherals • Limited Lifetime Warranty

SHORT OVERHEAD GUARD MOUNT WITH DUAL CLEVIS ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0586

Short Overhead Guard Mount with Dual Clevis

7.9 lbs. / 3.6 kg

7.5" / 10.0" / 19.1 cm 25.4 cm

10.8" / 27.4 cm

FEATURES • • • • • •

Attaches directly to the top of the overhead guard.

Heavy gauge steel construction for long-term durability in a rugged environment The Overhead Guard Mount allows users to mount displays, tablets or computers from the top of the overhead guard Recommended when device needs to be closer to the ceiling of the overhead guard Provides a reduced profile solution for mounting peripherals Overhead Guard Mount with Clam Shell features the following hole patterns; AMPS, NEC, VESA 75mm, Gamber-Johnson 2x4 • Limited Lifetime Warranty

SHORT OVERHEAD GUARD MOUNT WITH CLEVIS ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0585

Short Overhead Guard Mount with Clevis

5.60 lbs. / 2.5 kg

5.61" / 10.0" / 5.61" / 14.2 cm 25.4 cm 14.2 cm

FEATURES

• The Overhead Guard Mount allows users to mount smaller devices and radios from the top of the overhead guard • Provides a low profile solution for mounting peripherals • Overhead Guard Mount with Clam Shell features the following hole patterns; AMPS, NEC, VESA 75mm, Gamber-Johnson 2"x4.09" • Limited Lifetime Warranty

13

CAB MOUNT S | M AT E R I A L H A N D L I N G LINDE CAB MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1103

Linde E30 Latch Mounting Bracket

Attaches to Linde E30 Cab Latch

2.5 lbs 1.1 kg

4.8" 12.2 cm

8.3" 21.1 cm

1.5" 3.8 cm

FEATURES • • • •

Designed to perfectly fit the Linde E30 forklift with a cab Can be mounted in conjunction with various Gamber-Johnson mounts to allow movement and adjustability of the device Allows you to mount a computer or device in a small cab space without interfering with the driver and line of vision Limited Lifetime Warranty

TOYOTA CAB MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1151

Toyota Cab Latch Mount for Electronic Hydraulics

Attaches to Toyota Right Side Cab Latch

3.5 lbs 1.6 kg

5.8" 14.6"

8.5" 21.5 cm

2.8" 7.0 cm

7160-1233

Toyota Cab Mount

Attaches to Toyota Guard Leg

3.0 lbs 1.4 kg

4.7" 11.9 cm

9.0" 22.9 cm

1.7" 4.3 cm

7160-1151

FEATURES 7160-1233

• • • •

Designed to perfectly fit Toyota forklifts with cabs Can be mounted in conjunction with various Gamber-Johnson mounts to allow movement and adjustability of the device Allows you to mount a computer or device in a small cab space without interfering with the driver and line of vision Limited Lifetime Warranty

KIT – TOYOTA / RAYMOND REACH TRUCK / CAB MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7170-1102

KIT – Toyota / Raymond Reach Truck / Cab Mount

16 lbs / 7.26 kg

4 in / 10.16 cm

7 in / 17.78 cm

13 in / 33.02 cm

FEATURES • • • • • • • • •

Designed to attach to the Overhead Guard leg in existing holes Adjusts to vertical positioning with various slotted holes Clam Shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x 4.09" The entire arm can rotate around 360° and the Motion Attachment can also rotate 360° Arm can be tightened down to be locked into a permanent position A secondary bolt is included to lock the clevis into a permanent position Heavy gauge steel construction for long-term durability in a rugged environment Black powder coat finish for maximum corrosion resistance Limited Lifetime Warranty

HD .75 TO 2" ROUND POLE MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1732

HD .75 TO 2" Round Pole Mount

8 lbs / 3.63 kg

5 in / 12.7 cm

10 in / 25.4 cm

11 in / 27.94 cm

FEATURES • • • • •

Round pole mount Clamps on vertical or horizontal poles 4" arm with clevis for positioning of equipment Optional stabilizers included Limited Lifetime Warranty

YALE/HYSTER CAB MOUNTS 7160-1278

ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1109

Yale/Hyster Electric Forklift Bracket

Attaches to Yale/Hyster Guard Leg (Models with Electric Hydraulics)

5.0 lbs 2.3 kg

16.5" 41.9 cm

7.3" 40.6 cm

2.2" 5.6 cm

7160-1278

Yale/Hyster 40-70 Cab Mount

Attaches to Yale/Hyster Guard Leg

5.7 lbs 2.6 kg

19.0" 48.3 cm

7.3" 40.6 cm

2.2" 5.6 cm

FEATURES 7160-1109

14

• • • •

Designed to perfectly fit Yale/Hyster forklifts with cabs Can be mounted in conjunction with various Gamber-Johnson mounts to allow movement and adjustability of the device Allows you to mount a computer or device in a small cab space without interfering with the driver and line of vision Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

CAB & PALLE T RIDE R MOU NT S

OVEHEAD GUARD ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1425

Overhead Guard Cab Mount

Attaches Directly to Overhead Guard with a Cab

10.1 lbs 4.6 kg

11.0" 27.9 cm

5.5" 14.0 cm

12.3" 31.1 cm

7160-1425-01

Tall Overhead Guard Cab Mount

Attaches Directly to Overhead Guard with a Cab

10.35 lbs 4.69 kg

18.12" 46.03 cm

11" 27.94 cm

10.81" 27.45 cm

FEATURES • • • •

Quick and easy installation with no drilling required for decreased install times and increased vehicle up-time A multitude of positioning configurations for optimal operator access A universal solution adaptable to various overhead guard types with cabs Features the Gamber-Johnson Clevis for mounting any device utilizing standard AMPs, NEC, or VESA 75 mm universal hole pattern • Limited Lifetime Warranty

CAB CLAMP BRACKET ADAPTER ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1096

Clamp Bracket Adapter

Adapts to Various Gamber-Johnson Mounts

2.8 lbs 1.3 kg

5.2" 13.3 cm

6.4" 16.2 cm

1.6" 4.1 cm

FEATURES

• Can be mounted in conjunction with various Gamber-Johnson mounts to allow movement and adjustability of the device • Use one or two clamp brackets to hold the adapter in place • Limited Lifetime Warranty

CROWN PALLET RIDER MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1734

Crown PE4500 Pallet Rider Mount

Attaches Between Battery and Steering Column

6.2 lbs 2.8 kg

21"/ 53.34 cm

6.4" / 16.1 cm

1.9" 4.8 cm

FEATURES • • • •

Designed specifically for the Crown PE4500 Pallet Rider for an exact fit Compatible with any Gamber-Johnson upper poles Some drilling may be required Limited Lifetime Warranty

RAYMOND PALLET RIDER MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1144

Raymond 8400 Pallet Rider Mount

Attaches Between Battery and Steering Column

10.8 lbs/ 4.9 kg

8.3" 21.1 cm

16.0" 40.6 cm

6.7" 16.9 cm

FEATURES • • • •

Designed specifically for the Raymond 8400 Pallet Rider for an exact fit Adaptable to support various Gamber-Johnson mounts to securely mount an assortment of devices and peripherals No drilling required for installation Limited Lifetime Warranty

CATERPILLAR GC55K CAB BRACKET ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1386

CATERPILLAR GC55K CAB BRACKET

2 lbs / 0.91 kg

1 in / 2.54 cm

4 in / 10.16 cm

12 in / 30.48 cm

FEATURES • • • • • • •

Mounts to the right front overhead guard leg of cab No drilling needed, aligns to existing cab mounting holes Slotted design allows for easy accessory height adjustment.

Attaches to right side of guard leg with existing hardware Heavy gauge steel construction for long-term durability in a rugged environment.

Black powdercoat finish for maximum corrosion resistance.

Limited Lifetime Warranty

15

CAB & PALLE T RIDE R MOU NT S | M AT E R I A L H A N D L I N G FLAT SURFACE MAGNET MOUNT WITH CLEVIS ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1258

Flat Surface Magnet Mount with Clevis

7.50 lbs / 3.40 kg

6.27 in / 15.93 cm

6.50 in / 16.51 cm

6.50 in / 16.51 cm

7160-1258-01

Flat Surface Magnet Mount With Tall Clevis

4 lbs / 1.81 kg

6 in / 15.24 cm

6 in / 15.24 cm

6 in / 15.24 cm

FEATURES • • • • • •

Designed to eliminate any unnecessary drilling Base magnets allow a quick way to mount and dismount to any flat metal surface Tilt and swivel adjustablility provide ergonomic comfort and ease of use Multiple mounting hole patterns including VESA 75mm and AMPs to support various GJ devices and other peripherals Heavy gauge steel construction for long-term durability in a rugged environment Limited Lifetime Warranty

FLAT SURFACE MAGNET MOUNT WITH SCANNER HOLDER ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1259

Flat Surface Magnet Mount with Scanner Holder

5.55 lbs / 2.52 kg

7.80 in / 19.81 cm

6.37 in / 16.18 cm

6.00 in / 15.24 cm

FEATURES • • • • • •

Designed to eliminate any unnecessary drilling Base magnets allow a quick way to mount and dismount to any flat metal surface Tilt adjustability provides ergonomic comfort and ease of use Adjustable pocket to hold most wired or wireless handheld barcode scanners Heavy gauge steel construction for long-term durability in a rugged environment Limited Lifetime Warranty

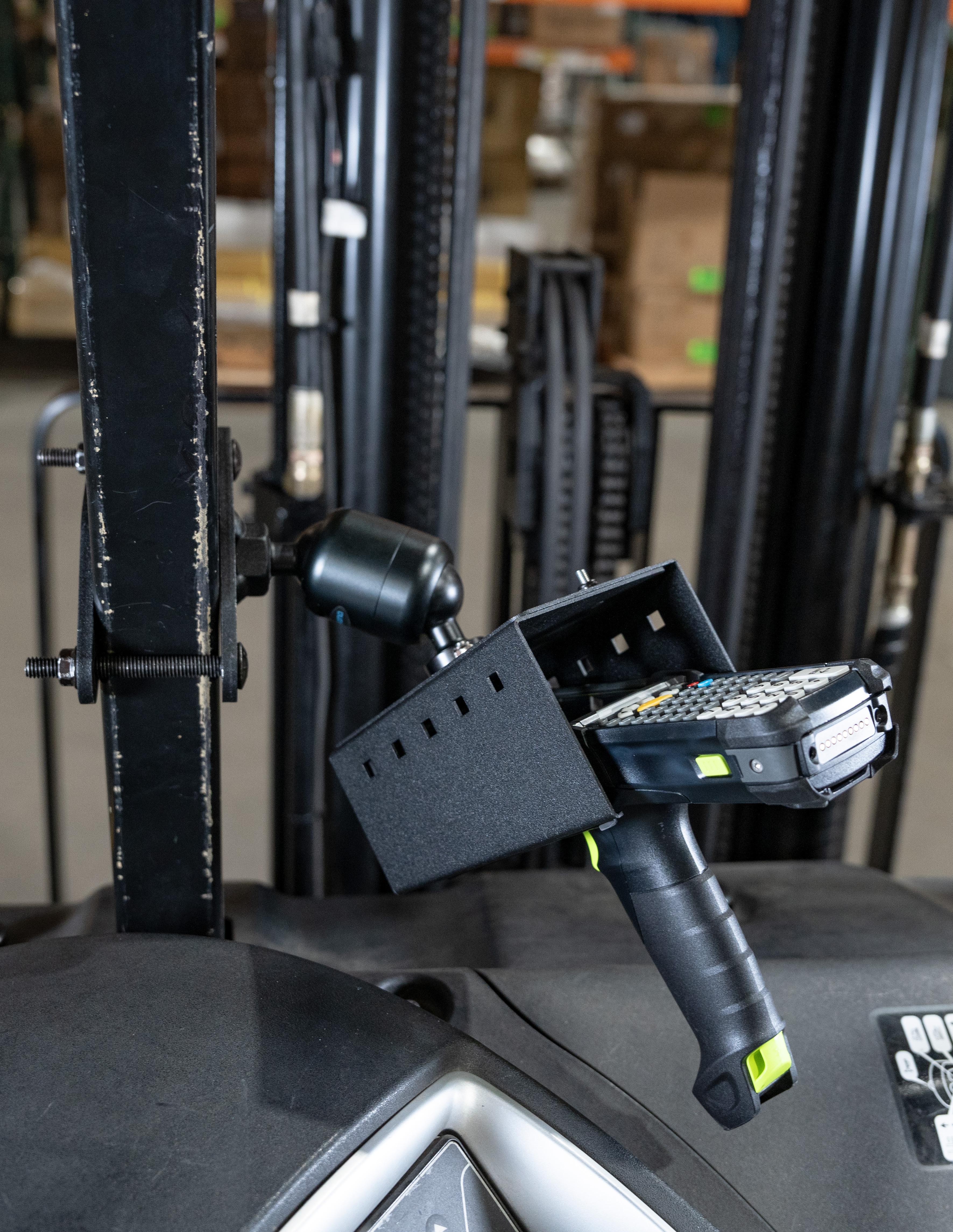

MAGNETIC SCANNER POCKET – LARGE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1958

MAGNETIC SCANNER POCKET – LARGE

5.6 lbs / 2.54 kg

6.5 in / 16.51 cm

6 in / 15.24 cm

8 in / 20.32 cm

FEATURES • • • • • •

Designed to eliminate any unnecessary drilling Base magnets allow a quick way to mount and dismount to any flat metal surface Tilt adjustability provides ergonomic comfort and ease of use Adjustable pocket to hold most wired or wireless handheld barcode scanners Heavy gauge steel construction for long-term durability in a rugged environment Limited Lifetime Warranty

FL AT SURFACE MOUNT S | M AT E R I A L H A N D L I N G FLAT SURFACE MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

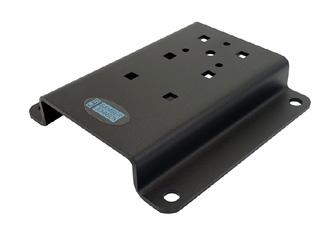

7160-1105

Flat Surface Mount

4.7 lbs. / 2.13 kg

1.50" / 3.81 cm

8.00" / 20.32 cm

7.75" / 19.69 cm

FEATURES • • • • • • •

16

Designed for the Lind H70/80D forklift with cab.

Mounts to the right of the operator.

Design allows the forklift's engine to be serviced without removing the computer or mount.

Backer plate is included to provide secure fastening points.

Compatible with Gamber-Johnson lower poles and motion attachments.

Mount will work on other flat surfaces as well.

Limited Lifetime Warranty

17

MOUNT IT.

A MODULAR AND LIGHT-WEIGHT SOLUTION FOR YOUR TABLET DEVICE Our Zirkona product line features an innovative, encapsulated joiner that allows users to rotate their small, lightweight devices (up to 11 pounds depending on the joiner) to the best possible position. This unique flexibility makes it possible to quickly adapt to nearly any application so that the user has an ergonomically correct position and minimal time is wasted fidgeting with repetitive adjustments. Knowing your technology is as secure as it is accessible makes Zirkona the ideal go-to solution.

MATERIAL HANDLING VEHICLE MOUNTS | DOG-BONE JOINER MOUNTS

7160-1466

ITEM NO.

DESCRIPTION

PLACEMENT/ COMPATIBILITY

7160-1466

Zirkona, 4" Diamond Plate with 6" Medium Dog-Bone and AMPs Plate

Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile

MAXIMUM PAYLOAD CAPACITY Vibration Environment 6 lbs (1.4 kg) Static Environment 33 lbs (15 kg)

7160-1466-01

Zirkona, 4" Diamond Plate with 6" Medium Dog-Bone and VESA 75 mm Plate

Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile

Vibration Environment 6 lbs (1.4 kg) Static Environment 33 lbs (15 kg)

WEIGHT

HEIGHT

WIDTH

DEPTH

3.3 lbs 1.5 kg

6.0" 15.2 cm

5.0" 12.7 cm

9.5" 24.1 cm

3.3 lbs 1.5 kg

6.0" 15.2 cm

5.0" 12.7 cm

9.5" 24.1 cm

FEATURES

• Small form factor with an extended reach for smaller tablets and other small devices • Two quick adjust levers increase range of motion and positioning • Unique internal braking system allows the user to adjust the mount with ease while not having the device fall (weight restrictions apply) • Designed to be quickly and easily installed without the need for drilling • Limited Lifetime Warranty

LARGE JOINER MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT/ COMPATIBILITY

7160-1261

Zirkona, 4" Diamond Plate with Large Joiner and AMPs Plate

Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile

MAXIMUM PAYLOAD CAPACITY Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

7160-1261-01

Zirkona, 4" Diamond Plate with Large Joiner and VESA 75 mm Plate

Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

7160-1261

FEATURES 7160-1261-01

20

WEIGHT

HEIGHT

WIDTH

DEPTH

2.7 lbs 1.2 kg

2.5" 6.4 cm

5.7" 14.4 cm

5.8" 14.6 cm

2.8 lbs 1.3 kg

2.5" 6.4 cm

5.7" 14.4 cm

5.8" 14.6 cm

• Easy to install mounting solution with no drilling required and ample adjustability to accommodate operator comfort and ease of use • Small form factor for smaller tablets and other small devices • Large range of motion and quick adjust lever to effortlessly move to a desired position • Options for various mounting hole patterns include AMPs, NEC, and VESA 75 mm • Limited Lifetime Warranty

| COMPONENTS ITEM NO.

DESCRIPTION

7160-1235

Zirkona, 4" Diamond Plate Mount

7110-1430

7110-1433

ZIRKONA ¾” to 1-7/8”POLE MOUNT BASE

ZIRKONA - 2" - 3" ROUND POLE MOUNT CLAMP

PLACEMENT/ COMPATIBILITY Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile Cylindrical Pole/tube Ranging Between ¾” and 1-7/8”

Cylindrical Pole/tube Ranging Between 2” and 3”

MATERIAL HANDLING VEHICLE MOUNTS MAXIMUM PAYLOAD CAPACITY

WEIGHT

HEIGHT

WIDTH

DEPTH

N/A

1.8 lbs 0.8 kg

4.7" 12.0 cm

2.5" 6.4 cm

5.8" 14.6 cm

1.25 lbs / 0.57 kg

2 in / 5.08 cm

2 in / 5.08 cm

5 in / 12.7 cm

1 lbs / 0.45 kg

2 lbs / 0.91 kg

4 in / 10.16 cm

2 in / 5.08 cm

WIDTH

DEPTH

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg) Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

7160-1235

FEATURES • • • •

For use with individual Zirkona products such as Joiners and Extensions Allows for creating a unique mount for smaller tablets and other small devices Designed to be quickly and easily installed without the need for drilling Limited Lifetime Warranty

ZIRKONA POLE/TUBE MOUNTS LARGE JOINER WITH 3/4" TO 1-7/8" SIZE RANGE ITEM NO.

DESCRIPTION

PLACEMENT

ATTRIBUTES

WEIGHT HEIGHT

7160-1367

Zirkona 3/4" to 1-7/8" Pole Mount with AMPs Plate

Cylindrical Pole/Tube Ranging Between 3/4" and 1-7/8"

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

2.9 lbs 1.3 kg

3.7" 9.4 cm

5.2" 13.2 cm

6.3" 15.9 cm

7160-1367-01

Zirkona 3/4" to 1-7/8" Pole Mount with VESA 75 mm Plate

Cylindrical Pole/Tube Ranging Between 3/4" and 1-7/8"

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

3.0 lbs 1.4 kg

3.7" 9.4 cm

5.2" 13.2 cm

6.3" 15.9 cm

7160-1367-02

Zirkona 3/4" to 1-7/8" Pole Mount with AMPs Quick Release Plate

Cylindrical Pole/Tube Ranging Between 3/4" and 1-7/8"

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

3.5 lbs 1.56 kg

3.9" 9.9 cm

4.7" 11.9 cm

6.8" 17.3 cm

7160-1367-03

Zirkona 3/4" to 1-7/8" Pole Mount with VESA 75 mm Quick Release Plate

Cylindrical Pole/Tube Ranging Between 3/4" and 1-7/8"

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

3.7 lbs 1.68 kg

3.9" 9.9 cm

5.5" 13.8 cm

7.1" 18.0 cm

7160-1367

7160-1367-01

FEATURES

• Mounts to any size cylindrical poles, handles, or tubular style overhead guard legs varying between 3/4" (1.91 cm) and 1-7/8" (4.7625 cm) in diameter • Easy to install mounting solution with no drilling required to decrease install times and improve vehicle up-times • Quick release device plate to easily remove small tablets or devices • Options for various mounting hole patterns include AMPs/NEC and VESA 75 mm • Limited Lifetime Warranty

21

MATERIAL HANDLING VEHICLE MOUNTS | LARGE JOINER WITH 2" TO 3" SIZE RANGE ITEM NO.

DESCRIPTION

PLACEMENT

ATTRIBUTES

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1356

Zirkona 2" to 3" Pole Mount with AMPs Plate

Cylindrical Pole/Tube Ranging Between 2" and 3"

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

2.2 lbs 1.0 kg

3.7" 9.4 cm

5.2" 13.2 cm

6.3" 15.9 cm

7160-1356-01

Zirkona 2" to 3" Pole Mount with VESA 75 mm Plate

Cylindrical Pole/Tube Ranging Between 2" and 3"

Vibration Environment 11 lbs (5.0 kg) Static Environment 55 lbs (25 kg)

2.3 lbs 1.1 kg

3.7" 9.4 cm

5.2" 13.2 cm

6.3" 15.9 cm

7160-1356

7160-1356-01

FEATURES

• Mounts to any size cylindrical poles or tubular style overhead guard legs varying between 2" (5.08 cm) and 3" (7.62 cm) in diameter • Easy to install mounting solution with no drilling required and ample adjustability to accommodate operator comfort and ease of use • Small form factor for smaller tablets and other small devices • Options for various mounting hole patterns include AMPs/NEC and VESA 75 mm • Limited Lifetime Warranty

DOG-BONE JOINER WITH 3/4" TO 1-7/8" SIZE RANGE

7160-1533

7160-1533-01

ITEM NO.

DESCRIPTION

PLACEMENT

ATTRIBUTES

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1533

Zirkona 3/4" to 1-7/8" Pole Mount with 6" Medium Dog-Bone and AMPs Plate

Cylindrical Pole/ Tube Ranging Between 3/4" and 1-7/8"

Vibration Environment 6 lbs (1.4 kg) Static Environment 33 lbs (15 kg)

3.5 lbs 1.6 kg

3.9" 9.8 cm

4.7" 11.9 cm

10.1" 25.7 cm

7160-1533-01

Zirkona 3/4" to 1-7/8" Pole Mount with 6" Medium Dog-Bone and VESA 75 mm Plate

Cylindrical Pole/ Tube Ranging Between 3/4" and 1-7/8"

Vibration Environment 6 lbs (1.4 kg) Static Environment 33 lbs (15 kg)

3.5 lbs 1.6 kg

3.9" 9.8 cm

4.7" 11.9 cm

10.1" 25.7 cm

FEATURES

• Mounts to any size cylindrical poles or tubular style overhead guard legs varying between 3/4" (1.91 cm) and 1-7/8" (4.76 cm) in diameter • Unique internal braking system allows the user to adjust the mount with ease while not having the device fall (weight restrictions apply) • Two quick adjust levers increase range of motion and positioning • Includes 6" Medium Dog-Bone Joiner with options for AMPs/NEC and VESA 75 mm mounting hole patterns • Limited Lifetime Warranty

DOG-BONE JOINER WITH 2" TO 3" SIZE RANGE

7160-1531

ITEM NO.

DESCRIPTION

PLACEMENT

ATTRIBUTES

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1531

Zirkona 2" to 3" Pole Mount with 6" Medium Dog-Bone and AMPs Plate

Cylindrical Pole/Tube Ranging Between 2" and 3"

Vibration Environment 6 lbs (1.4 kg) Static Environment 33 lbs (15 kg)

2.8 lbs 1.3 kg

2.4" 6.0 cm

5.2" 13.2 cm

9.8" 25.0 cm

7160-1531-01

Zirkona 2" to 3" Pole Mount with 6" Medium Dog-Bone and VESA 75 mm Plate

Cylindrical Pole/Tube Ranging Between 2" and 3"

Vibration Environment 6 lbs (1.4 kg) Static Environment 33 lbs (15 kg)

2.8 lbs 1.3 kg

3.9" 9.8 cm

5.2" 13.2 cm

9.8" 25.0 cm

FEATURES

• Mounts to any size cylindrical poles or tubular style overhead guard legs varying between 2" (5.08 cm) and 3" (7.62 cm) in diameter • Unique internal braking system allows the user to adjust the mount with ease while not having the device fall (weight restrictions apply) • Two quick adjust levers increase range of motion and positioning • Includes 6" Medium Dog-Bone Joiner with options for AMPs/NEC and VESA 75 mm mounting hole patterns • Limited Lifetime Warranty

22

|

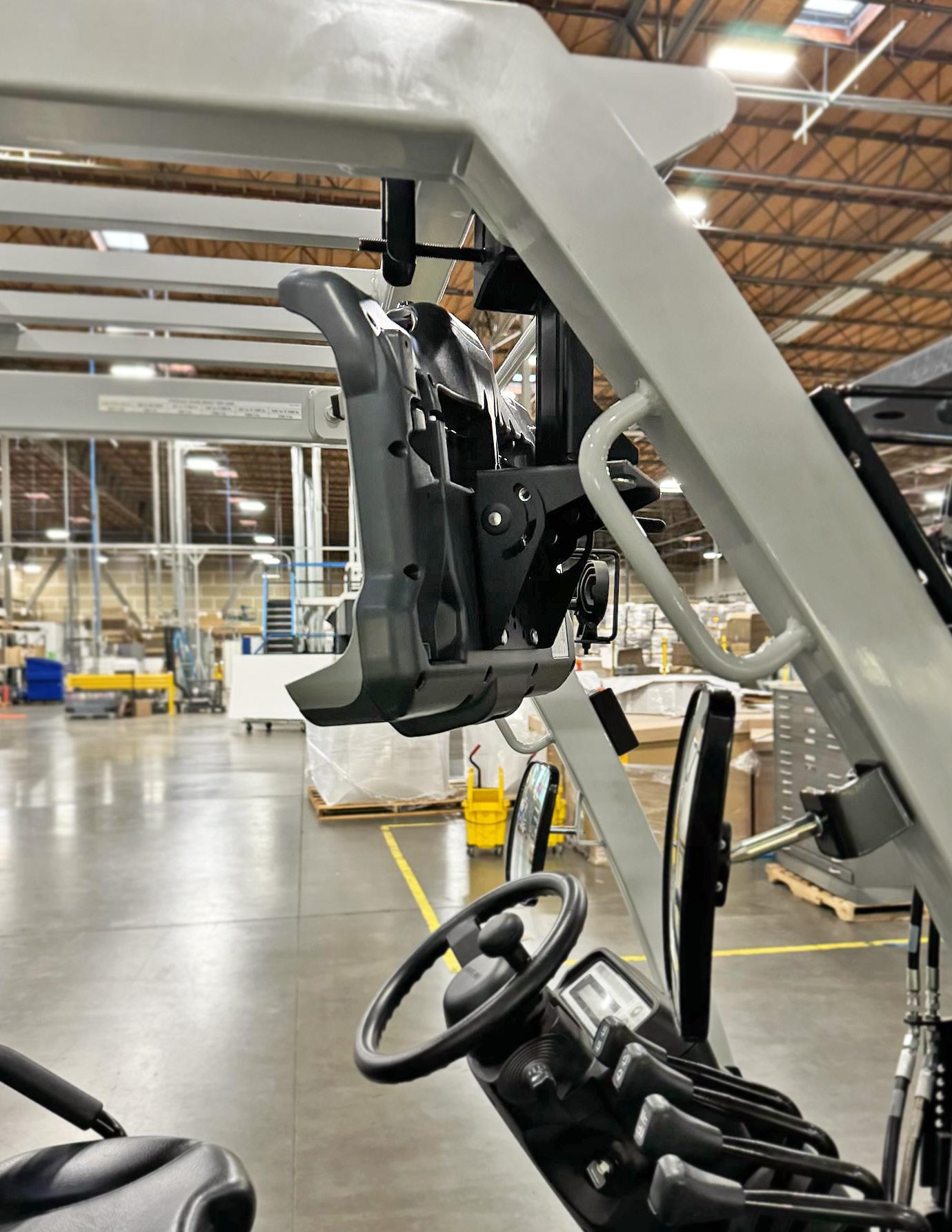

MATERIAL HANDLING VEHICLE MOUNTS

TRI-SUCTION CUP MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1954

Tri-Suction Cup Mount Only

Any Smooth, Flat Surface

1 lbs 0.45 kg

2" 5.08 cm"

12" 30.48 cm

12" 30.48 cm

7170-1079

Tri-Suction Cup Mount with Zirkona

Any Smooth, Flat Surface

2.1 lbs 0.95 kg

4.25" 10.8 cm"

12" 30.48 cm

12" 30.48 cm

7170-1085

Tri-Suction Cup Mount with Dual Clam Shell

Any Smooth, Flat Surface

7.18 lbs 3.26 kg

11" 27.94 cm

12" 30.48 cm

12" 30.48 cm

7160-1954

FEATURES • • • • • • • • • • •

Hold a variety of tablets, handhelds or other equipment securely Tri-suction cups are compatible with smooth, non-porus surfaces (no rough or textured surfaces).

Allows for positioning to place mount where the operator can easily reach devices Durability and reliability in the most demanding environments Suction Cup features strong suction with material ensuring a stable and reliable base Clam Shell features the following hole patterns: AMPS, NEC and VESA 75mm Unique brake system within the joiner allows for movement without having to use two hands on the mount.

A secondary bolt is included to lock the clam shell into a permanent position Heavy gauge steel construction for long-term durability in a rugged environment Secure devices up to 5 lbs Limited Lifetime Warranty

23

MOUNT IT.

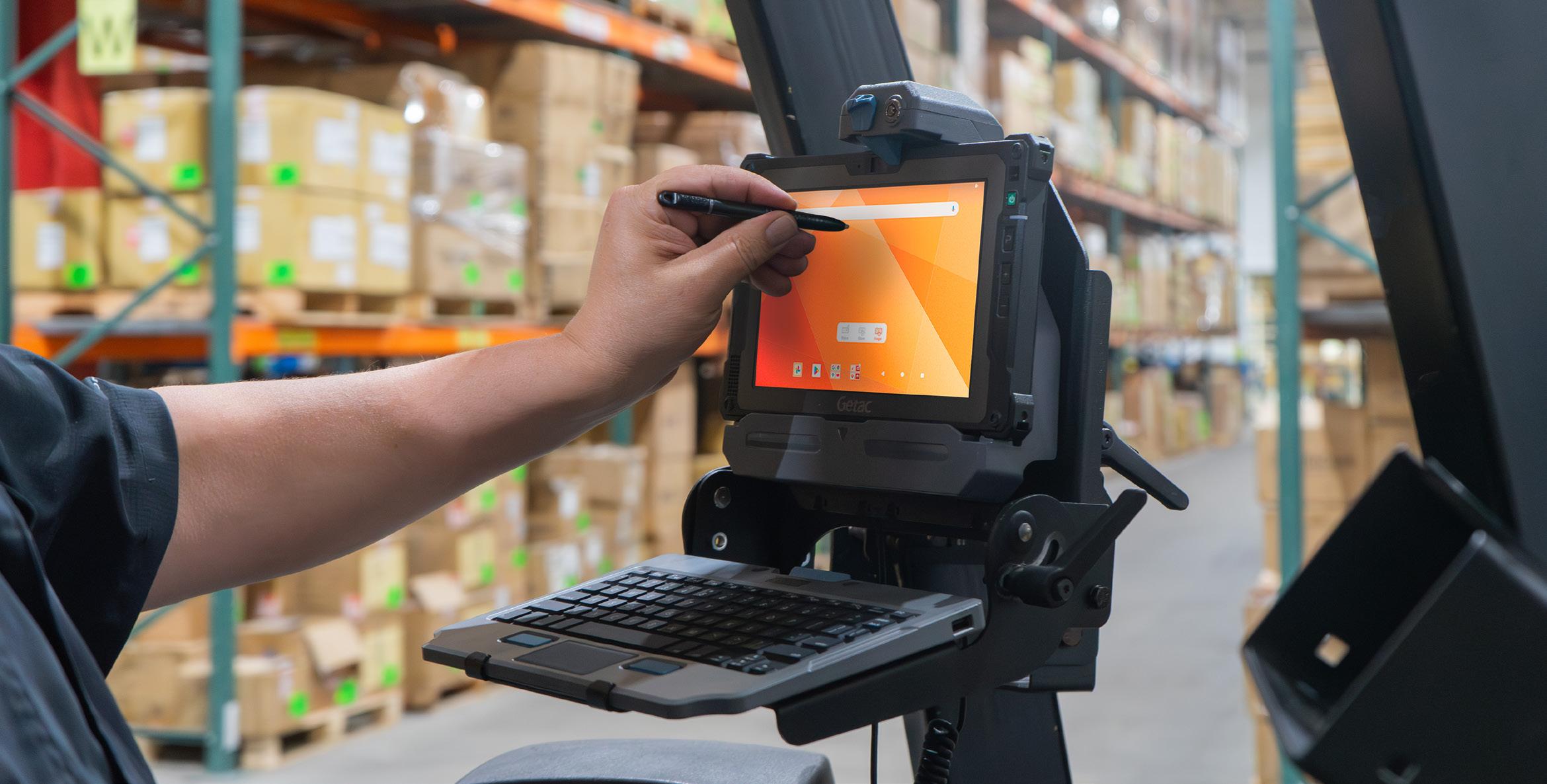

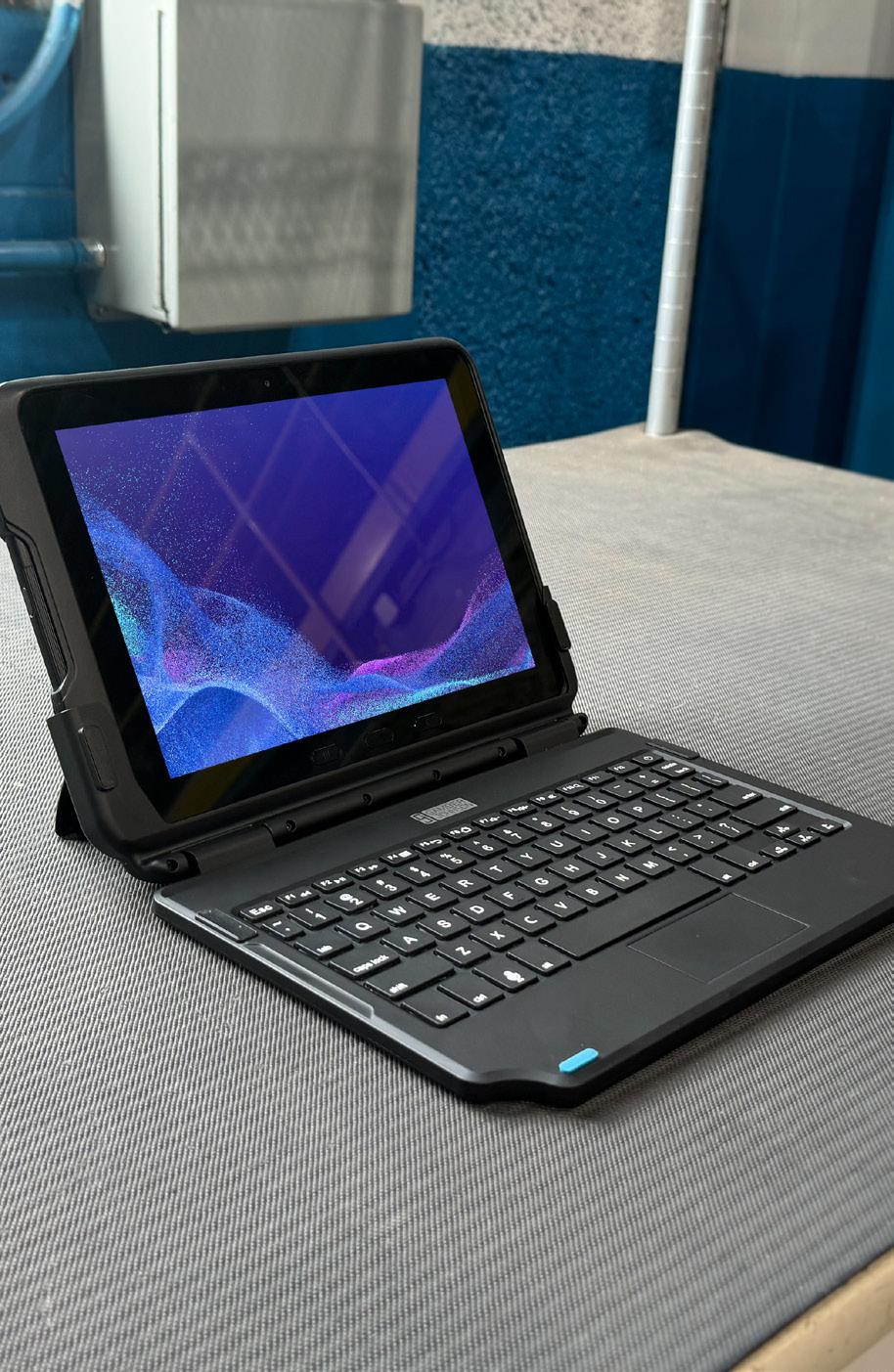

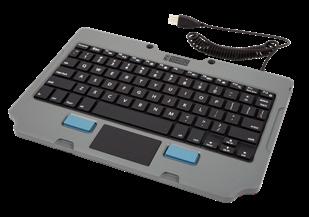

PERIPHERAL MOUNTS CUSTOMIZATION FOR YOUR FORKLIFT VEHICLE TABLET KEYBOARD BRACKETS PRINTER BRACKETS SCANNER BRACKETS AND POCKETS LIGHTS AND ANTENNA BRACKETS KEYBOARD BRACKETS KEYBOARDS ACCESSORIES Choose from a wide variety of material handling accessories to support your specific workstation needs. From handheld scanner mounts to several power supplies and keyboard mount options, Gamber-Johnson has the right product available to aid in increased productivity and optimal comfort.

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G TABLET KEYBOARD BRACKETS TABLET KEYBOARD MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0799

Tablet Keyboard Mount

Attaches Between Dock and Mounting Solution

Attaches Utilizing VESA 75 mm or GamberJohnson Hole Patterns

4.3 lbs 1.9 kg

6.1" 15.5 cm

5.8" 14.7 cm

10.0" 25.4 cm

7160-1323

Honeywell VMU Keyboard Mount

Attaches Between Dock and Mounting Solution

Attaches Utilizing AMPs Universal Hole Pattern

4.3 lbs 1.9 kg

6.1" 15.5 cm

5.8" 14.7 cm

10.0" 25.4 cm

7160-079901

Tablet Keyboard Mount - Tall Backplate

Attaches Between Dock and Mounting Solution

Attaches Utilizing VESA 75 mm or Vesa 100 mm

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

7160-0799

FEATURES 7160-1323

• Designed to hold the keyboard in a standard horizontal position directly under the device • Quick adjust tension handle secures the keyboard tray and allows for optimal positioning and stowing capabilities • Keyboard mounting hole patterns: • AMPs (2 mounting locations) • 2.5" (6.35 cm) x 2.5" (6.35 cm) (2 mounting locations) • VESA 75 mm • 2" (5.08 cm) x 7" (17.78 cm) Honeywell • Limited Lifetime Warranty

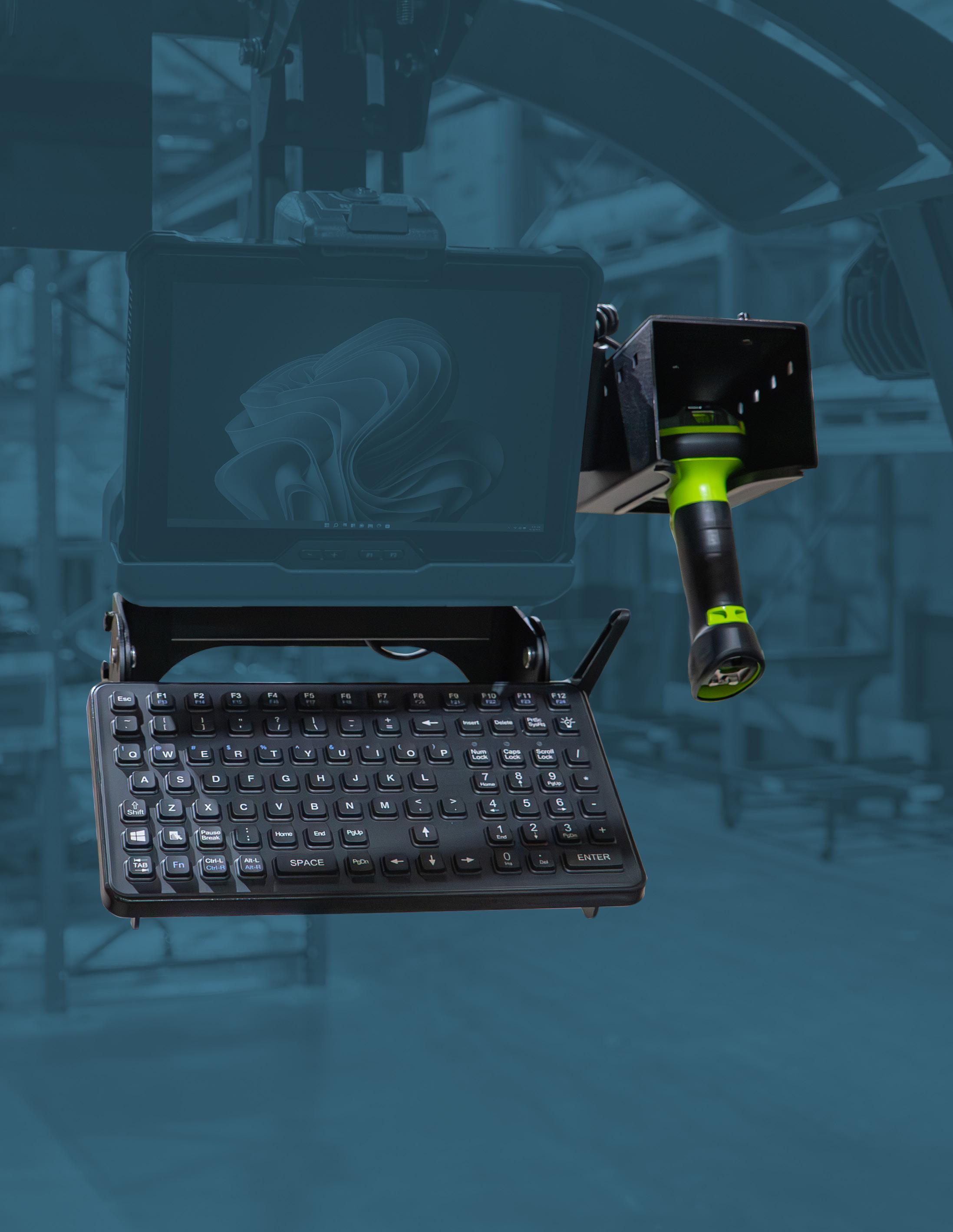

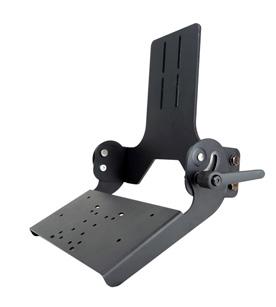

VERTICAL KEYBOARD MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1257

Vertical Tablet Keyboard Mount

Attaches Between Dock and Mounting Solution

Attaches Utilizing VESA 75 mm or GamberJohnson Hole Patterns

3.8 lbs 1.7 kg

11.3" 28.6 cm

5.0" 12.7 cm

9.6" 24.5 cm

7160-1357

Honeywell VMU Vertical Keyboard Mount

Attaches Between Dock and Mounting Solution

Attaches Utilizing AMPs Universal Hole Pattern

3.8 lbs 1.7 kg

11.3" 28.6 cm

5.0" 12.7 cm

9.6" 24.5 cm

7160-125701

Vertical Tablet Keyboard Mount - Tall Backplate

Attaches Between Dock and Mounting Solution

Attaches Utilizing VESA 75 mm or GamberJohnson Hole Patterns

5.3 lbs / 2.4 kg

5 in / 12.7 cm

16 in / 40.64 cm

12 in / 30.8 cm

7160-1257

FEATURES

7160-1357

• Designed to hold the keyboard in a vertical position directly under the device • Quick adjust tension handle secures the keyboard tray and allows for optimal positioning • Keyboard mounting hole patterns: • AMPs (2 mounting locations) • 2.5" (6.35 cm) X 2.5" (6.35 cm) (2 mounting locations) • VESA 75 mm • 2" (5.08 cm) x 7" (17.78 cm) Honeywell • Limited Lifetime Warranty

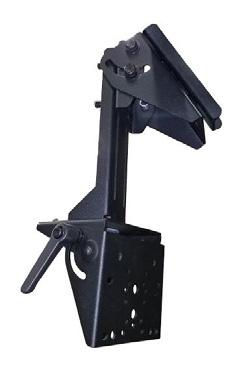

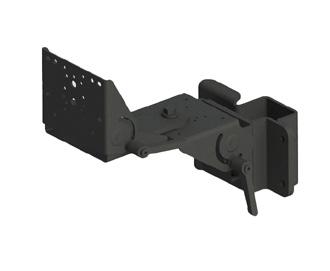

INDEPENDENT KEYBOARD MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0550

Independent Keyboard Mount V1

1.5" to 2.5" Rectangular Guard Leg or Mates with Clam Shells

3.0 lbs 1.4 kg

3.8" 9.7 cm

5.1" 13.0 cm

14.0" 35.6 cm

FEATURES 7160-0550

26

• • • •

Central articulating arms are simply switched between the two versions (V1 Shown) Designed to position and hold the keyboard independent of device Quick adjust tension handle secures keyboard angle and allows for optimal positioning Keyboard mounting hole patterns: • AMPs • VESA 75 mm • Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

PERIPHERAL MOUNTS

NUMERIC KEYPAD BRACKETS ITEM NO.

DESCRIPTION

PLACEMENT

MOVEMENT CAPABILITIES WEIGHT

7160-0859

iKey Numeric Keypad Bracket

Attaches Between Dock and Mounting Solution

Fixed Mount Ability to Orient on Both Sides

7160-1486

Tablet Pivoting AMPs Mount

Attaches Between Dock and Mounting Solution

Adjustable Tilt Mount Ability to Orient on Both Sides

HEIGHT

WIDTH

DEPTH

1.1 lbs 0.5 kg

12.0" 30.5 cm

4.0" 10.2 cm

2.5" 6.2 cm

1.8" 0.8 kg

3.5" 8.9 cm

13.0" 32.8 cm

4.0" 10.2 cm

FEATURES

• Places keypad ergonomically for the users comfort and ease of usability • AMPs hole pattern allows capability to secure iKey's Mobile Numeric Pad (7300-0106) to your Gamber-Johnson dock • Limited Lifetime Warranty

7160-0859

7160-1486

DUAL DISPLAY CLEVIS MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1917

Dual Display Clevis Mount

Positions between a docking station and clevis upward to mount a secondary display above the docking station

2.75 lbs 1.25 kg

3" 7.62 cm

6" 15.24 cm

10.5" 26.67 cm

FEATURES • • • • • • • • •

Easily store secondary display out of operator sightline when not in use Allows mounting of tablets, cradles or docks with 75mm VESA hole patterns Improve sightlines by reducing multiple mounting locations on vehicles. Two devices can be mounted in one location.

Operator can quickly access the secondary device when needed by simply rotating into view Store secondary display by simply loosening the adjustable lever, tilt to desired position and then re-tighten the lever.

Allows mounting of printer at a 90° angle to maximize sightlines Heavy gauge steel construction for long-term durability in a rugged environment Black powdercoat finish for maximum corrosion resistance Limited Lifetime Warranty

PRINTER BRACKETS PRINTER BRACKETS ITEM NO.

OEM

PRINTER MODEL

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0785

Datamax O'Neil (Honeywell)

MP Compact 4 Mark II

Attaches to Mount Utilizing VESA 75 mm Hole Pattern

1.0 lbs 0.5 kg

0.5" 1.3 cm

5.0" 12.7 cm

4.0" 10.2 cm

7160-0888

Datamax O'Neil (Honeywell)

RL4

Attaches to Mount Utilizing VESA 75 mm Hole Pattern

3.3 lbs 1.5 kg

9.1" 23.2 cm

7.8" 19.9 cm

4.2" 10.8 cm

7160-0817

Zebra

ZQ630 QLN420

Attaches to Mount Utilizing AMPs Hole Pattern

0.5 lbs 0.2 kg

1.0" 2.5 cm

6.0" 15.2 cm

4.0" 10.2 cm

7160-1053

Zebra

ZQ520

Attaches to Mount Utilizing AMPs Hole Pattern

0.5 lbs 0.2 kg

0.8" 2.1 cm

3.2" 8.0 cm

3.7" 9.4 cm

7160-1473

Zebra

ZQ610/ZQ620

Attaches to Mount Utilizing AMPs Hole Pattern

0.3 lbs 0.1 kg

2.1" 5.3 cm

5.0" 12.7 cm

3.7" 9.4 cm

7160-1693

Zebra

ZD620D, ZD620T, ZD621D, and ZD621T

Attaches to Mount Utilizing VESA 75 mm Hole Pattern

3.25 lbs 1.47 kg

4 in 10.16 cm

8.25 in 20.96 cm

10.5 in 26.67 cm

7160-1629

PRINTEK

FP541

Attaches to Mount Utilizing AMPs Hole Pattern

1 lbs 0.45 kg

1.5 in 3.81 cm

3.5 in 8.89 cm

6.4 in 16.26 cm

7160-1821

HONEYWELL

RP2

Attaches to Mount Utilizing AMPs Hole Pattern

0.25 lbs / 0.11 kg

0 in / 0 cm

5.5 in / 13.97 cm

5 in / 12.7 cm

7160-1816

HONEYWELL

RP4

Attaches to Mount Utilizing AMPs Hole Pattern

0.25 lbs / 0.11 kg

0 in / 0 cm

6.5 in / 6.5 in / 16.51 cm 16.51 cm

FEATURES

• Adapts to a variety of Gamber-Johnson and Zirkona mounts • Designed to not impede paper feed, printer ports or power connections • Limited Lifetime Warranty

7160-0888

7160-0817

7160-1473

7160-1821

27

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G 4″ FANFOLD LABEL HOLDER ITEM NO. 7160-2008

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-2008 Fan Fold Label Holder

Mounts to Any Flat Surface or Clevis using the AMPS Hole Pattern.

8.46 lbs 3.84 kg

8.5" 21.59 cm

4.5" 11.43 cm

6.5" 16.51 cm

Fan Fold Label Holder with Printer Bracket

Mounts to Any Flat Surface or Clevis using the AMPS Hole Pattern. Compatible with Zebra ZQ630 and QLN420 Printers

9 lbs 4.08 kg

9.5" 24.13 cm

4.5" 11.43 cm

6.5" 16.51 cm

7170-1128

DESCRIPTION

FEATURES • • • • • •

Designed to support both 4"x6" and 4"x8" labels, providing flexibility for various labeling tasks.

Accommodates up to 500 fanfold labels, reducing the need for frequent reloading and keeping your operations running smoothly.

Labels feed directly from the storage bin into the Zebra ZQ630 printer, ensuring a seamless and efficient printing process.

The built-in label stop feature keeps labels securely in place, even during vehicle movement, preventing operational disruptions.

Quick and easy reloading minimizes downtime and maximizes productivity, ideal for high-demand environments.

Constructed from premium materials, the fanfold label holder is built to withstand tough industrial conditions, ensuring long-lasting performance.

• The printer bracket attaches securely using PEM inserts, without obstructing the paper feed, ports, or power connections.

• The label holder can be effortlessly integrated with various GJ vehicle mounting solutions, making it perfect for warehouses, loading docks, and other demanding settings.

• Limited Lifetime Warranty

BROTHER RJ4250WB/4230B PRINTER BRACKET ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1964

Printer Bracket

Mounts via AMPS hole Pattern.

Compatible with Brother RJ4250WB and RJ4230B Printers

2 lbs 0.91 kg

4" 10.16 cm

7" 17.78 cm

9" 22.86 cm

FEATURES • • • • • • •

Allows for easy access to quickly change paper rolls Orients printer vertically or horizontally Access to battery. No need to undock to switch out for a new battery AMPs hole pattern allows for mounting to a variety of Gamber Johnson mounting solutions Heavy gauge steel construction for long-term durability in a rugged environment Black powdercoat finish for maximum corrosion resistance Limited Lifetime Warranty

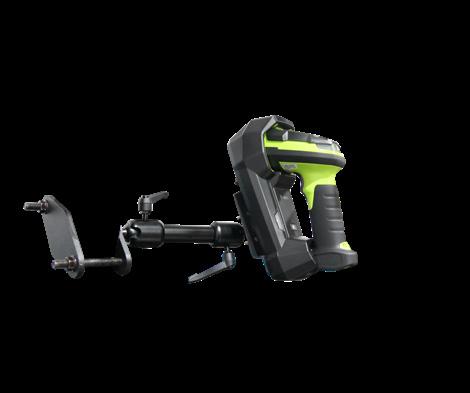

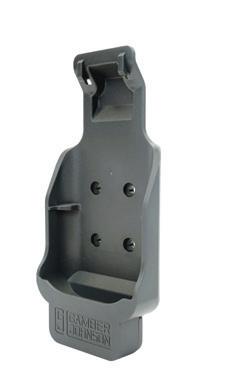

SCANNER BRACKETS AND POCKETS OVERHEAD GUARD LEG SCANNER MOUNTS

7160-1306

ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1306

Scanner Pocket Mount with Small Back Plate

1.5" to 2.5" Rectangular Guard Leg Roll Form Brackets Horizontal and Vertical Extensions

5.2 lbs 2.4 kg

2.5" 6.4 cm

4.5" 11.4 cm

6.0" 15.2 cm

7160-1306-01

Scanner Pocket Mount with Large Back Plate

2.5" to 5.0" Rectangular Guard Leg

7.1 lbs 3.2 kg

2.5" 6.4 cm

4.5" 11.4 cm

6.0" 15.2 cm

FEATURES 7160-1306-01

• • • • •

Designed to be orientated inside, outside, or inline with the overhead guard leg Tilt adjustability provides ergonomic comfort and ease of use Adjustable pocket with a range of 3.5" (8.89 cm) to 4.5" (11.43 cm) in width and set at 2.5" (6.35 cm) tall Compatible with most handheld computers and scanners Limited Lifetime Warranty

MAGNETIC POCKET SCANNER MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1259

Flat Surface Magnet Mount with Scanner Holder

Magnetic Flat Surface

5.6 lbs 2.5 kg

7.8" 19.8 cm

6.4" 16.2 cm

6.0" 15.2 cm

FEATURES • • • • •

28

Designed to eliminate any unnecessary drilling Base magnets allow a quick way to mount and dismount to any flat metal surface Adjustable pocket with a range of 3.5" (8.89 cm) to 4.5" (11.43 cm) in width and set at 2.5" (6.35 cm) tall Tilt adjustability provides ergonomic comfort and ease of use Limited Lifetime Warranty

PERIPHERAL MOUNTS

M AT E R I A L H A N D L I N G | ZIRKONA POCKET SCANNER MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7170-0788

Zirkona 4" Diamond Mount with Scanner Pocket

Up to 4" Wide Crossmember, Rectangular or Roll Form Profile

5.2 lbs 2.4 kg

3.5" 8.9 cm

6.0" 15.2 cm

13.0 33.0 cm

7170-0796

Zirkona 2" to 3" Pole Mount with Scanner Pocket

Cylindrical Pole/Tube Ranging Between 2" and 3"

4.6 lbs 2.2 kg

3.5" 8.9 cm

5.5" 13.8 cm

15" 38.1 cm

7160-1433

Scanner Pocket with AMPs Adapter Bracket

-

2.65 lbs / 1.20 kg

3.50 in / 8.89 cm

4 in / 10.16 cm

-

7170-0788

FEATURES • • • •

Designed to be an easily equipped, no drilling required, solution to reduce installation times and labor costs Large range of motion and quick adjust lever to effortlessly move to a desired position Adjustable pocket with a range of 3.5" (8.89 cm) to 4.5" (11.43 cm) in width and set at 2.5" (6.35 cm) tall Limited Lifetime Warranty

7170-0796

OFFSET TABLET SCANNER MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1389

Scanner Pocket Tablet Mount

Attaches Between Dock and Mounting Solution

3.3 lbs 1.5 kg

6.2" 15.6 cm

4.0" 10.2 cm

13.3" 33.7 cm

7160-1486

Tablet Pivoting AMPs Mount

Attaches Between Dock and Mounting Solution

1.8 lbs 0.8 kg

3.5" 8.9 cm

12.9" 32.8 cm

4.0" 10.2 cm

7160-1389

FEATURES • • • •

Designed to eliminate any unnecessary drilling Tilt adjustability provides ergonomic comfort and ease of use Ability to orient on both sides of Gamber-Johnson docks/cradles Multiple mounting hole patterns including VESA 75 mm and AMPs for compatibility to various Gamber-Johnson docks/ cradles and forklift mounting solutions • Limited Lifetime Warranty

7160-1486

ZEBRA DS3678 SCANNER ADAPTER ITEM NO.

DESCRIPTION

PLACEMENT

COMPATIBILITY

7160-1485

Zebra DS3678 Scanner Adapter

Attaches to Mount Utilizing AMPs Hole Pattern

Commonly used with Zirkona Mounting Solutions

WEIGHT HEIGHT WIDTH

DEPTH

2.7 lbs 1.2 kg

8.0" 20.3 cm

3.5" 4.0" 8.9 cm 10.2 cm

FEATURES

• Securely mount Zebra's FLB3678 and STB3678 cradle in your work environment utilizing Gamber-Johnson's productspecific adapter bracket.

• Specifically designed to securely hold Zebra's FLB3678 and STB3678 Bluetooth Docking Cradle • AMPs hole pattern allows versatility of adapting to a variety of mounting solutions • Limited Lifetime Warranty

ZEBRA DS3678 SCANNER CRADLE RECTANGULAR GUARD LEG MOUNT KIT ITEM NO.

DESCRIPTION

7170-1048

Zebra DS3678 Scanner Cradle Rectangular Guard Leg Mount Kit

WEIGHT HEIGHT WIDTH

DEPTH

3.6 lbs/ 3.25 in/ 6.5 in/ 10 in/ 1.63 kg 8.26 cm 16.51cm 25.4 cm

FEATURES • • • • • •

Compatible with Zebra DS3678 Barcode Scanner Mounts to various overhead guard leg profiles such as rectangular and roll-formed Small form factor to secure lightweight devices up to 4 lbs at full horizontal extension Quick-adjust handles for individualized adjustment at each end for optimal positioning Easy to install mounting solution with no drilling required to decrease install times and improve vehicle up-times Limited Lifetime Warranty

29

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G ZEBRA DS3678 SCANNER CRADLE 2" - 3" ROUND TUBE MOUNT KIT ITEM NO.

DESCRIPTION

WEIGHT HEIGHT WIDTH

DEPTH

7170-1049

Zebra DS3678 Scanner Cradle 2" - 3" Round Tube Mount Kit

6 in / 3.25lbs/ 3 in / 15.24 1.47 kg 7.62 cm cm

11 in / 27.94 cm

FEATURES • • • • • • •

Compatible with Zebra DS3678 Barcode Scanner Mounts to any size cylindrical poles or tubular style overhead guard legs varying between 2" and 3" in diameter Small form factor to secure lightweight devices up to 4 lbs in a material handling shock environment Quick-adjust handles for individualized adjustment at each end for optimal positioning Easy to install mounting solution with no drilling required and ample adjustability to accommodate operator comfort and ease of use Limited Lifetime Warranty

ZEBRA DS3678 SCANNER CRADLE PIVOTING MOUNT KIT ITEM NO.

DESCRIPTION

WEIGHT HEIGHT WIDTH

DEPTH

7170-1050

Zebra DS3678 Scanner Cradle Pivoting Mount Kit

2.1 4 in / 3.25 in / lbs/ .95 10.16 8.26 cm kg cm

13 in / 33.02 cm

FEATURES • • • • • •

Compatible with Zebra DS3678 Barcode Scanner Ability to orient on both sides of Gamber-Johnson docks/cradles Tilt adjustability provides ergonomic comfort and ease of use for mounted devices Versatile design compatible to mount in between Gamber-Johnson docks/cradles and forklift mounting solutions Mounting slots allow for easy adjustability, allowing scanner placement within easy reach of operator Limited Lifetime Warranty

ZEBRA MC9300 CRADLE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1686

Zebra MC9300 Cradle

1.75 lbs / 0.79 kg

12.25 in / 31.12 cm

4 in / 10.16 cm

3 in / 7.62 cm

FEATURES • • • • • •

MC9300 cradle holds MC9300 scanner with screen facing forward Non powered cradle only AMP's mounting hole pattern Will not fit with the rugged boot Top latch secures scanner in the mount Limited Lifetime Warranty

HONEYWELL GRANIT CRADLE ADAPTER ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1694

Honeywell Granit Cradle Adapter

Attaches to mount utilizing AMPs hole pattern

0.5 lbs / 0.23 kg

0.63 in / 1.6 cm

3 in / 7.62 cm

6 in / 15.24 cm

FEATURES

• The COB02 is needed for charging a Honeywell Granit on a forklift or wall mount • Commonly used with Zirkona Mounting Solutions • Limited Lifetime Warranty

HONEYWELL GRANIT CRADLE RECTANGULAR GUARD LEG MOUNT KIT ITEM NO.

DESCRIPTION

7170-1014

Honeywell Granit Cradle Rectangular Guard Leg Mount Kit

FEATURES • • • • • •

30

WEIGHT HEIGHT WIDTH

DEPTH

6.5 in / 3.7 lbs/ 3.25 in / 10 in / 16.51 1.68kg 8.26 cm 25.4 cm cm

Compatible with Honeywell Granit 1911i Industrial Scanner Mounts to various overhead guard leg profiles such as rectangular and roll formed Small form factor to secure light weight devices up to 4 lbs at full horizontal extension Quick adjust handles for individualized adjustment at each end for optimal positioning Easy to install mounting solution with no drilling required to decrease install times and improve vehicle up-times Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

PERIPHERAL MOUNTS

HONEYWELL GRANIT CRADLE 2" - 3" ROUND TUBE MOUNT KIT ITEM NO.

DESCRIPTION

WEIGHT HEIGHT WIDTH

DEPTH

7170-1047

Honeywell Granit Cradle 2" - 3" Round Tube Mount Kit

6 in / 3.35 lbs/ 3 in / 15.24 1.52kg 7.62 cm cm

11 in / 27.94 cm

FEATURES • • • • • • •

Compatible with Honeywell Granit 1911i Industrial Scanner Mounts to any size cylindrical poles or tubular style overhead guard legs varying between 2" and 3" in diameter Small form factor to secure lightweight devices up to 4 lbs in a material handling shock environment Quick-adjust handles for individualized adjustment at each end for optimal positioning Easy to install mounting solution with no drilling required and ample adjustability to accommodate operator comfort and ease of use Limited Lifetime Warranty

HONEYWELL GRANIT CRADLE PIVOTING MOUNT KIT ITEM NO.

DESCRIPTION

WEIGHT HEIGHT WIDTH

DEPTH

7170-1051

Honeywell Granit Cradle Pivoting Mount Kit

4 in / 2.2 lbs/ 3.25 in / 10.16 1.00 kg 8.26 cm cm

13 in / 33.02 cm

FEATURES • • • • • •

Compatible with Honeywell Granit 1911i Industrial Scanner Ability to orient on both sides of Gamber-Johnson docks/cradles Tilt adjustability provides ergonomic comfort and ease of use for mounted devices Versatile design compatible to mount in between Gamber-Johnson docks/cradles and forklift mounting solutions Mounting slots allow for easy adjustability, allowing scanner placement within easy reach of operator Limited Lifetime Warranty

KEYENCE BT-A700 CRADLE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1695

KEYENCE BT-A700 CRADLE

2.5 lbs 1.13 kg

33 in 7.62 cm

4.25 in 10.8 cm

88 in 20.32 cm

FEATURES • • • • • • •

Holds Keyence BT-A700 Hold BT-A700 in with the screen facing outward so it can be viewed while in the cradle Non-charging cradle only AMP's hole pattern Easy to use top latch to hold the unit in the cradle Heavy gauge steel construction for long-term durability in a rugged environment Limited Lifetime Warranty

SCANNER REEL MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0302

Retractable Scanner Reel

Attaches to Cable Reel Hanger (7160-1319)

1.0 lbs 0.5 kg

5.1" 13.0 cm

4.5" 11.4 cm

2.5" 6.4 cm

7160-1319

Cable Reel Hanger

Attaches to Crossmember of Overhead Guard

1.0 lbs 0.5 kg

3.5" 8.9 cm

1.4" 3.5 cm

2.0" 5.1 cm

FEATURES • • • •

Capable of holding 1.5 lbs (.6 kg) to 3 lbs (1.4 kg) Retracts to 6 feet with a 100,000 cycle rating Designed to be compatible with most handheld scanning devices Contains an end stop to assist in mitigating damage to devices

31

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G PISTOL GRIP SCANNER MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7170-0764

Zirkona Pistol Grip Scanner Mount Kit Kit Includes: Zirkona 4" Diamond Plate with Large Joiner and AMPs Plate (7160-1261) and Pistol Grip Scanner Bracket (7160-1380)

Up to 4" Wide Crossmember, Rectangular or Roll Form Profile

4.1 lbs 1.8 kg

2.6" 6.6 cm

4.3" 10.8 cm

15.7" 39.9 cm

7160-1380

Pistol Grip Scanner Bracket

Attaches to a mount with AMPs hole pattern

1.35 lbs / 0.61 kg

2.60 in / 6.60 cm

4.25 in / 10.80 cm

10.00 in / 25.40 cm

FEATURES • • • • •

Padded tray to support most wireless handheld barcode scanners Offers the ability to utilize the device while cradled Designed to be an easily equipped solution with no drilling required to reduce installation times and labor costs Large range of motion and quick adjust lever to effortlessly move to a desired position Limited Lifetime Warranty

LIGHTS AND ANTENNA BRACKETS SAFETY LIGHT BRACKETS

7160-0610

ITEM NO.

DESCRIPTION

PLACEMENT

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0610

Single Light Bracket

Attaches to Crossmember of Overhead Guard

Adapts any Light with Hardware up to 3/8"

3.8 lbs 1.7 kg

5.4" 13.7 cm

2.0" 5.1 cm

3.6" 9.2 cm

7160-0850

Magnetic Redline Light Mount

Attaches to Crossmember of Overhead Guard or Rectangular Guard Leg

Adapts to a Variety of Industry Redline Lights

1.5 lbs 0.7 kg

3.7" 9.4 cm

3.7" 9.4 cm

6.0" 15.2 cm

7160-1719

Forklift Light Mount

Attaches directly to the overhead guard

-

1 lbs / 0.45 kg

2 in / 5.08 cm

2 in / 5.08 cm

7 in / 17.78 cm

FEATURES 7160-0850

• Improve workplace safety by mounting a visual indicator to lift vehicles to know when they are approaching • No need for custom brackets with our mounts that accommodate multiple profiles • Limited Lifetime Warranty

LIFT TRUCK STROBELIGHT MOUNT AND DEFLECTOR ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1790

Strobe Light Deflector

Works with JW Speaker, Model 539

0.2 lbs 0.09 kg

5" 12.7 cm

4" 10.16 cm

4" 10.16 cm

7170-1060

Kit: Strobe Light Deflector with Mount

"Mounts to overhead guard.

Not compatible with enclosed cabs"

1.2 lbs 0.54 kg

5" 12.7 cm

4" 10.16 cm

11" 27.94 cm

FEATURES

• Prevents accidents by ensuring clear visibility without compromising the operator's view, making it ideal for high-traffic areas • Expertly deflects the strobe light's beam, minimizing unwanted glare and enhancing visibility exactly where it's needed • Crafted from high-quality materials, the shield is designed to withstand harsh industrial conditions, ensuring long-lasting performance • The user-friendly design allows for quick and secure attachment to your strobe light, with no special tools required • Adjust the shield to focus or diffuse the light, providing flexible control over the light's direction and intensity for various applications • Perfect for warehouses, loading docks, and other environments where safety is paramount • Limited Lifetime Warranty

ANTENNA MOUNT ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1303

Antenna Bracket

Attaches to Vertical or Horizontal Surfaces or Crossmembers

1.9 lbs 0.8 kg

3.5" 8.9 cm

7.2" 18.2 cm

4.0" 10.2 cm

FEATURES • • • •

32

Two antenna mounting configurations give the flexibility to mount the bracket vertically or horizontally Multiple mounting locations and included backplate to adapt to multiple surfaces or profiles 7/8" mounting hole to accommodate varying mounting bolt sizes Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

PERIPHERAL MOUNTS

TABLET KEYBOARD BRACKETS QUICK RELEASE KEYBOARD CRADLE ITEM NO. 7160-1470-00

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

Quick Release Keyboard Cradle

0.55 lbs 0.25 kg

1.01" 2.53 cm

5.5" 13.97 cm

7.35" 18.66 cm

FEATURES

• Compatible with Gamber-Johnson Rugged Lite Keyboard (7160-1449-00) • Easily insert or release the Rugged Lite Keyboard: • Insert bottom of keyboard into cradle, match indents in keyboard with hooks on cradle, then push top of keyboard into cradle and engage latch • To remove, push latch to disengage and pull keyboard out of cradle • Black powder coat finish • Keyboard can be permanently attached to keyboard cradle using two #6 machine screws • VESA 75 mm mounting pattern (#8 mounting studs), attach to most Gamber-Johnson motion attachments • Limited Lifetime Warranty

KEYBOARDS RUGGED LITE BACKLIT KEYBOARD AND QUICK RELEASE KEYBOARD CRADLE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7170-0817-01

Rugged Lite Backlit Keyboard and Quick Release Keyboard Cradle Kit Includes: Rugged Lite Backlit Keyboard (71601683-00) and Quick Release Keyboard Cradles (71601470-00)

1 lbs 0.45 kg

10.31" 26.19 cm

0.56" 1.42 cm

7.12 in 18.08 cm

7160-1470-00

Quick Release Keyboard Cradle

0.55 lbs 0.25 kg

1.01" 2.53 cm

5.5" 13.97 cm

7.35" 18.66 cm

7160-1683-00

Rugged Lite Backlit Keyboard

1 lbs 0.45 kg

10.31" 26.19 cm

0.56" 1.42 cm

7.12" 18.08 cm

FEATURES • • • • • • • • • • • • • • • • • • • • •

• • • • •

Integrated center Touchpad with right and left mouse button 76-key keyboard with 12 function keys for custom operation Integrated red backlighting with four levels of intensity and ON/OFF control (F12 Key) Low-profile ergonomic design for ease of use in a mobile environment Emergency Key - a configurable key that can be used to send for emergency help or assistance Silicone rubber keys with white lettering and a rugged ABS polycarbonate case Input cable: USB Type A male connector (1.5 m/59.0 inch cable) Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA) Rubber feet to prevent slippage Keyboard is compatible with Gamber-Johnson custom keyboard tray (7160-1470-00) Available in US English (7160-1683-00), UK (7160-1683-01), German (7160-1683-02), French (7160-1683-03), and Spanish (7160-1683-04). Contact Gamber-Johnson for other language options. Minimum Order Quantity 250 units on all languages other than US English.

Power: 5Vdc @ <500mA from data cord Designed and tested to MIL-STD 810G shock and vibration specifications Temperature range: OPERATING: -20°C to 60°C STORAGE: -40°C to 85°C Designed to IP54 ingress specifications Two million actuations per key Limited Lifetime Warranty Quick Release Keyboard Cradle Compatible with Gamber-Johnson USB Mobile Keyboard (7160-1449-00) Easily insert or release the USB keyboard: • Insert bottom of keyboard into tray, match indents in keyboard with hooks on tray, then push top of keyboard into tray and engage latch • To remove, push latch to disengage and pull keyboard out of computer out of tray VESA 75 mm mounting pattern, attaches to most Gamber-Johnson motion attachments Black powder coat finish Keyboard can be permanently attached to keyboard cradle using two #6 machine screws FCC, CE, UKCA, C-Tick, RoHS, REACH - Limited Lifetime Warranty

7160-1683-00

7160-1470-00

33

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G GAMBER-JOHNSON’S RUGGED LITE KEYBOARD ITEM NO. 7160-1449-00

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

Gamber-Johnson’s Rugged Lite Keyboard

1 lbs 0.45 kg

0.68 in 1.72 cm

10.31 in 26.18 cm

7.12 in 18.08 cm

FEATURES • Integrated center Touchpad with right and left mouse buttons • 76-key keyboard with 12 function keys for custom operation • Low-profile ergonomic design for ease of use in a mobile environment • Equipped with an emergency key that is configurable and be used to send for emergency help or assistance to dispatch • Silicone rubber keys with white lettering and a rugged ABS polycarbonate case • USB Type A male connector (coiled cable) input cable • Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms • USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA) • Rubber feet to prevent slippage • Power: 5Vdc @ <500mA from data cord • Keyboard is compatible with Gamber-Johnson quick release keyboard cradle (7160-1470-00). Keyboard can be permanently attached to keyboard cradle using two #6 machine screws.

• Available in US English (7160-1449-00), UK (7160-1449-01), German (7160-1449-02), French (7160-1449-03), and Spanish (7160-1449-04). Contact Gamber-Johnson for other language options.

• Temperature range is -4° F (-20°C) to 140° F (60°C) when operating and -40° F (-40°C) to 185° F (85°C) for storage • Designed to IP54 ingress specifications • Tested to two million actuation per key • MIL-STD 810G shock/vibration, SAE J1455, RoHS, FCC, CE, REACH • 1 Year Limited Warranty

RUGGED LITE KEYBOARD AND QUICK RELEASE KEYBOARD CRADLE KIT

7170-0817-00

34

ITEM NO.

DESCRIPTION

7170-0817-00

Rugged Lite Keyboard and Quick Release Keyboard Cradle Kit Kit Includes: Rugged Lite Keyboard (7160-1449-00) and Quick Release Keyboard Cradle (7160-1470-00)

7160-1470-00

Quick Release Keyboard Cradle

7160-1449-00

Gamber-Johnson’s Rugged Lite Keyboard

FEATURES

WEIGHT

HEIGHT

WIDTH

DEPTH

0.25 lbs 0.11 kg 1 lbs 0.45 kg

1.01" 2.53 cm 0.56" 1.42 cm

5.5" 13.97 cm 10.31" 26.18 cm

7.35" 18.66 cm 7.12" 18.08 cm

Rugged Lite Keyboard • Integrated center Touchpad with right and left mouse button • 76-key keyboard with 12 function keys for custom operation • Low-profile ergonomic design for ease of use in a mobile environment • Equipped with an emergency key that is configurable and be used to send for emergency help or assistance to dispatch • Silicone rubber keys with white lettering and a rugged ABS poly-carbonate case • USB Type A male connector (coiled cable) input cable • Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms • USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA) • Rubber feet to prevent slippage • Keyboard is compatible with Gamber-Johnson quick release keyboard cradle (7160-1470-00) • Available in US English (7160-1449-00), UK (7160-1449-01), German (7160-1449-02), French (7160-1449-03), and Spanish (7160-1449-04). Contact Gamber-Johnson for other language options • 1 Year Limited Warranty Quick Release Keyboard Cradle • Compatible with Gamber-Johnson USB Mobile Keyboard (7160-1449-00) • Easily insert or release the USB keyboard: • Insert bottom of keyboard into tray, match indents in keyboard with hooks on tray, then push top of keyboard into tray and engage latch • To remove, push latch to disengage and pull keyboard out of computer out of tray • Black powder coat finish • Keyboard can be permanently attached to keyboard cradle using two #6 machine screws • VESA 75 mm mounting pattern, attaches to most Gamber-Johnson motion attachment • Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

PERIPHERAL MOUNTS

iKEY KEYBOARDS ITEM NO.

DESCRIPTION

FEATURES

WEIGHT

7300-0722

iKey Keyboard, Spaced Out Keys, 10-Key Num Pad, USB-A (SL-910)

Built-in Mounting Holes, 24 Function Keys, Integrated 10-Key Numeric Pad, Integrated Backlightling, Lightweight ABS Polycarbonate Case, USB, PS2, and DB9 Configurations

2.3 lbs 1.0 kg

7300-0029

Rechargeable Bluetooth® Keyboard for Windows/ Android (BT-80-03)

Fully Sealed, IP65 Case, Bluetooth Wireless Technology, Red LED Backlit Keys, VESA Mounting Pattern

1.2 lbs 0.5 kg

7300-0723

iKey Keyboard, Epoxy Coated, Spaced Out Keys, 10-Key Num Pad, USB-A (SL-91)

Epoxy Coated, Built-in Mounting Holes, 24 Function Keys, Integrated 10-Key Numeric Pad, Integrated Backlightling, Lightweight ABS Polycarbonate Case, USB, PS2, and DB9 Configurations

2.3 lbs 1.0 kg

7300-0032

SkinnyBoard™ Mobile Keyboard with Touchpad (SB-87-TP-M)

12 Function Keys, Red Backlit Keys, Integrated Touchpad, Silicone Rubber, VESA Mounting Pattern, Ultra-Thin Design

1.4 lbs 0.6 kg

7300-0033

SkinnyBoard™ Mobile Keyboard (SB-87-TP)

IP65 Case,12 Function Keys, Fully Sealed, Integrated Touchpad, Silicone Rubber Red LED Backlit Keys, USB Connectivity, Ultra-Thin Design

1.4 lbs 0.6 kg

7300-0034

Mountable Keyboard with Touchpad (SL-86-911-TP)

86-Key Functionality, Fn Key for Secondary Legend Flexibility, Integrated Touchpad, Meets NEMA 4X (IP65) Specifications, One-Touch Emergency Key, Red Backlit Keys

2.3 lbs 1.0 kg

7300-0035

OEM Keyboard for Public Safety (SL-86-911-USB)

86-Key Functionality, Fn Key for Secondary Legend Flexibility, Integrated Touchpad, Meets NEMA 4X (IP65) Specifications, One-Touch Emergency Key, Red Backlit Keys

2.0 lbs 0.9 kg

7300-0724

iKey Keyboard, Quicklock, USB-A (SL-88)

12 Function Keys, 88-Key Functionality, Polycarbonate Case with Mounting Holes, Red Backlit Keys, USB and PS/2 configurations available

2.0 lbs 0.9 kg

7300-0725

iKey Keyboard, Chiclet Key, 82-Key, RGB Backlight, USB-A (IK-82-SA)

ABS/polycarbonate case, Ultra-wide, resistive touchpad Built-in Windows multimedia controls: Mute, Volume Control and Sleep mode, compatible with Windows 7/8/10, Built-in 50 mm and 75mm mounting patterns, built to IP65 standards, Full sealed

1.64 lbs 0.74 kg

7300-0038

Full Travel Keyboard with Attachment Versatility (IK-TR-88)

12 Function Keys, 88-Key Functionality, Integrated Backlighting, Integrated Touchpad, Mobile Mounting Holes, One-Touch Emergency Key

2.0 lbs 0.9 kg

7300-0113

Dual Connectivity Slim Keyboard (BT-870-TP)

Meets NEMA 4X Specifications, Silicone Rubber Keypad, Rugged ABS Polycarbonate Case, Red Backlit Keys, Bluetooth Wireless Technology

2.0 lbs 0.9 kg

7300-0171

Mobile Backlit Keyboard with Force Sensing Resistor (SLK-79-FSR)

12 Function Keys, Integrated Force Sensing Resistor Pointing Device, Red Backlit Keys, APMS Hole Pattern, USB and PS/2 Keyboard/Pointer, 3' Single-Cable USB

1.0 lbs 0.45 kg

7300-0301

Mobile Keyboard with Numeric Keypad (SK-101-M-USB)

12 Function Keys, 10-Key Numeric Pad, Compact Slim Design, Wired USB Connection

2.0 lbs 0.9 kg

7300-0312

Small Footprint Keyboard with Oversized Keys (DP-72-USB)

72-Key Functionality, 8 Function Keys, Lightweight ABS Polycarbonate Case, Wired USB Connection

2.0 lbs 0.9 kg

7300-0106

Mobile Numeric Number Pad (IK-18-USB)

ABS Polycarbonate, Built-In AMPs Mounting Holes, IP 65 WaterResistant, Backlit (Green), Wired USB Connection

0.4 lbs 0.18 kg

7300-0722

7300-0723

7300-0171

7300-0301

7300-0312

7300-0106

35

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G ACCESSORIES FAN MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1342

Fan Adapter Plate

Attaches to Mount Utilizing NEC Hole Pattern

0.3 lbs 0.1 kg

2.8" 7.0 cm

2.8" 7.0 cm

0.6" 1.6 cm

7160-1588

Maradyne 4 Hole Fan Mount

Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile

2.7 lbs 1.2 kg

2.5" 6.4 cm

5.7" 14.4 cm

5.8" 14.7 cm

7170-0774

Fan Mounting Bracket Kit Kit Includes: Fan Adapter Plate (71601342) and Zirkona, 4" Diamond Plate with Large Joiner and AMPs Plate (71601261)

Up to 4" Wide Overhead Crossmember, Rectangular or Roll Form Profile

3.0 lbs 1.4 kg

2.8" 7.0 cm

5.7" 14.4 cm

5.7" 14.4 cm

7160-1342

7160-1588

FEATURES 7170-0774

• Quick and easy installation with no drilling required for decreased install times • Rugged lightweight solution to withstand the toughest material handling environments • Limited Lifetime Warranty

FIXED FORKLIFT CUP HOLDER MOUNT ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1669

Forklift Cup Holder Bracket with 4" Diamond Plate and Medium Joiner

2 lbs / 0.91 kg

3.75 in / 9.53 cm

4.5 in / 11.43 cm

8 in / 20.32 cm

FEATURES • • • • •

Clamps to overhead guard leg with the 4" diamond plate Single nut positioning to adjust angle for cup holder Plastic removable cup for easy cleaning Pen holder included in cup holder design Limited Lifetime Warranty

TABLET PROTECTIVE COVERS

7160-0950

ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0949

Universal 8" Tablet Protective Cover

Secured Between Tablet Cradle/Dock and Mount

1.0 lbs 0.4 kg

13.5" 34.3 cm

11.3" 28.6 cm

3.3" 8.3 cm

7160-0950

Universal 10" Tablet Protective Cover

Secured Between Tablet Cradle/Dock and Mount

1.2 lbs 0.5 kg

14.3" 36.2 cm

12.8" 32.4 cm

3.5" 8.9 cm

7160-0975

Dell Tablet Protective Cover

Secured Between Dell Lattitude 12 Rugged Tablet Cradle/Dock and Mount

1.2 lbs 0.5 kg

10.0" 25.4 cm

13.5" 35.3 cm

3.5" 8.9 cm

7160-1606

Samsung Tab Active 2 Tablet Protective Cover

Secured Between Samsung Tab Active2 Tablet Cradle/Dock and Mount

0.9 lbs 0.4 kg

7.8" 19.8 cm

13.5" 34.3 cm

2.5" 6.4 cm

FEATURES 7160-1606

36

• • • • • •

Rolla glass vinyl with cold crack resistants to -20° F (-29° C) Materials are water, UV, and dust resistant Allows easy screen visibility and full touch screen functionality Compatible with Gamber-Johnson keyboard mount (7160-0799) Velcro seals around cables and cords Limited Lifetime Warranty

M AT E R I A L H A N D L I N G |

PERIPHERAL MOUNTS

THERMAL PROTECTIVE COVERS ITEM NO.

DESCRIPTION

PLACEMENT

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0981

8" Thermal Tablet Protective Cover

Secured Between Tablet Cradle/ Dock and Mount

Fits Most 8" Tablets with Cradle/ Dock

1.0 lbs 0.4 kg

13.5" 34.3 cm

11.3" 28.6 cm

3.3" 8.3 cm

7160-0982

10" Thermal Tablet Protective Cover

Secured Between Tablet Cradle/ Dock and Mount

Fits Most 10" Tablets with Cradle/ Dock

1.2 lbs 0.5 kg

14.3" 36.2 cm

12.8" 32.4 cm

3.5" 8.9 cm

7170-0909

Kit - Samsung TA2 Protective Cover with Thermal Insert

Secured Between Tablet Cradle/ Dock and Mount

0.9 lbs 0.4 kg

7.8" 19.8 cm

13.5" 34.3 cm

2.5" 6.4 cm

Samsung TA2

7160-0982

FEATURES • • • • • • • • •

Rolla glass vinyl with cold crack resistants to -20° F (-29° C) Materials are water, UV, and dust resistant Allows easy screen visibility and full touch screen functionality Compatible with Gamber-Johnson keyboard mount (7160-0799) Activates when temperatures reach below 40° F (4.5° C) Provides consistent temperature to maintain tablet functionality Velcro seals around cables and cords Requires a 12 Volt power source Limited Lifetime Warranty

7170-0909

REPLACEMENT SCREENS ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

17617

8" Thermal Cover Replacement Screen

Attaches to Existing Thermal Protective Cover with Velcro

.1 lbs 0.1 kg

7.0" 17.8 cm

10.3" 26.2 cm

0.2" 0.5 cm

17616

10" Thermal Cover Replacement Screen

Attaches to Existing Thermal Protective Cover with Velcro

.2 lbs 0.1 kg

9.0" 22.9 cm

11.8" 30.0 cm

0.2" 0.5 cm

7300-0512-3

Samsung Tab Active 2 Replacement Screen

Attaches to Existing Samsung Tab Active2/Tab Active3 Protective Cover (7160-1606)

.1 lbs 0.1 kg

6.9" 17.5 cm

13.5" 34.3 cm

0.2" 0.5 cm

17617

FEATURES • • • •

Rolla glass vinyl with cold crack resistants to -20° F (-29° C) Allows easy screen visibility and full touch screen functionality Materials are water, UV, and dust resistant Limited Lifetime Warranty

NON-ISOLATED POWER SUPPLIES FOR PROTECTIVE THERMAL COVERS ITEM NO.

COMPATIBILITY

OUTPUT

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0449

8" Thermal Tablet Protective Cover (7160-0981) 10" Thermal Tablet Protective Cover (7160-0982) Samsung Tab Active 2 Thermal Tablet Protective Cover (TBD)

INPUT VOLTAGE RANGE

Voltage 12VDC Current 10 Amps

24VDC

0.6 lbs 0.3 kg

2.9" 7.4 cm

2.9" 7.4 cm

1.3" 3.3 cm

7300-0450

8" Thermal Tablet Protective Cover (7160-0981) 10" Thermal Tablet Protective Cover (7160-0982) Samsung Tab Active 2 Thermal Tablet Protective Cover (TBD)

36/48VDC

0.6 lbs 0.3 kg

2.9" 7.4 cm

2.9" 7.4 cm

1.3" 3.3 cm

Voltage 12VDC Current 10 Amps

FEATURES • • • •

Sealed and potted in aluminum shell to withstand the harshest operating environments Non-Isolated, constant voltage design IP67 waterproof rating 1 Year Limited Warranty

37

PERIPHERAL MOUNTS | M AT E R I A L H A N D L I N G SHRINK WRAP ROLL MOUNTS ITEM NO.

COMPATIBILITY

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1810

Shrink Wrap Mount - Small Back Plate

Attaches to rectangular forklift support braces 1.5" to 2.5" wide

3.5 lbs 1.59 kg

13" 33.02 cm

5" 12.7 cm

5" 12.7 cm

7160-1810-01

Shrink Wrap Mount - Large Back Plate

Attaches to rectangular forklift support braces 2.5" to 5.0" (6.35 cm to 12.7 cm) wide

4 lbs 1.81 kg

13" 33.02 cm

5" 12.7 cm

5" 12.7 cm

FEATURES

• Added Safety: Secures stretch wrap roll on forklift - no worry about stretch wrap rolling in the way of the operator or off the forklift • Accommodates different length stretch wrap rolls with standard 3" tube • Ideal for convenient storage of stretch wrap rolls • Stretch wrap rolls can be quickly removed and replaced without any tools needed • Mounts to 2 1/2" to 5" overhead guard legs • Mounting versatility. You decide where to place stretch wrap roll for ease of access and out of operator way.

• Rugged: All metal construction and powder coated for long-lasting durability • Limited Lifetime Warranty

38

MOUNT IT.

CRADLES & DOCKING STATIONS MOUNTING SOLUTIONS AS RUGGED AS YOUR DEVICE

Find the perfect solution in the form of a docking station, which replicates the computer’s ports for full peripheral access, or a cradle that offers the utmost stability for crucial assets.

Gamber-Johnson offers a large assortment of docking stations and cradles that support computers from the most trusted rugged manufacturers in the market including: Dell, Getac, Panasonic, Samsung, Zebra, and more.

DELL | C R A D L E S & D O C K I N G S TAT I O N S

DELL LATITUDE 7030 RUGGED EXTREME TABLET DOCKING STATION/CRADLE ANTENNA PASSTHROUGH

WEIGHT

HEIGHT

WIDTH

DEPTH

No

2.7 lbs / 1.22 kg

9.2 in / 23.37 cm

10.6 in / 26.92 cm

2.9 in / 7.37 cm

No

2.7 lbs / 1.22 kg

9.2 in / 23.37 cm

10.6 in / 26.92 cm

2.9 in / 7.37 cm

No

2.7 lbs / 1.22 kg

9.2 in / 23.37 cm

10.6 in / 26.92 cm

2.9 in / 7.37 cm

Yes - Includes LIND 12-32V Isolated material handling power adapter (Item No. 7300-0305)

No

2.7 lbs / 1.22 kg

9.2 in / 23.37 cm

10.6 in / 26.92 cm

2.9 in / 7.37 cm

7170-1054-10

Dell Latitude 7030 Rugged Extreme Tablet Vehicle Docking Station, Lite Port with LIND 20-60V Isolated Power Adapter

Yes - Includes LIND 20-60V Isolated material handling power adapter (Item No. 7300-0306)

No

2.7 lbs / 1.22 kg

9.2 in / 23.37 cm

10.6 in / 26.92 cm

2.9 in / 7.37 cm

7170-1054-20

Dell Latitude 7030 Rugged Extreme Tablet Vehicle Docking Station, Lite Port with LIND 72-110V Isolated Power Adapter

Yes - Includes LIND 72110V Isolated material handling power adapter (Item No. 7300-0622)

No

2.7 lbs / 1.22 kg

9.2 in / 23.37 cm

10.6 in / 26.92 cm

2.9 in / 7.37 cm

ITEM NO.

DESCRIPTION

POWER SUPPLY

7160-1882-00

Dell Latitude 7030 Rugged Extreme Tablet Vehicle Docking Station, Lite Port

7160-1882-10

Dell Latitude 7030 Rugged Extreme Tablet Vehicle Docking Station, Full Port

7160-1883-00

Dell Latitude 7030 Rugged Extreme Tablet Vehicle Cradle (No electronics)

7170-1054-00

Dell Latitude 7030 Rugged Extreme Tablet Vehicle Docking Station, Lite Port with LIND 12-32V Isolated Power Adapter

No - Use LIND 12-32V Isolated Power Adapter (7300-0305), LIND 20-60V Isolated Power Adapter (73000306), LIND 72-110V Isolated Power Adapter (7300-0622)

PORT REPLICATION (DOCK)

FEATURES

• USB-A 9-Pin • (2) Fully powered (1.5 Amps each) • USB-C (1) Fully powered (1.5 Amps) • RJ45 Ethernet (1) • RS232 Serial (1) • Power Input: 19.5 Vdc

• • • • • • • • • •

Compatible with the Dell Latitude 7030 Rugged Extreme tablet computer Accommodates the tablet’s hand strap or magnet mount attachment Access to all tablet control buttons, ports and scanner while the tablet is docked Docking connector gasket helps prevent moisture buildup when docked Downward-facing I/O ports; integrated cable strain relief and cable management system One-handed docking and release for efficient use all day long Keyed lock for theft deterrence Gamber-Johnson's rugged construction and reliability Composite design for reduced weight and durability VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments • 3-Year Limited Warranty

ACCESSORIES

42

ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0305

LIND 12-32 VDC Material Handling Power Adapter (Isolated) for Dell

2.3 lbs / 1.04 kg

3.25 in / 8.26 cm

4.5 in / 11.43 cm

10.75 in / 27.31 cm

7300-0306

LIND 20-60 VDC Material Handling Power Adapter (Isolated) for Dell

2.45 lbs / 1.11 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7300-0622

LIND 72-110 VDC Material Handling Power Adapter (Isolated) for Dell

2.35 lbs / 1.07 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7160-1333

Forklift Power Supply Clamp

1.7 lbs / 0.77 kg

0.5 in / 1.27 cm

2.5 in / 6.35 cm

6.5 in / 16.51 cm

7300-0482

Forklift Wiring Kit

1.2 lbs/ 0.5 kg

0.3 in/ 0.8 cm

12 in/ 30.8 cm

0.8 in/ 2.0 cm

7160-0799

Tablet Keyboard Mount

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

C R A D L E S & D O C K I N G S TAT I O N S |

DELL

DELL LATITUDE 7230 RUGGED EXTREME TABLET DOCKING STATION/CRADLE ANTENNA PASS- POWER SUPPLY THROUGH

ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1772-10

Dell Latitude 7230 Rugged Extreme Tablet Vehicle Docking Station, Full Port - NO RF

2.8 lbs / 1.27 kg

10.05 in / 25.53 cm

12.14 in / 30.84 cm

3.18 in / 8.08 cm

7160-1772-14

Dell Latitude 7230 Rugged Extreme Tablet Quad RF Vehicle Docking Station, Full Port - QUAD RF (SMA)

2.8 lbs / 1.27 kg

10.05 in / 25.53 cm

12.14 in / 30.84 cm

3.18 in / 8.08 cm

7160-1772-00

Dell Latitude 7230 Rugged Extreme Tablet Vehicle Docking Station, Lite Port - NO RF

2.8 lbs / 1.27 kg

10.05 in / 25.53 cm

12.14 in / 30.84 cm

3.18 in / 8.08 cm

7160-1772-04

Dell Latitude 7230 Rugged Extreme Tablet Quad RF Vehicle Docking Station, Lite Port - QUAD RF (SMA)

2.8 lbs / 1.27 kg

10.05 in / 25.53 cm

12.14 in / 30.84 cm

3.18 in / 8.08 cm

7160-1773-04

Dell Latitude 7230 Rugged Extreme Tablet Vehicle Cradle (No electronics) - QUAD RF

Quad RF (SMA)

2.8 lbs / 1.27 kg

10.05 in / 25.53 cm

12.14 in / 30.84 cm

3.18 in / 8.08 cm

7160-1773-00

Dell Latitude 7230 Rugged Extreme Tablet Vehicle Cradle (No electronics) - NO RF

No

2.8 lbs / 1.27 kg

10.05 in / 25.53 cm

12.14 in / 30.84 cm

3.18 in / 8.08 cm

No

No

See list of accessories below to find your power supply

FEATURES • • • • • • • • • • • • •

Compatible with the Dell Latitude 7230 Rugged Extreme tablet computer Accommodates the tablet’s hand strap or magnet mount attachment Access to all tablet control buttons and ports while the tablet is docked Downward-facing I/O ports; integrated cable strain relief and cable management system Spring loaded pogo connector for reliable connectivity in the most rugged environments Optional HDMI to connect a second display Optional QUAD RF pass through for additional connectivity Docking connector gasket for additional water protection One-hand docking and release for efficient use all day long Keyed lock for theft deterrence Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durability VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments • 3-Year Limited Warranty, Extended Warranty Program available

PORT REPLICATION (DOCK) • • • • • • •

Serial (RS232) Ethernet (RJ45) (2) USB-A 3.0 (9 pin, 1.5 Amps) USB-C (1.5 Amps) Power input (19.5 Vdc) HDMI 1.1 (1080p) - optional Quad RF pass-through (SMA)optional

ACCESSORIES ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0305

LIND 12-32 VDC Material Handling Power Adapter (Isolated) for Dell

2.3 lbs / 1.04 kg

3.25 in / 8.26 cm

4.5 in / 11.43 cm

10.75 in / 27.31 cm

7300-0306

LIND 20-60 VDC Material Handling Power Adapter (Isolated) for Dell

2.45 lbs / 1.11 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7300-0622

LIND 72-110 VDC Material Handling Power Adapter (Isolated) for Dell

2.35 lbs / 1.07 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7160-1333

Forklift Power Supply Clamp

1.7 lbs / 0.77 kg

0.5 in / 1.27 cm

2.5 in / 6.35 cm

6.5 in / 16.51 cm

7300-0482

Forklift Wiring Kit

1.2 lbs/ 0.5 kg

0.3 in/ 0.8 cm

12 in/ 30.8 cm

0.8 in/ 2.0 cm

7160-0799-01

Tablet Keyboard Mount - Tall Backplate

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

43

GETAC | C R A D L E S & D O C K I N G S TAT I O N S

GETAC A140 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1246-00

Getac A140 Tablet Docking Station, NO RF

No RF

7160-1246-03

Getac A140 Tablet Docking Station, Triple RF

Triple RF

7160-1247-00

Getac A140 Tablet Cradle (No electronics), NO RF

No RF

7160-1247-03

Getac A140 Tablet Cradle (No electronics), Triple RF

Triple RF

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

No - Use LIND 1232V Isolated Power Adapter (7300-0413), LIND 20-60V Isolated Power Adapter (7300-0412), LIND 72-110V Isolated Power Adapter (7300-0416)

3.85 lbs 1.74 kg

12.59" 31.9 cm

15.18" 38.5 cm

3.31" 8.4 cm

3.85 lbs 1.74 kg

12.59" 31.9 cm

15.18" 38.5 cm

3.31" 8.4 cm

3.85 lbs 1.74 kg

12.59" 31.9 cm

15.18" 38.5 cm

3.31" 8.4 cm

3.85 lbs 1.74 kg

12.59" 31.9 cm

15.18" 38.5 cm

3.31" 8.4 cm

FEATURES • • • • • • • • • • •

• • •

Designed for the Getac A140 tablet computer Getac certified Getac certified electronics (DOCK) Docking station design accommodates rotating hand strap (sold separately) Designed with rounded edges to enhance personal safety Composite/aluminum design for reduced weight and durability Access to all tablet control buttons and ports while tablet is docked Upward-facing I/O ports; integrated cable strain relief and cable management system (DOCK) Floating docking connector for reliable connectivity in the most rugged environments (DOCK) Keyed-alike lock for theft deterrence Easy to use one-handed operation: • Insert bottom of computer into the docking station, push top of computer against latch lever until latch engages • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station VESA 75 mm mounting pattern MIL-STD 810G shock/vibration, RoHS, FCC, and SAE J1455 crash certifications 3-Year Limited Warranty

PORT REPLICATION (DOCK) • • • • • • • •

Getac certified electronics Ethernet (1) RJ45 Serial (1) D-Sub 9 Pin USB 2.0 (3) 4 Pin USB 3.0 (1) 9 Pin VGA (1) D-Sub 9 Pin HDMI (1) 19 Pin Headphones/Speakers - Stereo phone jack • Microphone - Mono phone jack • RF Pass Through (optional) SMA • Power Input: 19VDC

ACCESSORIES

44

ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0413

LIND 12-32V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0412

LIND 20-60V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0416

LIND 72-110V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5 in / 1.27 cm

2.5 in / 6.35 cm

6.5 in / 16.51 cm

7160-0799

Tablet Keyboard Mount

Attached between the dock and vehicle mount

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

7300-0482

Forklift Wiring Kit

-

1.2 lbs/ 0.5 kg

0.3 in/ 0.8 cm

12 in/ 30.8 cm

0.8 in/ 2.0 cm

C R A D L E S & D O C K I N G S TAT I O N S |

GETAC

GETAC F110 G6 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1584-00

Getac F110 G6 Vehicle Docking Station (No RF)

No RF

7160-1584-03

Getac F110 G6 Vehicle Docking Station (Tri RF)

Triple RF

7160-1642-00

Getac F110 G6 Vehicle Cradle (No electronics) (No RF)

No RF

7160-1642-03

Getac F110 G6 Vehicle Cradle (No electronics) (Tri RF)

Triple RF

FEATURES • • • • • • • • •

POWER SUPPLY No - Use LIND 12-32V Isolated Power Adapter (7300-0413), LIND 20-60V Isolated Power Adapter (7300-0412), LIND 72-110V Isolated Power Adapter (73000416)

Compatible with the Getac F110 G6 tablet & all previous versions of the F110 tablet Docking station accommodates the tablet's mag strip reader and rotating hand strap Access to all tablet control buttons and ports while the tablet is docked Downward-facing I/O ports; integrated cable strain relief and cable management system (DOCK) Floating docking connector for reliable connectivity in the most rugged environments (DOCK) Keyed lock for theft deterrenceComposite design for reduced weight and durability VESA 75mm mounting pattern MIL-STD 810G shock/vibration, RoHS, FCC, UKCA, Environmental Thermal Shock, Humidity, High/Low Temperature, Storage/Operational, EMI, and SAE J1455 crash certifications 3-Year Limited Warranty

WEIGHT

HEIGHT

WIDTH

DEPTH

2.88 lbs 1.31 kg

13.33" 33.86 cm

11.75" 29.85 cm

4.69" 11.91 cm

2.88 lbs 1.31 kg

13.33" 33.86 cm

11.75" 29.85 cm

4.69" 11.91 cm

2.58 lbs 1.17 kg

13.33" 33.86 cm

11.75" 29.85 cm

4.69" 11.91 cm

2.58 lbs 1.17 kg

13.33" 33.86 cm

11.75" 29.85 cm

4.69" 11.91 cm

PORT REPLICATION (DOCK) • • • • • • • • •

Getac certified electronics (1) Ethernet RJ45 (3) USB 2.0 (500mA) 4 pin (1) USB 3.0 (900mA) 9 pin (1) VGA D-sub 9 pin (1) HDMI 19 pin Tri RF Pass-through (optional) SMA Power input 19VDC (1 each) Speakers / Microphone

ACCESSORIES ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0413

LIND 12-32V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0412

LIND 20-60V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0416

LIND 72-110V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-1333

Forklift Power Supply Clamp

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0799-01

Tablet Keyboard Mount - Tall Backplate

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications Use with Getac F110 Docking Stations and Cradles

45

GETAC | C R A D L E S & D O C K I N G S TAT I O N S

GETAC K120 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1084-00

Getac K120 Tablet Docking Station, No RF

No RF

7160-1084-03

Getac K120 Tablet Docking Station, Tri RF

Triple RF

7160-1085-00

Getac K120 Tablet Cradle, No RF

No RF

7160-1085-03

Getac K120 Tablet Cradle, Tri RF

Triple RF

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

No - Use LIND 12-32V Isolated Power Adapter (7300-0413), LIND 20-60V Isolated Power Adapter (73000412), LIND 72-110V Isolated Power Adapter (7300-0416)

3.2 lbs 1.45 kg

11.63" 29.5 cm

13.19" 33.5 cm

4.38" 11.1 cm

3.2 lbs 1.45 kg

11.63" 29.5 cm

13.19" 33.5 cm

4.38" 11.1 cm

3.0 lbs 1.36 kg

11.63" 29.5 cm

13.19" 33.5 cm

4.38" 11.1 cm

3.0 lbs 1.36 kg

11.63" 29.5 cm

13.19" 33.5 cm

4.38" 11.1 cm

FEATURES • • • • • • • • • •

Designed for the Getac K120 tablet computer Getac certified Accommodates rotating hand strap (sold separately) Designed with rounded edges to enhance personal safety Composite/aluminum design for reduced weight and durability Access to all tablet control buttons and ports while tablet is docked Upward-facing I/O ports; integrated cable strain relief and cable management system Floating docking connector for reliable connectivity in the most rugged environments Optional lock (keyed alike) for theft deterrence Easy to use one-handed operation: • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station • VESA 75 mm mounting pattern • MIL-STD 810G shock/vibration, RoHS, FCC, and SAE J1455 crash certifications • 3-Year Limited Warranty

PORT REPLICATION • • • • • • • • •

Getac certified electronics Ethernet (2) RJ45 RS232 Serial D-sub 9 pin USB 2.0 (3) 4 Pin Forward-facing (2), Rear (1) USB 3.0 (3) 9 Pin VGA (1) D-Sub 9 Pin HDMI (1) 19 Pin RF Pass Through (optional) SMA Power Input: 19VDC

ACCESSORIES

46

ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0413

LIND 12-32V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, T800, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0412

LIND 20-60V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0416

LIND 72-110V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8" /2.0 cm

7160-0799

Tablet Keyboard Mount

Attached between the dock and vehicle mount

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

C R A D L E S & D O C K I N G S TAT I O N S |

GETAC

GETAC UX10 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1813-00

Getac UX10 Tablet Docking Station (NO RF)

No RF

7160-1813-03

Getac UX10 Tablet Docking Station (TRI RF-SMA)

Triple RF

7160-1815-00

Getac UX10 Tablet Cradle (NO RF)

No RF

7160-1815-03

Getac UX10 Tablet Cradle (TRI RF-SMA)

Triple RF

POWER SUPPLY No - Use LIND 1232V Isolated Power Adapter (7300-0413), LIND 20-60V Isolated Power Adapter (73000412), LIND 72-110V Isolated Power Adapter (7300-0416)

FEATURES

• Designed for the Getac UX10 tablet computer • Getac Certified • Accommodates the rotating hand strap with the extended battery, or the optional hard handle, RFID reader, smart card reader, and mag stripe reader. (sold separately) • Downward-facing I/O ports; integrated cable strain relief and cable management system • Floating POGO docking connector for reliable docking activation • Docking tabs align tablet during insertion • Designed with rounded edges to enhance personal safety • Composite/aluminum design for reduced weight and durability • Keyed lock for theft deterrence • Easy to use one-handed operation: • Insert bottom of computer into docking station, push top of computer against latch button until latch engages • To remove, push up on latch-button with thumb to disengage and pull computer out of docking station • VESA 75 mm mounting pattern • MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications • 3-Year Limited Warranty

WEIGHT

HEIGHT

WIDTH

DEPTH

2.15 lbs 0.97 kg

9.87 in 25.06 cm

11.25 in 28.57 cm

4.5 in 11.43 cm

2.15 lbs 0.97 kg

9.87 in 25.06 cm

11.25 in 28.57 cm

4.5 in 11.43 cm

2.0 lbs 90 kg

9.87 in 25.06 cm

11.25 in 28.57 cm

4.5 in 11.43 cm

2.0 lbs 90 kg

9.87 in 25.06 cm

11.25 in 28.57 cm

4.5 in 11.43 cm

PORT REPLICATOR • • • • •

Getac Certified Electronics RS232 Serial (1) D-sub 9 pin USB 2.0 (2) 4 Pin Forward-Facing (500mA) USB 3.0 (1) 4 Pin Rear-Facing (900mA) USB 3.0 (1) 4 Pin Rear-Facing, (1) Fast Charging (1500mA) • Ethernet RJ45 (1) • Power Input 19 VDC • Antenna TRI RF (SMA) (Optional)

ACCESSORIES ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0413

LIND 12-32V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0412

LIND 20-60V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0416

LIND 72-110V Material Handling Isolated Power Adapter

Use with Getac F110, K120, A140, and UX10 docking stations and cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-0950

10" Universal Tablet Protective Cover

Use with Getac UX10 Tablet Docking Station or Cradle

0.4 lbs 0.18 kg

15.0" 38.1 cm

13.0" 33.0 cm

4.0" 10.2 cm

7160-0982

Thermal Tablet Protective Cover

Use with Getac UX10 Tablet Docking Station or Cradle

1.15 lbs.

0.52 kg

14.25" 36.2 cm

12.75" 32.4 cm

3.5" 8.9 cm

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0799-01

Tablet Keyboard Mount - Tall Backplate

Use with Getac F110 Docking Stations and Cradles

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

47

GETAC | C R A D L E S & D O C K I N G S TAT I O N S

GETAC ZX10 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1675-00

Getac ZX10 Tablet Docking Station, No RF

No RF

7160-1675-03

Getac ZX10 Tablet Docking Station, Tri RF

Triple RF (SMA)

7160-1676-00

Getac ZX10 Tablet Cradle, No RF no electronics

No RF

7160-1676-03

Getac ZX10 Tablet Cradle, Tri RF no electronics

Triple RF (SMA)

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

No - Use LIND 12-32V Isolated Power Adapter (7300-0413), LIND 20-60V Isolated Power Adapter (7300-0412), LIND 72-110V Isolated Power Adapter (7300-0416)

2.6 lbs 1.18 kg

9.89" 25.12 cm

11.49" 29.19 cm

4.15" 10.54 cm

2.6 lbs 1.18 kg

9.89" 25.12 cm

11.49" 29.19 cm

4.15" 10.54 cm

2.4 lbs 1.09 kg

9.89" 25.12 cm

11.49" 29.19 cm

4.15" 10.54 cm

2.4 lbs 1.09 kg

9.89" 25.12 cm

11.49" 29.19 cm

4.15" 10.54 cm

FEATURES

• Getac certified electronics • Compatible with the Getac ZX10 tablet • Accommodates the tablet's card reader, extended battery, hand strap, stylus, barcode reader, and hard carry handle • Access to all tablet control buttons and ports while the tablet is docked • Docking connector gasket provides additional water resistance and protection • Downward-facing I/O ports; integrated cable strain relief and cable management system • Floating docking connector for reliable connectivity in the most rugged environments • One-hand docking and release for efficient use all day long • Keyed lock for theft deterrence • Gamber-Johnson rugged construction and reliability with composite design for reduced weight and durability • VESA 75mm mounting pattern • MIL-STD 810G shock/vibration, RoHS, FCC, CE, UKCA, Environmental Thermal Shock, Humidity, High/Low Temperature, and SAE J1455 crash certifications • 3-Year Limited Warranty

PORT REPLICATOR

• Getac certified electronics • (2) Full Powered USB 2.0 (1.5A Output) 4 pin • Power supply input 19 VDC • Headphone / Microphone (1 each) • RF Pass-through (optional)

ACCESSORIES

48

ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0413

LIND 12-32V Material Handling Isolated Power Adapter

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0412

LIND 20-60V Material Handling Isolated Power Adapter

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0416

LIND 72-110V Material Handling Isolated Power Adapter

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-0950

10" Universal Tablet Protective Cover

0.4 lbs 0.18 kg

15.0" 38.1 cm

13.0" 33.0 cm

4.0" 10.2 cm

7160-0982

Thermal Tablet Protective Cover

1.15 lbs.

0.52 kg

14.25" 36.2 cm

12.75" 32.4 cm

3.5" 8.9 cm

7160-1333

Forklift Power Supply Clamp Forklift Wiring Kit

0.5" / 1.27 cm 0.3"/ 0.8 cm

2.5" / 6.35 cm 12"/ 30.8 cm

5.75" / 14.61 cm

7300-0482

1.7 lbs / 0.77 kg 1.2 lbs/ 0.5 kg

7160-0799

Tablet Keyboard Mount

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

0.8"/ 2.0 cm 10.0 in / 25.4 cm

C R A D L E S & D O C K I N G S TAT I O N S |

GETAC

GETAC ZX70 TABLET CHARGING CRADLE ITEM NO.

DESCRIPTION

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1135-00

Cradle (No Electronics) only

No - Use Isolated Power Supply (7300-0466 or 7300-0467)

0.90 lbs 0.4 kg

7.6" 19.3 cm

8.8" 22.5 cm

3.1" 7.9 cm

7160-1135-01

Charging Cradle (with POGO Pin Connector)

No - Use Isolated Power Supply (7300-0466 or 7300-0467)

0.90 lbs 0.4 kg

7.6" 19.3 cm

8.8" 22.5 cm

3.1" 7.9 cm

7170-0686-11

Powered Charging Cradle with 12-32V Isolated Power Adapter

Yes - Includes External 12-32VDC Isolated Power Supply tor Material Handling

1.91 lbs 0.86 kg

7.6" 19.3 cm

8.8" 22.5 cm

3.1" 7.9 cm

7170-0686-21

Powered Charging Cradle with 20-60V Isolated Power Adapter

Yes - Includes External 20-60VDC Isolated Power Supply tor Material Handling

1.91 lbs 0.86 kg

7.6" 19.3 cm

8.8" 22.5 cm

3.1" 7.9 cm

FEATURES

• Designed for the Getac ZX70 tablet computer and backwards compatible with the Getac Z710 computer • Getac Certified utilizing Getac Certified electronics • Cradle design accommodates rotating hand strap (sold separately) • Designed with rounded edges to enhance personal safety • Composite/aluminum design for reduced weight and durability • Access to all tablet control buttons and USB port while tablet is cradled • POGO charging connector for reliable connectivity in the most rugged environments • Optional lock (keyed alike) for theft deterrence • Easy to use one-handed operation: Insert bottom of computer into the cradle, push top of computer against latch button until latch engages. To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle.

• VESA 75 mm mounting pattern • MIL-STD 810G shock/vibration, RoHS, FCC, and SAE J1455 crash certifications • 3-Year Limited Warranty

PORT REPLICATOR

• Getac certified electronics • POGO charging connector

ACCESSORIES ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0466

12-32VDC Material Handling Isolated Power Adapter

1.01 lbs 0.45 kg

12" 3.0 cm

2.5" 6.3 cm

5.1" 13.0 cm

7300-0467

20-60VDC Material Handling Isolated Power Adapter

1.01 lbs 0.45 kg

12" 3.0 cm

2.5" 6.3 cm

5.1" 13.0 cm

7300-0418

Lind 72-110V Material Handling Isolated Power Adapter

1.6 lbs / 0.74 kg

1.15 in / 2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7160-1333

Forklift Power Supply Clamp

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7160-0799

Tablet Keyboard Mount

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

7300-0482

Forklift Wiring Kit

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

49

GETAC | C R A D L E S & D O C K I N G S TAT I O N S

GETAC ZX80 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1936-03

Getac ZX80 Tablet Docking Station (TRI RF)

Tri RF

7160-1936-00

Getac ZX80 Tablet Docking Station (NO RF)

No RF

7160-1937-03

Getac ZX80 Tablet Cradle (TRI RF)

Tri RF

7160-1937-00

Getac ZX80 Tablet Cradle (NO RF)

No RF

FEATURES

• Getac certified electronics • Slim profile takes up minimal mounting space • Built-in stylus holder provides convenient storage and access for stylus tools (stylus not included) • Docking station accommodates the ZX80 tablet’s extended battery and 2-point hand strap accessories • Patented slam-latch system allows for easy, one-handed docking/undocking • Keyed lock for theft deterrence • Composite design for reduced weight and durability • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments • 3-year Limited Lifetime Warranty

50

WEIGHT

HEIGHT

WIDTH

DEPTH

1.4 lbs / 0.64 kg

9.2 in / 23.37 cm

8.3 in / 21.08 cm

2.9 in / 7.37 cm

PORT REPLICATOR • • • • •

(1) Ethernet (RJ45) ports (1) Serial (RS232) (2) USB-A Power Input – 19 VDC RF pass through (optional) SMA

C R A D L E S & D O C K I N G S TAT I O N S |

HONEYWELL

HONEYWELL SCANPAL EDA10A DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

WEIGHT

7160-2018

Honeywell ScanPal EDA10A Tablet Cradle

No RF

3.1 lbs / 1.41 kg

7160-2017-00

Honeywell ScanPal EDA10A Docking Station w/ Bare Wire

No RF

7160-2017-02

Honeywell ScanPal EDA10A Docking Station w/ Cigarette Connector

No RF

7160-2017-04

Honeywell ScanPal EDA10A Docking Station w/ 2.5mm DC Power Jack

No RF

FEATURES

• Perfect Fit: Engineered exclusively for the ScanPal EDA10A, delivering a secure and reliable hold for worryfree operation.

• Integrated Charging: POGO pin connector powers and charges the tablet while docked, keeping devices ready for the next task.

• Peripheral Connectivity: Includes dual USB-A ports for seamless integration with scanners, keyboards, and other accessories.

• Effortless Access: Maintain full access to the tablet’s control buttons, camera, and ports while securely docked.

• Compatibility: Requires the Honeywell Rubber Boot for the ScanPal EDA10A to ensure proper functionality.

• Patented Slam Latch: One-handed docking and release mechanism for fast, efficient workflow throughout the day.

• Enhanced Security: Barrel key lock deters theft and unauthorized removal.

• Lightweight Durability: Constructed with a composite design to reduce weight without compromising strength.

• Flexible Mounting: Features a VESA 75mm mounting pattern and is fully compatible with Zirkona mounting products for versatile installation in vehicles, workstations, and carts.

• Built to Withstand Tough Environments: Crafted from industrial-grade materials, ensuring reliable performance in warehouses, vehicles, and field operations.

• Quick & Secure Docking: Streamlined design allows for fast, secure docking and undocking, minimizing downtime during transitions.

• 3-year Limited Lifetime Warranty

3.4 lbs / 1.54 kg

HEIGHT

WIDTH

DEPTH

7 in / 17.78 cm

14 in / 35.56 cm

15 in / 38.1 cm

PORT REPLICATOR

• Dual USB 2.0 - 1.5 A

51

PANASONIC | C R A D L E S & D O C K I N G S TAT I O N S

PANASONIC TOUGHBOOK® A3 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-1416-00

Panasonic Toughbook® A3 Tablet Docking Station (NO RF)

No RF

7160-1416-02

Panasonic Toughbook® A3 Tablet Docking Station (DUAL RF)

Dual RF

7160-1417-00

Panasonic Toughbook® A3 Tablet Cradle (No electronics, NO RF)

No electronics No RF

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

No - Use LIND 12-32V Isolated Power Adapter (7300-0464), LIND 20-60V Isolated Power Adapter (7300-0465), LIND 72-110V Isolated Power Adapter (73000417)

2.15 lbs 0.98 kg

10.28" 26.11 cm

11.33" 28.78 cm

4.59" 11.66 cm

2.15 lbs 0.98 kg

10.28" 26.11 cm

11.33" 28.78 cm

4.59" 11.66 cm

2.0 lbs .90 kg

10.28" 26.11 cm

11.33" 28.78 cm

4.59" 11.66 cm

FEATURES • • • • • • • • •

• • •

Compatible with the Panasonic Toughbook A3 tablet computer Panasonic Toughbook Certified Accommodates the A3 tablet hand strap with the extended battery Tablet control buttons and ports are easily accessible while the tablet is docked Downward-facing I/O ports for integrated cable strain relief and cable management system Optional dual RF antenna pass through for reliable connectivity Designed with rounded edges to enhance personal safety Keyed lock for theft deterrence Easy to use one-handed operation: • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages to secure device • To undock and remove, push up on latch-button with thumb to disengage and pull device out of the docking station VESA 75 mm mounting pattern MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications 3-Year Limited Warranty

PORT REPLICATION (DOCK) • • • •

Fully Powered USB 2.0 (2) Ethernet (1) Power Input External Antenna Switch

ACCESSORIES

52

ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0464

LIND 12-32V Material Handling Isolated Power Adapter

Use for the Panasonic Toughbook A3 Docking Station or Cradle

2.2 lbs 1.0 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0465

LIND 20-60V Material Handling Isolated Power Adapter

Use for the Panasonic Toughbook A3 Docking Station or Cradle

2.2 lbs 1.0 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0417

LIND 72-110V Material Handling Isolated Power Adapter

Use for the Panasonic Toughbook A3 Docking Station or Cradle

2.2 lbs 1.0 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-0950

10" Universal Tablet Protective Cover

Use with Panasonic A3 Tablet Docking Station

0.4 lbs 0.18 kg

15.0" 38.1 cm

13.0" 33.0 cm

4.0" 10.2 cm

7160-0982

Thermal Tablet Protective Cover

Use with Panasonic Toughbook A3 Docking Stations and Cradles

1.15 lbs.

0.52 kg

14.25" 36.2 cm

12.75" 32.4 cm

3.5" 8.9 cm

7160-1333

Forklift Power Supply Clamp

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0799

Tablet Keyboard Mount

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications Attached between the dock and vehicle mount.

PANASONIC

C R A D L E S & D O C K I N G S TAT I O N S |

PANASONIC TOUGHPAD® FZ-G1/TOUGHBOOK® G2 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-0487-00

Panasonic Toughbook® G2 / Toughpad G1 Docking Station, No RF, VESA Hole Pattern

No

7160-0487-02

Panasonic Toughbook® G2 / Toughpad G1 Docking Station, Dual RF, VESA Hole Pattern

Dual RF (TNC)

7160-0490-00

Panasonic Toughbook® G2 / Toughpad G1 Cradle (No electronics), VESA Hole Pattern

POWER SUPPLY

HEIGHT

WIDTH

DEPTH

2.5 lbs 1.1 kg

9.1" 23.1 cm

11.2" 28.4 cm

3.8" 9.7 cm

2.5 lbs 1.1 kg

9.1" 23.1 cm

11.2" 28.4 cm

3.8" 9.7 cm

2.5 lbs 1.1 kg

9.1" 23.1 cm

11.2" 28.4 cm

3.8" 9.7 cm

No - Use LIND 12-32V Isolated Power Adapter (73000464), LIND 20-60V Isolated Power Adapter (7300-0465), LIND 72-110V Isolated Power Adapter (7300-0417)

FEATURES • • • • • • • • • • • •

WEIGHT

PORT REPLICATION (DOCK)

Designed for the Panasonic Toughpad FZ-G1/G2 tablet computer Panasonic Toughbook Certified Accommodates extended battery, smart card reader, rear hand strap and bumper guards Composite design for reduced weight and durability Designed with rounded edges to enhance personal safety Top-facing I/O ports; integrated cable strain relief and cable management system Optional dual RF antenna pass through for reliable connectivity Access to all tablet control buttons and ports while the tablet is docked Keyed lock for theft deterrence VESA 75 mm mounting pattern MIL-STD 810G shock/vibration, RoHS, FCC, and SAE J1455 crash certifications 3-Year Limited Warranty

• Panasonic certified electronics • Ethernet RJ45 Fully powered USB 3.0 (2) 9 Pin • Serial (1) D-Sub 9 Pin • Video (2) • VGA D-Sub 15 Pin • HDMI 19 Pin • RF pass-through (optional) TNC • Power supply input DC

ACCESSORIES ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0950

10" Universal Tablet Protective Cover

Use with Panasonic G1/G2 Tablet Docking Station or Cradle

0.4 lbs 0.18 kg

15.0" 38.1 cm

13.0" 33.0 cm

4.0" 10.2 cm

7300-0464

LIND 12-32V Material Handling Isolated Power Adapter

For use with the Panasonic G1/G2 Docking Stations and Cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0465

LIND 20-60V Material Handling Isolated Power Adapter

For use with the Panasonic G1/G2 Docking Stations and Cradles

1.56 lbs 0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0417

LIND 72-110V Material Handling Isolated Power Adapter

For use with the Panasonic G1/G2 Docking Stations and Cradles

2.2 lbs 1.0 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-0982

Thermal Tablet Protective Cover

Use with Panasonic G1/G2 Docking Stations and Cradles

1.15 lbs.

0.52 kg

14.25" 36.2 cm

12.75" 32.4 cm

3.5" 8.9 cm

7160-1333

Forklift Power Supply Clamp

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

Clamp your power supply to the over1.7 lbs / head guard leg for ease of accessibility 0.77 kg and keep it out of the way.

15 feet of 12 gauge (AWG) wire (red and 1.2 lbs/ 0.5 black) for handling longer wire runs and kg varied power applications

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0799

Tablet Keyboard Mount

Attached between the dock and vehicle mount

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

4.25 lbs / 1.93 kg

53

PANASONIC | C R A D L E S & D O C K I N G S TAT I O N S

PANASONIC TOUGHBOOK® 33 TABLET DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

7160-0907-06

Panasonic Toughbook 33 Tablet Docking Station, Lite Port, No RF

No

7160-0907-07

Dual RF (TNC)

7160-0907-00

Panasonic Toughbook 33 Tablet Docking Station, Lite Port, Dual RF Panasonic Toughbook 33 Tablet Docking Station, Full Port, No RF

7160-0907-02

Panasonic Toughbook 33 Tablet Docking Station, Full Port, Dual RF

Dual RF (TNC)

7160-0908-00

Panasonic Toughbook 33 Tablet Cradle (No Electronics), No RF

No

No

POWER SUPPLY

No - Use LIND Power Supply (73000461)

No - Use LIND 120W Bare Wire Leads Power Supply (73000461)

FEATURES • • • • • • • • • • • •

• • •

Compatible with Panasonic 33 Toughbook Panasonic Toughbook Certified utilizing Panasonic Certified electronics Accommodates either the Toughbook 33 tablet’s hand strap or an additional battery pack Can be mounted in horizontal or vertical position Internal/protected circuit board protects against dirt and dust Floating docking connector for reliable docking connection Designed with rounded edges to enhance personal safety Optional dual RF antenna pass through for reliable connectivity Optional lock for theft deterrence Optional cradle version (no electronics) Use LIND 120W automobile power adapter (7300-0462) or LIND 120 W bare wire leads power adapter (7300-0461) Easy to use one-handed operation: • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station VESA 75 mm mounting pattern MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications 3-Year Limited Warranty

WEIGHT

HEIGHT

WIDTH

DEPTH

4.2 lbs 1.9 kg

12.5" 31.7 cm

13.25" 33.6 cm

4.5" 11.4 cm

4.2 lbs 1.9 kg

12.5" 31.7 cm

13.25" 33.6 cm

4.5" 11.4 cm

4.2 lbs 1.9 kg

12.5" 31.7 cm

13.25" 33.6 cm

4.5" 11.4 cm

4.2 lbs 1.9 kg

12.5" 31.7 cm

13.25" 33.6 cm

4.5" 11.4 cm

4.2 lbs 1.9 kg

12.5" 31.7 cm

13.25" 33.6 cm

4.5" 11.4 cm

PORT REPLICATION (LITE DOCK • • • • • • •

Panasonic certified electronics Serial (1) D-Sub 9-pin USB 2.0 (4) 4 Pin (2) front, (2) rear USB 3.0 (2) 9 Pin Ethernet (2) RJ45 Antenna switch Power supply input 16VDC

PORT REPLICATION (FULL DOCK • • • • • • • • •

Panasonic certified electronics Serial (1) D-Sub 9-pin VGA (1) D-Sub 9-pin USB 2.0 (4) 4 Pin (2) front, (2) rear USB 3.0 (2) 9 Pin HDMI (1) 19 Pin Ethernet (2) RJ45 Antenna switch Power supply input 16VDC

ACCESSORIES

54

ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7300-0464

LIND 12-32V Material Handling Isolated Power Adapter for Panasonic

Provides regulated power to docking stations and cradles for the Panasonic Toughbook 18/19/20, and Toughpad B2, E1, G1, M1 and X1s

1.56 lbs / 0.52 kg

1.15 in / 2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7300-0465

LIND 20-60V Material Handling Isolated Power Adapter for Panasonic

Provides regulated power to the docking stations and/or cradles for the Panasonic Toughbook 18/19/20, and Toughpad G1, M1/B2 and E1/X1

1.56 lbs / 0.52kg

1.15 in / 2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7300-0417

LIND 72-110V Material Handling Isolated Power Adapter for Panasonic

Provides regulated power to the docking stations an cradles for the Panasonic Toughbook 18/19/20, N1, and Toughpad A2, G1, M1/B2 and E1/X1

1.15 lbs / 0.522 kg

1.15 in /2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7160-0799-01

Tablet Keyboard Mount Tall Backplate

Attached between the dock and vehicle mount

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

C R A D L E S & D O C K I N G S TAT I O N S |

PANASONIC

PANASONIC TOUGHBOOK® 33 TABLET TRIMLINE™ TABLET DOCKING STATION ITEM NO.

DESCRIPTION

ANTENNA PASSTHROUGH

POWER SUPPLY

7300-0196-00

TrimLine™ Panasonic Toughbook 33 Tablet Docking Station, Lite Port, No RF

No

No - Use LIND 120W Power Adapter (7300-0197)

6.0 lbs 2.7 kg

7300-0196-02

TrimLine™ Panasonic Toughbook 33 Tablet Docking Station, Lite Port, Dual RF

Yes

No -Use LIND 120W Power Adapter (7300-0197)

6.0 lbs 2.7 kg

7300-0196-20

TrimLine™ Panasonic Toughbook 33 Tablet Docking Station, Full Port, No RF

No

No - Use LIND 120W Power Adapter (7300-0197)

6.0 lbs 2.7 kg

7300-0196-22

TrimLine™ Panasonic Toughbook 33 Tablet Docking Station, Full Port, Dual RF

Yes

No - Use LIND 120W Power Adapter (7300-0197)

6.0 lbs 2.7 kg

7300-0195-00

TrimLine™ Panasonic Toughbook 33 Tablet Cradle

No

No - Use LIND Power Adapter (7300-0197)

5.9 lbs 2.7 kg

FEATURES • • • • • • • • • • • •

Designed for the Panasonic Toughbook 33 tablet computer Panasonic Toughbook Certified utilizing Panasonic Certified electronics CNC machined aluminum construction for rugged reliability Space saving and ergonomic design improves safety and comfort Top mounted USB ports allow compatibility with Clam Shell mounts Floating protected docking connector for years of reliable connectivity Available with power indicator light when purchased with PSU Available with or without dual RF pass-through Available in “Lite” or “Full” port replication (with or without VGA and HDMI connections) Integrated cable strain relief Keyed lock for theft deterrence Easy, one-handed operation: • To dock: Unlock. Lead the bottom of the tablet into the dock using the guide pins for positioning. Push the top of the tablet back into the dock. until top clamp is fully seated on tablet.

• To release: Unlock. Move the top clamp up and away from the tablet. Gently lift the tablet out of the dock • VESA 75 mm mounting pattern • MIL-STD 810G shock/vibration, RoHS, FCC, and SAE J1455 crash certifications • Limited Lifetime Warranty on structural components, 3-Year Limited Warranty on electronics

WEIGHT HEIGHT

10.8" 27.4 cm

WIDTH

DEPTH

12.3" 31.4 cm

3" 7.6 cm

PORT REPLICATOR • • • • • • •

Panasonic certified electronics Ethernet (2) RJ45 Serial (1) D-Sub 9 Pin USB 3.0 (2) 9 Pin USB 2.0 (4) 4 Pin HDMI (optional on “Full” dock 19 Pin VGA (optional on “Full” dock D-Sub 15 Pin • RF Pass Through (optional) Dual RF (TNC) • Power Input: 16 VDC

ACCESSORIES ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7300-0464

LIND 12-32V Material Handling Isolated Power Adapter for Panasonic

Provides regulated power to docking stations and cradles for the Panasonic Toughbook 18/19/20, and Toughpad B2, E1, G1, M1 and X1s

1.56 lbs / 0.52 kg

1.15 in / 2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7300-0465

LIND 20-60V Material Handling Isolated Power Adapter for Panasonic

Provides regulated power to the docking stations and/or cradles for the Panasonic Toughbook 18/19/20, and Toughpad G1, M1/B2 and E1/X1

1.56 lbs / 0.52kg

1.15 in / 2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7300-0417

LIND 72-110V Material Handling Isolated Power Adapter for Panasonic

Provides regulated power to the docking stations an cradles for the Panasonic Toughbook 18/19/20, N1, and Toughpad A2, G1, M1/B2 and E1/X1

1.15 lbs / 0.522 kg

1.15 in /2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7160-0799-01

Tablet Keyboard Mount Tall Backplate

Attached between the dock and vehicle mount

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

55

SAMSUNG | C R A D L E S & D O C K I N G S TAT I O N S

SAMSUNG GALAXY TAB ACTIVE2/3/5 DUAL USB DOCKING STATION DESCRIPTION

DESCRIPTION

ANTENNA PASSTHROUGH

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1368-00

Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with Bare Wire

No

1.1Ibs 0.5kg

6.7" 17.1cm

9.3" 23.6cm

1.5" 3.8 cm

7160-1368-20

Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with Cigarette Lighter Connector

No

1.1Ibs 0.5kg

6.7" 17.1cm

9.3" 23.6cm

1.5"/ 3.8 cm

7160-1368-30

Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with MP205 Connector

No

1.1Ibs 0.5kg

6.7" 17.1cm

9.3" 23.6cm

1.5"/ 3.8 cm

7170-0765-32

Kit Includes: Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with 12-32V Isolated Power Adapter

Yes

1.1Ibs 0.5kg

6.7" 17.1cm

9.3" 23.6cm

1.5"/ 3.8 cm

7170-0765-33

Kit Includes: Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with 20-60V Isolated Power Adapter

Yes

1.1Ibs 0.5kg

6.7" 17.1cm

9.3" 23.6cm

1.5"/ 3.8 cm

7170-0765-34

Kit Includes: Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with 70-110V Isolated Power Adapter

Yes

1.1Ibs 0.5kg

6.7" 17.1cm

9.3" 23.6cm

1.5"/ 3.8 cm

FEATURES • • • • • • • • • • • • • • •

PORT REPLICATION (DOCK)

Designed for the Samsung Galaxy Tab Active2/3/5 rugged tablet with rugged case • (2) USB 1.1 1.5A each Dual powered USB ports; 1.5A for each port for connecting peripheral devices Access to all control buttons, camera, ports and stylus while the tablet is safely docked POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked Input voltage range is 10V-40V for added power Push-button lock with key for theft deterrence Composite design for reduced overall weight Approximately 6' (182.88 cm) power cable with bare wire end Can be mounted on a flat vertical surface Simple, one-handed cradle operation: Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages Push latch button up with your thumb then remove the tablet from the docking station VESA 75 mm and AMPS mounting pattern making it easily compatible with Zirkona products and more MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications 3-Year Limited Warranty

ACCESSORIES

56

ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1606

Samsung Galaxy Tab Active2/3/5 Tablet Protective Cover

Secured between Samsung Galaxy Tab Active2/3/5Tablet Cradle/Dock and Mount

0.9 lbs 0.4 kg

7.8" 19.8 cm

13.5" 34.3 cm

2.5" 6.4 cm

7160-1607

Thermal Pad Insert Thermal Pad Insert

Velcros into 7160-1606 Samsung Tab Active2/Tab Active3 Protective Cover

0.4 lbs 0.1 kg

1.0" 2.5 cm

21.0" 53.3 cm

0.9" 2.3 cm

7300-0512-3

Samsung Tab Active2/Tab Active3 Replacement Screen

Attaches to existing Samsung Tab Active2/Tab Active3 Protective Cover (7160-1606)

0.1 lbs 0.1 kg

6.9" 17.5 cm

13.5" 34.3 cm

0.2" 0.5 cm

7170-0909

Samsung TA2 Protective Cover with Thermal Insert Kit

Secured between Samsung Tab Avtive2/Tab Active3 Tablet Cradle/Dock and Mount

0.9 lbs 0.41 kg

7.8 in 19.81 cm

13.5 in 34.29 cm

2.5 in 6.35 cm

7300-0473

Lind 20-60V Material Handling Isolated Power Adapter with MP205 Connector

-

1.56 lbs / 0.52 kg

1.15 in / 2.92 cm

9.3 in / 23.6 cm

3.0 in / 7.62 cm

7300-0447

Lind 12-32V Material Handling Isolated Adapter - MP-205 connector

-

-

-

-

-

7300-0448

Lind 72-110V Material Handling Isolated Adapter - MP-205 connector

-

-

-

-

-

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0799

Tablet Keyboard Mount

Attached between the dock and vehicle mount.

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10 in / 25.4 cm

C R A D L E S & D O C K I N G S TAT I O N S |

SAMSUNG

SAMSUNG GALAXY TAB ACTIVE PRO/4 PRO DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

POWER ADAPTER INCLUDED

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1418-00

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with Bare Wire Lead

No

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7160-1418-30

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with MP205 Connector

No

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7160-1418-50

Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station with 2.5mm Connector

No

1.3 lbs. / .58 kg

8.5 in / 21.5 cm

10.5 in / 26.6 cm

2.5 in / 6.35 cm

7170-0697-00

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with Hand Strap

No

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7170-0697-32

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with 12-32V Isolated Power Adapter

Yes

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7170-0697-33

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with 20-60V Isolated Power Adapter

Yes

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7170-0697-34

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with 70110V Isolated Power Adapter

Yes

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7170-0698-00

Samsung Galaxy Tab Active Pro/4 Pro Docking Station with Hand Strap, Rugged Lite Keyboard with Quick Release Keyboard Tray

No

1.3 Ibs 0.58 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7170-0698-01

KIT: Samsung Galaxy Tab Active Pro/4 ProDocking Station, Samsung 2-in-1 Attachable Keyboard, Rugged Lite Keyboard, and Quick Release Keyboard Cradle

Yes

-

-

-

-

7160-1418-90

Samsung Galaxy Tab Active Pro/4 Pro Cradle (No Electronics)

-

1.1 Ibs 0.46 kg

8.5" 21.5 cm

10.5" 26.6 cm

2.5" 6.35 cm

7160-1804

Wire harness – 2.5mm jack with 10 amp in-line fuse

-

.5 lbs .22 kg

.5” 1.27 cm

6” 1.52 cm

6” 1.52 cm

FEATURES • • • • • • • • • • •

• • •

PORT REPLICATION (DOCK)

Designed for the Samsung Galaxy Tab Active Pro 10" rugged tablet with rugged case • (2) USB 2.0 1.5A each Dual powered USB ports; 1.5A for each port for connecting peripheral devices 10-40V power input range to support a wide range of mobile applications Access to all control buttons, camera, ports and stylus while the tablet is safely docked Design is compatible with Samsung’s built-in Near Field Communication (NFC) allowing users to easily scan NFC cards while the Samsung tablet is in the docking station POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked Composite design for reduced overall weight Can be mounted on a flat vertical surface Push-button lock with key for theft deterrence Approximately 66" (167.6 cm) power cable with bare wire end Simple, one-handed cradle operation: • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages • Push latch button up with your thumb then remove the tablet from the docking station VESA 75 mm mounting pattern making it easily compatible with Zirkona products and more MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications 3-Year Limited Warranty

57

ZEBRA | C R A D L E S & D O C K I N G S TAT I O N S

ZEBRA ET40/45 8" AND 10" SLIM DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

7160-1801-00

Zebra ET4X 8" SLIM Dual USB Docking Station (Bare Wire)

7160-1801-04

Zebra ET4X 8” SLIM Dual USB Docking Station (2.5mm DC Power Jack) Power Supply NOT Included

7160-1807-00

Zebra ET4X 10” SLIM Dual USB Docking Station (Bare Wire)

7160-1807-04

Zebra ET4X 10” SLIM Dual USB Docking Station (2.5mm DC Power Jack) Power Supply NOT Included

7160-1801-90

Zebra ET4X 8” SLIM Cradle (no electronics)

7160-1807-90

Zebra ET4X 10” SLIM Cradle (no electronics)

POWER SUPPLY WEIGHT

HEIGHT

WIDTH

DEPTH

1.3 lbs / 0.59 kg

9 in / 22.86 cm

7.75 in / 19.69 cm

2.8 in / 7.11 cm

1.3 lbs / 0.59 kg

9 in / 22.86 cm

7.75 in / 19.69 cm

2.8 in / 7.11 cm

1.3 lbs / 0.59 kg

10.1 in / 25.65 cm

7.75 in / 19.69 cm

2.8 in / 7.11 cm

1.3 lbs / 0.59 kg

10.1 in / 25.65 cm

7.75 in / 19.69 cm

2.8 in / 7.11 cm

-

1.3 lbs / 0.59 kg

9 in / 22.86 cm

7.75 in / 19.69 cm

2.8 in / 7.11 cm

-

1.3 lbs / 0.59 kg

10.1 in / 25.65 cm

7.75 in / 19.69 cm

2.8 in / 7.11 cm

See list of accessories to find your power supply

FEATURES • • • • •

• • • • • • •

Dual USB ports; 1.5A for each port for connecting peripheral devices Zebra’s rugged frame is required in order to work with docking station 10-40V power input range to support a wide range of mobile applications All features on tablet are functional while the tablet is safely docked Simple, one-handed docking and release operation: • Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.

• Push latch button up with your thumb then remove the tablet from the docking station.

POGO pin connector and internal power supply provides power to charge the Zebra tablet while docked Barrel Key lock for theft deterrence VESA 75mm mounting pattern; compatible with Zirkona mounting products Can be mounted on a flat vertical surface Composite design to reduce overall weight 3 Year Limited Warranty Extended Warranty/Gamber Guard Options Available

PORT REPLICATION (DOCK)

• (2) USB 2.0 - each with 1.5A power

ACCESSORIES ITEM NO.

58

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0472

LIND AC 12V Material Handling Power Adapter, Output 60W to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, ET40/45

0.85 lbs.

0.39kg

1.25" 3.18 cm

5.0" 12.7 cm

2.4" 6.1 cm

7300-0418

LIND 72-110V Material Handling Isolated Power Adapter with Bare Wire Lead. Output Voltage 12Vdc, Output Current 3.5 Amps to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, TC8000/TC8300, ET40/45

1.6 lbs.

0.74 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0467

LIND 20-60V Material Handling Isolated Power Adapter with Bare Wire Lead. Output Voltage 12Vdc, Output Current 3.5 Amps to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, TC8000/TC8300, ET40/45

1.56 lbs.

0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0466

LIND 12-32V Material Handling Isolated Power Adapter with Bare Wire Lead. Output Voltage 12Vdc, Output Current 3.5 Amps to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, TC8000/TC8300, ET40/45

1.56 lbs.

0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7160-1333

Forklift Power Supply Clamp

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

7300-0482

Forklift Wiring Kit

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0799

Tablet Keyboard Mount

Attached between the dock and vehicle mount.

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

7160-1804

Wire harness – 2.5mm jack with 10 amp in-line fuse

15’ wire harness with 2.5mm jack for attaching directly to 12vdc battery on gas powered vehicles

.5 lbs .22 kg

.5” 1.27 cm

6” 1.52 cm

6” 1.52 cm

C R A D L E S & D O C K I N G S TAT I O N S |

ZEBRA

ZEBRA ET60/65 10" SLIM DOCKING STATION/CRADLE ITEM NO. 7160-1885-00 7160-1886-00

DESCRIPTION

WEIGHT

Zebra ET6X 10” SLIM Docking Station, No RF

2 lbs / 0.91 kg

Zebra ET6X 10” SLIM Cradle

1.8 lbs / 0.82 kg

HEIGHT

WIDTH

DEPTH

9.9 in / 25.15 cm

11.1 in / 28.19 cm

3.1 in / 7.87 cm

FEATURES • • • • • • • • • • • •

Designed for the Zebra ET60 and ET65 rugged tablet computer Patented Slam Latch for one-handed docking and release for efficient use all day long Accommodates the Zebra ET6X attachable keyboard All features on tablet are accessible while the tablet is safely docked Simple, one-handed docking and release operation Barrel Key lock for theft deterrence Composite design for reduced overall weight Molded in cable restraint features for streamlined cable management VESA 75mm mounting pattern; compatible with Zirkona mounting product Can be mounted on a flat vertical surface 3 Year Limited Warranty Extended Warranty/Gamber Guard Options Available

59

ZEBRA | C R A D L E S & D O C K I N G S TAT I O N S

ZEBRA ET80/85 SERIES SLIM DOCKING STATION ITEM NO.

DESCRIPTION

7160-1787-00

Zebra ET80/85 SLIM Dual USB Docking Station (no RF)

7160-1787-03

Zebra ET80/85 SLIM Dual USB Docking Station (Tri RF)

POWER SUPPLY

See list of accessories to find your power supply

FEATURES

WEIGHT

HEIGHT

WIDTH

DEPTH

2.25 lbs / 1.02 kg

11.1 in / 28.19 cm

12.8 in / 32.51 cm

3.1 in / 7.87 cm

2.25 lbs / 1.02 kg

11.1 in / 28.19 cm

12.8 in / 32.51 cm

3.1 in / 7.87 cm

PORT REPLICATION

• • • • • • • • • • •

Compatible with the Zebra ET80/85 Rugged tablet computer • (2) USB 2.0 - each with 1.5A power Tablet’s rugged frame is required in order to work with docking station Access to all tablet control buttons and ports while the tablet is docked Dock compatible with Keyboard Slim design Patented Slam Latch for one-hand docking and release for efficient use all day long (2) USB 2.0 - each with 1.5A power Keyed lock for theft deterrence Gamber-Johnson's rugged construction and reliability Composite design for reduced weight and durability VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with GamberJohnson mounts and motion attachments • Downward-facing I/O ports; integrated cable strain relief and cable management system • 3 Year Limited Warranty

ACCESSORIES

60

ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0472

LIND AC 12V Material Handling Power Adapter, Output 60W to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, ET40/45, ET80/85

0.85 lbs.

0.39kg

1.25" 3.18 cm

5.0" 12.7 cm

2.4" 6.1 cm

7300-0418

LIND 72-110V Material Handling Isolated Power Adapter with Bare Wire Lead. Output Voltage 12Vdc, Output Current 3.5 Amps to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, TC8000/ TC8300, ET40/45, ET80/85

1.6 lbs.

0.74 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0467

LIND 20-60V Material Handling Isolated For Use with the Following Zebra Power Adapter with Bare Wire Lead.

Docking Stations and Cradles: Output Voltage 12Vdc, Output Current Zebra ET50/55, ET51/56, TC8000/ 3.5 Amps to Barrel Connector Plug TC8300, ET40/45, ET80/85

1.56 lbs.

0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0466

LIND 12-32V Material Handling Isolated For Use with the Following Zebra Power Adapter with Bare Wire Lead.

Docking Stations and Cradles: Output Voltage 12Vdc, Output Current Zebra ET50/55, ET51/56, TC8000/ 3.5 Amps to Barrel Connector Plug TC8300, ET40/45, ET80/85

1.56 lbs.

0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

5.5 lbs / 2.49 kg

14.75 in / 37.47 cm

9.5 in / 24.13 cm

12 in / 30.48 cm

7160-1333

Forklift Power Supply Clamp

7300-0482

Forklift Wiring Kit

7160-079901

Tablet Keyboard Mount - Tall Backplate

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications Attached between the dock and vehicle mount

ZEBRA

C R A D L E S & D O C K I N G S TAT I O N S |

ZEBRA TC22/TC27 CRADLE ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1856

Zebra TC22/TC27 Cradle (No Electronics)

0.45 lbs / 0.2 kg

7.4 in / 18.8 cm

3.5 in / 8.89 cm

3 in / 7.62 cm

7170-1016

Zebra TC22/TC27 Cradle w/Zirkona Medium Joiner Mount

-

-

-

-

7170-1017

Zebra TC22/TC27 Cradle w/Zirkona Medium Joiner + Suction Cup Mount

"9 lbs 4.08 kg"

"9.5"" 24.13 cm"

"4.5"" 11.43 cm"

"6.5"" 16.51 cm"

FEATURES • • • • • • • •

Compatible with Zebra TC22/TC27 Handheld (Requires Zebra rugged boot) Adjustable cable restraint holds USB-C cord securely in place.

Lightweight, small form factor designed to be resilient and reliable in harsh material handling and enterprise environments.

Attaches to Gamber-Johnson mounting solutions using the AMPs hole pattern.

Easy one-handed docking and releasing operation. Our living hinge design allows unit to easily slide into place and is secured in place.

Reduce costly damages by safely securing your device.

Cradle accommodates the Zebra TC22/TC27 hand strap.

Limited Lifetime Warranty

ZEBRA TC57 SERIES CRADLE ITEM NO.

DESCRIPTION

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1497

Zebra TC57 Non-Powered Cradle (No Electronics)

-

0.25 lbs 0.11 kg

7.96" 20.21 cm

3.58" 9.09 cm

1.63" 4.14 cm

7160-1497-01

Zebra TC57 Powered Cradle

No - Use LIND Power Adapters: 12-32V Isolated Power Adapter (7300-0466), 2060V Isolated Power Adapter (7300-0467), 72-110V Isolated Power Adapter (7300-0418)

0.25 lbs 0.11 kg

7.96" 20.21 cm

3.58" 9.09 cm

1.63" 4.14 cm

FEATURES • • • • • •

Compatible with the Zebra TC5x Series Handheld Touch Computer (Requires Zebra rugged boot SG-TC5X-EX01-01) Cradle accommodates the Zebra TC5x hand strap Lightweight, small form factor designed to be resilient and reliable in harsh material handling and enterprise environments Eliminate daily battery exchanges and device downtime by maintaining charge within your mobile work environment (powered cradle) Reduce costly damages by safely securing your device Easy one-handed docking and release operation: • To dock: Insert bottom of computer into the cradle, push top of computer into cradle until cradle latch clicks into place in the computer • To release: Lift latch to disengage and pull computer out of the cradle • Attach to a Gamber-Johnson mounting system using the AMPS hole pattern • MIL-STD 810G shock/vibration, RoHS • 1 Year Limited Warranty

61

ZEBRA | C R A D L E S & D O C K I N G S TAT I O N S

ZEBRA ET50/55 8" AND 10" DOCKING STATION/CRADLE ITEM NO.

DESCRIPTION

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0860-00

Zebra ET50/55 10" Docking Station

No

2.6 lbs 1.2 kg

10" 25.4 cm

10" 25.4 cm

3.4" 8.6 cm

7160-0861-00

Zebra ET50/55 8" Docking Station

No

2.6 lbs 1.2 kg

10" 25.4 cm

9" 22.9 cm

3.4" 8.6 cm

7170-0522

Zebra ET50/55 8" Docking Station with LIND Material Handling Isolated Power Adapter

Includes LIND 12-32VDC Material Handling Isolated Power Adapter (7300-0466)

2.6 lbs 1.2 kg

10" 25.4 cm

9" 22.9 cm

3.4" 8.6 cm

7170-0523

Zebra ET50/55 8" Docking Station with LIND Material Handling Isolated Power Adapter

Includes LIND 20-60VDC Material Handling Isolated Power Adapter (7300-0467)

2.6 lbs 1.2 kg

10" 25.4 cm

9" 22.9 cm

3.4" 8.6 cm

7170-0528

Zebra ET50/55 10" Docking Station with LIND Automotive Power Adapter

Includes Auto Power Adapter (7300-0415)

2.6 lbs 1.2 kg

10" 25.4 cm

10" 25.4 cm

3.4" 8.6 cm

7170-0520

Zebra ET50/55 10" Docking Station with LIND Material Handling Isolated Power Adapter

Includes LIND 12-32VDC Material Handling Isolated Power Adapter (7300-0466)

2.6 lbs 1.2 kg

10" 25.4 cm

10" 25.4 cm

3.4" 8.6 cm

7170-0521

Zebra ET50/55 10" Docking Station with LIND Material Handling Isolated Power Adapter

Includes LIND 20-60VDC Material Handling Isolated Power Adapter (7300-0467)

2.6 lbs 1.2 kg

10" 25.4 cm

10" 25.4 cm

3.4" 8.6 cm

7160-0819-00

Zebra ET50/55 8" Cradle (No Electronics)

2.6 lbs 1.2 kg

10" 25.5 cm

9" 22.9 cm

3.4" 8.6 cm

7160-0819-04

Zebra ET50/55 8" Powered Cradle (POGO Pin Charging)

2.6 lbs 1.2 kg

10" 25.5 cm

9" 22.9 cm

3.4" 8.6 cm

7160-0818-00

Zebra 10" Cradle (No Electronics)

2.6 lbs 1.2 kg

10" 25.5 cm

10" 25.5 cm

3.4" 8.6 cm

7160-0818-04

Zebra ET50/55 10" Powered Cradle (POGO Pin Charging)

2.6 lbs 1.2 kg

10" 25.5 cm

10" 25.5 cm

3.4" 8.6 cm

FEATURES

See list of accessories to find your power supply

• Compatible with Zebra ET5X series enterprise tablets with the rugged frame option (Required; Contact Zebra Rep) • Accommodates expansion back of the ET50/55 51/56 to easily add accessories like a scanner, hand strap, battery bay, or stylus • Front camera on ET50/55 51/56 accessible when the tablet is in the cradle • Compatible with Windows or Android operating systems • Dual latch/locks provide to stability and guide pins align the tablet so it’s properly placed in the cradle • VESA 75 mm mounting pat tern • MIL-STD 810G shock/vibration, RoHS, FCC, and SAE J1455 crash certifications • 3-Year Limited Warranty

62

PORT REPLICATION (DOCK) • • • •

Ethernet (1) RJ45 USB 3.0 (2) 9 Pin HDMI (1) 19 Pin Serial RS232 D-Sub 9 Pin (1 amp power on pin 9) • Power supply input

C R A D L E S & D O C K I N G S TAT I O N S |

ZEBRA

ACCESSORIES ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-0829

Stylus Bracket

Attaches to the Bottom of the Docking Station

0.2 lbs 0.1 kg

1.0" 2.5 cm

7.8" 19.7 cm

0.7" 1.8 cm

7160-0949

8" Universal Tablet Cover

For Use with Zebra ET50/55 8" Tablet Docking Stations and Cradles

0.2 lbs 0.1 kg

12.5" 31.8 cm

10.5" 26.7 cm

3.5" 8.9 cm

7160-0982

Thermal Tablet Protective Cover

Use with Zebra 10" Tablet Docking Stations and Cradles

1.15 lbs.

0.52 kg

14.25" 36.2 cm

12.75" 32.4 cm

3.5" 8.9 cm

7160-0981

Thermal Tablet Protective Cover

Use with Zebra 8" Tablet Docking Stations and Cradles

0.95 lbs.

0.43 kg

13.5" 34.3 cm

11.25" 28.6 cm

3.25" 8.3 cm

7300-0472

LIND AC 12V Material Handling Power Adapter, Output 60W to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56

0.85 lbs.

0.39kg

1.25" 3.18 cm

5.0" 12.7 cm

2.4" 6.1 cm

7300-0418

LIND 72-110V Material Handling Isolated Power Adapter with Bare Wire Lead. Output Voltage 12Vdc, Output Current 3.5 Amps to Barrel Connector Plug

For Use with the Following Zebra Docking Stations and Cradles: Zebra ET50/55, ET51/56, TC8000/ TC8300

1.6 lbs.

0.74 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0467

LIND 20-60V Material Handling Isolated For Use with the Following Zebra Power Adapter with Bare Wire Lead.

Docking Stations and Cradles: Output Voltage 12Vdc, Output Current Zebra ET50/55, ET51/56, TC8000/ 3.5 Amps to Barrel Connector Plug TC8300

1.56 lbs.

0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

7300-0466

LIND 12-32V Material Handling Isolated For Use with the Following Zebra Power Adapter with Bare Wire Lead.

Docking Stations and Cradles: Output Voltage 12Vdc, Output Current Zebra ET50/55, ET51/56, TC8000/ 3.5 Amps to Barrel Connector Plug TC8300

1.56 lbs.

0.52 kg

1.15" 2.92 cm

9.3" 23.6 cm

3.0" 7.62 cm

Compatible with Gamber-Johnson keyboard mount (item no. 71600799) and 10” tablet docks and cradles

0.2 lbs 0.1 kg

12.5" 31.8 cm

10.5" 26.7 cm

3.5" 8.9 cm

1.7 lbs / 0.77 kg

0.5" / 1.27 cm

2.5" / 6.35 cm

5.75" / 14.61 cm

1.2 lbs/ 0.5 kg

0.3"/ 0.8 cm

12"/ 30.8 cm

0.8"/ 2.0 cm

7160-0950

Universal 10" (25.4 cm) Tablet Protective Cover

Clamp your power supply to the overhead guard leg for ease of accessibility and keep it out of the way.

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications

7160-1333

Forklift Power Supply Clamp

7300-0482

Forklift Wiring Kit

7160-0799

Tablet Keyboard Mount

Attached between the dock and vehicle mount.

4.25 lbs / 1.93 kg

6.1 in / 15.5 cm

5.8 in / 14.7 cm

10.0 in / 25.4 cm

7160-1165

Zebra Numeric Keypad Bracket

Attached between the dock and vehicle mount.

0.55 lbs / 0.25 kg

2.88 in / 7.32 cm

1.75 in / 4.45 cm

8.00 in / 20.32 cm

63

ZEBRA | C R A D L E S & D O C K I N G S TAT I O N S

ZEBRA TC77 SERIES CRADLE ITEM NO.

DESCRIPTION

POWER SUPPLY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1509

Zebra TC77 Cradle (No Electronics)

N/A

0.25 lbs 0.11 kg

7.12" 18.08 cm

3.56" 9.04 cm

2.0" 5.08 cm

7160-1509-01

Zebra TC77 Powered Cradle

No - Use LIND Power Adapters:12-32V Isolated Power Adapter (7300-0466), 20-60V Isolated Power Adapter (73000467), 72-110V Isolated Power Adapter (7300-0418)

.25 lbs 00.11 kg

7.12" 18.08 cm

3.56" 9.04 cm

2.0" 5.08 cm

FEATURES • • • • • • •

Compatible with the Zebra TC7x Series Handheld Touch Computer Cradle accommodates the Zebra TC7x hand strap Upper cut out enables scanner to be used while the computer is docked Lightweight, small form factor designed to be resilient and reliable in harsh material handling and enterprise environments Eliminate daily battery exchanges and device downtime by maintaining charge within your mobile work environment Reduce costly damages by safely securing your device Easy one-handed docking and release operation: • To dock: Insert bottom of computer into the cradle, push top of computer into cradle until cradle latch clicks into place in the computer • To release: Lift latch to disengage and pull computer out of the cradle • Attach to a Gamber-Johnson mounting system using the AMPS hole pattern • MIL-STD 810G shock/vibration, RoHS, FCC • 1 Year Limited Warranty

VESA 75MM HOLES TO STUDS OFFSET ADAPTER PLATE ITEM NO.

DESCRIPTION

PLACEMENT

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1942

Offset Adapter Plate

Places between a docking station and clevis

0.25 lbs 0.11 kg

1.5" 3.81 cm

5" 12.7 cm

5" 12.7 cm

FEATURES • • • • • • •

Compatible with the Zebra TC7x Series Handheld Touch Computer Cradle accommodates the Zebra TC7x hand strap Upper cut out enables scanner to be used while the computer is docked Lightweight, small form factor designed to be resilient and reliable in harsh material handling and enterprise environments Eliminate daily battery exchanges and device downtime by maintaining charge within your mobile work environment Reduce costly damages by safely securing your device Easy one-handed docking and release operation: • To dock: Insert bottom of computer into the cradle, push top of computer into cradle until cradle latch clicks into place in the computer • To release: Lift latch to disengage and pull computer out of the cradle • Attach to a Gamber-Johnson mounting system using the AMPS hole pattern • MIL-STD 810G shock/vibration, RoHS, FCC • Limited Lifetime Warranty

64

C R A D L E S & D O C K I N G S TAT I O N S |

UNIVERSAL

PHONE WIRELESS CHARGING CRADLE/NON-CHARGING CRADLE ITEM NO.

DESCRIPTION

7300-0758-10

Phone Cradle (Non Charging)

7300-0758-00

Wireless Charging Phone Cradle with USB Plug

7300-0758-05

Wireless Charging Phone Cradle with Bare Wire Lead

7300-0759-10

XL Phone Cradle (NonCharging)

7300-0759-00

XL Wireless Charging Phone Cradle with USB plug

7300-0759-05

XL Wireless Charging Phone Cradle with Bare Wire Lead

7300-0760-00

Desktop Wireless Charging Phone Cradle with USB-A Plug (AS7.

U050.015)

HEIGHT RANGE

MAX WIDTH

MAXD EPTH

WEIGHT 0.35 lbs / 0.16 kg

5.30 in – 6.33 in / 134.6 mm – 160.8 mm

3.07 in / 78.1 mm

0.50 in / 12.7 mm

0.50 lbs / 0.23 kg

0.35 lbs / 0.16 kg 6.00 in – 7.03 in / 152.4 mm – 178.5 mm

3.27 in / 83.0 mm

0.50 in / 12.7 mm

0.5 lbs 0.23 kg

5.23" 13.28 cm

3.05" 7.75 cm

0.50 lbs / 0.23 kg

3.73" 9.47 cm

FEATURES

• Injection molded plastic with aluminum back plate for rugged performance in harsh environments • Spring loaded top latch for easy placement into and removal from the mount • AMPS mounting pattern offers easy install to compatible mounts including our Display Screen Phone Mount Plate (Item No. AS7.

U050.012) and the Zirkona Solutions • USB Type-A power input connector version for flexible and temporary installations with standard charging speed • Integrated cable management tie rail for tidy, convenient installs • Cut-out bottom hooks offer access to easily swipe and interact with device touch screens and connection of data cable • Tension spring adjustment allows easier loading of larger devices • LED status indicator • Input Specifications: • Input voltage range: 5-9-12-19Vdc±5% • 5V-2A, 9V-1.67A, 12V-1.5A, 19V-1.2A • Maximum input current at 5Vdc load is 2 Amps • When the input power is weak (the input power is insufficient), the transmitter will send a weak current signal. 12Vdc+ enables fast charging speeds if sufficient current is available • If the input voltage is lower than 4Vdc, the transmitter will stop working and will not be damaged. When the input voltage returns to the specified range, the transmitter resumes normal operation • MIL-STD 810H shock/vibration, RoHS, FCC, CE, UKCA, RoHS 3(2015/863), REACH, Crash Test - Simulated 30mph crash test, ICES003(A) / CISPR 32 / EN 50498, and SAE J1455 crash certifications • Limited Lifetime Warranty

65

UNIVERSAL | C R A D L E S & D O C K I N G S TAT I O N S

NOTEPAD™ TOUCH UNIVERSAL TABLET CRADLE ADJUSTABLE WIDTH 7.8"-10.9" 19.8-27.6 cm

ADJUSTABLE DEPTH 0.28"-1.12" 0.71-2.8 cm

WEIGHT

HEIGHT

WIDTH

DEPTH

Universal Tablet Cradle

ADJUSTABLE HEIGHT 4.5"-7.3" 11.4 -18.5 cm

2.85 lbs 1.29 kg

6.12" 15.54 cm

8.99" 22.8 cm

3.15" 8.00 cm

Universal Tablet Cradle

7.0"-9.7" 17.7-24.6 cm

10.0"-13.0" 25.4 -33.0 cm

0.28"-1.12" 0.71-2.8 cm

3.5 lbs 1.58 kg

8.56" 21.74 cm

10.82" 27.48 cm

3.15" 8.00 cm

ITEM NO.

DESCRIPTION

7160-1299-00 7160-1299-10

FEATURES • Height, width, and depth adjustable to accommodate almost any size tablet compute • Optional keyed lock for theft deterrenc • Composite/aluminum design for reduced weight and extended durabilit • Designed with rounded edges to enhance personal safety • Easy one-handed operation: Insert bottom of tablet into the cradle, push the top of the tablet against the latch button until latch engages.

To remove tablet, push up on latch button with thumb and pull tablet from the cradle • VESA 75 mm and AMPS mounting patterns • 30 mph crash tested per SAE J1455 standard • Lifetime Limited Warranty

LINDY USB PORT BLOCKER ITEM NO.

DESCRIPTION

7300-0733

Port Blockers Pack of 10

7300-0775

Port Blocker Key

FEATURES

• Blocks USB ports so that users cannot connect flash drives, MP3 players, and other USB mass storage devices to their computers • Quick and easy to use • First order for port blockers requires the port blocker key

66

C R A D L E S & D O C K I N G S TAT I O N S |

NOTES

67

POWER IT.

POWER SUPPLIES & MORE KEEPING YOU CONNECTED

Explore our full line of power supplies from LIND power to make sure your internal battery is charged and sufficient for a full days use in any mobile environment.

POWER SUPPLIES & MORE | M AT E R I A L H A N D L I N G ISOLATED POWER SUPPLIES ITEM NO.

OEM

DEVICE MODEL

INPUT VOLTAGE RANGE

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0305

Dell

7230, 7030

12-32 VDC

2.35 lbs / 1.07 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7300-0306

Dell

7230, 7030

20-60 VDC

2.35 lbs / 1.07 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7300-0622

Dell

7230, 7030

72-110VDC

2.35 lbs / 1.07 kg

4.5 in / 11.43 cm

4.5 in / 11.43 cm

12.75 in / 32.39 cm

7230

Dell Dongle Adapter - Dell 7.4MM BONDI to USB-C

.2 lbs / .09kg

1 in / 2.54 cm

2 in / 5.08 cm

4 in / 10.16 cm

Dell 7300-0673

Compatible with the following power supplies: LIND 12-32V Isolated Power Adapter (7300-0305), LIND 20-60V Isolated Power Adapter (7300-0306), LIND 72-110V Isolated Power Adapter (7300-0622) 7300-0431

DT Research

DT313

12-32VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0432

DT Research

DT313

20-60VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0433

DT Research

DT313

72-110VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0413

Getac

A140, F110, K120, T800, ZX10, ZX80

12-32VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0412

Getac

A140, F110, K120, T800, ZX10, ZX80

20-60VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0466

Getac

ZX70

12-32VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0467

Getac

ZX70

20-60VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0418

Getac

ZX70

72-110VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0466

Honeywell

ScanPal EDA10A

12-32VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0467

Honeywell

ScanPal EDA10A

20-60VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0418

Honeywell

ScanPal EDA10A

72-110VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0407

HP

Visit LIND Electronics Website for Entire Listing

20-60VDC

2.2 lbs 1.0 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0464

Panasonic

Toughbook A3 Toughpad FZ-G1 Toughbook G2 Toughbook 33

12-32VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0465

Panasonic

Toughbook A3 Toughpad FZ-G1 Toughbook G2 Toughbook 33

20-60VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0417

Panasonic

Toughbook A3 Toughpad FZ-G1 Toughbook G2 Toughbook 33

72-110VDC

1.6 lbs 0.5 kg

1.2" 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

7300-0473

Samsung

Tab Active2/3/5 Tab Active Pro/Pro4

20-60VDC

1.6 lbs 0.5 kg

1.2 2.9 cm

9.3" 23.6 cm

3.0" 7.6 cm

FEATURES • • • • •

70

Continuous stable power output specifically made to adapt to material handling vehicles Output short circuit and overcurrent protection Internal over temperature protection Sealed and potted in aluminum extrusions to withstand the harshest operating environments Contact LIND Power Supplies for warranty details

M AT E R I A L H A N D L I N G | ISOLATED POWER SUPPLIES CON’T

POWER SUPPLIES & MORE

ITEM NO.

OEM

DEVICE MODEL

INPUT VOLTAGE RANGE

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0466

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm 90°Connector

12-32VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0467

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm 90°Connector

20-60VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5 6.4 cm

7300-0418

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm 90°Connector

72-110VDC

1.0 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0692

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm Straight Connector

12-32VDC

1 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0693

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm Straight Connector

20-60VDC

1 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0694

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm Straight Connector

72-110VDC

1 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0452

Zebra

TC23/27 USB-C Input

72-110VDC

2 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0453

Zebra

TC23/27 USB-C Input

72-110VDC

3 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0457

Zebra

TC23/27 USB-C Input

72-110VDC

4 lbs 0.5 kg

1.2" 3.0 cm

5.2" 13.1 cm

2.5" 6.4 cm

7300-0455

Zebra

TC8000, TC8300 Powered Cradles Only TC57, TC77 1.1mm Connector

12-32VDC

1.4 lbs 0.6 kg

1.2" 2.9 cm

6.0" 15.2 cm

3.0" 7.6 cm

7300-0456

Zebra

TC8000, TC8300 Powered Cradles Only TC57, TC77 1.1mm Connector

20-60VDC

1.4 lbs 0.6 kg

1.2" 2.9 cm

6.0" 15.2 cm

3.0" 7.6 cm

7300-0483

Zebra

TC8000, TC8300 Powered Cradles Only TC57, TC77 1.1mm Connector

72-110VDC

1.4 lbs 0.6 kg

1.2" 2.9 cm

6.0" 15.2 cm

3.0" 7.6 cm

7300-0472

Zebra

ET4x, ET5x, ET6x. ET8x / 2.5mm 90°Connector

AC-12V

0.85 lbs. / 0.39 kg

1.25 in / 3.18 cm

5.0 in / 12.7 cm

2.4 in / 6.1 cm

FEATURES • • • • •

Continuous stable power output specifically made to adapt to material handling vehicles Output short circuit and overcurrent protection Internal over temperature protection Sealed and potted in aluminum extrusions to withstand the harshest operating environments Contact LIND Power Supplies for warranty details

UNIVERSAL ISOLATED POWER SUPPLIES ITEM NO.

COMPATIBILITY

INPUT VOLTAGE RANGE

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0452

Universal - Two (2) USB-A Ports Zebra TC23/27 (Needs USB-A Male to USB-C Male

12-32VDC

1.4 lbs 0.6 kg

1.2" 2.9 cm

6.0" 15.2 cm

3.0" 7.6 cm

7300-0453

Universal - Two (2) USB-A Ports Zebra TC23/27 (Needs USB-A Male to USB-C Male

20-60VDC

1.4 lbs 0.6 kg

1.2" 2.9 cm

6.0" 15.2 cm

3.0" 7.6 cm

7300-0454

Universal - Two (2) USB-A Ports Zebra TC23/27 (Needs USB-A Male to USB-C Male

72-110VDC

1.4 lbs 0.6 kg

1.2" 2.9 cm

6.0" 15.2 cm

3.0" 7.6 cm

FEATURES • • • • • •

Protect and power your consumer grade devices with 5 VDC maximum output Supports up to two USB compatible devices with 4 AMPS of maximum output Sealed and potted in aluminum extrusions to withstand the harshest operating environments Continuous stable power output specifically made to adapt to Material Handling vehicles Contact LIND Power Supplies for warranty details Customer must supply USB-A cable for selected device

71

POWER SUPPLIES & MORE | M AT E R I A L H A N D L I N G NON-ISOLATED POWER SUPPLIES FOR PROTECTIVE THERMAL COVERS ITEM NO.

COMPATIBILITY

OUTPUT

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0449

8" Thermal Tablet Protective Cover (7160-0981) 10" Thermal Tablet Protective Cover (7160-0982) Samsung Tab Active 2 Thermal Tablet Protective Cover (TBD)

INPUT VOLTAGE RANGE

Voltage 12VDC Current 10 Amps

24VDC

0.6 lbs 0.3 kg

2.9" 7.4 cm

2.9" 7.4 cm

1.3" 3.3 cm

7300-0450

8" Thermal Tablet Protective Cover (7160-0981) 10" Thermal Tablet Protective Cover (7160-0982) Samsung Tab Active 2 Thermal Tablet Protective Cover (TBD)

36/48VDC

0.6 lbs 0.3 kg

2.9" 7.4 cm

2.9" 7.4 cm

1.3" 3.3 cm

Voltage 12VDC Current 10 Amps

FEATURES • • • •

Sealed and potted in aluminum shell to withstand the harshest operating environments Non-Isolated, constant voltage design IP67 waterproof rating 1 Year Limited Warranty

SCREEN BLANKING SOLUTIONS ITEM NO. 7300-0414

DESCRIPTION

PLACEMENT

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0414

Accelerometer with USB Cable

Attaches with USB Plug to any Dock or Device

Requires IPC VuLock™ Software

0.2 lbs 0.1 kg

0.5" 1.3 cm

1.0" 2.5 cm

15.0" 38.1 cm

7300-0434

IPC VuLock™ Software

N/A

Android or Windows (7.0 and 10.0) Compatible

N/A

N/A

N/A

N/A

FEATURES • • • •

Prevent drivers from using their device while in motion Specific tamper proof brackets to conceal the accelerometer Simple installation Limited Lifetime Warranty

FORKLIFT WIRING KIT ITEM NO.

DESCRIPTION

ATTRIBUTES

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0482

Forklift Wiring Kit

12 Gauge (AWG) Wire 15 Amp Fuse

1.2 lbs 0.5 kg

0.3" 0.8 cm

12" 30.8 cm

0.8" 2.0 cm

FEATURES • • • • • •

15 feet of 12 gauge (AWG) wire (red and black) for handling longer wire runs and varied power applications In line 15 amp fuse protects your device from over voltage Quick connects for attaching 12 gauge wire to 18 gauge power supply wires (10) 12-inch zip ties for ease of installation For non material handling applications, a 12 gauge wire at 15ft long can handle a 30 amp fuse Limited Lifetime Warranty

WIRE HARNESS - 2.5MM DC POWER PLUG WITH 10 AMP IN-LINE FUSE ITEM NO.

DESCRIPTION

ATTRIBUTES

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1804

Forklift Wiring Kit

16 Gauge (AWG) Wire 10 Amp Fuse

-

-

-

-

FEATURES • • • • • •

72

Compatible with gas powered lift trucks Compatible with Gamber-Johnson docks that have an internal 10-40Vdc power supply 15 feet of 16 gauge (AWG) wire (red and black) for longer wire runs and varied power applications 2.5MM DC power plug connects to Gamber-Johnson docking stations Ring terminals for attaching to vehicle battery Heat shrink included for secure 2.5mm plug to 2.5mm wire mounted socket on certain docking stations

POWER SUPPLIES & MORE

M AT E R I A L H A N D L I N G | SCREEN BLANKING MOUNTS ITEM NO.

DESCRIPTION

PLACEMENT

COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1111

Dell and Panasonic Tamper Proof Bracket with Accelerometer

Attaches Between Dock and Mounting Solution

Specifically Designed for Dell Latitude 12 Rugged Tablet Dock and Panasonic FZ-G1 Dock

1.2 lbs 0.5 kg

7.9" 20.1 cm

5.9" 15.0 cm

0.8" 2.0 cm

7160-1146

Zebra Tamper Proof Bracket with Accelerometer

Attaches Between Dock and Mounting Solution

Specifically Designed for Zebra ET50/51/55/56 Docks

0.9 lbs 0.4 kg

9.8" 24.9 cm

6.2" v15.7 cm

1.6" 4.1 cm

FEATURES • • • •

7160-1111

7160-1146

Prevent drivers from using their device while in motion Specific tamper proof brackets to conceal the accelerometer Simple installation Limited Lifetime Warranty

LINDY USB PORT BLOCKER ITEM NO.

DESCRIPTION

INCLUDES

7300-0107

LINDY USB Port Blocker with Key

Pack of 4 Blocks and 1 Key

7300-0108

LINDY USB Port Blockers

Pack of 10 Blockers Requires Key

7300-0107

FEATURES

• Physically blocks USB ports from connecting USB flash drives and other mass storage devices • Quick and easy to use • Limited Lifetime Warranty

7300-0108

POWER SUPPLY MOUNT ITEM NO.

DESCRIPTION

ATTRIBUTES

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1333

Power Supply Clamp

Attaches to Overhead Guard or Guard Leg

1.7 lbs 0.8 kg

0.5" 1.3 cm

2.5" 6.4 cm

5.8" 14.6 cm

FEATURES • • • •

No drilling required with when mounting so no damage to the surface during installation Keeps power supply block secured and easily accessible for serviceability Mountable on surfaces up to 4" (10.16 cm) wide Limited Lifetime Warranty

LIND LOW PROFILE SHUT DOWN TIMER ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0410

Lind Low Profile Shut Down Timer

0.30 lbs. / 0.14 kg

1.2 in / 3.05 cm

3.8 in / 35.05 cm

4.3 in / 10.92 cm

FEATURES • • • • • •

Adjustable - 5 seconds to 4 hours Shut Down Timer (SDT) protects the automobile battery from over discharge by shutting OFF at a preset time after engine is shut down or battery discharged to a low voltage level SDT protects radio or computer equipment from damage due to low or high input voltage Low voltage shut down at 10.5 V DC High voltage shut down at 18 V DC with auto reset Automatic activation by sensing the battery voltage (battery not charging = timer ON)

LIND RUGGEDIZED SHUT DOWN TIMER ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7300-0409

Lind Ruggedized Shut Down Timer

0.30 lbs. / 0.14 kg

1.6 in / 3.0 in / .81 in/ 4.06 cm 7.62 cm 2.06 cm

FEATURES

• Factory Set at 2 hours • Shut Down Timer (SDT) protects the automobile battery from over discharge by shutting OFF at a preset time after engine is shut down or battery discharged to a low voltage level • SDT protects radio or computer equipment from damage due to low or high input voltage • Low voltage shut down at 10.5 V DC • High voltage shut down at 18 V DC with auto reset • Automatic activation by sensing the battery voltage (battery not charging = timer ON) • Optional activation by ignition switch connection (ignition OFF = timer ON)

73

CARRY IT.

ERGONOMIC MOBILITY SOLUTIONS KEEPING YOUR TECHNOLOGY MOBILE Explore our full line of carrying solutions for your business.

ERGONOMIC MOBILITY SOLUTIONS | M AT E R I A L H A N D L I N G SAMSUNG GALAXY TAB ACTIVE PRO/4 PRO 2-IN-1 ATTACHABLE KEYBOARD ITEM NO.

DESCRIPTION

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1869-00

2-in-1 Attachable Keyboard for the Samsung Galaxy Tab Active Pro/4 Pro Tablet

1.60 lbs 0.72 kg

1.5" 3.81 cm

10.31" 26.18 cm

7.56" 19.20 cm

FEATURES

• Designed to fit Samsung Galaxy Tab Active Pro/Active4 Pro Tablet • Easily connect the tablet to the keyboard; slip the bottom of the tablet into the case and snap the top of the case over the tablet • Samsung S Pen is accessible when the tablet is docked in the keyboard case • Control buttons and rear camera are accessible when the tablet is docked onto the keyboard • Friction hinge and screen footrest position the tablet at a comfortable viewing angle • Low-profile ergonomic design for ease of use in a mobile environment • Rubber feet to prevent slippage • Integrated center touchpad with right and left mouse buttons • 76-key keyboard with 12 function keys for custom operation • Silicone rubber keys with white lettering and a rugged polycarbonate case • POGO docking connector links the tablet to the keyboard • USB-C port charges the tablet without having to separate it from the keyboard • USB- A port to attach a mouse, another peripheral, or flash drive • Easily connect the tablet to the keyboard; slip the bottom of the tablet into the case and snap the top of the case over the tablet • Available in US English (7160-1450-00), UK (7160-1450-01), German (7160-1450-02), French (7160-1450-03), Spanish (7160-1450-04), French CA (7160-1450-05), Thai (7160-1450-06), Arabic (7160-1450-07), Nordic (7160-1450-08), and Hebrew (7160-1450-09). Contact Gamber-Johnson for other language options. Alternative language overlays other than US English may be subject to Minimum Order Quantities.

• Temperature range is -4° F (-20°C) to 140° F (60°C) when operating and -40° F (-40°C) to 185° F (85°C) for storage • USB-A (2.0) Port: 5V@500mA • Tablet input power: 5.4V, 1.5A • MIL-STD 810G shock and vibration specifications, IP54 ingress specifications, Two million actuation per key, FCC CLASS-B (For - Home/Office Use), CE, RoHS, REACH • Not designed to be vehicle mounted • *Note: To prevent tablet battery drainage, plug in power to the keyboard, turn off the tablet, or remove it from the keyboard • 1 Year Limited Warranty (not designed to be vehicle mounted)

ZEBRA ET51/56 2-IN-1 ATTACHABLE KEYBOARD ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7160-1585-00

2-in-1 Attachable Keyboard for the Zebra ET51/56 Rugged Tablet Computer

Use with the Zebra ET51/56 Tablet Computer

1.80 lbs 0.81 kg

1.5" 3.81 cm

0.31" 26.18 cm

7.56" 19.20 cm

FEATURES • • • • • • • • • • • • •

Designed for the Zebra ET51/56 Tablet computer without rugged case Integrated center touchpad with right and left mouse buttons Convenient carrying handle for easy portability 76-key keyboard with 12 function keys for custom operation Silicone rubber keys with white lettering and a rugged polycarbonate case Docking connector links the tablet to the keyboard USB- A port to attach a mouse, another peripheral, or flash drive Easily connect the tablet to the keyboard; slip the bottom of the tablet into the case and snap the top of the case over the tablet All the Zebra ET51/56 control buttons and rear camera are accessible when the tablet is docked onto the keyboard Friction hinge and screen footrest position the tablet at a comfortable viewing angle Low-profile ergonomic design for ease of use in a mobile environment Rubber feet to prevent slippage Available in US English (7160-1585-00), UK English (7160-1585-01), German (7160-1585-02), French (7160-1585-03), Spanish (7160-1585-04), French CA (7160-1585-05), Thai (7160-1585-06). Contact Gamber-Johnson for other language options.

• MIL-STD 810G shock/vibration, RoHS, FCC, CE • 1 Year Warranty (not designed to be vehicle mounted)

76

M AT E R I A L H A N D L I N G |

ERGONMIC MOBILITY SOLUTIONS

HAND STRAPS/SHOULDER STAPS & ACCESSORIES ITEM NO.

DESCRIPTION

PLACEMENT/COMPATIBILITY

WEIGHT

HEIGHT

WIDTH

DEPTH

7400-0020-02

Quick-Release Carry Hanle

Compatible with Samsung Galaxy Tab Active2/3/5 Docking Stations and Cradles

"0.13 lbs 0.06 kg"

n/a

"1"" 2.54 cm"

n/a

7400-0020-01

Shoulder Strap

Compatible with carry handle for Samsung Galaxy Tab Active Pro/Tab Active4 Pro 2-in-1 attachable keyboard

"0.13 lbs 0.06 kg"

n/a

"1"" 2.54 cm"

n/a

7160-1465-00

Samsung Galaxy Tab Active Pro/ Active4 Pro Hand Strap

Compatible with Samsung Tab Active Pro/Tab Active 4 Pro Tablets. Compatible with Gamber-Johnson's Tab Active Pro/Active4 Pro docking station

"0.05 lbs 0.02 kg"

"0.87"" 2.20 cm"

"10.75"" 27.30 cm"

"3.12"" 7.92 cm"

7160-1615-00

Carry Handle for 2-in-1 Attachable Keyboard

Compatible with Samsung Tab Active Pro/Tab Active 4 Pro Tablets.

"0.27 lbs 0.12 kg"

"1.95"" 4.95 cm"

"8.34"" 21.18 cm"

"2.06"" 5.23 cm"

7170-0988

Samsung Galaxy Tab Active2/3/5 Mobility Bundle

Works with Samsung Galaxy Tab Active2/3/5 Tablets.

Compatible with GJ Docking Stations and Cradles

"0.13 lbs 0.06 kg"

n/a

"1"" 2.54 cm"

"30"" 55"" 76.2 cm 139.7 cm"

7170-0888-00

Kit: Carry Handle with Shoulder Strap

Compatible with Samsung Galaxy Tab Active Pro/Tab Active4 Pro 2-in-1 attachable keyboard

"0.31 lbs 0.14 kg"

"1.95"" 4.95 cm"

"8.36"" 21.23 cm"

"2.06"" 5.23 cm"

FEATURES

• 7400-0020-02 • Compatible with Samsung Galaxy Tab Active2/Active3 Docking Stations • Easily attaches to tablet corners • Ideal for people on the go or those that need a way of easily transporting their device around • 7400-0020-01 • Provides for hands-free functionality • The strap may be worn slung over one shoulder or across the body • Compatible with carry handle for Samsung Galaxy Tab Active Pro/Tab Active4 Pro 2-in-1 attachable keyboard • 7160-1465-00 • Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10-Inch rugged tablet with rugged case • Compatible with Gamber-Johnson's Tab Active Pro/Active4 Pro docking station • Hand strap easily slips over the diagonal corners of the tablet • Cushioned pad for comfort • 7160-1615-00 • Compatible with the Samsung Tab Active Pro/Tab Active4 Pro 2-in-1 Attachable Keyboard • Easily attaches to the chassis of the 2-in-1 Keyboard, just a screwdriver is needed • Handle features an internal steel frame for added support • Handle includes two attachment rings that can be used to attach a shoulder strap for even greater portability • Handle acts as a screen support and footrest when the 2-in-1 keyboard is open on a tabletop • Rubber contact points on the handle provide a no-slip contact with the tabletop • 7170-0988 • Quick release handle and shoulder strap • Provides for hands-free functionality • Compatible with Gamber-Johnson docking stations and cradles • 7170-0888-00 • Provides for hands-free functionality • The strap may be worn slung over one shoulder or across the body • Easily attaches to the chassis of the 2-in-1 Keyboard, just a screwdriver is needed • Handle features an internal steel frame for added support • Handle includes two attachment rings that can be used to attach a shoulder strap for even greater portability • Handle acts as a screen support and footrest when the 2in1 keyboard is open on a tabletop • Rubber contact points on the handle provide a no-slip contact with the tabletop

77

GAMBER GUARD WARRANTY

GAMBER GUARD EXTENDED SERVICE PLAN Keep your investments protected longer

Gamber Guard Extended Service Plan extends the life of your investment. Your Gamber-Johnson docking station will protect and extend the life of your computer; with Gamber Guard, your docking station is covered with an extended warranty and those unexpected warranty claims are covered long-term. Expedited service to Gamber Guard customers ensures you won’t miss a beat. Ask your reseller about our volume-based pricing opportunities.

FEATURES • Gamber Guard extends our standard warranty to 5-years (3-Year standard warranty + 2 additional years) • The extended warranties are subject to the same terms and exclusions as the standard warranty for the products.

• Free return ground shipping in the US. • If you encounter accidental electronics damage, Gamber Guard will cover two FREE PCB replacements and two FREE RF Pass thru (GPS/ LAN/WAN) cables per serial number for the life of the contract based on electronics availability.

• Gamber Guard must be purchased within 30 days of product purchase.

Gamber-Johnson warrants to the reseller and the original end user of any Gamber-Johnson product that it will be free from defects in materials and workmanship for the warranty time period. Any failure of any Gamber-Johnson product that is due to intentional misuse or damage, cosmetic wear, theft, fire or natural disaster is not covered by this warranty.

The remedies for a defect in material or workmanship are limited to repair or replacement of any non-conforming product. Gamber-Johnson will repair or replace, without charge, any Gamber-Johnson product that does not conform to its warranty only if a Reseller or an original end user gives us notice of a defect in material or workmanship within the warranty time period stated below: Mounting Systems (non-electronic products) — All nonelectronic products purchased after Dec. 31st, 2009 are protected by Gamber-Johnson’s limited lifetime warranty.

78

For any warranty related issues of products purchased prior to Dec. 31st 2009, please contact your Gamber-Johnson’s authorized reseller. All Zirkona products come with a standard one-year product warranty.

Specific 3rd Party Supplied Products – For all products purchased through Gamber-Johnson that are supplied from a 3rd party company (i.e. iKey, Brother, Lind Electronics, AFS, etc.) are warranted by the specific manufacturer of that product. Please see individual specifications on these products for further warranty information.

Mobile Docking Stations & Electronic Products — Warranty time period (from date of original factory shipment) for printed circuit boards, docking connectors, electronic components may vary. Please see individual specifications on these products for further warranty information.

Any failure of any Gamber-Johnson product that is due to damage or misuse, such as excessive force, improper installation, cosmetic wear, exposure to liquid spills, moisture or application of power in excess of specified rating theft, fire or natural disaster is not covered by this warranty. The warranty is void on electronic products if the warranty label is removed or altered.

GAMBER-JOHNSON WILL NOT BE RESPONSIBLE FOR ANY INCIDENTIAL, CONSEQUENTIAL (INCLUDING LOSS OF BUSINESS OR PROFITS) OR PUNITIVE DAMAGES DUE TO FAILURE OF A GAMBER-JOHNSON PRODUCT. INCIDENTAL, CONSEQUENTIAL AND PUNITIVE DAMAGES ARE EXCLUDED FROM THIS LIMITED WARRANTY. THE FOREGOING WARRANTY IS A LIMITED WARRANTY. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION OF THE WARRANTIES ON THE FACE HEREOF INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.

EXTENDED WARRANTY

EXTENDED WARRANTY Stay covered beyond the standard warranty

Gain peace of mind with Gamber-Johnson’s Extended Warranty. Gamber-Johnson proudly offers Extended Warranties to add 2 years of standard warranty to your product purchase. For accidental coverage and expedited services, please see our Gamber Guard offerings. Ask your reseller about our volume-based pricing opportunities.

FEATURES • Gamber-Johnson offers 2-Year Extended Warranties to add an additional 2 years of standard warranty to your product purchase.

• The extended warranties are subject to the same terms and exclusions as the standard warranty for the products.

• The extended warranty must be purchased within 30 days of the product purchase.

• Free return ground shipping in the US. Gamber-Johnson warrants to the reseller and the original end user of any Gamber-Johnson product that it will be free from defects in materials and workmanship for the warranty time period. Any failure of any Gamber-Johnson product that is due to intentional misuse or damage, cosmetic wear, theft, fire or natural disaster is not covered by this warranty.

The remedies for a defect in material or workmanship are limited to repair or replacement of any non-conforming product. Gamber-Johnson will repair or replace, without charge, any Gamber-Johnson product that does not conform to its warranty only if a Reseller or an original end user gives us notice of a defect in material or workmanship within the warranty time period stated below: Mounting Systems (non-electronic products) — All nonelectronic products purchased after Dec. 31st, 2009 are protected by Gamber-Johnson’s limited lifetime warranty. For any warranty related issues of products purchased prior to Dec. 31st 2009, please contact your Gamber-Johnson’s authorized reseller. All Zirkona products come with a standard one-year product warranty.

Specific 3rd Party Supplied Products – For all products purchased through Gamber-Johnson that are supplied from a 3rd party company (i.e. iKey, Brother, Lind Electronics, AFS, etc.) are warranted by the specific manufacturer of that product. Please see individual specifications on these products for further warranty information.

Mobile Docking Stations & Electronic Products — Warranty time period (from date of original factory shipment) for printed circuit boards, docking connectors, electronic components may vary. Please see individual specifications on these products for further warranty information.

Any failure of any Gamber-Johnson product that is due to damage or misuse, such as excessive force, improper installation, cosmetic wear, exposure to liquid spills, moisture or application of power in excess of specified rating theft, fire or natural disaster is not covered by this warranty. The warranty is void on electronic products if the warranty label is removed or altered.

GAMBER-JOHNSON WILL NOT BE RESPONSIBLE FOR ANY INCIDENTIAL, CONSEQUENTIAL (INCLUDING LOSS OF BUSINESS OR PROFITS) OR PUNITIVE DAMAGES DUE TO FAILURE OF A GAMBER-JOHNSON PRODUCT. INCIDENTAL, CONSEQUENTIAL AND PUNITIVE DAMAGES ARE EXCLUDED FROM THIS LIMITED WARRANTY. THE FOREGOING WARRANTY IS A LIMITED WARRANTY. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION OF THE WARRANTIES ON THE FACE HEREOF INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.

79

RUGGED. RELIABLE. RESPONSIVE.™

GAMBERJOHNSON.COM ©2025 Gamber-Johnson LLC

2/2025

MATERIAL HANDLING

PRODUCT CATALOG
