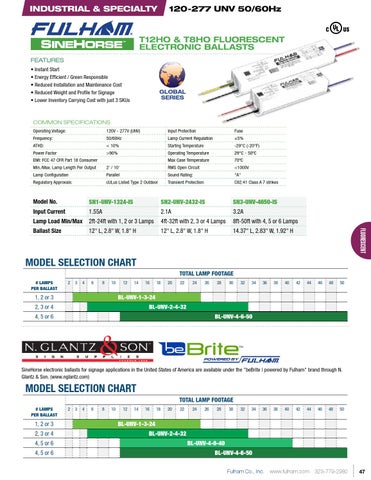

INDUSTRIAL & SPECIALTY
120-277 UNV 50/60Hz
T12HO & T8HO FLUORESCENT ELECTRONIC BALLASTS FEATURES • Instant Start • Energy Efficient / Green Responsible • Reduced Installation and Maintenance Cost • Reduced Weight and Profile for Signage • Lower Inventory Carrying Cost with just 3 SKUs
GLOBAL SERIES
COMMON SPECIFICATIONS Operating Voltage:
120V - 277V (UNV)
Input Protection
Frequency:
50/60Hz
Lamp Current Regulation
±5%
ATHD:
< 10%
Starting Temperature
-29°C (-20°F)
Power Factor
>90%
Operating Temperature
29°C - 50ºC
Max Case Temperature
70ºC
EMI: FCC 47 CFR Part 18 Consumer
Fuse
Min./Max. Lamp Length Per Output
2' / 10'
RMS Open Circuit
<1000V
Lamp Configuration
Parallel
Sound Rating:
"A"
Regulatory Approvals:
cULus Listed Type 2 Outdoor
Transient Protection:
C62.41 Class A 7 strikes
SN1-UNV-1324-IS
SN2-UNV-2432-IS
SN3-UNV-4650-IS
Input Current
1.55A
2.1A
3.2A
Lamp Load Min/Max
2ft-24ft with 1, 2 or 3 Lamps
4ft-32ft with 2, 3 or 4 Lamps
8ft-50ft with 4, 5 or 6 Lamps
Ballast Size
12" L, 2.8" W, 1.8" H
12" L, 2.8" W, 1.8" H
14.37" L, 2.83" W, 1.92" H
FLUORESCENT
Model No.
MODEL SELECTION CHART TOTAL LAMP FOOTAGE # LAMPS PER BALLAST
2
3
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
BL-UNV-1-3-24
1, 2 or 3
BL-UNV-2-4-32
2, 3 or 4
BL-UNV-4-6-50
4, 5 or 6
SineHorse electronic ballasts for signage applications in the United States of America are available under the "beBrite | powered by Fulham" brand through N. Glantz & Son. (www.nglantz.com)
MODEL SELECTION CHART TOTAL LAMP FOOTAGE # LAMPS PER BALLAST
1, 2 or 3 2, 3 or 4 4, 5 or 6 4, 5 or 6
2
3
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
BL-UNV-1-3-24 BL-UNV-2-4-32 BL-UNV-4-6-40 BL-UNV-4-6-50 Fulham Co., Inc.
www.fulham.com
323-779-2980
