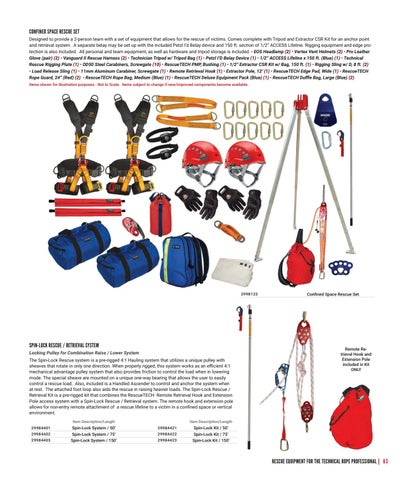

CONFINED SPACE RESCUE SET Designed to provide a 2-person team with a set of equipment that allows for the rescue of victims. Comes complete with Tripod and Extractor CSR Kit for an anchor point and retrieval system. A separate belay may be set up with the included Petzl I’d Belay device and 150 ft. section of 1/2” ACCESS Lifeline. Rigging equipment and edge protection is also included. All personal and team equipment, as well as hardware and tripod storage is included. • EOS Headlamp (2) • Vertex Vent Helmets (2) • Pro Leather Glove (pair) (2) • Vanguard II Rescue Harness (2) • Technician Tripod w/ Tripod Bag (1) • Petzl I’D Belay Device (1) • 1/2” ACCESS Lifeline x 150 ft. (Blue) (1) • Technical Rescue Rigging Plate (1) • OD50 Steel Carabiners, Screwgate (10) • RescueTECH PMP, Bushing (1) • 1/2” Extractor CSR Kit w/ Bag, 150 ft. (1) • Rigging Sling w/ D, 8 ft. (2) • Load Release Sling (1) • 11mm Aluminum Carabiner, Screwgate (1) • Remote Retrieval Hook (1) • Extractor Pole, 12’ (1) • RescueTECH Edge Pad, Wide (1) • RescueTECH Rope Guard, 24” (Red) (2) • RescueTECH Rope Bag, Medium (Blue) (1) • RescueTECH Deluxe Equipment Pack (Blue) (1) • RescueTECH Duffle Bag, Large (Blue) (2) Items shown for illustration purposes - Not to Scale. Items subject to change if new/improved components become available.
2998123
SPIN-LOCK RESCUE / RETRIEVAL SYSTEM Locking Pulley for Combination Raise / Lower System The Spin-Lock Rescue system is a pre-rigged 4:1 Hauling system that utilizes a unique pulley with sheaves that rotate in only one direction. When properly rigged, this system works as an efficient 4:1 mechanical advantage pulley system that also provides friction to control the load when in lowering mode. The special sheave are mounted on a unique one-way bearing that allows the user to easily control a rescue load. Also, included is a Handled Ascender to control and anchor the system when at rest. The attached foot loop also aids the rescue in raising heavier loads. The Spin-Lock Rescue / Retrieval Kit is a pre-rigged kit that combines the RescueTECH Remote Retrieval Hook and Extension Pole access system with a Spin-Lock Rescue / Retrieval system. The remote hook and extension pole allows for non-entry remote attachment of a rescue lifeline to a victim in a confined space or vertical environment. Item Description/Length 29984401 29984402 29984403
Spin-Lock System / 50’ Spin-Lock System / 75’ Spin-Lock System / 150’
Confined Space Rescue Set
Remote Retrieval Hook and Extension Pole included in Kit ONLY
Item Description/Length 29984421 29984422 29984423
Spin-Lock Kit / 50’ Spin-Lock Kit / 75’ Spin-Lock Kit / 150’
RESCUE EQUIPMENT FOR THE TECHNICAL ROPE PROFESSIONAL | 6 3
