Trailers

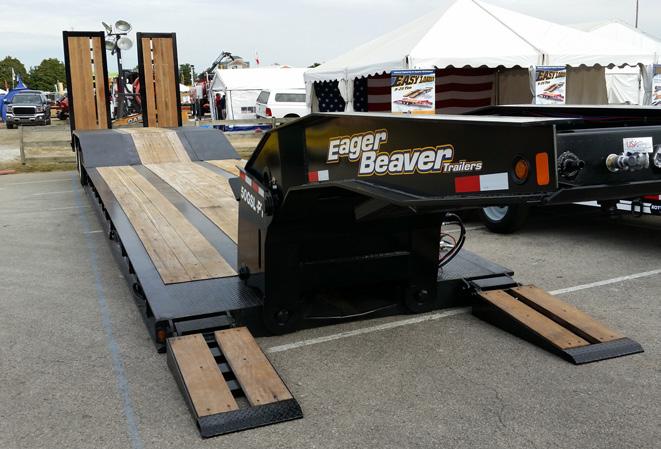

Eager Beaver 50 GSL-PT Paver Trailer
The 50 GSL-PT has a 100,000-lb. load capacity and 122,700-lb. GVWR and is suited for loading rollers, pavers and milling machines.
•Tapered four-beam, 16-in.-deep cambered I-beam mainframe and side rails •10-in.-deep crossmembers pierced through the mainframe •25,000-lb. axles with all-wheel ABS (4S3M) with spring brakes on all axles •Cush Air Ride suspension with 75,000-lb.-capacity air lift third axle www.forconstructionpros.com/20979451

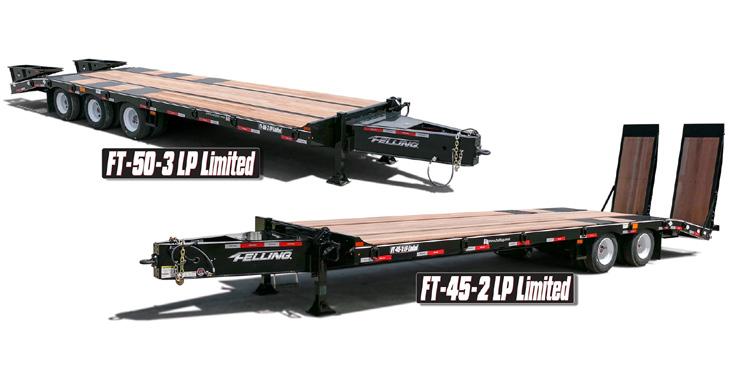

Felling Low Pro Limited
The Low Pro Limited deck-over tag trailer series includes the 22 1/2-ton FT-45-2 LP Limited tandem axle and the 25-ton FT-50-3 LP Limited triple axle.
•20-, 22- and 24-ft. available deck lengths for the tandem axle and 24- and 26-ft. deck lengths offered for the triple axle •Constructed with an 8-in. channel side rail (flange in) with 4-in. Jr. I-beam crossmembers pierced through the heavy-duty, engineered, fabricated 16-in. mainframe •6-ft.-long double incline beavertail provides 12° and 6° load angles for safe loading/unloading of tracked equipment •6’ x 20” spring-assist ramps with 5” x 3” self-cleaning angle construction or apitong inlay www.forconstructionpros.com/21198119

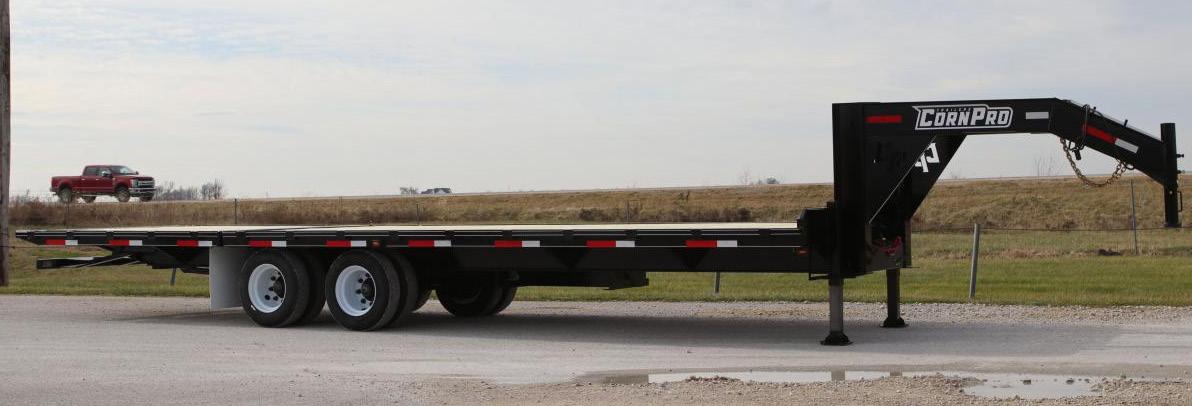

CornPro Power I-Series Flatbed Trailers
The heavy-duty Power I-Series flatbed trailer features a 10-in. I-beam frame and is capable of payloads from 11,000 to over 16,000 lbs.
•Includes a 102-in. width, treated and kiln-dried pine decking and spring-assist ramps •Heavy-duty 4-sq.-in. jack and 2 5/16-in. coupler •Features Dexter spring axles, all-axle electric brakes and rubber-mounted LED lighting •Various tilt, hydraulic and length options available www.forconstructionpros.com/21126110

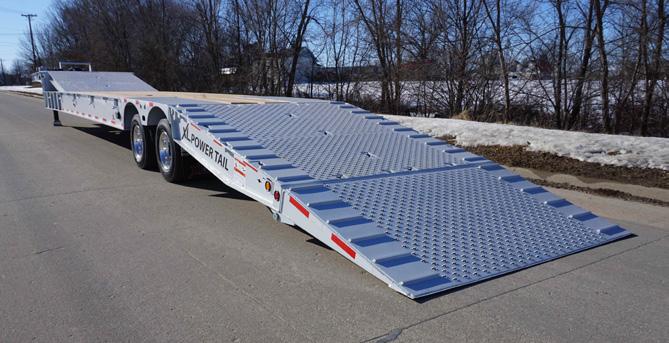

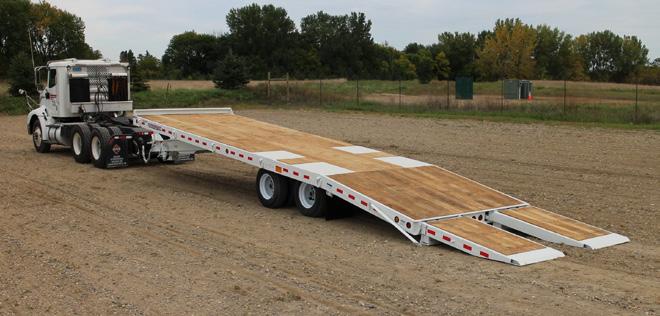

XL Specialized Power Tail Trailer
The XL Power Tail trailer features a hydraulic tail with a load angle of only 10° to easily load lifts, rollers, forklifts and paving equipment.
•Comes in a 48-ft. length with 30-ft. 4-in. main deck or 53-ft. length with 35-ft. 4-in. main deck, both offering a 36-in. loaded deck height •Rated at 80,000 lbs. overall and 50,000 lbs. concentrated in 10 ft., plus features a 25,000-lb. tail lifting capacity for loads centered on the main platform •Tail features an 8-ft. 8-in. platform ramp and 60-in. flip tail, as well as lug-style hinges that keep hinge points clean as it prevents debris from accumulating •9-ft. hydraulic pop-up ramp connects the deck to the gooseneck www.forconstructionpros.com/21126279

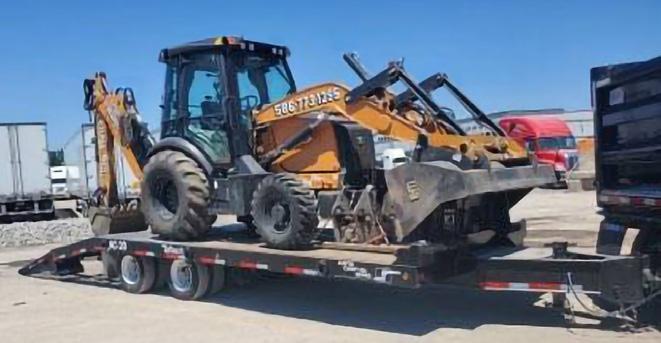

Talbert Tag-A-Long AC Series
The 10- to 25-ton Tag-A-Long Austin Carry-All Series (AC Series) trailers feature durable construction and a low 7° load angle to transport small- to mid-size equipment.
•Dual-axle AC-10 offers a 10-ton, 20,000lb. capacity; 24-ft. deck length; 5-ft. 5-in. self-cleaning, spring-assisted rear ramps and 32.25-in. loaded deck height •AC-20 provides a 20-ton, 40,000-lb. capacity within the same deck dimension and loaded deck height •AC3-25 has a 29-ft. deck and a 25-ton, 50,000- lb. capacity with a 32.75-in. loaded deck height •AC-20ART and AC3-25ART include an air ramp and/or air tilt for loading of low-clearance equipment www.forconstructionpros.com/21138130

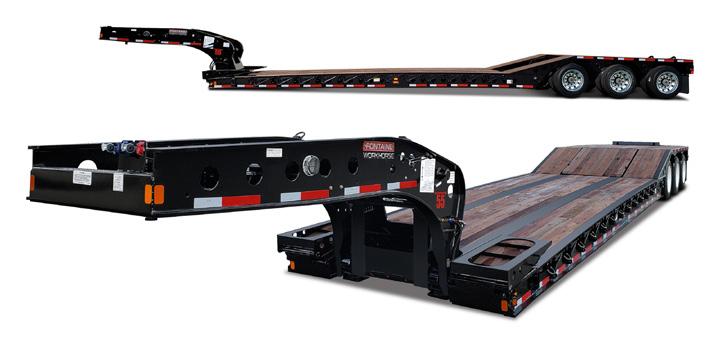

Fontaine Heavy-Haul 55PVR Trailer
The Heavy-Haul 55PVR features a low front approach angle suited for ground hugging pavers and a removable center bogie section to accommodate excavators.
•Low 9° front ramp at the deck •16° deck-to-bogie transition ramps •Handles 55 tons in 16 ft. or 50 tons in 12 ft. •Three or four axles close coupled •Four-point lift system •Equipped with a versatile hydraulic removable gooseneck www.forconstructionpros.com/21307296

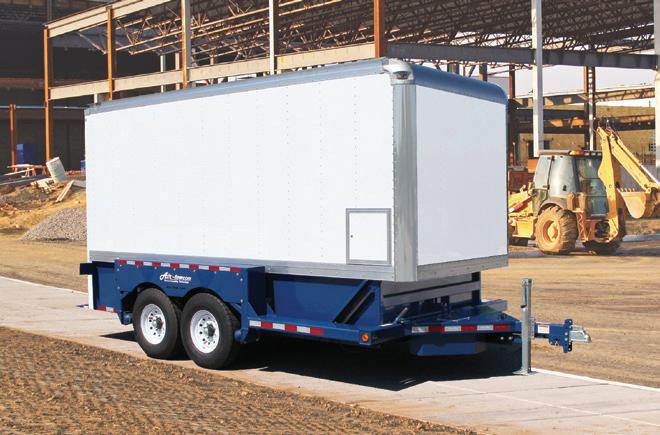

Air-Tow E-16 XL Extra Large Enclosed Trailers
The 10,000-lb.-capacity E-16 XL is the largest enclosed trailer in the Air-Tow line of ground-level loading trailers and comes preloaded with many features.
•Lowers flat to the ground for safe loading and unloading and transport of any type of equipment •75-in. deck width and a length of 15 ft. 9 in. •838 cu. ft. of total storage space includes a 15-in., 36-cu.-ft. shelf at front of enclosure that is easily accessible from inside and via a passenger side compartment door •Standard self-locking roll-up door, two LED interior lights and a 3/8-in. plywood interior lining www.forconstructionpros.com/21118796
SAF-TITE
Unsurpassed strength at an incredible value
WWW.PREMIER-MFG.COM

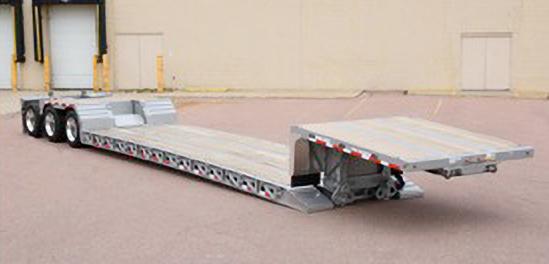

The Commercial MG-HG detachable gooseneck trailer is engineered to accommodate four interchangeable gooseneck styles.
•Standard full-width mechanical gooseneck or can be ordered in full-width or narrow-width and mechanical or hydraulic configurations •Moisture-trapping areas minimize buildup of road debris and moisture accumulation to improve corrosion resistance •Optional aluminum I-beam or box beam crossmembers, outer rails, decking and front and rear channels www.forconstructionpros.com/20984368
Etnyre Era Live Bottom Belt Trailer
The redesigned Live Bottom Belt Trailer includes an aluminum huck-bolted bogie to reduce weight, fatigue and corrosion.
•Polymer belt flashing is easy to adjust and replace •Smooth exterior bin sides for a clean and aerodynamic look •Hardox interior bin walls resist wear and extend the life of the trailer •Optional stainless-steel bin walls available •Eight-chain drive system with a one-piece asphalt-rated high-temp belt www.forconstructionpros.com/21259916
Cemen Tech Heavy-duty Dump Trailers
The 1-yd. DT-100 and 2-yd. DT-200 heavy-duty dump trailers are designed for small- to mid-size applications for hauling concrete, sand, stone, mulch and other materials.
•Fabricated with high-strength 10-gauge steel •Standard premium features include a doubleaction hydraulic pump, adjustable relief valve and forward self-adjusting electric brakes •DOT-approved lighting •Heavy-duty fenders, a one-piece rubber splash guard and supporting tongue cross bars provide added durability •Adjustable load-leveling hitch maximizes tow capacity and provides a smooth, level ride while towing materials www.forconstructionpros.com/21036745

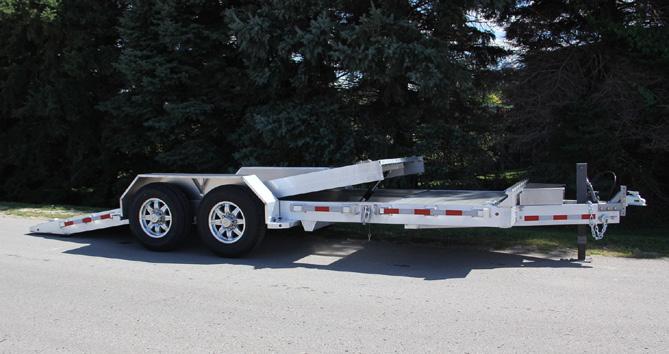

Aluma 8200-14K Tilt Tandem Utility Trailer
The 8200-14K tilt tandem utility trailer features all-aluminum construction and two 7,000-lb. rubber torsion axles with easy lube hubs.
•Three configurations with tilt angles of 11.5°, 9.5° or 10.5° •101.5-in. overall widths and 288- or 308in. overall lengths •42-in.-long A-framed aluminum tongue with 2 5/16-in. coupler •Extruded aluminum floor and removable aluminum fenders •Electric brakes with breakaway kit •10K spring-loaded drop leg jack www.forconstructionpros.com/21204831
Towmaster T-24TA Air-Tilt Bed Trailer
The T-24TA deck-over air-tilt trailer offers convenience and easy loading by tilting the bed using air from the tow vehicle’s system.
•Features an angled beavertail and ramps to offer a low loading angle suited for small wheeled or paver equipment •Ramps can be manual or air operated •Features a single-lever twin-latch system to secure the deck to the frame •2-in. nominal white oak wood deck with a 34-in. height (empty) and 8-ft. 6-in. width •Includes air brakes, a dual air bag design, Hutchens adjustable suspension and LED lights and sealed wiring www.forconstructionpros.com/21046464

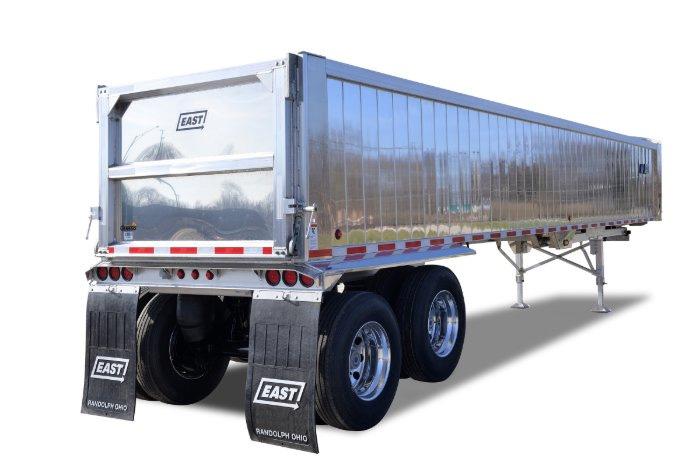

East Narrow Spec Dump Trailer
The Narrow Spec Dump Trailer for hauling sand and gravel or commodity loads maximizes payload with lighter weight components while still delivering strength and durability.
•Uses premium aluminum alloys for flooring and side material •Smooth-sided Genesis aerodynamic design for easier cleaning •2-in.-thick, double-wall, robotically welded, extruded aluminum panels •1/4-in.-thick rear corner posts wrap completely around top and bottom rails and interlock to add strength •Lighter weight sheet & post tailgate 90° wall joints continuously welded to maximize strength-to-weight ratio and joint integrity of the tailgate www.forconstructionpros.com/21160002
Raising Performance
to New Levels

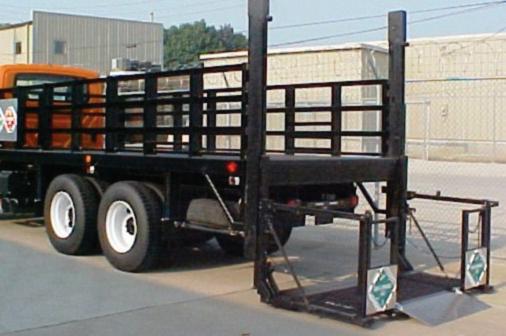

Full line of liftgate models, plus special applications
Railgates, Stowaways, Conventionals,Side Loaders, & Pickup/ Service Body Models
Sales and Service Available from a Nationwide Distributor Network
Quality Liftgates for Every Application
600 East Wayne Street Celina, Ohio 45822 info@thiemantailgates.com www.thiemantailgates.com
TIPS FOR SELECTING THE RIGHT TRAVELING AXLE TRAILER
Ideal loading conditions are a rarity in the hauling industry. While loading equipment in the yard might not pose any difficulty, a level surface with plenty of room to maneuver is much harder to find on an active jobsite.
Many operators have found traveling axle trailers provide the ideal combination of features to increase safety and versatility. However, like any trailer, maximizing these benefits relies on a careful matching of product specs with the individual operation. Simply selecting a traveling axle trailer off the lot, so to speak, will often get the job done. But a careful consideration of available features with a reputable dealer or manufacturer promises a long-term solution that will provide more safety, durability and better return on investment.
Traveling axle or sliding axle trailers are available from a number of manufacturers. Each brand offers slightly different features, but there are a few design standards that make these trailers well suited for operations looking for versatility and ease of loading. Operators who know what they need in these areas are well on their way to finding the right trailer for their operation.
