●●Designed
specifically for ROV application.
●●Forged
Steel, Quenched &Tempered, with alloy pins.
●●Handles
are Carbon Steel.
●●Individually
load.
stamped with the safe working
●●Shackle
Bows are painted yellow to ensure ease of sight in water.
●●Convertible
handles on ROV shackle bolts

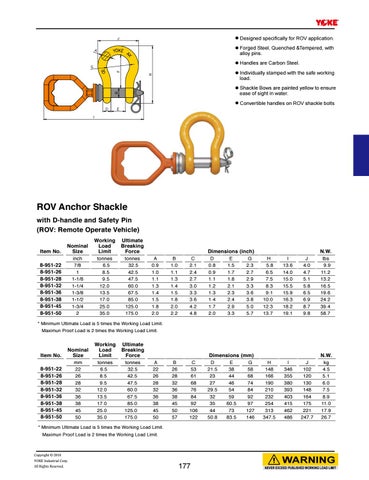

ROV Anchor Shackle with D-handle and Safety Pin (ROV: Remote Operate Vehicle) Item No.
Nominal Size inch 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 1-3/4 2
8-951-22 8-951-26 8-951-28 8-951-32 8-951-36 8-951-38 8-951-45 8-951-50
Working Load Limit tonnes 6.5 8.5 9.5 12.0 13.5 17.0 25.0 35.0
Ultimate Breaking Force tonnes 32.5 42.5 47.5 60.0 67.5 85.0 125.0 175.0
A 0.9 1.0 1.1 1.3 1.4 1.5 1.8 2.0
B 1.0 1.1 1.3 1.4 1.5 1.8 2.0 2.2
C 2.1 2.4 2.7 3.0 3.3 3.6 4.2 4.8
B 26 28 32 36 38 45 50 57
C 53 61 68 76 84 92 106 122
Dimensions (inch) D 0.8 0.9 1.1 1.2 1.3 1.4 1.7 2.0
E 1.5 1.7 1.8 2.1 2.3 2.4 2.9 3.3
G 2.3 2.7 2.9 3.3 3.6 3.8 5.0 5.7
H 5.8 6.5 7.5 8.3 9.1 10.0 12.3 13.7
I 13.6 14.0 15.0 15.5 15.9 16.3 18.2 19.1
J 4.0 4.7 5.1 5.8 6.5 6.9 8.7 9.8
H 148 166 190 210 232 254 313 347.5
I 346 355 380 393 403 415 462 486
J 102 120 130 148 164 175 221 247.7
N.W. lbs 9.9 11.2 13.2 16.5 19.6 24.2 39.4 58.7
* Minimum Ultimate Load is 5 times the Working Load Limit. Maximun Proof Load is 2 times the Working Load Limit.
Item No.
Nominal Size
8-951-22 8-951-26 8-951-28 8-951-32 8-951-36 8-951-38 8-951-45 8-951-50
mm 22 26 28 32 36 38 45 50
Working Load Limit tonnes 6.5 8.5 9.5 12.0 13.5 17.0 25.0 35.0
Ultimate Breaking Force tonnes 32.5 42.5 47.5 60.0 67.5 85.0 125.0 175.0
A 22 26 28 32 36 38 45 50
Dimensions (mm)
D 21.5 23 27 29.5 32 35 44 50.8
E 38 44 46 54 59 60.5 73 83.5
G 58 68 74 84 92 97 127 146
N.W. kg 4.5 5.1 6.0 7.5 8.9 11.0 17.9 26.7
* Minimum Ultimate Load is 5 times the Working Load Limit. Maximun Proof Load is 2 times the Working Load Limit.
