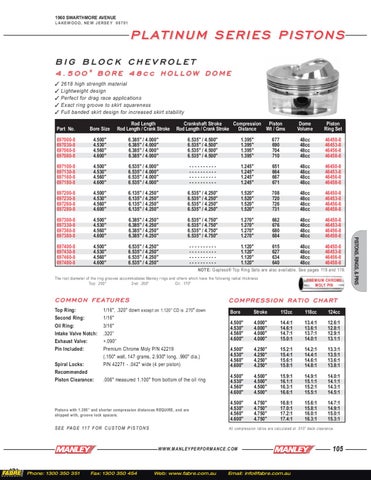

1960 SWARTHMORE AVENUE LAKEWOOD, NEW JERSEY 08701
PLATINUM SERIES PISTONS BIG BLOCK CHEVROLET 4.500" BORE 48cc HOLLOW DOME 3 3 3 3 3
2618 high strength material Lightweight design Perfect for drag race applications Exact ring groove to skirt squareness Full banded skirt design for increased skirt stability Bore Size
Rod Length Rod Length / Crank Stroke
Crankshaft Stroke Compression Piston Rod Length / Crank Stroke Distance Wt / Gms
Dome Volume
Piston Ring Set
697000-8 697030-8 697060-8 697080-8
4.500" 4.530" 4.560" 4.600"
6.385" / 4.000" 6.385" / 4.000" 6.385" / 4.000" 6.385" / 4.000"
6.535" / 4.500" 6.535" / 4.500" 6.535" / 4.500" 6.535" / 4.500"
1.395" 1.395" 1.395" 1.395"
677 690 704 710
48cc 48cc 48cc 48cc
46450-8 46453-8 46456-8 46458-8
697100-8 697130-8 697160-8 697180-8
4.500" 4.530" 4.560" 4.600"
6.535" / 4.000" 6.535" / 4.000" 6.535" / 4.000" 6.535" / 4.000"
-------------------------------------
1.245" 1.245" 1.245" 1.245"
651 664 667 671
48cc 48cc 48cc 48cc
46450-8 46453-8 46456-8 46458-8
697200-8 697230-8 697260-8 697280-8
4.500" 4.530" 4.560" 4.600"
6.135" / 4.250" 6.135" / 4.250" 6.135" / 4.250" 6.135" / 4.250"
6.535" / 4.250" 6.535" / 4.250" 6.535" / 4.250" 6.535" / 4.250"
1.520" 1.520" 1.520" 1.520"
708 720 726 731
48cc 48cc 48cc 48cc
46450-8 46453-8 46456-8 46458-8
697300-8 697330-8 697360-8 697380-8
4.500" 4.530" 4.560" 4.600"
6.385" / 4.250" 6.385" / 4.250" 6.385" / 4.250" 6.385" / 4.250"
6.535" / 4.750" 6.535" / 4.750" 6.535" / 4.750" 6.535" / 4.750"
1.270" 1.270" 1.270" 1.270"
662 676 680 684
48cc 48cc 48cc 48cc
46450-8 46453-8 46456-8 46458-8
697400-8 697430-8 697460-8 697480-8
4.500" 4.530" 4.560" 4.600"
6.535" / 4.250" 6.535" / 4.250" 6.535" / 4.250" 6.535" / 4.250"
-------------------------------------
1.120" 1.120" 1.120" 1.120"
615 627 634 640
48cc 48cc 48cc 48cc
46450-8 46453-8 46456-8 46458-8
NOTE: Gapless® Top Ring Sets are also available. See pages 118 and 119. The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness Top: .200" 2nd: .200" Oil: .170"
COMMON FEATURES Top Ring: Second Ring: Oil Ring: Intake Valve Notch: Exhaust Valve: Pin Included: Spiral Locks: Recommended Piston Clearance:
PREMIUM CHROME MOLY PIN
COMPRESSION RATIO CHART
1/16", .320" down except on 1.120” CD is .270" down 1/16" 3/16" .320” +.090” Premium Chrome Moly P/N 42219 (.150" wall, 147 grams, 2.930" long, .990" dia.) P/N 42271 - .042" wide (4 per piston) .006" measured 1.100" from bottom of the oil ring
Pistons with 1.395” and shorter compression distances REQUIRE, and are shipped with, groove lock spacers.
S E E PA G E 11 7 F O R C U S T O M P I S T O N S
Bore
Stroke
112cc
118cc
124cc
4.500" 4.530" 4.560" 4.600"
4.000" 4.000" 4.000" 4.000"
14.4:1 14.6:1 14.7:1 15.0:1
13.4:1 13.6:1 13.7:1 14.0:1
12.6:1 12.8:1 12.9:1 13.1:1
4.500" 4.530" 4.560" 4.600"
4.250" 4.250" 4.250" 4.250"
15.2:1 15.4:1 15.6:1 15.8:1
14.2:1 14.4:1 14.6:1 14.8:1
13.3:1 13.5:1 13.6:1 13.8:1
4.500" 4.530" 4.560" 4.600"
4.500" 4.500" 4.500" 4.500"
15.9:1 16.1:1 16.3:1 16.6:1
14.9:1 15.1:1 15.2:1 15.5:1
14.0:1 14.1:1 14.3:1 14.5:1
4.500" 4.530" 4.560" 4.600"
4.750" 4.750" 4.750" 4.750"
16.8:1 17.0:1 17.2:1 17.4:1
15.6:1 15.8:1 16.0:1 16.3:1
14.7:1 14.9:1 15.0:1 15.3:1
All compression ratios are calculated at .010” deck clearance.
WWW.MANLEYPERFORMANCE.COM
Phone: 1300 350 351
Fax: 1300 350 454
Web: www.fabre.com.au
Email: info@fabre.com.au
105
PISTONS, RINGS, & PINS
Part No.
