Valve Spring Retainers • Valve Spring Cups • Valve Stem Seals • Valve Stem Locks • Valve Spring I. D. Locators • Valve Spring Shims
Valvetrain Components

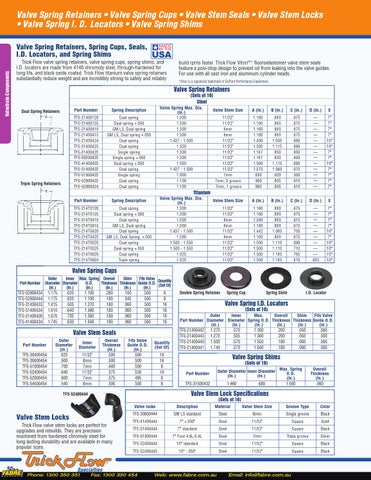

Valve Spring Retainers, Spring Cups, Seals, I.D. Locators, and Spring Shims build rpms faster. Trick Flow Viton®* fluoroelastomer valve stem seals feature a posi-stop design to prevent oil from leaking into the valve guides. For use with all cast iron and aluminum cylinder heads.
Trick Flow valve spring retainers, valve spring cups, spring shims, and I.D. locators are made from 4140 chromoly steel, through-hardened for long life, and black oxide coated. Trick Flow titanium valve spring retainers substantially reduce weight and are incredibly strong to safely and reliably
*Viton is a registered trademark of DuPont Performance Elastomers.
Valve Spring Retainers (Sets of 16) Steel
Part Number
Spring Description
Valve Spring Max. Dia. (In.)
Valve Stem Size
A (In.)
B (In.)
C (In.)
D (In.)
E
TFS-21400120 TFS-21400125 TFS-21400410 TFS-21400415 TFS-21400424 TFS-21400425 TFS-31400423 TFS-30300423 TFS-41400423 TFS-51400423 TFS-51900423 TFS-52900423 TFS-52900424
Dual spring Dual spring +.050 GM LS, Dual spring GM LS, Dual spring +.050 Dual spring Dual spring Single spring Single spring +.050 Dual spring +.050 Dual spring Single spring Dual spring Dual spring
1.300 1.300 1.300 1.300 1.437 - 1.500 1.550 1.300 1.300 1.550 1.437 - 1.500 1.000 1.100 1.100
11/32" 11/32" 8mm 8mm 11/32" 11/32" 11/32" 11/32" 11/32" 11/32" 7mm 7mm, 3 groove 7mm, 1 groove
1.160 1.160 1.160 1.160 1.400 1.500 1.187 1.187 1.500 1.375 .880 .980 .980
.880 .880 .880 .880 1.050 1.115 .850 .850 1.115 1.060 .620 .805 .805
.675 .675 .675 .675 .690 .690 .650 .650 .690 .675 .500 .610 .610
— — — — — — — — — — — — —
7° 7° 7° 7° 10° 10° 7° 7° 10° 7° 7° 7° 7°
Part Number
Spring Description
Valve Spring Max. Dia. (In.)
Valve Stem Size
A (In.)
B (In.)
C (In.)
D (In.)
E
TFS-214T0120 TFS-214T0125 TFS-214T0410 TFS-214T0415 TFS-214T0420 TFS-214T0425 TFS-214T0520 TFS-214T0525 TFS-214T0620 TFS-214T0630
Dual spring Dual spring +.050 Dual spring GM LS, Dual spring Dual spring GM LS, Dual Spring, +.050 Dual spring Dual spring +.050 Dual spring Triple spring
1.300 1.300 1.300 1.300 1.437 - 1.500 1.300 1.500 - 1.550 1.500 - 1.550 1.625 1.625
11/32" 11/32" 8mm 8mm 11/32" 8mm 11/32" 11/32" 11/32" 11/32"
1.160 1.160 1.240 1.160 1.442 1.160 1.500 1.500 1.500 1.500
.880 .880 .880 .880 1.065 .880 1.110 1.110 1.180 1.180
.675 .675 .615 .675 .705 .675 .690 .710 .765 .870
— — — — — — — — — .635
7° 7° 7° 7° 10° 7° 10° 10° 10° 10°
Dual Spring Retainers
Triple Spring Retainers
Titanium
Valve Spring Cups Outer Inner Max. Spring Overall Shim Fits Valve Part Number Diameter Diameter O.D. Thickness Thickness Guide O.D. Quantity (Set Of) (In.) (In.) (In.) (In.) (In.) (In.) TFS-52900434 TFS-52900444 TFS-31400433 TFS-51400434 TFS-21400426 TFS-41400434
1.175 1.175 1.415 1.610 1.670 1.745
.620 .620 .505 .640 .705 .630
1.100 1.100 1.270 1.480 1.560 1.640
.280 .180 .180 .180 .180 .180
.100 .045 .060 .060 .060 .060
.500 .500 .500 .560 .560 .560
8 8 16 16 16 16
Valve Stem Seals Part Number
Outer Diameter (In.)
Inner Diameter
Overall Thickness (In.)
Fits Valve Guide O.D. (In.)
Quantity (Set Of)
TFS-30400454 TFS-30600454 TFS-51900454 TFS-52400454 TFS-52900454 TFS-54500454
.625 .600 .700 .640 .600 .540
11/32" 8mm 7mm 11/32" 7mm 8mm
.500 .500 .640 .575 .575 .500
.500 .500 .500 .530 .495 .500
16 16 8 16 8 8
Double Spring Retainer
Spring Cup
Spring Shim
I.D. Locator
Valve Spring I.D. Locators (Sets of 16)
Outer Inner Max. Overall Shim Fits Valve Part Number Diameter Diameter Spring O.D. Thickness Thickness Guide O.D. (In.) (In.) (In.) (In.) (In.) (In.) TFS-21400442 TFS-21400443 TFS-21400440 TFS-21400441
1.270 1.270 1.500 1.740
.570 .505 .570 .570
1.300 1.300 1.550 1.640
.200 .200 .180 .180
.050 .050 .060 .060
.560 .500 .560 .560
Valve Spring Shims (Sets of 16)
Part Number
Spring Outer Diameter Inner Diameter Max. O.D. (In.) (In.) (In.)
TFS-31500432
1.460
.680
1.500
Overall Thickness (In.) .060
Valve Stem Lock Specifications
TFS-52400444
(Sets of 16)
Valve Stem Locks Trick Flow valve stem locks are perfect for upgrades and rebuilds. They are precision machined from hardened chromoly steel for long lasting durability and are available in many popular sizes.
