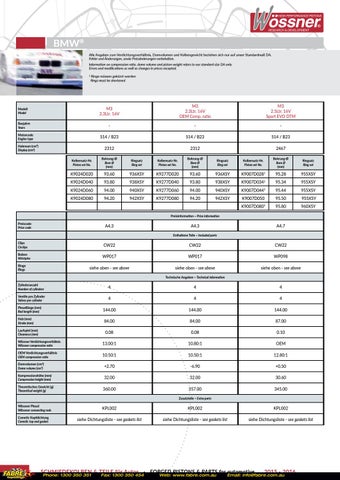

bmW® Alle Angaben zum Verdichtungsverhältnis, Domvolumen und Kolbengewicht beziehen sich nur auf unser Standardmaß DA. Fehler und Änderungen, sowie Preisänderungen vorbehalten. Information on compression ratio, dome volume and piston weight refers to our standard size DA only. Errors and modifications as well as changes in prices excepted. 1
Ringe müssen gekürzt werden Rings must be shortened
modell Model baujahre Years motorcode engine type hubraum (cm3) display (cm3)
M3 2.3Ltr. 16V
M3 2.3Ltr. 16V OEM Comp. ratio
M3 2.5Ltr. 16V Sport EVO DTM
-
-
-
S14 / B23
S14 / B23
S14 / B23
2312
2312
2467
kolbensatz-nr. piston set no.
bohrung-Ø Bore Ø (mm)
Ringsatz ring set
kolbensatz-nr. piston set no.
bohrung-Ø Bore Ø (mm)
Ringsatz ring set
kolbensatz-nr. piston set no.
bohrung-Ø Bore Ø (mm)
Ringsatz ring set
K9024D020
93.60
936XSY
K9277D020
93.60
936XSY
K9007D0281
95.28
955XSY
K9024D040
93.80
938XSY
K9277D040
93.80
938XSY
K9007D0341
95.34
955XSY
K9024D060
94.00
940XSY
K9277D060
94.00
940XSY
K9007D044
1
95.44
955XSY
K9024D080
94.20
942XSY
K9277D080
94.20
942XSY
K9007D050
95.50
955XSY
K9007D080
95.80
960XSY
1
Preisinformation – Price information Preiscode price code
A4.3
A4.3
A4.7
Enthaltene Teile – included parts clips Circlips
CW22
CW22
CW22
WP017
WP017
WP098
siehe oben - see above
siehe oben - see above
siehe oben - see above
bolzen Wristpins Ringe rings
Technische Angaben – Technical information Zylinderanzahl number of cylinders
4
4
4
Ventile pro Zylinder Valves per cylinder
4
4
4
144.00
144.00
144.00
84.00
84.00
87.00
0.08
0.08
0.10
Wössner Verdichtungsverhältnis Wössner compression ratio
13.00:1
10.80:1
OEM
oem Verdichtungsverhältnis OEM compression ratio
10.50:1
10.50:1
12.80:1
domvolumen (cm ) dome volume (cm3)
+2.70
-6.90
+0.50
kompressionshöhe (mm) Compression height (mm)
32.00
32.00
30.60
Theoretisches Gewicht (g) Theoretical weight (g)
360.00
357.00
345.00
Pleuellänge (mm) rod length (mm) hub (mm) stroke (mm) laufspiel (mm) Clearance (mm)
3
Zusatzteile – extra parts Wössner Pleuel Wössner connecting rods Cometic Kopfdichtung Cometic top end gasket
10
KPL002
KPL002
KPL002
siehe Dichtungsliste - see gaskets list
siehe Dichtungsliste - see gaskets list
siehe Dichtungsliste - see gaskets list
