2023 ISSUE 1

Date issued: 8/10/23

Retail Display Solutions

Everything You Need To Know

02

WARRANTY TERMS & CONDITIONS

03

GRAPHIC SERVICES & ARTWORK GUIDELINES

05 IMPORTANT TURNAROUND TIMES 07

ACCESSORY & FURNITURE COLOR FINISHES

Retail Merchandising System

08 SINGLE SIDED FIXTURE KITS 09 DOUBLE SIDED FIXTURE KITS 10

GONDOLA KITS

11

FOUR SIDED FIXTURE KITS

12

ACCESSORIES

15

FURNITURE

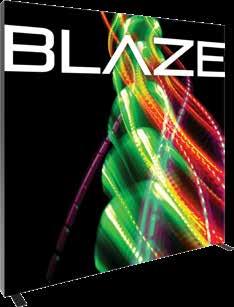

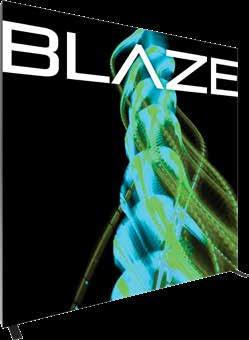

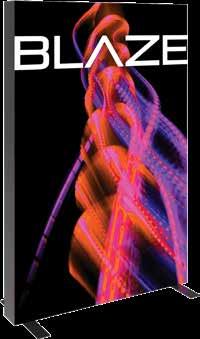

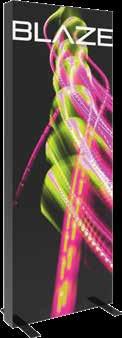

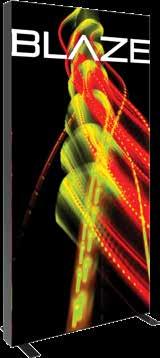

SEG Lightboxes

16

WALL MOUNTED

19

FREESTANDING

22

HANGING 1

SEG Systems Limited Warranty SEG Systems guarantees their product in the below outlined scenarios and products. Under the warranty policies, product believed to be a manufacturing defect will be repaired and/or replaced upon inspection of the issue. The customer is responsible for shipping the product to SEG Systems for inspection (if the scenario deems physical inspection). At the discretion of (SEG Systems if the issue is deemed a manufacturing defect, the product will be repaired and/or replaced and returned to the customer at no cost using standard ground shipping during the products warranty period.

For products with a warranty period over 1 year, the customer is responsible for the inbound shipping costs as well as the outbound shipping costs after the first year. This excludes lighting which typically falls under a 5 and 9 year category and power supplies at 2 years.

Free replacement products cannot be sent until an assessment of the supposed defective product is made. At the discretion of SEG Systems, if the received product is deemed not to be a manufacturing defect, the customer will be notified and the product may be repaired and/or replaced at the customer’s cost. Shipping charges will be the customer’s responsibility for any items needing expedited shipping.

Lifetime Warranty SEG Systems offers a Lifetime Warranty on all SEG frame extrusions. This covers the aluminum extrusion that makes up our non-lit and backlit frames. Any additional components that might be affixed to the frame do not fall into the Lifetime Warranty category.

Issues that are not covered under the warranties include but are not limited to: - Standard wear and tear usage - Mistreatment of product - Unauthorized alteration - Natural disasters - Failure to follow product instruction sheets and labeling - Incorrect use - Theft - Loss - Vandalism - Destruction - Damages occurred while in transit

Terms and Conditions Upon the acceptance of delivery, you agree that the package(s) have arrived without any visible shipping damage. If shipping damage is noted, sign for the delivery as damaged and contact SEG Systems immediately. Failure to sign for the package(s) as damaged, refusal of the package, or neglecting to note after 3 business days any damage that may have occurred during the shipping process will be treated as a warranty claim and are subject to the terms and conditions of our warranty. The option to issue a return label/call tag is at the discretion of SEG Systems for any warranty or claim situation and any product outside of 72 hours will not have the option for a return label/call tag.

Any errors occurred during the shipping/freight process that shipped under the SEG Systems prepaid freight service will be guaranteed and covered should the shipper lose, damage or delay a product outside their guaranteed delivery time.

SEG Systems will process the claim information and replace the affected product. For orders shipped using a customer’s shipper number or a third party shipper number, the customer will be responsible for replacing the affected product at cost and following through with the claim through the shipping/ freight company. SEG Systems will begin the claim process and provide the customer with the claim information. Any further claim correspondence will be between the customer and the shipping/freight company.

SEG Systems reserves the right to request documentation in the forms of photos, copies of packing slips and the like to ensure the issue is resolved promptly. “Standard questions” may also be asked in order to provide accurate and timely customer service. Failure to provide the necessary information requested by an SEG Systems Representative may delay the claim process. An RMA/Case number may be issued depending on the claim. This number must be used in regard to all correspondence with the issue and adhered to any packaging sent to SEG Systems for assessment.

Failure to adhere RMA/Case information to a package will delay the claim/ warranty process.

All order cancellations must be confirmed and approved by an SEG Systems Representative within 48 hours of submitting your purchase order. If SEG Systems has produced or ordered raw materials prior to your cancellation notice this may result in SEG Systems fully charging for materials and labor, or imposing a minimum cancellation fee of up to 50% of the purchase/sale price

SEG Systems guarantees the quality and functionality of its products when used in the correct manner as illustrated on each product’s instruction sheet.

Failure to comply with Warranty Terms and Conditions may result in additional charges and fees, determined at the discretion of SEG Systems. In cases of warranty disputes, SEG Systems reserves the right of the final judgment and/or decision on the nature and cause of damage and the fair and applicable warranty response and/or solution.

SEG Systems • 6900 Northpark Blvd., Suite G • Charlotte, NC 28216 • P: 704.579.5800 • www.segsystems.com

2

SEG Systems Graphic Services Introduction

G7 Certification

SEG Systems provides state-of-the-art grand format printing, full service graphic finishing and graphic services.

The graphics we provide are G7 certified and printed on state-of-the-art equipment.

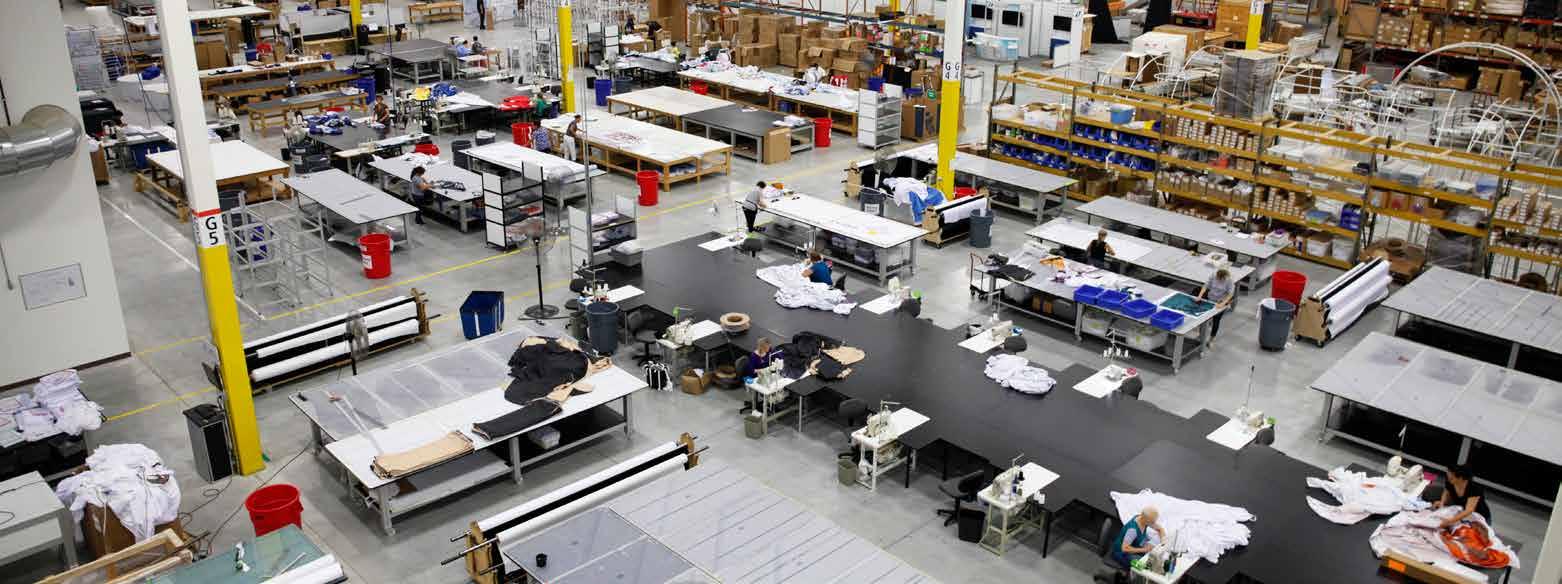

Our facilities produce up to 35,000 square feet of display graphics per hour thanks to a full service customer satisfaction team, talented art staff, and around the clock production crew. Our grand format printers are equipped for speed and quality to meet the most demanding deadlines.

G7 certification helps ensure the production of the highest quality, consistent and accurate color graphics. G7 specifies the components of an image that define a similar “visual appearance” to the human eye.

With a fleet of over 14 state-of-the-art printers, we provide our clients with graphics to complement our line of SEG Systems hardware display products creating a one-stop-shop for all of your retail display solution requirements.

We look forward to the opportunity of printing your next project. For questions regarding our print materials, capabilities, finishing, artwork guidelines or turnaround times, please contact your sales representative.

G7 Specifications • Defines a color metric definition for gray balance • Specifies gray balance in the midtones and image contrast from the highlights to the shadows • Defines the ideal colorimetric black and CMYK graytone curves for an image • Specifies a step-by-step method for calibrating proofing systems and printers to these tone curves We are proud to be able to provide consistent, high quality graphics with accurate color to the G7 specification.

3

SEG Systems Graphic Services Artwork Guidelines Resolution All Adobe Creative Suite programs (Illustrator, Photoshop, InDesign) are supported.

Recommended files include: .AI, .INDD, .PSD, Tiff, PDF, and some high resolution JPEG files.

NATIVE PACKAGED FILES ARE PREFERRED.

Sizing

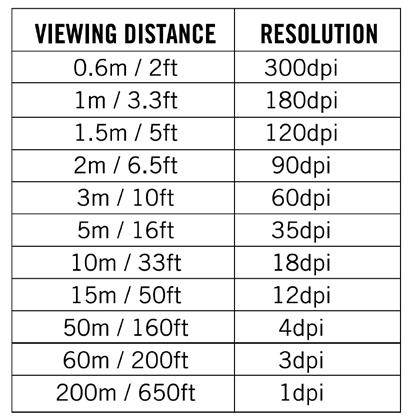

For best fabric print results, follow the below minimum resolution recommendations. When embedding raster images in your file be sure view the image at 100% to check for pixelation. If file is built at 50% then zoom into 200%, 10% zoom into 1000%. If working in Illustrator, Set the Document Raster Effects (Effect Menu) to 300ppi before beginning the project. “Rezzing Up” an image to a higher DPI, will only soften the image and not add detail. Always preview raster artwork at actual print size to check for any hidden flaws.

Provide artwork at 100% scale. Should the artwork size be too large please provide artwork at 50% or 25% scale. If you have custom shaped graphics, please provide a die line on a seperate layer.

Bleed 2“ bleed per side is standard for all silicone edge, nonlit and backlit fabric graphics. When saving artwork with bleed, crop marks, registration marks, and color bars are not needed.

Color Specifications All graphics are printed using 4-color process (CMYK). Artwork submitted using RGB will be converted to 4-color process prior to production. Undesired changes in color can occur in final print as a result. Provide color proof or Pantone call outs if color accuracy is necessary. Cost for PMS matching applies per color and requires one additional day of production. Unless stated otherwise, all Pantone colors will be converted to the 4-color conversion.

If you find yourself in a scenario where you are unsure if a files resolution is large enough send us the file and allow us to determine if the image is acceptable for our printing process.

PLEASE CONFIRM ALL IMAGES ARE PROPERLY EMBEDDED OR PROVIDE ALL LINKED FILES.

Image Area

Artwork Upload

To avoid unwanted cropping, place graphics and text 2” away from the edges of the artwork.

Go to our website and click on the “Upload to WeTransfer” button to send art files.

Fonts Package and include all font files used in your artwork or outline ALL typography.

Other upload options include: Hightail, Box, or Dropbox links. Please send all links to your sales executive, project manager or graphic production manager at graphics@segsystems.com.

If you have any questions please contact your sales executive, project manager or email graphics@segsystems.com.

Lightning Fast Graphics with NO Rush Charges!

Graphic orders can ship as fast as you need without rush charges!

All orders are entered to ship with a standard turnaround time of 3-4 business days, unless otherwise specified (refer to turnaround times chart).

If the order must ship earlier the following rules apply: 1. A rush graphics order must ship via OVERNIGHT, LOCAL PICK-UP or MESSENGER SERVICE (no exceptions).

2. The “no-rush charge” policy applies to SEG Systems off-the-shelf portable modular products and does not apply to any hanging structures, custom project/exhibit that requires Project Management or exhibit design time.

3. All standard proof approvals (e-proof & hard copy proof) must be received by NOON eastern time.* 4. All rush orders require an e-proof approval WITHIN an hour of the proof being sent.* *Failure to approve orders within the time frames stated above will result in late approval fees of $50 for standard orders & $100 for rush orders.

4

SEG Systems Important Turnaround Times Important Turnaround Times Orders must be received with artwork by noon eastern time to be counted as a preproduction day.

• Production times are based on graphic proof approval.

• For graphic orders placed through a sales representative, electronic proofs are sent via email.

• Artwork quality affects the time it takes to prepare files for print.

• Hard copy proofs are available upon request with an additional charge and require one extra business day for turnaround time.

• For any rush project, proof approval time will be specified by the Director of Print & Design and will be listed in your e-proof approval email. Most rush projects will require proofs to be approved within the hour to accommodate original requested ship date.

• All proofs must be approved by noon eastern time in order to be considered a production day for products requiring two or more pre-production days.

Graphic Turnaround Times: Requires Two Pre-Production Days

Kit & Furniture SEG Graphics

Lightbox SEG Fabric Graphics

1-4

3 days

1-4

3 days

5-8

4 days

5-8

4 days

9-12

5 days

9-12

5 days

5

MODify™ Standard & Custom Turnaround Time Options NEED IT FAST? THIS IS YOUR JAM.

SEMI-CUSTOM

CUSTOM

Displays, accessories and accent furniture as shown with outlined colors and finish options.

Displays configured to a different height (same width ~ 36”) or color.

Unique shapes, sizes, and colors.

Wood colors: Black, White, Natural & Gray Woodgrain Graphics: Any color or pattern you wish, based on what you design!

LEAD TIME

PACKAGING

Standard Accent Furniture needed in a different frame or wood color.

Custom-developed displays, furnishings, and accessories per the sizes you need and desire.

You specify the color for frames, accessories, and accent furnishings.

Design: 5 days

Build: Quantity 1-4: 7 days Quantity 5-8: 8 days Quantity 9-12: 9 days

Build: 2-4 weeks

Boxed & skidded.

Boxed & skidded.

Boxed & skidded.

Self-serve.

Light Consult, Design & Estimate.

Heavy Consult & Conceptual Design.

Get to know more about you, your project and how you want the base MODify collection slightly MODify’d.

Conceptual design services for full environments and custom displays, accessories, and accent furniture.

Display virtual/design.

Detailed estimate.

Prototypes, renderings, and fabrication drawings for approval. Store fixture program development and rollout.

Install: Self-serve install.

Kits are designed for associate-level install and can be assembled per the easy set-up instructions provided.

Need a Virtual image of a standard kit?

No problem, request and we will provide in 24-48 hrs.

Need a Virtual of a MODify’d kit, configured with the accessories you wish? No problem, request and we will provide in 24-72 hours.

6

Frame colors: Endless Powder Coat color options for frames and standard accessories.

Design: Already done!

Pick your desired displays, accessories and accent furniture right out of the catalog. Design your artwork, submit, and order.

SERVICE LEVELS

LOOKING FOR ONE OF A KIND? WE CAN DO THAT!

STANDARD

Colors: Black, White, Silver

DEFINITION & COLOR OPTIONS

WANT SOMETHING DIFFERENT? SLIGHTLY MODify.

Install: Your choice of selfserve or professional installation.

Design: 2+ weeks Based on project scope.

Build: 6-8+ weeks Based on project scope.

Install: Professional Installation service provided if needed.

MODify™ Accessory & Furniture Color Finishes COLOR FINISHES The MODify™ Retail Merchandising System offers three metal powder coat finishes. Base kits come in one color for the frame, base, slatwall and included accessories. Optional accessories and fixtures are an ideal way to mix and match colors.

Additional Finishes

We can powder coat any color! With a bit more time, we can colorize frames and fixtures to your desired colors.

white

black

silver

black

natural

gray

SEG FABRIC GRAPHICS SEG fabric graphics allow you to incorporate any color, pattern, message or brand you wish to within the retail display.

Easily change for different brands and for the change of seasons.

WOOD LAMINATE COLORS Our laminate wood tops for nesting tables and risers are quality crafted and available in four color options.

white

Custom designed DISPLAY SOLUTIONS SEG Systems is an in-house manufacturer that designs, engineers, and builds integrated displays, frames, and lightbox solutions for some of the biggest brands in retail, sports, corporations, trade shows and events. We have what it takes to bring your ideas to reality.

Reach out to our team and let’s start a conversation.

7

MODify™ Single Sided Kits

Kit Color Options

white

black

silver

SINGLE SIDED KITS CODE

MFY-SS-K-01-W/B/S

MFY-SS-01-G

DESCRIPTION

MODify Single Sided Kit 01 3’W x 6’H Display with 4, 36”W x 12”D Steel Shelves, Platform (non-rolling)

SEG Fabric Graphic (39.25”W X 72.625”H total size) 35.25”W X 68.625”H finish size MODify Single Sided Kit 02

MFY-SS-K-02-W/B/S

MFY-SS-02-TP-G

3’W x 6’H Display with: 1, 36” Slatwall, Graphic Header, Platform (non-rolling) SEG Fabric Graphic (39.25”W X 15.1875”H total size) 35.25”W X 11.1875”H finish size MODify Single Sided Kit 03

MFY-SS-K-03-W/B/S

MFY-SS-03-G

9’W x 8’H Display with: Left & Right 36” Slatwalls Center SS SEG Graphic, Platform (non-rolling) SEG Fabric Graphic (39.25”W X 96.625”H total size) 35.25”W X 92.625”H finish size MODify Single Sided Kit 04

MFY-SS-K-04-W/B/S

MFY-SS-04-G

9’W x 8’H Display with: 3 Panel Slatwall panels, SEG Graphic top per panel, Platform (non-rolling) MODify Single Sided Kit 04 SEG Fabric Graphic Kit 3 panels MODify Single Sided Kit 05

MFY-SS-K-05-W/B/S

MFY-SS-05-G

8

6’W x 8’H Display with: Left 36” Slatwall, Right 36” SEG graphic, Platform (non-rolling) SEG Fabric Graphic (39.25”W X 96.4375”H total size) 35.25”W X 92.4375”H finish size

MODify™ Double Sided Kits

Kit Color Options

white

black

silver

DOUBLE SIDED KITS CODE

DESCRIPTION MODify Double Sided Kit 01

MFY-DS-K-01-W/B/S

MFY-DS-01-G

3’W x 6’H Display with 36” wide Slatwall, SEG graphic top, Platform, Casters optional SEG Fabric Graphic (38.625”W X 15.875”H total size) 34.625”W X 11.875”H finish size MODify Double Sided Kit 02

MFY-DS-K-02-W/B/S

MFY-DS-K-02-G

6’W x 8’H Display with 4, 36”W x 48”H Slatwall, 4 Graphics, Platform (non-rolling) 1 Graphic Kit code for 4, SS Optional SEG Graphics Platform (non-rolling) MODify Double Sided Kit 02 SEG Fabric Graphic Kit 4 panels MODify Double Sided Kit 03

MFY-DS-K-03-W/B/S

MFY-DS-03-G

6’W x 6’H Display with 6, 36”W x 12”D Shelves, 2 SEG Graphics Platform, Casters optional SEG Fabric Graphic (39.25”W X 72.625”H total size) 35.25”W X 68.625”H finish size MODify Double Sided Kit 04

MFY-DS-K-04-W/B/S

MFY-DS-04-G

9’W x 8’H Display with: 6 Panel Slatwall panels, SEG Graphic top per panel, Platform (non-rolling) MODify Single Sided Kit 04 SEG Fabric Graphic Kit 6 panels

9

MODify™ Gondolas

Kit Color Options

white

black

silver

GONDOLAS CODE MFY-GN-K-01-W/B/S MFY-GN-01-G

DESCRIPTION MODify Gondola Kit 01 6’W x 5’H x 3’D Display with: Three frames, Graphics, Platform (non-rolling) MODify Gondola Kit 01 SEG Fabric Graphic Kit 8 panels MODify Gondola Kit 02

MFY-GN-K-02-W/B/S

MFY-GN-02-G

MFY-GN-K-03-W/B/S

MFY-GN-03-G

10

6’W x 8’H Display with: Three frames, Graphics, Topper, Platform (nonrolling) MODify Gondola Kit 02 SEG Fabric Graphic Kit 10 panels MODify Gondola Kit 03 3’W x 6’H Display with Two frames, Graphics, Topper, Platform with Casters MODify Gondola Kit 03 SEG Fabric Graphic Kit 6 panels

MODify™ Four Sided Kits

Kit Color Options

white

black

silver

FOUR SIDED KITS CODE

DESCRIPTION MODify Four Sided (4S) Kit 01

MFY-4S-K-01-W/B/S

MFY-4S-01-G

MFY-4S-K-02-W/B/S

MFY-4S-02-G

MFY-4S-K-03-W/B/S

MFY-4S-03-G

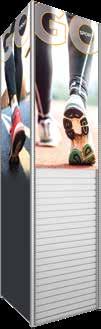

3’W x 12’H Backlit Tower with 3’W x 6’H Slatwall on two sides, full height graphics on two sides.

MODify 4-Sided Kit 01 SEG Fabric Graphic Kit 4 panels

MODify Four Sided (4S) Kit 02 3’W x 10’H Display with Four Sided Tower, Four Sided Topper MODify 4-Sided Kit 02 SEG Fabric Graphic Kit 5 panels

MODify Four Sided (4S) Kit 03 12’W x 12’H Arch Display with 4 Slatwall panels, 8 graphic panels.

MODify 4-Sided Kit 03 SEG Fabric Graphic Kit 6 panels

11

MODify™ Accessories

Accessory Color Options

white

SLATWALL HOOKS CODE

DESCRIPTION

MFY-SLT-HK-4-W/B/S

Slatwall hook 4” - 5 pack

MFY-SLT-HK-6-W/B/S

Slatwall hook 6” - 5 pack

MFY-SLT-HK-8-W/B/S

Slatwall hook 8” - 5 pack

MFY-SLT-HK-10-W/B/S

Slatwall hook 10” - 5 pack

MFY-SLT-HK-12-W/B/S

Slatwall hook 12” - 5 pack

SLATWALL FACEOUT BARS MFY-SLT-FC-6-W/B/S

Slatwall faceout bar 6”

MFY-SLT-FC-8-W/B/S

Slatwall faceout bar 8”

MFY-SLT-FC-10-W/B/S

Slatwall faceout bar 10”

MFY-SLT-FC-12-W/B/S

Slatwall faceout bar 12”

MFY-SLT-WTR-16-7-W/B/S

Slatwall Waterfall 7 Peg, 16” Long

SLATWALL WATERFALLS

12

black

silver

MODify™ Accessories

Accessory Color Options

white

black

silver

SLATWALL TOWEL BARS CODE

DESCRIPTION

MFY-SLT-TWL-36-3-W/B/S

Towel Bar, 36”W, 2.75”D

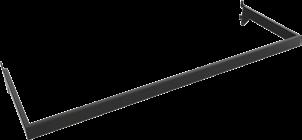

MFY-UBR-36-12-W/B/S

U Bar, 36”W, 12”D U-Shape Hang Bar

MFY-TWL-WTR-12-5-W/B/S

5 Peg, 12” Waterfall for Towel Bar

MFY-TWL-FC-6-W/B/S

6” Faceout for Towel Bar

MFY-TWL-FC-8-W/B/S

8” Faceout for Towel Bar

MFY-TWL-FC-10-W/B/S

10” Faceout for Towel Bar

U-SHAPED HANG BARS

TOWEL BAR WATERFALLS

TOWEL BAR FACEOUTS

13

MODify™ Accessories

Accessory Color Options

white

black

silver

SHELVES CODE

DESCRIPTION

MFY-SLF-36-12-HB-W/B/S

36”W x 12”D Shelf with Hang Bar

MFY-SLF-36-12-W/B/S

36”W x 12”D Shelf

MFY-SBD-36-17-W/B/S

36”W x 17”D Solo Base Deck with 2” Toe Kick

MFY-DB-36-17-W/B/S

36”W x 17”D Drop In Base with 2” Toe Kick

MFY-CSTR-4-PK

4 Pack of Casters, 1 locking, 2 non-locking (4) 824-NUT-516 60kg min. gray wheel color

BASE DECKS

CASTERS

14

white

black

MODify™ Furniture

Laminate Color Options

Frame Color Options

silver

white

black

natural

gray

NESTING TABLES CODE

DESCRIPTION

MFY-TBL-01-W/B/S

MODify Nesting Table 01 56”W x 36”H x 30”D Nesting Table, Laminate options for white, black, gray wood grain top

MFY-TBL-01-G

SEG Fabric Graphics - 2 panels (30.5”W X 35.25”H total size) 26.5”W X 31.25”H finished size

MFY-TBL-02-W/B/S

MODify Nesting Table 02 48”W x 30”H x 24”D Nesting Table, Laminate options for white, black, gray wood grain top

MFY-TBL-02-G

SEG Fabric Graphics - 2 panels (24.5”W X 29.25”H total size) 20.5”W X 25.25”H finished size

MFY-TBL-03-W/B/S

MODify Nesting Table 03 34”W x 36”H x 34”D Nesting Table, Laminate options for white, black, gray wood grain top

MFY-TBL-03-G

SEG Fabric Graphics - 2 panels (30.5”W X 35.25”H total size ) 26.5”W X 31.25”H finished size

MFY-TBL-04-W/B/S

MODify Nesting Table 04 27”W x 30”H x 24”D Nesting Table, Laminate options for white, black, gray wood grain top

MFY-TBL-04-G

SEG Fabric Graphics - 2 panels (24.5”W X 29.25”H total size) 20.5”W X 25.25”H finished size

MFY-RSR-01

MODify Riser 01 Black 35.75”W x 17.75”H x 18”D; Laminate top options for white, black, gray wood grain top

MFY-RSR-01-G

MODify Riser 01 Graphic Kit 4 panels

MFY-RSR-02

MODify Riser 02 47.75”W x 23.75”H X 12”D riser, Black Steel Frame; Laminate top options for white, black, gray wood grain top

MFY-RSR-02-G

MODify Riser 02 Graphic Kit 4 panels

MFY-PED-01

MODify Pedestal 01 Wood Top, 16”W x 37”H x 16”D, Laminate options for white, black, gray wood grain top

MFY-PED-01A

MODify Pedestal 01 White Wood Top + Acrylic Cube, 16”W x 47.5”H x 16”D, Laminate options for white, black, gray wood grain top

MFY-PED-01-G

MODify Pedestal 01 Graphic Kit 4 panels

MFY-PED-02

MODify Pedestal 02 Wood Top, 16”W x 25"H x 16”D, Laminate options for white, black, gray wood grain top

MFY-PED-02A

MODify Pedestal 02 Wood Top + Acrylic Cube, 16”W x 36”H x 16”D, Laminate options for white, black, gray wood grain top

MFY-PED-02-G

MODify Pedestal 02 Graphic Kit 4 panels

RISERS

PEDESTALS

15

BLAZE™ Wall Lightboxes

Frame Color Options

white

black

silver

WALL

16

CODE

DESCRIPTION

BLZ-W-0603-W/B/S-F

6’W x 3’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0603-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 39.875”H total size) 71.875”W X 35.875”H finished size

BLZ-W-0603-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 39.875”H total size) 71.875”W X 35.875”H finished size

BLZ-W-0803-W/B/S-F

8’W x 3’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0803-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 39.875”H total size) 95.875”W X 35.875”H finished size

BLZ-W-0803-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 39.875”H total size) 95.875”W X 35.875”H finished size

BLZ-W-0604-W/B/S-F

6’W x 4’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0604-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 51.875”H total size) 71.875”W X 47.875”H finished size

BLZ-W-0604-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 51.875”H total size) 71.875”W X 47.875”H finished size

BLZ-W-0804-W/B/S-F

8’W x 4’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0804-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 51.875”H total size) 95.875”W X 47.875”H finished size

BLZ-W-0804-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 51.875”H total size) 95.875”W X 47.875”H finished size

BLZ-W-0606-W/B/S-F

6’W x 6’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0606-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 75.875”H total size) 71.875”W X 71.875”H finished size

BLZ-W-0606-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 75.875”H total size) 71.875”W X 71.875”H finished size

BLAZE™ Wall Lightboxes

Frame Color Options

white

black

silver

WALL CODE

DESCRIPTION

BLZ-W-0806-W/B/S-F

8’W x 6’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0806-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 75.875”H total size) 95.875”W X 71.875”H finished size

BLZ-W-0806-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 75.875”H total size) 95.875”W X 71.875”H finished size

BLZ-W-0808-W/B/S-F

8’W x 8’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-0808-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 99.875”H total size) 95.875”W X 95.875”H finished size

BLZ-W-0808-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 99.875”H total size) 95.875”W X 95.875”H finished size

BLZ-W-1008-W/B/S-F

10’W x 10’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-1008-G-INT

UV Printed Backlit Fabric Graphic (123.875”W X 99.875”H total size) 119.875”W X 95.875”H finished size

BLZ-W-1008-G-BL

Dye-Sublimation Backlit Graphic (123.875”W X 99.875”H total size) 119.875”W X 95.875”H finished size

BLZ-W-1010-W/B/S-F

10’W x 10’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-1010-G-INT

UV Printed Backlit Fabric Graphic (123.875”W X 123.875”H total size) 119.875”W X 119.875”H finished size

BLZ-W-1010-G-BL

Dye-Sublimation Backlit Graphic (123.875”W X 123.875”H total size) 119.875”W X 119.875”H finished size

BLZ-W-2008-W/B/S-F

20’W x 8’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-2008-G-INT

UV Printed Backlit Fabric Graphic (243.875”W X 99.875”H total size) 239.875”W X 95.875”H finished size

BLZ-W-2008-G-BL

Dye-Sublimation Backlit Graphic (243.875”W X 99.875”H total size) 239.875”W X 95.875”H finished size

17

BLAZE™ Wall Lightboxes

Frame Color Options

white

black

silver

WALL

18

CODE

DESCRIPTION

BLZ-W-2010-W/B/S-F

20’W x 10’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-2010-G-INT

UV Printed Backlit Fabric Graphic (243.875”W X 123.875”H total size) 239.875”W X 119.875”H finished size

BLZ-W-2010-G-BL

Dye-Sublimation Backlit Graphic (243.875”W X 123.875”H total size) 239.875”W X 119.875”H finished size

BLZ-W-3008-W/B/S-F

30’W x 8’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-3008-G-INT

UV Printed Backlit Fabric Graphic (363.875”W X 99.875”H total size) 359.875”W X 95.875”H finished size

BLZ-W-3008-G-BL

Dye-Sublimation Backlit Graphic (363.875”W X 99.875”H total size) 359.875”W X 95.875”H finished size

BLZ-W-3010-W/B/S-F

30’W x 10’H Wall Lightbox: 4” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-W-3010-G-INT

UV Printed Backlit Fabric Graphic (363.875”W X 123.875”H total size) 359.875”W X 119.875”H finished size

BLZ-W-3010-G-BL

Dye-Sublimation Backlit Graphic (363.875”W X 123.875”H total size) 359.875”W X 119.875”H finished size

BLAZE™ Freestanding Lightboxes

Frame Color Options

white

black

silver

FREESTANDING CODE

DESCRIPTION

BLZ-0306-F-W/B/S

3’W x 6’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-0306-G-INT

UV Printed Backlit Fabric Graphic (39.875”W X 75.875”H total size) 35.875”W X 71.875”H finished size

BLZ-0306-G-BL

Dye-Sublimation Backlit Graphic (39.875”W X 75.875”H total size) 35.875”W X 71.875”H finished size

BLZ-0306-G-OP-LN

Unprinted Opaque Liner 35.875”W X 71.875”H finished size

BLZ-0308-F-W/B/S

3’W x 8’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-0308-G-INT

UV Printed Backlit Fabric Graphic (39.875”W X 99.875”H total size) 35.875”W X 95.875”H finished size

BLZ-0308-G-BL

Dye-Sublimation Backlit Graphic (39.875”W X 99.875”H total size) 35.875”W X 95.875”H finished size

BLZ-0308-G-OP-LN

Unprinted Opaque Liner 35.875”W X 95.875”H finished size

BLZ-0406-F-W/B/S

4’W x 6’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-0406-G-INT

UV Printed Backlit Fabric Graphic (51.875”W X 75.875”H total size) 47.875”W X 71.875”H finished size

BLZ-0406-G-BL

Dye-Sublimation Backlit Graphic (51.875”W X 75.875”H total size) 47.875”W X 71.875”H finished size

BLZ-0406-G-OP-LN

Unprinted Opaque Liner 47.875”W X 71.875”H finished size

BLZ-0408-F-W/B/S

4’W x 8’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-0408-G-INT

UV Printed Backlit Fabric Graphic (51.875”W X 99.875”H total size) 47.875”W X 95.875”H finished size

BLZ-0408-G-BL

Dye-Sublimation Backlit Graphic (51.875”W X 99.875”H total size) 47.875”W X 95.875”H finished size

BLZ-0408-G-OP-LN

Unprinted Opaque Liner 47.875”W X 95.875”H finished size

19

BLAZE™ Freestanding Lightboxes

Frame Color Options

white

black

silver

FREESTANDING

20

CODE

DESCRIPTION

BLZ-0808-F-W/B/S

8’W x 8’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-0808-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 99.875”H total size) 95.875”W X 95.875”H finished size

BLZ-0808-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 99.875”H total size) 95.875”W X 95.875”H finished size

BLZ-0808-G-OP-LN

Unprinted Opaque Liner 95.875”W X 95.875”H finished size

BLZ-1008-F-W/B/S

10’W x 8’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-1008-G-INT

UV Printed Backlit Fabric Graphic (123.875”W X 99.875”H total size) 119.875”W X 95.875”H finished size

BLZ-1008-G-BL

Dye-Sublimation Backlit Graphic (123.875”W X 99.875”H total size) 119.875”W X 95.875”H finished size

BLZ-1008-G-OP-LN

Unprinted Opaque Liner 119.875”W X 95.875”H finished size

BLZ-1010-F-W/B/S

10’W x 10’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-1010-G-INT

UV Printed Backlit Fabric Graphic (123.875”W X 123.875”H total size) 119.875”W X 119.875”H finished size

BLZ-1010-G-BL

Dye-Sublimation Backlit Graphic (123.875”W X 123.875”H total size) 119.875”W X 119.875”H finished size

BLZ-1010-G-OP-LN

Unprinted Opaque Liner 119.875”W X 119.875”H finished size

BLZ-2008-F-W/B/S

20’W x 08’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-2008-G-INT

UV Printed Backlit Fabric Graphic (243.875”W X 99.875”H total size) 239.875”W X 95.875”H finish size

BLZ-2008-G-BL

Dye-Sublimation Backlit Graphic (243.875”W X 99.875”H total size) 239.875”W X 95.875”H finish size

BLZ-2008-G-OP-LN

Unprinted Opaque Liner 239.875”W X 95.875”H finish size

BLAZE™ Freestanding Lightboxes

Frame Color Options

white

black

silver

FREESTANDING CODE

DESCRIPTION

BLZ-2010-F-W/B/S

20’W x 10’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-2010-G-INT

UV Printed Backlit Fabric Graphic (243.875”W X 123.875”H total size) 239.875”W X 119.875”H finished size

BLZ-2010-G-BL

Dye-Sublimation Backlit Graphic (243.875”W X 123.875”H total size) 239.875”W X 119.875”H finished size

BLZ-2010-G-OP-LN

Unprinted Opaque Liner 239.875”W X 119.875”H finished size

BLZ-3010-F-W/B/S

30’W x 10’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-3010-G-INT

UV Printed Backlit Fabric Graphic (39.875”W X 99.875”H total size) 35.875”W X 95.875”H finished size

BLZ-3010-G-BL

Dye-Sublimation Backlit Graphic (39.875”W X 99.875”H total size) 35.875”W X 95.875”H finished size

BLZ-3010-G-OP-LN

Unprinted Opaque Liner 35.875”W X 95.875”H finished size

21

BLAZE™ Hanging Lightboxes

Frame Color Options

white

black

silver

HANGING

22

CODE

DESCRIPTION

BLZ-H-0603-F-S

6’W x 3’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0603-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 39.875”H total size) 71.875”W X 35.875”H finish size

BLZ-H-0603-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 39.875”H total size) 71.875”W X 35.875”H finish size

BLZ-H-0803-F-S

8’W x 3’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0803-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 39.875”H total size) 95.875”W X 35.875”H finish size

BLZ-H-0803-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 39.875”H total size) 95.875”W X 35.875”H finish size

BLZ-H-0604-F-S

6’W x 4’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0604-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 51.875”H total size) 71.875”W X 47.875”H finish size

BLZ-H-0604-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 51.875”H total size) 71.875”W X 47.875”H finish size

BLZ-H-0804-F-S

8’W x 4’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0804-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 51.875”H total size) 95.875”W X 47.875”H finish size

BLZ-H-0804-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 51.875”H total size) 95.875”W X 47.875”H finish size

BLZ-H-0606-F-S

6’W x 6’H Freestanding Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0606-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 75.875”H total size) 71.875”W X 71.875”H finish size

BLZ-H-0606-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 75.875”H total size) 71.875”W X 71.875”H finish size

BLAZE™ Hanging Lightboxes

Frame Color Options

white

black

silver

HANGING CODE

DESCRIPTION

BLZ-H-0806-F-S

8’W x 6’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0806-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 75.875”H total size) 95.875”W X 71.875”H finish size

BLZ-H-0806-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 75.875”H total size) 95.875”W X 71.875”H finish size

BLZ-H-0808-F-S

8’W x 8’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-0808-G-INT

UV Printed Backlit Fabric Graphic (99.875”W X 99.875”H total size) 95.875”W X 95.875”H finish size

BLZ-H-0808-G-BL

Dye-Sublimation Backlit Graphic (99.875”W X 99.875”H total size) 95.875”W X 95.875”H finish size

BLZ-H-1008-F-S

10’W x 8’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-1008-G-INT

UV Printed Backlit Fabric Graphic (123.875”W X 99.875”H total size) 119.875”W X 95.875”H finish size

BLZ-H-1008-G-BL

Dye-Sublimation Backlit Graphic (123.875”W X 99.875”H total size) 119.875”W X 95.875”H finish size

BLZ-H-1010-F-S

10’W x 10’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-1010-G-INT

UV Printed Backlit Fabric Graphic (123.875”W X 123.875”H total size) 119.875”W X 119.875”H finish size

BLZ-H-1010-G-BL

Dye-Sublimation Backlit Graphic (123.875”W X 123.875”H total size) 119.875”W X 119.875”H finish size

BLZ-H-2008-F-S

20’W x 8’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-2008-G-INT

UV Printed Backlit Fabric Graphic (243.875”W X 99.875”H total size) 239.875”W X 95.875”H finish size

BLZ-H-2008-G-BL

Dye-Sublimation Backlit Graphic (243.875”W X 99.875”H total size) 239.875”W X 95.875”H finish size

23

BLAZE™ Hanging Lightboxes

Frame Color Options

white

black

silver

HANGING

24

CODE

DESCRIPTION

BLZ-H-2010-F-S

20’W x 10’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-2010-G-INT

UV Printed Backlit Fabric Graphic (243.875”W X 123.875”H total size) 239.875”W X 119.875”H finish size

BLZ-H-2010-G-BL

Dye-Sublimation Backlit Graphic (243.875”W X 123.875”H total size) 239.875”W X 119.875”H finish size

BLZ-H-3008-F-S

8’W x 3’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-3008-G-INT

UV Printed Backlit Fabric Graphic (363.875”W X 99.875”H total size) 359.875”W X 95.875”H finish size

BLZ-H-3008-G-BL

Dye-Sublimation Backlit Graphic (363.875”W X 99.875”H total size) 359.875”W X 95.875”H finish size

BLZ-H-3010-F-S

30’W x 10’H Hanging Lightbox: 6” Profile, Full Perimeter LED AC Light Bars, Built in Power Supply (BIPS), ships in Box.

BLZ-H-3010-G-INT

UV Printed Backlit Fabric Graphic (75.875”W X 51.875”H total size) 71.875”W X 47.875”H finish size

BLZ-H-3010-G-BL

Dye-Sublimation Backlit Graphic (75.875”W X 51.875”H total size) 71.875”W X 47.875”H finish size
