Chapter 2: The recirculation system, step by step

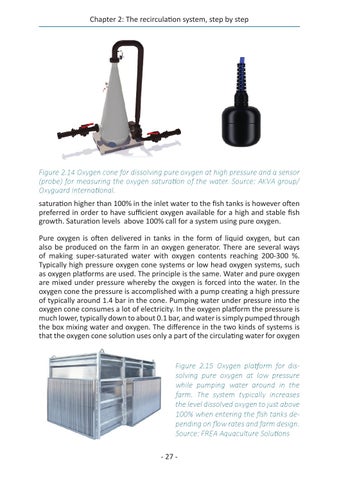

Figure 2.14 Oxygen cone for dissolving pure oxygen at high pressure and a sensor (probe) for measuring the oxygen saturation of the water. Source: AKVA group/ Oxyguard International. saturation higher than 100% in the inlet water to the fish tanks is however often preferred in order to have sufficient oxygen available for a high and stable fish growth. Saturation levels above 100% call for a system using pure oxygen. Pure oxygen is often delivered in tanks in the form of liquid oxygen, but can also be produced on the farm in an oxygen generator. There are several ways of making super-saturated water with oxygen contents reaching 200-300 %. Typically high pressure oxygen cone systems or low head oxygen systems, such as oxygen platforms are used. The principle is the same. Water and pure oxygen are mixed under pressure whereby the oxygen is forced into the water. In the oxygen cone the pressure is accomplished with a pump creating a high pressure of typically around 1.4 bar in the cone. Pumping water under pressure into the oxygen cone consumes a lot of electricity. In the oxygen platform the pressure is much lower, typically down to about 0.1 bar, and water is simply pumped through the box mixing water and oxygen. The difference in the two kinds of systems is that the oxygen cone solution uses only a part of the circulating water for oxygen Figure 2.15 Oxygen platform for dissolving pure oxygen at low pressure while pumping water around in the farm. The system typically increases the level dissolved oxygen to just above 100% when entering the fish tanks depending on flow rates and farm design. Source: FREA Aquaculture Solutions - 27 -
