A Guide to Recirculation Aquaculture

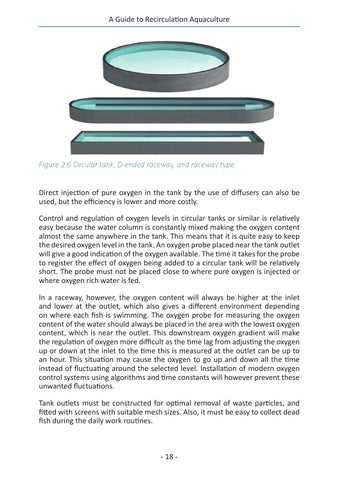

Figure 2.6 Circular tank, D-ended raceway, and raceway type. Direct injection of pure oxygen in the tank by the use of diffusers can also be used, but the efficiency is lower and more costly. Control and regulation of oxygen levels in circular tanks or similar is relatively easy because the water column is constantly mixed making the oxygen content almost the same anywhere in the tank. This means that it is quite easy to keep the desired oxygen level in the tank. An oxygen probe placed near the tank outlet will give a good indication of the oxygen available. The time it takes for the probe to register the effect of oxygen being added to a circular tank will be relatively short. The probe must not be placed close to where pure oxygen is injected or where oxygen rich water is fed. In a raceway, however, the oxygen content will always be higher at the inlet and lower at the outlet, which also gives a different environment depending on where each fish is swimming. The oxygen probe for measuring the oxygen content of the water should always be placed in the area with the lowest oxygen content, which is near the outlet. This downstream oxygen gradient will make the regulation of oxygen more difficult as the time lag from adjusting the oxygen up or down at the inlet to the time this is measured at the outlet can be up to an hour. This situation may cause the oxygen to go up and down all the time instead of fluctuating around the selected level. Installation of modern oxygen control systems using algorithms and time constants will however prevent these unwanted fluctuations. Tank outlets must be constructed for optimal removal of waste particles, and fitted with screens with suitable mesh sizes. Also, it must be easy to collect dead fish during the daily work routines.
- 18 -
