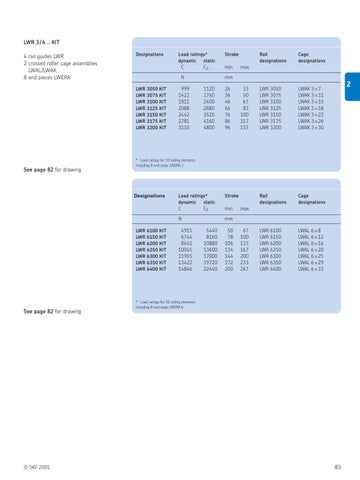

LWR 3 / 6 .. KIT 4 rail guides LWR 2 crossed roller cage assemblies LWAL/LWAK 8 end pieces LWERA
Designations
Load ratings* dynamic static C C0 N
LWR LWR LWR LWR LWR LWR LWR
3050 3075 3100 3125 3150 3175 3200
KIT KIT KIT KIT KIT KIT KIT
999 1422 1811 2088 2442 2781 3110
Stroke min.
Rail designations
Cage designations
LWR 3050 LWR 3075 LWR 3100 LWR 3125 LWR 3150 LWR 3175 LWR 3200
LWAK 3 × 7 LWAK 3 × 11 LWAK 3 × 15 LWAK 3 × 18 LWAK 3 × 22 LWAK 3 × 26 LWAK 3 × 30
Rail designations
Cage designations
LWR 6100 LWR 6150 LWR 6200 LWR 6250 LWR 6300 LWR 6350 LWR 6400
LWAL 6 × 8 LWAL 6 × 12 LWAL 6 × 16 LWAL 6 × 20 LWAL 6 × 25 LWAL 6 × 29 LWAL 6 × 33
max.
mm 1120 1760 2400 2880 3520 4160 4800
26 36 46 66 76 86 96
33 50 67 83 100 117 133
2
* Load ratings for 10 rolling elements Including 8 end stops LWERA 3
See page 82 for drawing
Designations
LWR LWR LWR LWR LWR LWR LWR
6100 6150 6200 6250 6300 6350 6400
KIT KIT KIT KIT KIT KIT KIT
Load ratings* dynamic static C C0
Stroke
N
mm
4915 6744 8441 10045 11955 13422 14846
5440 8160 10880 13600 17000 19720 22440
min.
50 78 106 134 144 172 200
max.
67 100 133 167 200 233 267
* Load ratings for 10 rolling elements Including 8 end stops LWERA 6
See page 82 for drawing
