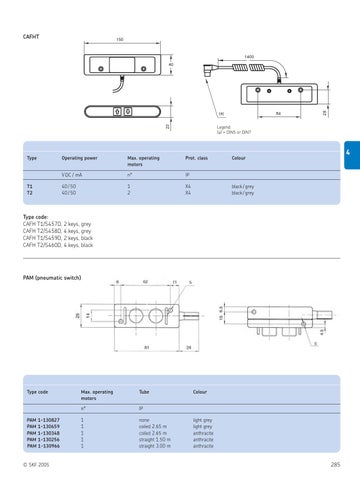

CAFHT
150
1400
84
23
(a)
Type
T1 T2
28
40
Legend: (a) = DIN5 or DIN7
Operating power
Max. operating motors
Prot. class
V DC / mA
n°
IP
40 / 50 40 / 50
1 2
X4 X4
4
Colour
black / grey black / grey
Type code: CAFH T1/S457D, 2 keys, grey CAFH T2/S458D, 4 keys, grey CAFH T1/S459D, 2 keys, black CAFH T2/S460D, 4 keys, black
PAM (pneumatic switch)
Type code
PAM 1-130827 PAM 1-130659 PAM 1-130348 PAM 1-130256 PAM 1-130966
© SKF 2005
Max. operating motors
Tube
n°
IP
1 1 1 1 1
none coiled 2.65 m coiled 2.65 m straight 1.50 m straight 3.00 m
Colour
light grey light grey anthracite anthracite anthracite
285
