4 Actuation systems Linear actuators CALA 36

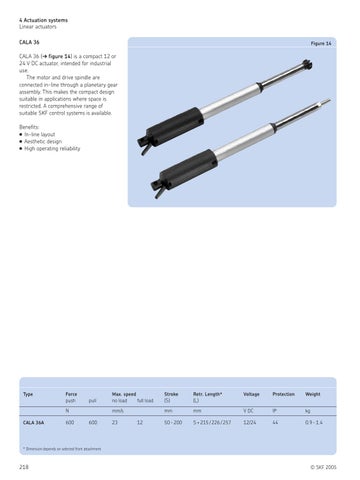

Figure 14
CALA 36 (➔ figure 14) is a compact 12 or 24 V DC actuator, intended for industrial use. The motor and drive spindle are connected in-line through a planetary gear assembly. This makes the compact design suitable in applications where space is restricted. A comprehensive range of suitable SKF control systems is available. Benefits: ● In-line layout ● Aesthetic design ● High operating reliability
Type
Force push
pull
N CALA 36A
600
600
Max. speed no load full load
Stroke (S)
Retr. Length* (L)
Voltage
Protection
Weight
mm/s
mm
mm
V DC
IP
kg
50 - 200
S + 215 / 226 / 257
12/24
44
0.9 - 1.4
23
12
* Dimension depends on selected front attachment
