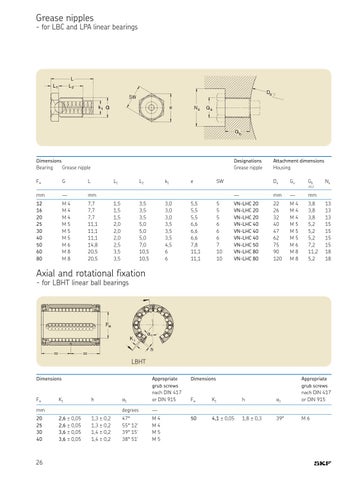

Grease nipples - for LBC and LPA linear bearings
Dimensions Bearing Grease nipple
Designations Grease nipple
Fw
G
L
L1
mm
—
mm
12 16 20 25 30 40 50 60 80
M4 M4 M4 M5 M5 M5 M6 M8 M8
7,7 7,7 7,7 11,1 11,1 11,1 14,8 20,5 20,5
L2
1,5 1,5 1,5 2,0 2,0 2,0 2,5 3,5 3,5
k1
3,5 3,5 3,5 5,0 5,0 5,0 7,0 10,5 10,5
3,0 3,0 3,0 3,5 3,5 3,5 4,5 6 6
e
SW
5,5 5,5 5,5 6,6 6,6 6,6 7,8 11,1 11,1
5 5 5 6 6 6 7 10 10
Attachment dimensions Housing Da
Ga
G
—
mm
—
mm
VN-LHC 20 VN-LHC 20 VN-LHC 20 VN-LHC 40 VN-LHC 40 VN-LHC 40 VN-LHC 50 VN-LHC 80 VN-LHC 80
22 26 32 40 47 62 75 90 120
M4 M4 M4 M5 M5 M5 M6 M8 M8
3,8 3,8 3,8 5,2 5,2 5,2 7,2 11,2 5,2
b ±0,2
Na
13 13 13 15 15 15 15 18 18
Axial and rotational fixation - for LBHT linear ball bearings
LBHT Dimensions
Fw
K1
h
2,6 ± 0,05 2,6 ± 0,05 3,6 ± 0,05 3,6 ± 0,05
1,3 ± 0,2 1,3 ± 0,2 1,4 ± 0,2 1,4 ± 0,2
mm 20 25 30 40
26
a1
Appropriate grub screws nach DIN 417 or DIN 915
degrees
—
47° 55° 12' 39° 15' 38° 51'
M4 M4 M5 M5
Dimensions
Fw
K1
h
a1
Appropriate grub screws nach DIN 417 or DIN 915
50
4,1 ± 0,05
1,8 ± 0,3
39°
M6
