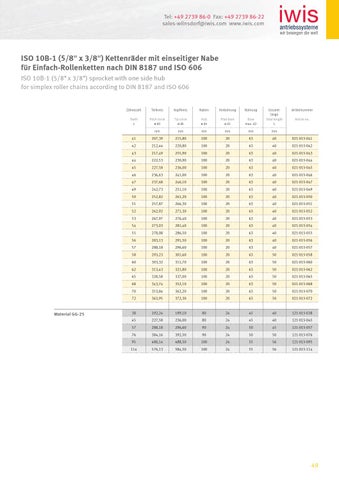

ISO 10B-1 (5/8" x 3/8") Kettenräder mit einseitiger Nabe für Einfach-Rollenketten nach DIN 8187 und ISO 606 ISO 10B-1 (5/8" x 3/8") sprocket with one side hub for simplex roller chains according to DIN 8187 and ISO 606
Material GG-25
Zähnezahl
Teilkreis
Kopfkreis
Naben
Vorbohrung
Bohrung
Teeth z
Pitch circle ø d0
Tip circle ø dk
Hub ø dn
Pilot bore ø d1
Bore max. d2
Gesamtlänge Total length L
Artikelnummer
mm
mm
mm
mm
mm
mm
41
207,39
215,80
100
20
63
40
021-015-041
42
212,44
220,80
100
20
63
40
021-015-042
43
217,49
255,90
100
20
63
40
021-015-043
44
222,53
230,90
100
20
63
40
021-015-044
45
227,58
236,00
100
20
63
40
021-015-045
46
236,63
241,00
100
20
63
40
021-015-046
47
237,68
246,10
100
20
63
40
021-015-047
49
242,73
251,10
100
20
63
40
021-015-049
50
252,82
261,20
100
20
63
40
021-015-050
51
257,87
266,30
100
20
63
40
021-015-051
52
262,92
271,30
100
20
63
40
021-015-052
53
267,97
276,40
100
20
63
40
021-015-053
54
273,03
281,40
100
20
63
40
021-015-054
55
278,08
286,50
100
20
63
40
021-015-055
56
283,13
291,50
100
20
63
40
021-015-056
57
288,18
296,60
100
20
63
40
021-015-057
58
293,23
301,60
100
20
63
50
021-015-058
60
303,32
311,70
100
20
63
50
021-015-060
62
313,43
321,80
100
20
63
50
021-015-062
65
328,58
337,00
100
20
63
50
021-015-065
68
343,74
352,10
100
20
63
50
021-015-068
70
353,84
362,20
100
20
63
50
021-015-070
72
363,95
372,30
100
20
63
50
021-015-072
38
192,24
199,10
80
24
45
40
121-015-038
45
227,58
236,00
80
24
45
40
121-015-045
57
288,18
296,60
90
24
50
45
121-015-057
76
384,16
392,50
90
24
50
50
121-015-076
95
480,14
488,50
100
24
55
56
121-015-095
114
576,13
584,50
100
24
55
56
121-015-114
