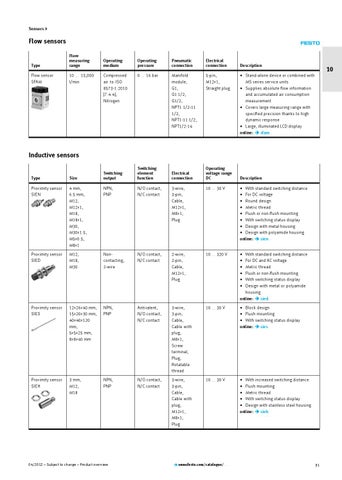

Sensors >
Flow sensors
Type
Flow measuring range
Flow sensor SFAM
10 ... 15,000 l/min
Operating medium
Operating pressure
Pneumatic connection
Electrical connection
Compressed air to ISO 8573-1:2010 [7:4:4], Nitrogen
0 ... 16 bar
Manifold module, G1, G1 1/2, G1/2, NPT1 1/2-11 1/2, NPT1-11 1/2, NPT1/2-14
5-pin, M12x1, Straight plug
Description
10 10
Stand-alone device or combined with MS series service units Supplies absolute flow information and accumulated air consumption measurement Covers large measuring range with specified precision thanks to high dynamic response Large, illuminated LCD display sfam online:
Inductive sensors Switching output
Switching element function
Electrical connection
Operating voltage range DC
Type
Size
Proximity sensor SIEN
4 mm, 6.5 mm, M12, M12x1, M18, M18x1, M30, M30x1.5, M5x0.5, M8x1
NPN, PNP
N/O contact, N/C contact
3-wire, 3-pin, Cable, M12x1, M8x1, Plug
10 ... 30 V
With standard switching distance For DC voltage Round design Metric thread Flush or non-flush mounting With switching status display Design with metal housing Design with polyamide housing sien online:
Proximity sensor SIED
M12, M18, M30
Noncontacting, 2-wire
N/O contact, N/C contact
2-wire, 2-pin, Cable, M12x1, Plug
10 ... 320 V
Proximity sensor SIES
12x26x40 mm, 15x20x30 mm, 40x40x120 mm, 5x5x25 mm, 8x8x40 mm
NPN, PNP
Antivalent, N/O contact, N/C contact
3-wire, 3-pin, Cable, Cable with plug, M8x1, Screw terminal, Plug, Rotatable thread
10 ... 30 V
Block design Flush mounting With switching status display sies online:
Proximity sensor SIEH
3 mm, M12, M18
NPN, PNP
N/O contact, N/C contact
3-wire, 3-pin, Cable, Cable with plug, M12x1, M8x1, Plug
10 ... 30 V
With increased switching distance Flush mounting Metric thread With switching status display Design with stainless steel housing sieh online:
04/2012 Subject to change Product overview
www.festo.com/catalogue/...
Description
With standard switching distance For DC and AC voltage Metric thread Flush or non-flush mounting With switching status display Design with metal or polyamide housing sied online:
91
