Festo product overview 2012 en

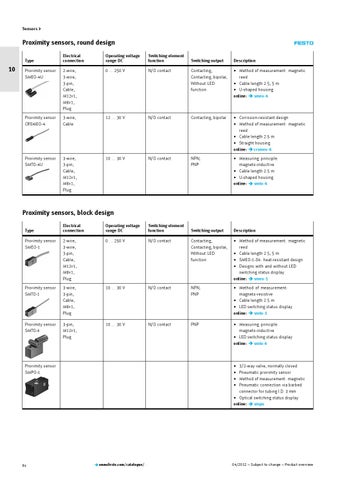

Page 88

Sensors >

Proximity sensors, round design Electrical connection

Operating voltage range DC

Switching element function

Proximity sensor SMEO-4U

2-wire, 3-wire, 3-pin, Cable, M12x1, M8x1, Plug

0 ... 250 V

Proximity sensor CRSMEO-4

3-wire, Cable

Proximity sensor SMTO-4U

3-wire, 3-pin, Cable, M12x1, M8x1, Plug

Type

10 10

Switching output

Description

N/O contact

Contacting, Contacting, bipolar, Without LED function

Method of measurement: magnetic reed Cable length 2.5, 5 m U-shaped housing smeo-4 online:

12 ... 30 V

N/O contact

Contacting, bipolar

Corrosion-resistant design Method of measurement: magnetic reed Cable length 2.5 m Straight housing crsmeo-4 online:

10 ... 30 V

N/O contact

NPN, PNP

Measuring principle: magneto-inductive Cable length 2.5 m U-shaped housing smto-4 online:

Switching output

Description

Proximity sensors, block design Electrical connection

Operating voltage range DC

Switching element function

Proximity sensor SMEO-1

2-wire, 3-wire, 3-pin, Cable, M12x1, M8x1, Plug

0 ... 250 V

N/O contact

Contacting, Contacting, bipolar, Without LED function

Method of measurement: magnetic reed Cable length 2.5, 5 m SMEO-1-S6: heat-resistant design Designs with and without LED switching status display smeo-1 online:

Proximity sensor SMTO-1

3-wire, 3-pin, Cable, M8x1, Plug

10 ... 30 V

N/O contact

NPN, PNP

Method of measurement: magneto-resistive Cable length 2.5 m LED switching status display smto-1 online:

Proximity sensor SMTO-6

3-pin, M12x1, Plug

10 ... 30 V

N/O contact

PNP

Measuring principle: magneto-inductive LED switching status display smto-6 online:

Type

Proximity sensor SMPO-1

86

3/2-way valve, normally closed Pneumatic proximity sensor Method of measurement: magnetic Pneumatic connection via barbed connector for tubing I.D. 3 mm Optical switching status display smpo online:

www.festo.com/catalogue/...

04/2012 Subject to change Product overview
