Pressing in of bushes
Design of the auxiliary ring, dependent on the bush

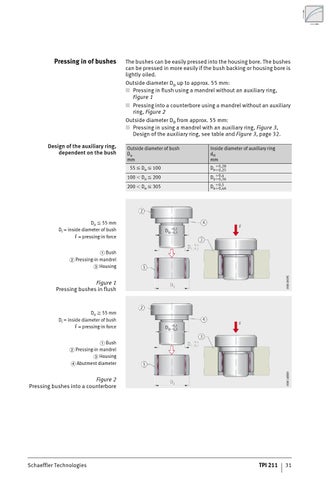

The bushes can be easily pressed into the housing bore. The bushes can be pressed in more easily if the bush backing or housing bore is lightly oiled. Outside diameter Do up to approx. 55 mm: ■ Pressing in flush using a mandrel without an auxiliary ring, Figure 1 ■ Pressing into a counterbore using a mandrel without an auxiliary ring, Figure 2 Outside diameter Do from approx. 55 mm: ■ Pressing in using a mandrel with an auxiliary ring, Figure 3, Design of the auxiliary ring, see table and Figure 3, page 32. Outside diameter of bush Do mm
Inside diameter of auxiliary ring dH mm
55 ⬉ Do ⬉ 100
Do⫹0,28 ⫹0,25
100 ⬍ Do ⬉ 200
Do⫹0,4 ⫹0,36
200 ⬍ Do ⬉ 305
Do⫹0,5 ⫹0,46
Do ⬉ 55 mm Di = inside diameter of bush F = pressing-in force
000180FE
Bush Pressing-in mandrel Housing
Figure 1 Pressing bushes in flush
Do ⭌ 55 mm Di = inside diameter of bush F = pressing-in force
00016BB0
Bush Pressing-in mandrel Housing Abutment diameter
Figure 2 Pressing bushes into a counterbore
